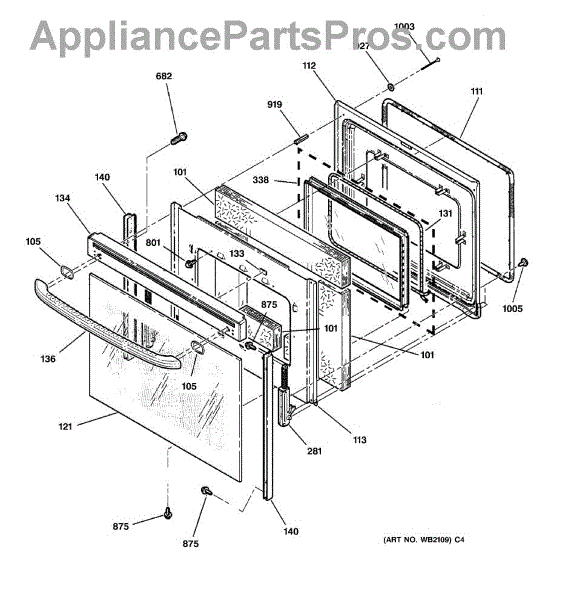

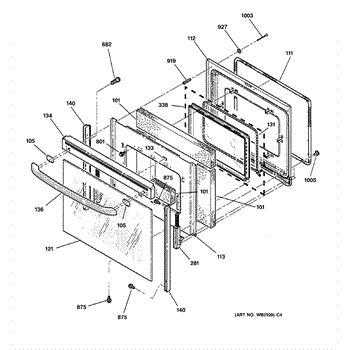

Parts for Ge JB940WB2WW: 04 - Oven Door Parts

This oven door insulation restores the heat barrier inside the door so your oven can reach and maintain temperature while helping keep the exterior cooler. Replace brittle, burned, or grease-soaked insulation to reduce heat loss and odors.

• Provides a thermal barrier between the inner and outer door panels
• Helps the oven reach and hold set temperature by reducing heat transfer through the door
• Common signs it's needed include excessive exterior door heat, lingering odors/smoke from past spills, or visibly deteriorated/missing insulation
• Replacing contaminated insulation can reduce recurring odors during preheat and baking

• Disconnect power at the breaker and allow the appliance to cool completely before servicing
• Remove the oven door per your model's instructions and place it on a padded surface for disassembly
• Wear cut-resistant gloves and eye protection; handle insulation gently to limit airborne fibers
• Note the original orientation and any retainers; install the new insulation the same way without compressing it, then reassemble

The Oven Door Gasket is an OEM part for GE ranges. This seal prevents heat from escaping the oven cavity when baking or broiling. The gasket helps maintain temperatures for more efficient cooking and reliable operation. The gasket measures approximately 84" long.

Causes of a bad gasket can include deterioration over prolonged high-heat use, damage due to abrasion or impact, or warping from moisture exposure over time.

Symptoms of a bad oven door gasket include:

• Excessive heat loss from around the oven door when in use
• Difficulty keeping desired baking temperatures
• Cooler/cold air felt escaping around the door seal
• Visible cracks, splits, or gaps in the gasket seal

This GE replacement part is compatible with Hotpoint, RCA, and some Kenmore models.

The Bottom Trim Channel is an OEM part for GE electric ranges. As an essential cosmetic component, it works to cover and seamlessly conceal the area along the bottom perimeter of the range.

Causes of a faulty trim channel can include damage from impact or abrasion, degradation of material finishes from repeated cleaning, or loose fittings from normal stresses of use over time.

Symptoms include:

• Gaps visible between the channel and appliance bottom
• Scuffs, cracks, or breaks in the trim piece surface
• Loose or improper positioning of channel attachment clips

Color: White

This GE replacement restores a sleek, professional look while protecting internal components from spills and debris ingress. Compatible with Hotpoint, RCA, and select Kenmore models as well, it prevents future repairs from minor aesthetic issues. Keep your range looking its best!


This rubber rangetop bumper cushions and supports the cooktop, reducing vibration and protecting the surface from metal-on-metal contact. It helps restore proper spacing and reduces rattling or chafing from loose or missing bumpers. What it does:

• Cushions the cooktop edge to prevent scratching and wear
• Keeps the cooktop and rangetop components properly spaced and stable
• Reduces rattling, vibration, and noise during use
• Commonly replaced when bumpers are cracked, flattened, missing, or allow movement

• Remove power to the appliance and allow all surfaces to cool before servicing.
• Access may require lifting or removing the cooktop; follow manufacturer instructions for your model.
• Replace with the same style bumper to maintain proper fit and spacing.
• Use care around sharp edges.

A small rubber door bumper that cushions the contact point between the appliance door and cabinet to reduce noise, prevent chipping, and help the door close smoothly. Simple replacement restores quiet operation and protects finishes. What it does:

• Cushions the door edge to stop metal-on-metal or door-on-cabinet contact
• Helps the door sit and close more evenly to reduce misalignment symptoms
• Reduces banging, rattling, and scraping noises when the door closes
• Prevents wear and cosmetic damage at the door contact point

• Inspect the door/cabinet contact area to locate the bumper before replacing
• Most installations press the bumper into a hole or recess; use steady, even pressure to seat it
• If the old bumper is glued or fastened, remove residue and check the mounting method in your parts diagram
• Turn off power to the appliance before working near electrical components or wiring

This is the door pad. Consider replacing both when replacing trim number WB07T10230

Consider replacing both door pads part number WB01T10026

Color: White

The Side Door Trim is an OEM part for GE ovens. This trim piece is designed to fit along the edge of the oven door, providing a finished look and helping to seal the door properly when closed. It contributes to the overall aesthetics of the oven and ensures efficient heat retention during cooking.

Causes of a bad side door trim can include accidental impact, heat damage over time, or general wear and tear from frequent use. A damaged trim can lead to inefficient sealing, affecting the oven’s cooking performance and energy efficiency.

Symptoms of a bad side door trim include:

• Visible cracks or damage on the trim
• The oven door not sealing properly
• Heat escaping from the sides of the oven door
• The oven door appearing misaligned

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement door hinge supports and controls the oven door's movement so it opens smoothly and closes securely against the gasket. Replacing a worn hinge restores proper alignment and sealing to help maintain consistent temperatures and safe operation. What it does:

• Provides the pivot and spring tension for controlled door motion
• Helps the door close fully to maintain a proper seal
• Promotes smooth, balanced opening to prevent slamming or binding
• Common symptoms: door won't close fully, sits uneven, drops open, or feels loose/noisy

• One door hinge

• Disconnect power and allow the appliance to cool completely before servicing
• Remove the door per your model's instructions; support the door and engage hinge locks if equipped
• Replace the hinge using existing mounting hardware; inspect hinge receivers for wear
• Reinstall the door and verify alignment and gasket contact; replacing both hinges together can help maintain even tension

The Oven Door Window Pack Assembly is an OEM part for GE ovens. This assembly includes the glass window and necessary components to ensure a clear view into the oven while maintaining the internal temperature and providing insulation. The glass measures 19" x 12".

Causes of a bad window pack can include thermal stress from repeated heating and cooling cycles, physical impacts causing cracks or breaks, or seal failure leading to fogging or heat loss.

Symptoms of a bad window pack assembly include:

• Visible cracks or chips in the glass
• Fogging or condensation between glass layers
• Heat escaping from the oven door
• Difficulty seeing into the oven during cooking

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

A single mounting screw used to secure panels and components on compatible GE appliances. This genuine-fit fastener keeps parts firmly attached so panels and assemblies stay aligned and function safely. What it does:

• Secures trim, panels, brackets, or small components in place
• Restores loose or rattling panels caused by missing or stripped screws
• Helps maintain proper alignment of service panels and assemblies
• Prevents vibration-related noise from unsecured parts

• Use the correct size screwdriver or bit to avoid stripping the head
• Hand-start threads, then tighten securely but avoid overtightening to prevent damage
• If working near electrical components, disconnect power before servicing
• If a screw was stripped or the mounting hole is damaged, replace with the correct fastener size

ST10-16 X 7/16"

This is a replacement 8-18 x 9/16 machine screw used to secure internal and external appliance components. It restores proper fastening and helps stop rattling or loose panels caused by worn or missing fasteners. What it does

• Secures panels, brackets, or small assemblies to prevent movement and vibration
• Replaces stripped, corroded, or missing screws that can cause rattling or misalignment
• Helps maintain electrical and mechanical connections by holding parts in proper position
• Appropriate where an 8-18 thread size and 9/16" length are required

• Replacement screw

• Disconnect power to the appliance before accessing internal components
• Use the correct driver to avoid stripping the screw head and ensure proper torque
• Do not overtighten; snug until secure to avoid damaging threads or parts

Black. 8-18 AB HXW 3/8

Includes 12 washers.

This 10-32 machine screw secures brackets, panels, and other hardware in cooking appliances. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned and safely fastened. What it does:

• Fastens panels, brackets, and components using a 10-32 machine thread
• Replaces hardware that is missing, rusted, or stripped
• Helps address loose or rattling parts and minor panel misalignment
• Maintains secure mounting after service or part replacement

• One 10-32 machine screw

• Disconnect power; for gas appliances, also shut off gas before service
• Support the panel or bracket while removing/installing hardware
• Start threads by hand to avoid cross-threading; do not overtighten
• Replace them one at a time to keep alignment
