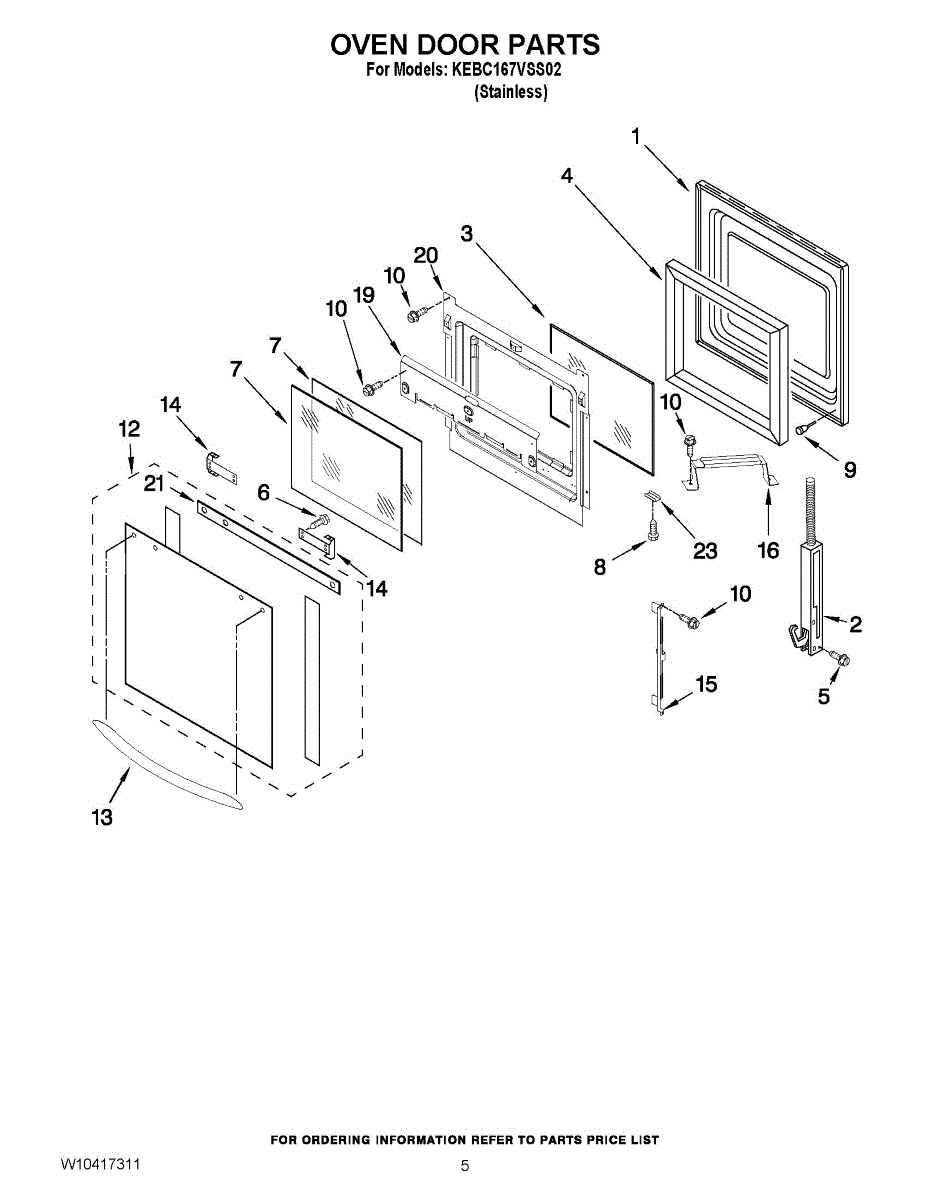

Parts for Kitchenaid KEBC167VSS02: 04 - Oven Door Parts

This oven door hinge restores smooth, controlled door movement and a tight seal. Replace a worn hinge to help your oven close properly, retain heat, and operate safely without slamming, sagging, or uneven gaps.

• Supports and pivots the oven door; spring tension controls opening and closing
• Helps the door sit flush against the gasket to minimize heat loss
• Restores alignment when the door feels loose, sags, or doesn't close evenly
• Resolves symptoms like door slamming, uneven gaps, poor temperature regulation, or extended preheat times

• Disconnect power at the breaker; shut off gas supply if applicable
• Support the door; engage hinge locks and remove the door
• Replace the hinge and securely reinstall using existing fasteners
• Rehang the door, verify latch engagement and seal, and test door movement

Note: This door hinge is for Stainless Door Models.

The Door Hinge is an OEM replacement part for Whirlpool wall ovens. It is located on oven doors and works to support the door for smooth opening and closing motions when removing or checking on food.

Causes of a bad door hinge can include wear of internal bearing surfaces from thousands of door cycles over many years of use. Exposure to heat from inside the oven cavity may also accelerate hinge component deterioration over time.

Symptoms of a bad Door Hinge include:

• Doors that are difficult to open fully or fail to stay securely in position
• Noises and grinding sounds heard while operating doors
• Improper or imbalanced door alignments that cause sealing or binding issues
• Premature wear of adjacent gasket and sealing surfaces

This OEM Whirlpool part is also compatible with Maytag, Jenn-Air and select Kenmore models.

The Rear Oven Door Glass is an OEM part for Whirlpool ovens. This glass panel is installed on the inside of the oven door and is essential for providing a heat-resistant viewing window, allowing users to monitor the cooking process without opening the door. Measuring about 20 inches by 10 inches, this quality glass keeps heat in the oven and provides a clear view for easy baking.

Symptoms of a bad Rear Oven Door Glass include:

• Cracks or chips in the glass,
• Visible streaks or fogging between glass layers that can't be cleaned,
• A loose fit that may cause heat to escape or the glass to rattle during oven use.

Causes of rear oven door glass damage typically include thermal stress from high heat, impact from closing the door too forcefully, or accidental bumps with pots or pans.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This ground screw secures the appliance's grounding wire or strap to the chassis or terminal area, creating a reliable bonding point. Replace a missing or damaged screw to restore a proper ground connection during installation or service.

• Provides the designated bonding point for the grounding wire/strap
• Fastens to the frame or terminal area using 8-32 machine threads
• Helps maintain a consistent ground path for safe operation
• Typical reasons to replace: stripped head/threads, corrosion, or a missing screw

• Disconnect power at the breaker or unplug the appliance before servicing
• Route the ground wire/strap to the specified grounding location
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Ensure the ground connection is secure and complies with local electrical codes before restoring power

A factory screw with 8-32 machine threads used to secure brackets, panels, and internal components where specified. Restores a solid, factory fit when the original fastener is missing, stripped, or corroded. What it does:

• Provides the specified 8-32 machine-thread fastening for OEM components
• Helps prevent looseness, vibration, or rattling from a missing/damaged screw
• Replaces screws with worn heads or stripped threads to enable proper tightening
• Supports correct reassembly during part replacement or service

• 1 screw

• Disconnect power; shut off water and/or gas before servicing
• Match the new screw to the original for thread and length before installing
• Start threads by hand to avoid cross-threading; tighten until snug
• Do not overtighten into plastic or thin metal; replace damaged inserts/clips if found

• Thread size: 8-32 (machine)

The Oven Door Glass is an OEM part for Whirlpool ovens. This part is integral to the oven door, allowing users to view the interior of the oven without opening the door, thereby maintaining consistent oven temperatures and energy efficiency. The glass is engineered to withstand high temperatures, resisting cracking and breaking under the thermal stresses of regular oven use.

Causes of a bad Oven Door Glass can include thermal stress from high temperatures, impact damage from accidental knocks or items being dropped on the door, and wear and tear over time.

Symptoms of a bad Oven Door Glass include:

• Visible cracks or chips in the glass
• A shattered or broken glass panel
• Difficulty in maintaining oven temperatures due to compromised insulation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Screw for side trim.

This rubber door bumper cushions and aligns the appliance door to prevent slamming and reduce vibration, helping doors close smoothly and protecting cabinet and door finishes from wear. What it does:

• Acts as a cushion between the door and cabinet, absorbing impact during closing
• Helps keep the door aligned and reduces rattling or vibration during use
• Prevents metal-to-metal contact that can cause chipping, scratching, or noise
• Commonly replaced when worn, flattened, cracked, or missing

• One rubber door bumper

• Remove power to the appliance before accessing the door area or hinges
• Usually presses into a hole or snaps into a mount on the door or cabinet; no special tools required for many models
• Inspect surrounding mounting boss for damage; replace if cracked or deformed

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This is the left side handle bracket. For right side use 4455803.

This is the right side handle bracket. For left side use 4455804.
