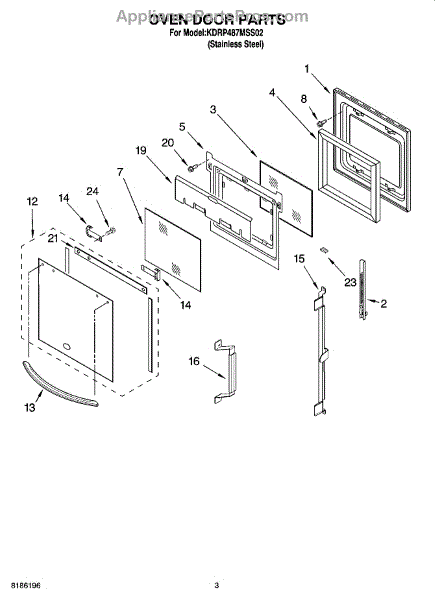

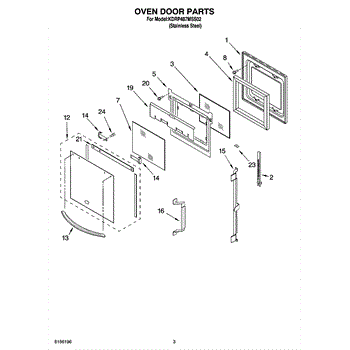

Parts for Kitchenaid KDRP487MSS02: 02 - Oven Door Parts

Parts for Kitchenaid KDRP487MSS02: 02 - Oven Door Parts

Location on Diagram
Part Description
Price & Availability
1
By: Whirlpool
Part Number: WP8303698

Restores the interior surface of your oven door, protecting insulation and ensuring proper sealing. Replace when cracked, dented, or heat-damaged. Verify fit with your model number.

More
$202.76

IN STOCK
Ships Today Guaranteed
Add to Cart
2
Product photo
4.8 (6)
By: Whirlpool
Part Number: WP9760571

Replacement right-hand oven door hinge that provides the pivot point and spring tension for smooth opening and closing. Install when bent or worn.

More
$62.61

IN STOCK
Ships Today Guaranteed
Add to Cart
2
Product photo
5.0 (5)
By: Whirlpool
Part Number: WP9760572

Replace your oven's left-hand door hinge to restore smooth opening and a proper seal. Fixes doors that won't close, sag, or have weak springs. Confirm fit.

More
$60.52

IN STOCK
Ships Today Guaranteed
Add to Cart
3
Product photo
By: Whirlpool
Part Number: 4449251
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

4
By: Whirlpool
Part Number: W11688413

Replaces worn, torn, or deteriorated oven cavity insulation. Restores the thermal barrier to contain heat and protect surrounding panels from damage.

More
$15.61

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
5
By: Whirlpool
Part Number: 4457130

Oven panel retainer secures interior or door panels in place. Replace if broken, cracked, or missing to restore proper panel alignment and fit.

More
$62.48

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
7
Best Seller
Product photo
4.9 (23)
By: Whirlpool
Part Number: WP4449247

Replacement inner glass for oven doors. Installs as the interior viewing window. Needed when glass is cracked, broken, or shattered. Fits within door frame.

More
$82.39

IN STOCK
Ships Today Guaranteed
Add to Cart
8
Product photo
5.0 (4)
By: Whirlpool
Part Number: WP4449743

This ground screw secures the appliance's grounding wire or strap to the chassis or terminal area, creating a reliable bonding point. Replace a missing or damaged screw to restore a proper ground connection during installation or service.

  • Provides the designated bonding point for the grounding wire/strap
  • Fastens to the frame or terminal area using 8-32 machine threads
  • Helps maintain a consistent ground path for safe operation
  • Typical reasons to replace: stripped head/threads, corrosion, or a missing screw
What's included: 1 ground screw Install notes:
  • Disconnect power at the breaker or unplug the appliance before servicing
  • Route the ground wire/strap to the specified grounding location
  • Start threads by hand to avoid cross-threading; tighten snugly without overtightening
  • Ensure the ground connection is secure and complies with local electrical codes before restoring power

More
$7.56

IN STOCK
Ships Today Guaranteed
Add to Cart
12
Product photo
By: Whirlpool
Part Number: W10401220
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

13
Product photo
By: Whirlpool
Part Number: 9760537
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

14
Product photo
By: Whirlpool
Part Number: 4455804

This is the left side handle bracket. For right side use 4455803.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

14
Product photo
By: Whirlpool
Part Number: 4455803

Right side handle bracket for oven doors. Secures the door handle to the frame. Replace if cracked, broken, or missing. Stainless steel construction.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

14
Best Seller
Product photo
4.9 (11)
By: Whirlpool
Part Number: WP3400832

Mounting screw for securing trim, hinges, drawer guides, and interior components. Replace if missing, stripped, or broken during repair or maintenance.

More
$7.56

IN STOCK
Ships Today Guaranteed
Add to Cart
15
Product photo
By: Whirlpool
Part Number: WP9759229

Mounting bracket for wall ovens. Secures the oven to the cabinet cutout. Replace if bent, rusted, or damaged during installation or service work.

More
$79.60

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
16
By: Whirlpool
Part Number: 8302094
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

19
By: Whirlpool
Part Number: 4450360
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

20
Product photo
5.0 (5)
By: Whirlpool
Part Number: WP4449809

Replacement mounting screw for securing panels, brackets, covers, and trim pieces in appliances. Restores fit when hardware is missing, stripped, or lost.

More
$7.94

IN STOCK
Ships Today Guaranteed
Add to Cart
21
By: Whirlpool
Part Number: 8300853
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

23
Product photo
5.0 (1)
By: Whirlpool
Part Number: WPW10158497
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

23
Best Seller
Product photo
4.9 (11)
By: Whirlpool
Part Number: WP3400832

Mounting screw for securing trim, hinges, drawer guides, and interior components. Replace if missing, stripped, or broken during repair or maintenance.

More
$7.56

IN STOCK
Ships Today Guaranteed
Add to Cart
24
Product photo
By: Whirlpool
Part Number: WPW10132940

A factory screw with 8-32 machine threads used to secure brackets, panels, and internal components where specified. Restores a solid, factory fit when the original fastener is missing, stripped, or corroded. What it does:

  • Provides the specified 8-32 machine-thread fastening for OEM components
  • Helps prevent looseness, vibration, or rattling from a missing/damaged screw
  • Replaces screws with worn heads or stripped threads to enable proper tightening
  • Supports correct reassembly during part replacement or service
What's included:
  • 1 screw
Install notes:
  • Disconnect power; shut off water and/or gas before servicing
  • Match the new screw to the original for thread and length before installing
  • Start threads by hand to avoid cross-threading; tighten until snug
  • Do not overtighten into plastic or thin metal; replace damaged inserts/clips if found
Specs:
  • Thread size: 8-32 (machine)

More
$9.44

IN STOCK
Ships Today Guaranteed
Add to Cart
