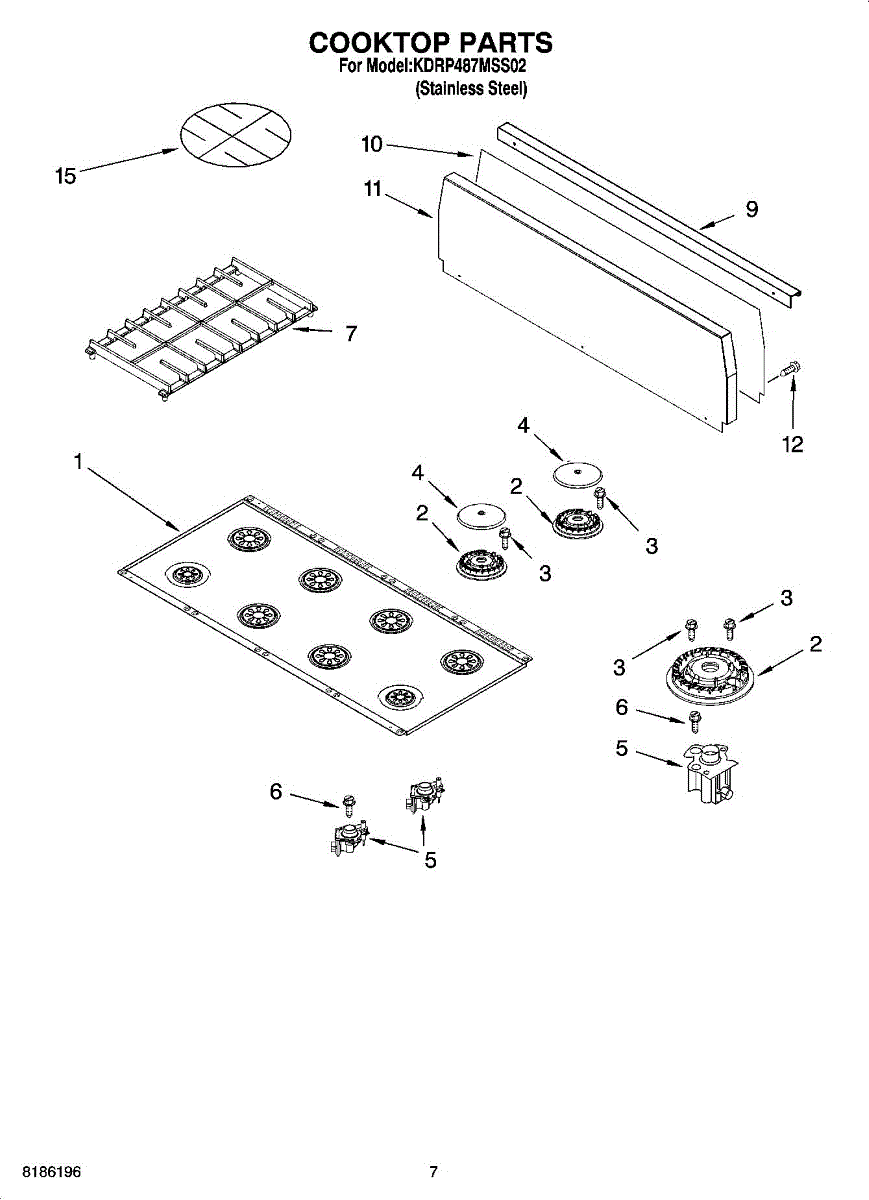

Parts for Kitchenaid KDRP487MSS02: 06 - Cooktop Parts

Location: Left front. 14,000 BTU.

The Burner Head is an OEM replacement part for Whirlpool gas ranges. This is the smaller burner head and it distributes gas evenly through the ports to produce a focused and consistent flame for temperature control during cooking.

Size: Small

Due to spills, grease buildup, corrosion, or wear and tear, the small burner head can deteriorate, clogging its ports and affecting gas distribution. When this occurs, the burner head may struggle to maintain a steady flame, impacting cooking performance.

Symptoms of a faulty Small Burner Head include:

• Uneven or low flames on the small burner
• Difficulty igniting the burner
• Clogged ports or visible rust/corrosion

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Torx Screw is an OEM replacement part for Whirlpool brand appliances. The Torx Screw is responsible for providing secure and stable connections between different components of washing machines, dryers, dishwashers, and more. These screws are characterized by their star-shaped drive design, which offers better torque transfer and reduces the risk of stripping or cam-out. Sold individually. 7-18 x 3/4"

Causes of a bad Torx screw can include stripping of the screw head, rust or corrosion from prolonged exposure to moisture, or damage from over-tightening or cross-threading. A compromised screw can lead to loose or insecure parts, which can affect the performance and safety of the appliance.

Symptoms of a bad Torx screw include:

• The screw head being stripped and difficult to turn
• Rust or corrosion visible on the screw
• The screw not holding components securely
• Loose or rattling parts within the appliance

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Color: Coal matte black. 14,000 BTU.

6,000 BTU. Color: Coal matte black. Measures about 2 inches in diameter.

Includes ignitor and orifice. Size: Small. To order ignitor separately use WP9782116.

This hex-head sheet metal screw secures appliance panels, brackets, and trim for a tight, rattle-free fit. Replace missing or stripped fasteners to keep covers and components firmly in place and restore proper alignment.

• Fastens sheet-metal parts, brackets, and trim using a hex drive
• Replaces worn, rusted, missing, or stripped screws
• Helps reduce vibration and rattling from loose panels
• Common signs you need this fastener: head or threads stripped, screw won't tighten, panel or handle coming loose

• Unplug the appliance before service; turn off water supply if working near water lines
• Use the correct nut driver or socket to avoid rounding the head
• Replace one fastener at a time to maintain alignment; do not overtighten
• Match screw type/length to the original location as specified by the manufacturer

This orifice holder channels gas from the valve to the burner on your gas range or cooktop, aligning the orifice for a stable flame. Replace a damaged holder to restore reliable ignition and consistent burner performance.

• Routes gas from the valve to the burner through the orifice
• Positions and supports the burner base for proper flame pattern
• Maintains alignment of components for consistent ignition
• Typical symptoms: burner won't ignite, delayed ignition, weak or uneven flame, visible cracks or stripped threads on the holder

• Shut off gas supply and disconnect power before servicing
• Remove grates, caps, and burner head to access the holder
• Transfer the existing orifice spud and any seals to the new holder; ensure connections are snug and correctly aligned
• After reassembly, restore gas and check all connections for leaks per manufacturer instructions

This ground screw secures the appliance grounding conductor to the chassis for a reliable electrical ground connection, helping maintain safety and proper operation. It's a direct-fit fastener used where a dedicated ground screw is required. What it does

• Fastens the grounding conductor to the appliance frame to maintain a secure earth/ground connection.
• Helps prevent electrical shock and reduces risk of stray voltage on the chassis.
• Addresses symptoms like intermittent or absent grounding and loose or corroded ground connections.
• Used wherever the original equipment grounding screw has been lost, damaged, or corroded.

• Disconnect power at the breaker and unplug the appliance before starting any work.
• Only attach to designated grounding points on the chassis; ensure the mating surface is clean and free of paint or corrosion.
• Use the correct driver and moderate hand torque—do not overtighten to avoid stripping threads.

Color: Black.

This factory fastener secures appliance panels, brackets, and internal components so everything stays aligned and quiet. Replacing a missing or damaged screw restores a tight fit and helps reduce vibration, rattles, and wear.

• Fastens metal or plastic parts to the cabinet/frame
• Maintains alignment of covers, ducts, housings, and brackets
• Replace if the head is stripped, threads are worn, or hardware is missing
• Symptoms can include loose or misaligned panels, rattling/vibration noises, or parts that won't stay secured

• Disconnect power and shut off gas/water before service.
• Match the screw to the original location and reuse existing holes/mounts.
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening.
• Use the correct driver bit to prevent stripping the head.
