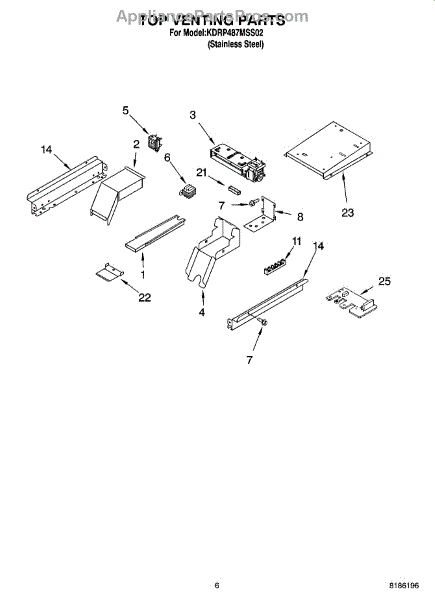

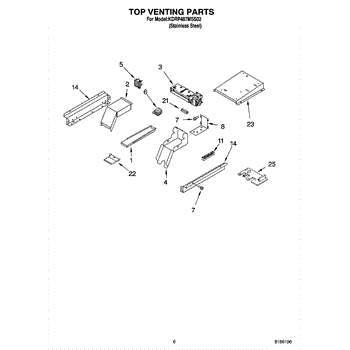

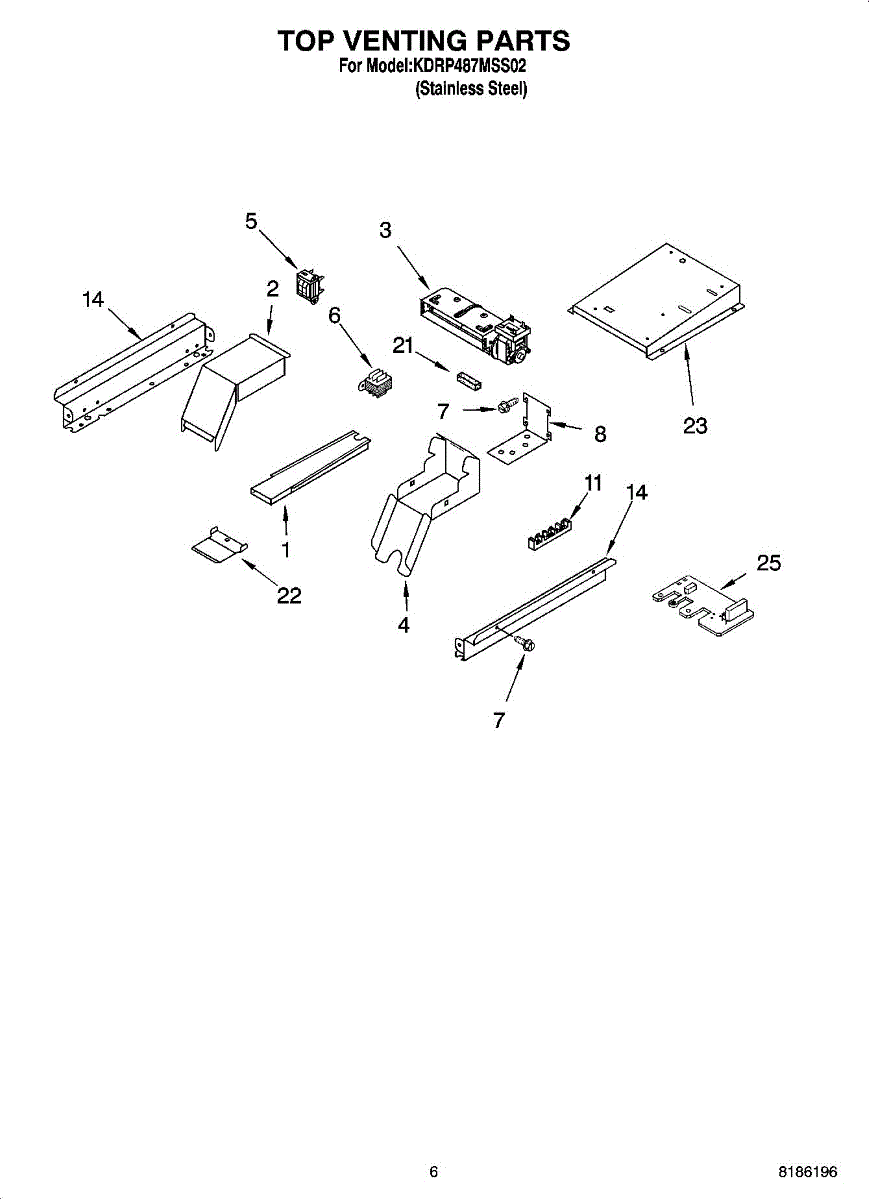

Parts for Kitchenaid KDRP487MSS02: 05 - Top Venting Parts

Channels exhaust fumes and hot air out of your oven. Replace this vent housing if cracked, damaged, or rattling to restore proper ventilation and airflow.

Elbow vent for wall ovens and ranges. Directs airflow through the exhaust system. Replace if cracked, broken, or missing to restore proper ventilation.

This blower moves air through your appliance to maintain proper cooling and ventilation. Replacing a worn or noisy blower restores airflow and helps protect internal components so the unit operates as designed. What it does

• Drives airflow through ducts or cooling channels to manage heat inside the appliance
• Helps expel heat and moisture or circulate cooling air, depending on the design
• Common symptoms of failure: fan won't run, weak/no airflow, loud rattling or squealing, burning smell, overheating or shutdown, or cooling/vent-related error messages

• Includes 1 blower

• Disconnect power before servicing; allow hot surfaces to cool
• Metal edges can be sharp—wear cut-resistant gloves and eye protection
• Note wire connections and mounting orientation; transfer any brackets or seals from the original unit if required
• After installation, confirm unobstructed airflow and correct blower orientation before fully reassembly and testing

Replacement mounting screw for securing panels, brackets, covers, and trim pieces in appliances. Restores fit when hardware is missing, stripped, or lost.

Oven light won't turn on? This light transformer steps down voltage to power your oven cavity lights. Moderate DIY repair restores illumination.

This replacement transformer steps down household 120VAC, 60Hz power to the low voltage used by the appliance's electronic control. Replacing a failed transformer can restore power to the display/clock and control circuits so cooking functions respond properly. What it does:

• Converts 120VAC line power to low-voltage for the control board/clock and related circuits
• Helps provide stable power to the display and control relays
• Helps resolve: blank or intermittent display, unresponsive controls, oven not starting, or visible heat damage to the original transformer

• One transformer

• Disconnect power at the breaker before servicing; verify no voltage is present
• Note and label all wire positions or take photos before removal; transfer connections one-for-one
• Mount securely and route leads away from sharp edges and hot surfaces
• Inspect wiring and the control board for shorts before restoring power

Replacement mounting screw for securing panels, brackets, covers, and trim pieces in appliances. Restores fit when hardware is missing, stripped, or lost.

If your range has a strong burning smell or won't power on, the terminal block may be heat-damaged. This insulated connector restores safe power flow.

This foam seal fits between mating parts to create a tight barrier that helps prevent leaks and rattling. Replacing a worn or missing seal restores proper sealing and helps keep your appliance running quietly. What it does:

• Creates a compliant gasket between components to limit air or moisture passage
• Helps dampen vibration and reduce rattling/buzzing where parts meet
• Helps maintain proper airflow or fluid routing as designed
• Typical symptoms include leaks, condensation/frost near a joint, or new vibration noises

• One foam seal

• Disconnect power; turn off the water supply before service
• Note the original seal's routing/orientation before removal
• Clean and dry all mating surfaces; remove old foam and residue
• Install without stretching or over-compressing; ensure even contact with no gaps

If your oven control flickers or resets randomly, the transient suppressor may have failed. This part protects the control board from power surges.

The Screw is an OEM replacement part for Whirlpool ranges. This screw is used to secure various components of the range, ensuring that parts such as panels, brackets, or burners remain firmly in place during operation. It is designed to withstand the high-heat environment of a range, providing long-lasting durability.

Symptoms of a bad or missing Screw include:

• Loose or misaligned range components
• Rattling or unusual noises during operation
• Difficulty maintaining the range's structural stability

Causes of a failing or missing screw can include normal wear over time, accidental loss during maintenance or repairs, or damage from overtightening. Replacing faulty screws ensures the appliance remains safe and functional.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
