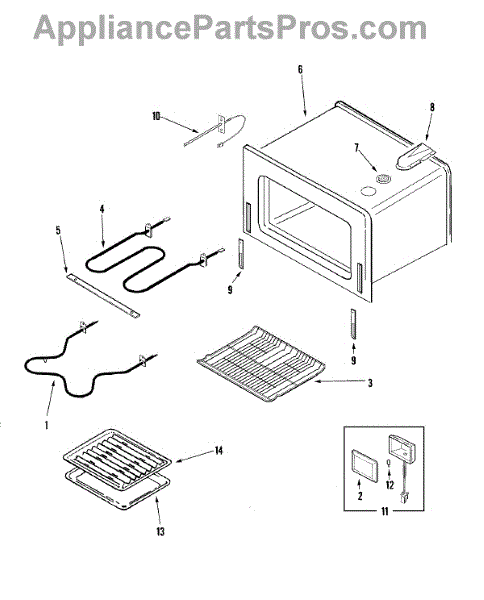

Parts for Jenn-Air JJW7530DDS: 04 - Oven Parts

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This lens cover protects and diffuses the appliance light, keeping grease and heat away from the bulb and socket for clear, even illumination. Replace a cracked, missing, or cloudy lens to restore visibility and safe operation.

• Shields the light bulb and socket from splatter, moisture, and debris
• Diffuses light for clearer visibility of the work/cooking area
• Helps maintain a heat barrier around the lamp
• Common symptoms: lens is cracked/broken, discolored/cloudy, missing, or won't stay secured

• Disconnect power and allow the appliance to cool completely before servicing
• Wear gloves; remove the old lens by unthreading, releasing the retainer, or unclipping (varies by model)
• Clean the seating area; align tabs or threads and seat the new lens securely
• Do not overtighten; verify the light operates and the lens is fully secured

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Color: chrome. It measures about 21 inches wide by 17 inches deep.

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This oven temperature sensor monitors heat inside the oven and sends that signal to the control to regulate the heating elements. Replacing a faulty sensor restores accurate preheat and steadier baking performance. What it does:

• Continuously measures actual oven-cavity temperature and reports it to the control
• Lets the control board cycle bake and broil elements to maintain the set temperature
• Common symptoms of failure: won't reach set temperature, runs too hot or too cold, extended preheat, or sensor-related error codes on the display
• If the sensor reads open/shorted, many controls will disable heat as a safety

• 1 oven temperature sensor

• Disconnect power at the breaker; allow the oven to cool completely
• Sensor is typically mounted to the rear oven wall; remove mounting screws and gently pull the sensor forward to access the connector (some models require rear-panel access)
• Disconnect the 2-wire plug carefully to avoid losing the connector into the insulation
• Route wiring as original, seat the connector fully, secure the sensor, restore power, and test operation

Note: For bulb only, order part# W10886919.

Note: For bulb only, order part# WP74009925.

The Halogen Bulb is an OEM part for Whirlpool ovens. This bulb provides the necessary illumination inside the oven, allowing you to monitor the cooking progress without opening the door. It is designed to withstand high temperatures and offers bright, reliable lighting for optimal visibility.

Common causes of a bad halogen bulb include regular wear and tear, electrical issues, and exposure to high heat over time.

Symptoms of a bad halogen bulb include:

• The oven interior remaining dark when the light is switched on
• Flickering or dim lighting inside the oven
• The bulb appearing burnt or broken

This OEM part is also compatible with some Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
