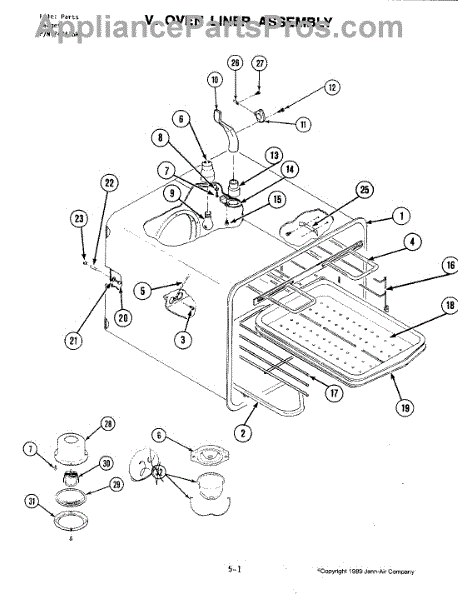

Parts for Jenn-Air S120-C: 08 - Oven Parts

The Bake Element is an OEM part for Whirlpool ranges. This part provides the necessary heat for baking by converting electrical energy into heat within the oven cavity.

Causes of a bad bake element can include electrical issues such as short circuits, physical damage from impacts or spills, or general wear and tear over time.

Symptoms of a bad Bake Element include:

• The oven not heating up
• Uneven baking results
• Visible damage or burn marks on the element
• The element not glowing red when in use

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This 10-32 machine screw secures panels, brackets, and internal assemblies in your appliance. Replacing missing or stripped hardware restores a tight, rattle-free fit and helps keep components properly aligned.

• Provides a threaded fastener for metal-to-metal connections
• Helps maintain correct alignment of panels, brackets, and housings
• Replaces missing, rusted, or stripped screws
• Symptoms include loose or vibrating panels, gaps/misalignment, or hardware that won't tighten

• Disconnect power (and shut off gas/water, if applicable) before servicing
• Match the 10-32 thread and length to the original screw for the location
• Start by hand to avoid cross-threading; tighten snugly without over-torquing
• Retain and reinstall any original clips, spacers, or washers used in your model

This upper oven broil element delivers direct, intense heat for broiling and top-browning. Replace a failed element to restore fast, even broiling performance and consistent top heat in your electric range or wall oven.

• Provides high radiant heat from the top of the oven during Broil for searing and browning
• May cycle on for top-browning during Bake (on some models)
• Typical failure symptoms: no broil heat or slow, uneven top browning
• Replace if the element is cracked, blistered, pitted, or sparks/arcs when energized

• Unplug the appliance or switch off power at the breaker before servicing
• Remove oven racks; unfasten the element's mounting screws/clips and gently pull the element forward
• Transfer wires one at a time and support them so they don't slip back through the oven liner
• Avoid bending the new element; secure brackets/screws, restore power, and test broil

This part has been discontinued by the manufacturer and is no longer available.

Color: Stainless steel

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

This screw-and-washer fastener is a factory-size 8-18 x 5/16 hardware piece used to secure appliance panels and components. Replace stripped, rusty, or missing hardware to restore a tight, rattle-free fit and proper alignment. What it does:

• Fastens sheet-metal panels, brackets, and small components in the appliance cabinet
• Replaces lost, stripped, or corroded screws to maintain secure mounting
• Helps reduce vibration, buzzing, or rattling from loose parts
• Useful when the original hardware is missing or no longer holds securely

• Includes 1 screw-and-washer fastener (8-18 x 5/16)

• Disconnect power; shut off gas and water supplies if applicable
• Match the fastener to the original location; sizes can vary by application
• Start threads by hand to avoid cross-threading; use an appropriately sized driver
• Tighten snugly without overtightening to prevent stripping sheet metal

Color: Stainless steel

This part has been discontinued by the manufacturer and is no longer available.

The Broil Pan Set is an OEM part for Whirlpool ovens. This set includes a broil pan and an insert, designed to catch drippings and ensure even heat distribution during broiling, allowing for perfectly cooked and crisp results.

Causes of a bad broil pan set can include prolonged exposure to high temperatures, which may lead to warping or distortion of the pan. Additionally, frequent use without proper cleaning can result in rusting, chipping, or buildup of residues that compromise the pan's functionality and safety.

Symptoms of a bad broil pan set include:

• Warping or bending of the pan
• Presence of rust or corrosion
• Surface chipping or flaking
• Difficulty in achieving even cooking results

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Broil Pan Set is an OEM part for Whirlpool ovens. This set includes a broil pan and an insert, designed to catch drippings and ensure even heat distribution during broiling, allowing for perfectly cooked and crisp results.

Causes of a bad broil pan set can include prolonged exposure to high temperatures, which may lead to warping or distortion of the pan. Additionally, frequent use without proper cleaning can result in rusting, chipping, or buildup of residues that compromise the pan's functionality and safety.

Symptoms of a bad broil pan set include:

• Warping or bending of the pan
• Presence of rust or corrosion
• Surface chipping or flaking
• Difficulty in achieving even cooking results

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This heating element warms the wash and rinse water and helps dry dishes at the end of the cycle. Replacing a failed element restores proper temperatures, cleaning performance, and drying so cycles finish as expected.

• Heats water to target temperature during wash and rinse phases
• Aids in drying by radiating heat into the tub at cycle end
• Controlled by the dishwasher's electronics to maintain proper heat
• Common symptoms of failure: water stays cool, poor drying, extended cycle times, or a visibly broken/burned element

• Disconnect power at the breaker and allow the dishwasher to cool before servicing
• Access is typically from inside the tub and/or beneath the unit after removing the toe panel
• Note wire positions, disconnect leads, remove retaining hardware, and carefully extract/install the element without bending it
• Ensure seals are correctly seated and tightened evenly; run a short cycle to check for leaks and heat

This part has been discontinued by the manufacturer and is no longer available.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This part has been discontinued by the manufacturer and is no longer available.
