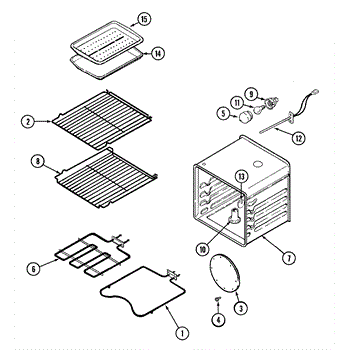

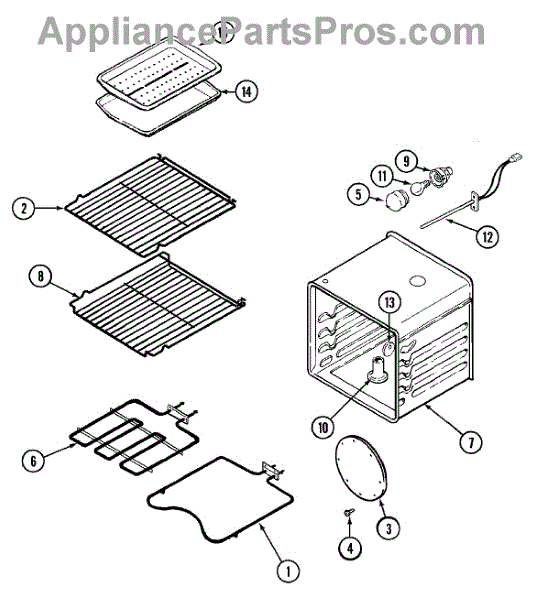

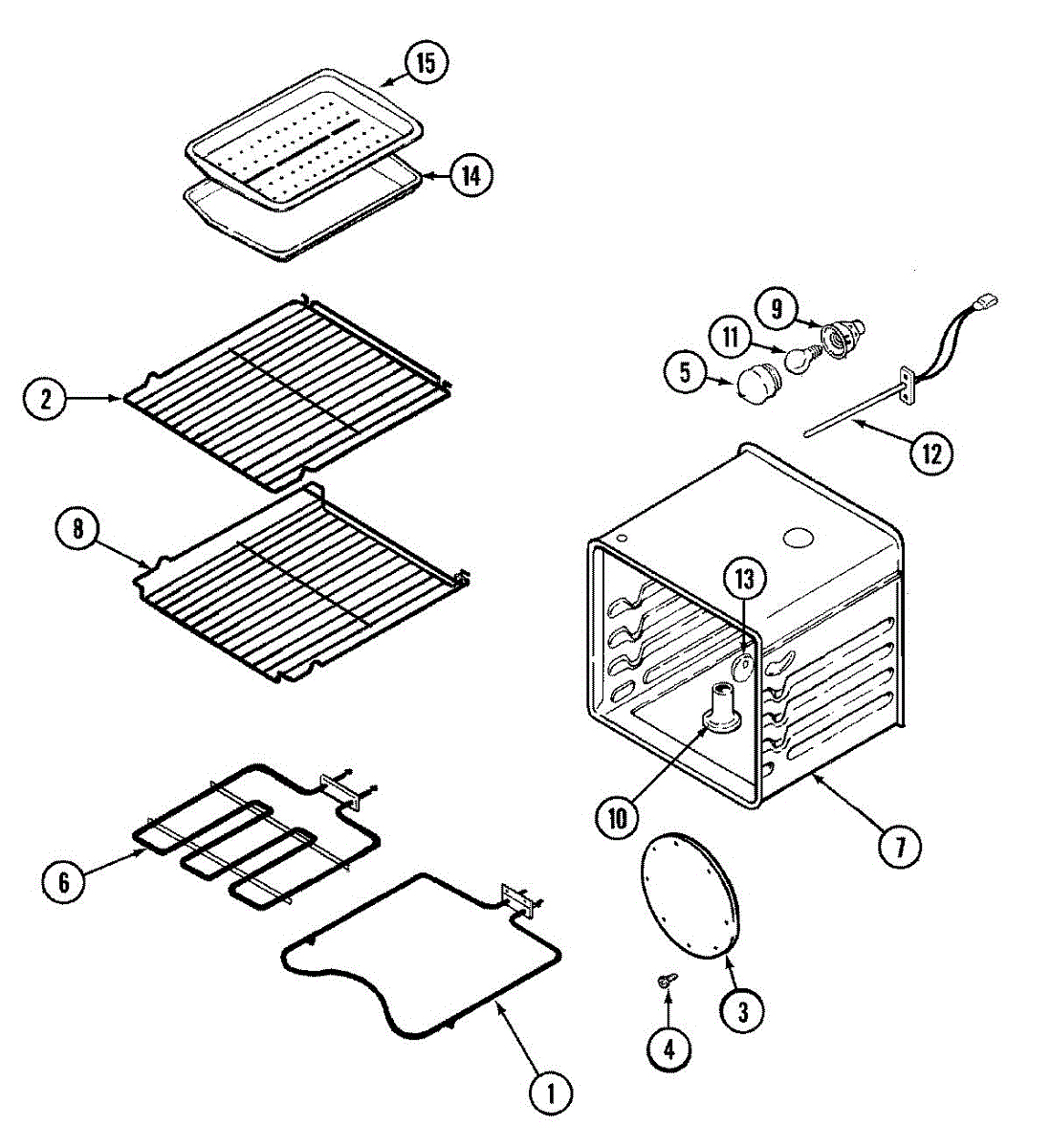

Parts for Jenn-Air W27100B: 05 - Oven Parts

Restore dependable oven performance with this lower bake element. It replaces a burned-out element so your electric oven can heat from the bottom, reach set temperatures, and bake or roast more evenly. What it does:

• Supplies primary heat from the bottom of the oven during Bake cycles
• Helps the oven preheat and maintain target temperature
• Common failure symptoms: no heat in Bake, slow preheat, uneven baking, or visible blisters/cracks in the element
• Use to replace elements that are open, shorted, or visibly damaged

• 1 bake element

• Disconnect power at the breaker before servicing; allow the oven to cool completely
• Remove racks; unfasten the element's mounting screws from the rear wall
• Gently pull the element forward; support and disconnect the two wire terminals so they don't retract into the cavity
• Attach wires to the new element, secure mounting screws, reassemble, and restore power to test

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.

Color: clear. Measures about 3 inches in diameter.

This broil element is the oven's upper heating element. It delivers intense top heat for broiling and finishing, restoring proper broiler performance when the original element is open, warped, or visibly damaged.

• Provides upper radiant heat during broil and top-browning cycles
• Typical symptoms: broiler won't heat or glow; food won't brown on top; uneven broiling
• Replace if the element is cracked, blistered, pitted, or broken
• Restores consistent top heat and broiler function

• Disconnect power at the breaker before servicing; allow the oven to cool
• Remove oven racks; take out mounting screws and gently pull the element forward
• Transfer the two wire leads one at a time; support wires so they don't slip back into the cavity; ensure snug connections
• Reinstall hardware, restore power, and test the broil cycle

The Oven Light Assembly is an OEM part for Whirlpool ranges. This part lights up the interior of the oven, allowing you to monitor the cooking process without opening the oven door.

Over time, the oven light assembly can fail due to normal wear and tear, exposure to extreme heat, or electrical issues.

Symptoms of a bad oven light assembly include:

• The light not turning on when the oven door is opened or when the light switch is activated
• Flickering or dim lighting inside the oven
• A broken or missing protective cover

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Oven Temperature Sensor Kit is an OEM part for Whirlpool ovens. This sensor is essential for monitoring the oven's internal temperature, ensuring that it reaches and maintains the correct temperature for baking and cooking. The sensor is approximately 7 inches long.

Over time, the oven temperature sensor can fail due to repeated heating and cooling cycles, exposure to spills or grease, or electrical issues. When the sensor malfunctions, it can result in inaccurate temperature readings, affecting cooking performance and food quality.

Symptoms of a bad oven temperature sensor include:

• The oven not reaching the set temperature
• Food cooking unevenly or not fully
• The oven overheating or underheating
• Error codes related to temperature issues

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
