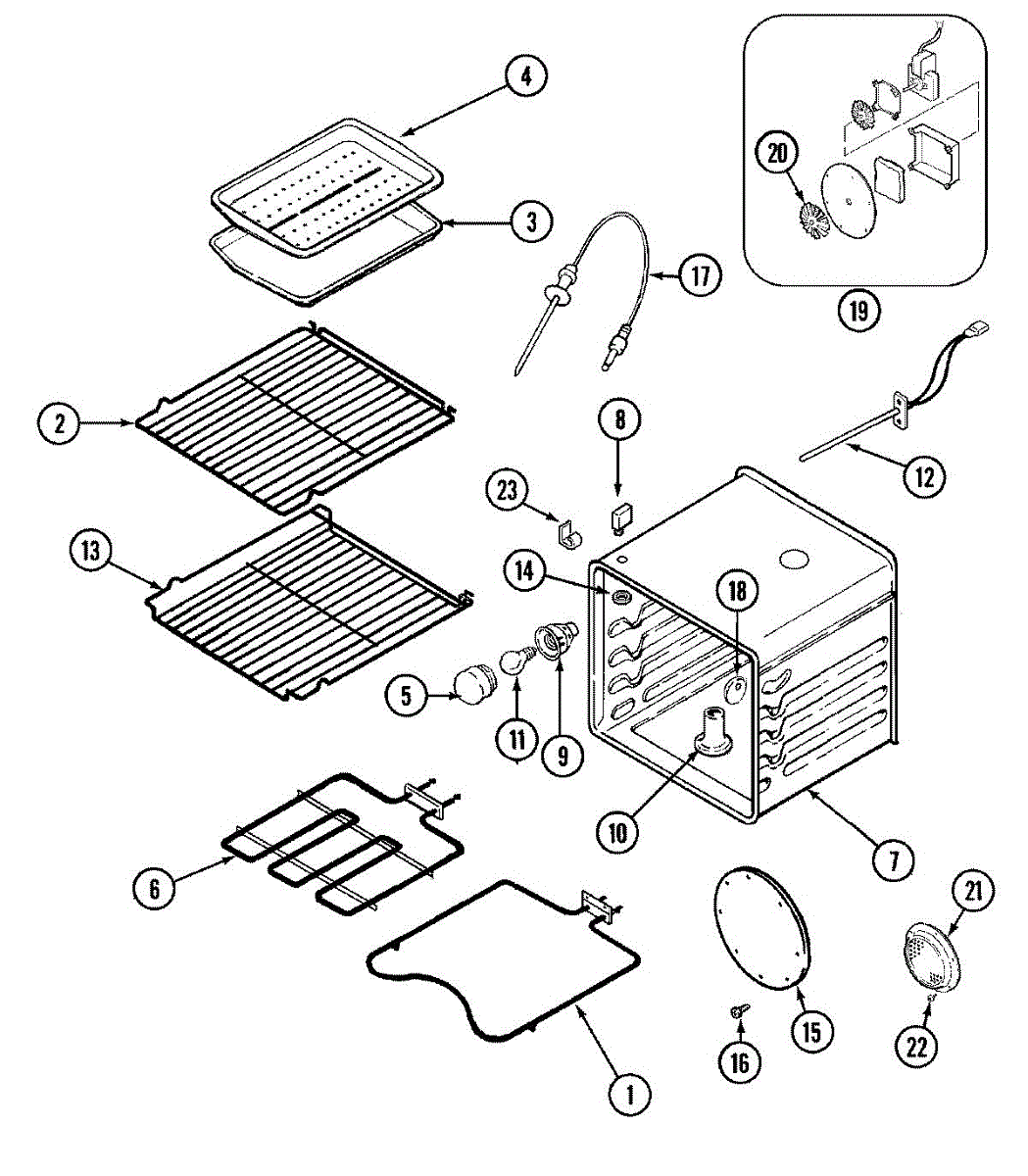

Parts for Jenn-Air WW30430PC: 05 - Oven Parts

The Bake Element is an OEM replacement part for Whirlpool ranges. It is an electric heating coil located at the bottom of the oven cavity that provides essential heat energy for baking and cooking functions. When engaged, the bake element distributes steady, even warmth from below food items.

Causes of a bad bake element may include deterioration and cracking of protective coatings after extended use. It can also incur damage from cleaning products or contact with other oven surfaces over time.

Symptoms of a bad bake element include:

• Slow, uneven heating of the oven cavity
• Foods not baking or cooking thoroughly
• The oven not reaching or maintaining proper temperatures
• Scorching on the bottom of baked goods

This OEM replacement is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This straight oven rack restores a flat, sturdy surface for cookware inside your oven. Replace a bent, worn, or missing rack to keep pans level and allow smooth, safe loading and unloading at different positions.

• Provides level support for bakeware at multiple rack positions
• Slides on the oven's side rails for easier access to dishes
• Replaces racks that are bent, warped, corroded, or missing
• Helpful when cookware feels unstable or the rack is hard to move

• Allow the oven to cool completely; wear gloves to protect hands
• Pull the old rack straight out; align the new rack with the side rails and slide it fully to the back
• Ensure correct orientation and that the rack is fully seated in the side supports before use
• Refer to your model's user manual for recommended rack positions and any self-cleaning preparation

The Broil Pan Set is an OEM part for Whirlpool ovens. This set includes a broil pan and an insert, designed to catch drippings and ensure even heat distribution during broiling, allowing for perfectly cooked and crisp results.

Causes of a bad broil pan set can include prolonged exposure to high temperatures, which may lead to warping or distortion of the pan. Additionally, frequent use without proper cleaning can result in rusting, chipping, or buildup of residues that compromise the pan's functionality and safety.

Symptoms of a bad broil pan set include:

• Warping or bending of the pan
• Presence of rust or corrosion
• Surface chipping or flaking
• Difficulty in achieving even cooking results

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: clear. Measures about 3 inches in diameter.

This broil element is the oven's upper heating element. It delivers intense top heat for broiling and finishing, restoring proper broiler performance when the original element is open, warped, or visibly damaged.

• Provides upper radiant heat during broil and top-browning cycles
• Typical symptoms: broiler won't heat or glow; food won't brown on top; uneven broiling
• Replace if the element is cracked, blistered, pitted, or broken
• Restores consistent top heat and broiler function

• Disconnect power at the breaker before servicing; allow the oven to cool
• Remove oven racks; take out mounting screws and gently pull the element forward
• Transfer the two wire leads one at a time; support wires so they don't slip back into the cavity; ensure snug connections
• Reinstall hardware, restore power, and test the broil cycle

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.

The Oven Light Assembly is an OEM part for Whirlpool ranges. This part lights up the interior of the oven, allowing you to monitor the cooking process without opening the oven door.

Over time, the oven light assembly can fail due to normal wear and tear, exposure to extreme heat, or electrical issues.

Symptoms of a bad oven light assembly include:

• The light not turning on when the oven door is opened or when the light switch is activated
• Flickering or dim lighting inside the oven
• A broken or missing protective cover

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Oven Light Assembly is an OEM part for Whirlpool ranges. This part lights up the interior of the oven, allowing you to monitor the cooking process without opening the oven door.

Over time, the oven light assembly can fail due to normal wear and tear, exposure to extreme heat, or electrical issues.

Symptoms of a bad oven light assembly include:

• The light not turning on when the oven door is opened or when the light switch is activated
• Flickering or dim lighting inside the oven
• A broken or missing protective cover

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

The Oven Temperature Sensor Kit is an OEM part for Whirlpool ovens. This sensor is essential for monitoring the oven's internal temperature, ensuring that it reaches and maintains the correct temperature for baking and cooking. The sensor is approximately 7 inches long.

Over time, the oven temperature sensor can fail due to repeated heating and cooling cycles, exposure to spills or grease, or electrical issues. When the sensor malfunctions, it can result in inaccurate temperature readings, affecting cooking performance and food quality.

Symptoms of a bad oven temperature sensor include:

• The oven not reaching the set temperature
• Food cooking unevenly or not fully
• The oven overheating or underheating
• Error codes related to temperature issues

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This straight oven rack restores a flat, sturdy surface for cookware inside your oven. Replace a bent, worn, or missing rack to keep pans level and allow smooth, safe loading and unloading at different positions.

• Provides level support for bakeware at multiple rack positions
• Slides on the oven's side rails for easier access to dishes
• Replaces racks that are bent, warped, corroded, or missing
• Helpful when cookware feels unstable or the rack is hard to move

• Allow the oven to cool completely; wear gloves to protect hands
• Pull the old rack straight out; align the new rack with the side rails and slide it fully to the back
• Ensure correct orientation and that the rack is fully seated in the side supports before use
• Refer to your model's user manual for recommended rack positions and any self-cleaning preparation

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.

This oven temperature probe senses the cooking cavity temperature so the range control can regulate heat for accurate baking and roasting. It replaces a failed or intermittent sensor to restore correct temperature feedback. What it does:

• Measures oven temperature and sends the signal to the control board for proper heating control
• Helps correct symptoms such as oven not reaching set temperature, inconsistent baking, or temperature error codes
• Provides the oven control with the feedback needed for timed cooking and self-clean cycles
• Replaces a damaged or open/shorted probe that causes incorrect temperature readings

• One temperature probe

• Disconnect power (unplug or shut off breaker) before servicing to avoid shock
• Handle the sensor and connector gently to avoid damage; route and secure wiring as originally installed
• Reconnect wiring fully and verify secure connection; test oven function and temperature accuracy after installation

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.
