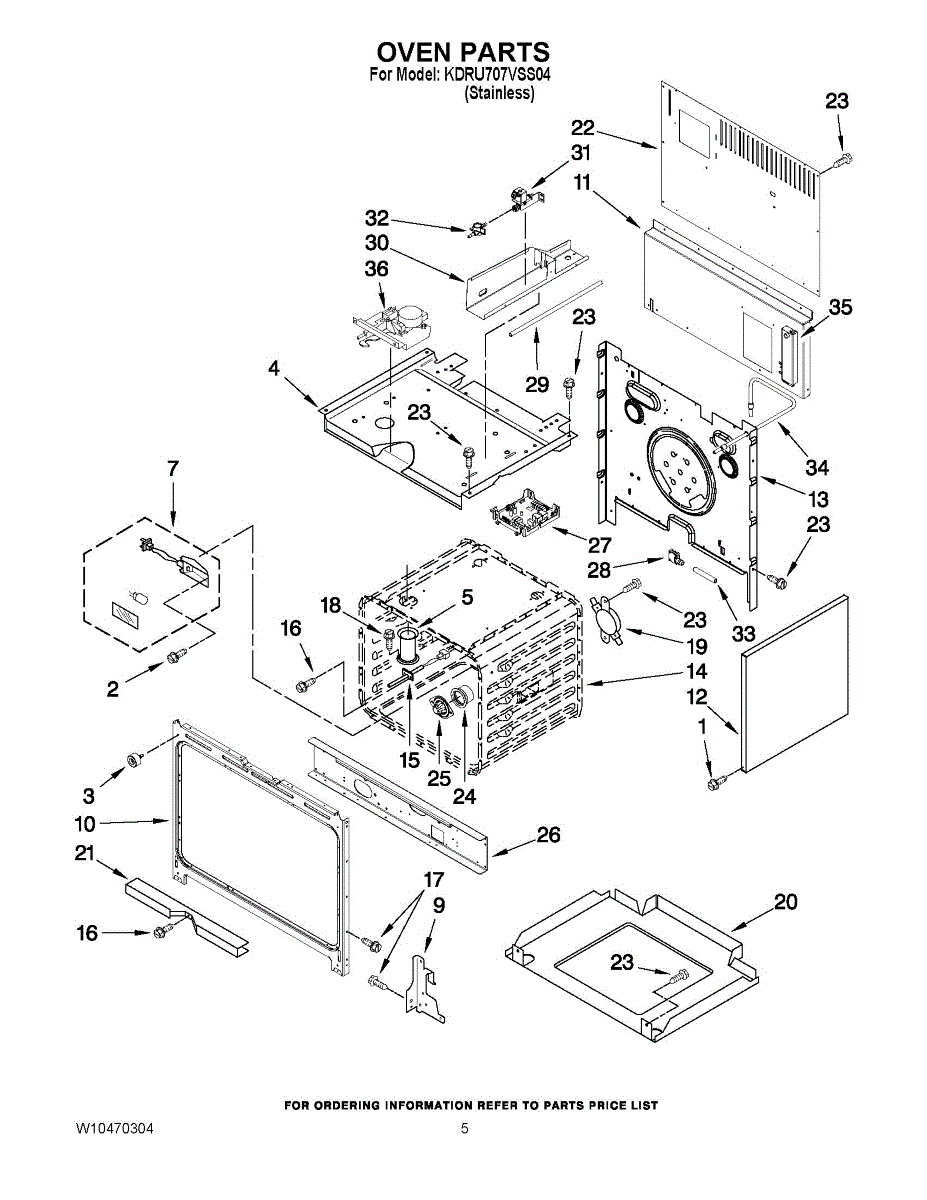

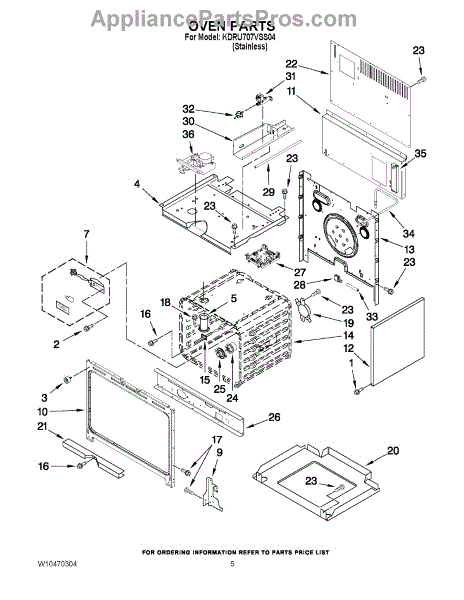

Parts for Kitchenaid KDRU707VSS04: 03 - Oven Parts

This 8-32 x 3/8 screw secures panels, brackets, and internal components in your appliance so everything stays aligned and tight. Replace worn or missing hardware to restore a solid, rattle-free fit and safe operation.

• Fastens components to frames, brackets, or panels
• Helps reduce vibration, rattling, and misalignment
• Replaces missing, stripped, or corroded screws
• Correct 8-32 machine thread for tapped holes in compatible assemblies

• Disconnect power before servicing; shut off gas or water if applicable
• Start threads by hand to avoid cross-threading
• Tighten snugly without overtightening to prevent stripping

Replacement mounting screw for electric wall ovens and ranges. Secures panels, brackets, and trim pieces. Replaces lost, stripped, or damaged screws.

The screw and bumper assembly includes a small cushioning stopper and its mounting screw, designed to prevent hard contact between moving parts or doors and the appliance frame. These bumpers absorb impact and reduce noise when drawers, doors, or panels are opened and closed. Replace this set if you hear loud banging or rattling when operating your appliance or if the existing bumper is worn, torn, or missing.

This is the top oven cavity used on compatible Whirlpool double-oven ranges. It restores the upper cooking chamber so dishes cook evenly and the oven door and components mount correctly. What it does

• Replaces the upper oven cavity/casing that houses the top oven components
• Restores the structural mounting points for the oven door, racks and internal parts
• Helps eliminate issues like visible damage, rust, or warped cavity surfaces that can affect cooking performance
• Appropriate when the top oven has been dented, cracked, or otherwise compromised

• Follow the OEM service manual and disconnect power before starting any repair
• Removal/installation may require taking off surrounding trim, the oven door, and lifting the range; use two people for heavy components
• Inspect adjacent seals, insulation and mounting hardware and replace if worn or damaged

Illuminates oven interior for monitoring food without opening door. Replace when bulb burns out or flickers. High-temperature rated. Verify compatibility.

Left side hinge receiver for door hinge. For right side hinge receiver use WP4455606.

Door hinge receiver for wall ovens. Mounts inside the oven frame to hold the door hinge in place. Replace if cracked, deformed, or causing door alignment issues.

This front frame fin replaces a damaged or worn front frame piece to help keep the dryer drum/tub aligned and reduce rubbing or airflow leaks. It restores the front assembly fit for reliable operation. What it does:

• Supports the front edge of the tub/drum and helps maintain proper drum alignment
• Helps seal and guide airflow at the dryer front to promote efficient air movement
• Reduces rubbing, scraping, or vibration caused by a cracked or warped front frame area
• Resolves symptoms like unusual noise, clothes catching, or uneven drum rotation when damaged

• Disconnect power (and gas if applicable) before starting any repair
• Replacement typically requires removing the dryer front panel or bulkhead; follow your model's service instructions
• Keep all fasteners and seals in place and reassemble securely before testing

Oven won't heat properly or overheats? A faulty temperature sensor may be the cause. Simple 15-minute DIY repair with basic tools and our video guide.

Heating element not working? This mounting screw securely fastens the heating element in place. A simple DIY repair that takes about 20 minutes to complete.

Size: 8-18 x 3/8 inch.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

The High Limit Thermostat is an OEM replacement part for Whirlpool ovens. It acts as a safety mechanism that monitors the oven's temperature to prevent overheating. When the oven exceeds a specific temperature, the high-limit thermostat interrupts the electrical flow to the heating element, ensuring the appliance remains within safe operating conditions.

Causes of a bad High Limit Thermostat can include a malfunction due to electrical issues or component failure. It may become unresponsive over time, failing to cut off the power to the heating element when the oven overheats.

Symptoms of a bad High Limit Thermostat include:

• The oven not heating up adequately or overheating
• Inconsistent oven temperatures leading to undercooked or overcooked food
• The thermostat being unresponsive or failing to regulate the oven’s temperature

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This silicone transmission hose routes water between the washer transmission and tub, using flexible material to resist kinks and temperature. It restores proper drainage and transfer flow to help prevent leaks and poor washer performance. What it does:

• Replaces a worn or cracked hose that can cause water leaks under the washer
• Maintains a flexible, kink-resistant channel between the transmission and tub
• Helps prevent intermittent filling/draining issues caused by damaged hoses
• Resists typical washer temperatures and flexing where rubber hoses fail

• Disconnect power and shut off water supply before beginning any repair
• Drain remaining water from the washer and place towels to catch spills
• Remove and replace the hose clamps; inspect and replace corroded clamps
• Avoid sharp bends or pinching the hose during reassembly

This solenoid valve is the electrical valve assembly that opens and closes to control fluid flow in the appliance, restoring proper fill and shutoff behavior when the original valve fails. What it does:

• Electrically opens and closes to allow or stop fluid flow to the appliance
• Stops unintended flowing or leaking when the valve seals properly
• Commonly linked to symptoms such as no fill, continuous filling, intermittent fill, or leaks near the valve
• Works as the actuator controlled by the appliance's control board to meter fluid delivery

• Disconnect power and shut off the water supply before servicing.
• Handle valve connections and seals carefully; replace any damaged gaskets or hoses.
• Reconnect wiring to the correct terminals and secure all fittings to avoid leaks.
• Test appliance through a full cycle after install and check for leaks.

Oven won't heat or suddenly stops working? This thermal fuse cuts power when temperatures exceed safe limits. Moderate DIY repair in 30-45 minutes.

This boiler is the dishwasher water-heating assembly that provides the hot wash and rinse temperatures needed for effective cleaning. Replaces a failed boiler to restore normal heating during dishwasher cycles. What it does:

• Heats water used during wash and rinse cycles so detergent can clean effectively
• Helps maintain proper cycle temperatures for sanitizing performance
• Stops working when the element fails or the boiler leaks or overheats
• Often linked to no-heat cycles, prolonged wash times, or error codes related to water temperature

• Disconnect power and water supply before starting any repairs
• Inspect for leaks and damaged connectors; replace any worn mounting hardware or seals
• Handle electrical connections carefully and follow the appliance's service manual for wiring and testing

Replaces worn, damaged, or missing foam insulation panel that lines the oven cabinet. Restores heat retention and temperature efficiency inside the unit.
