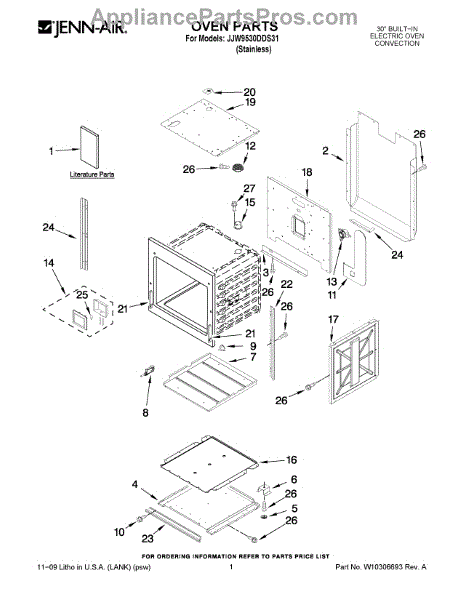

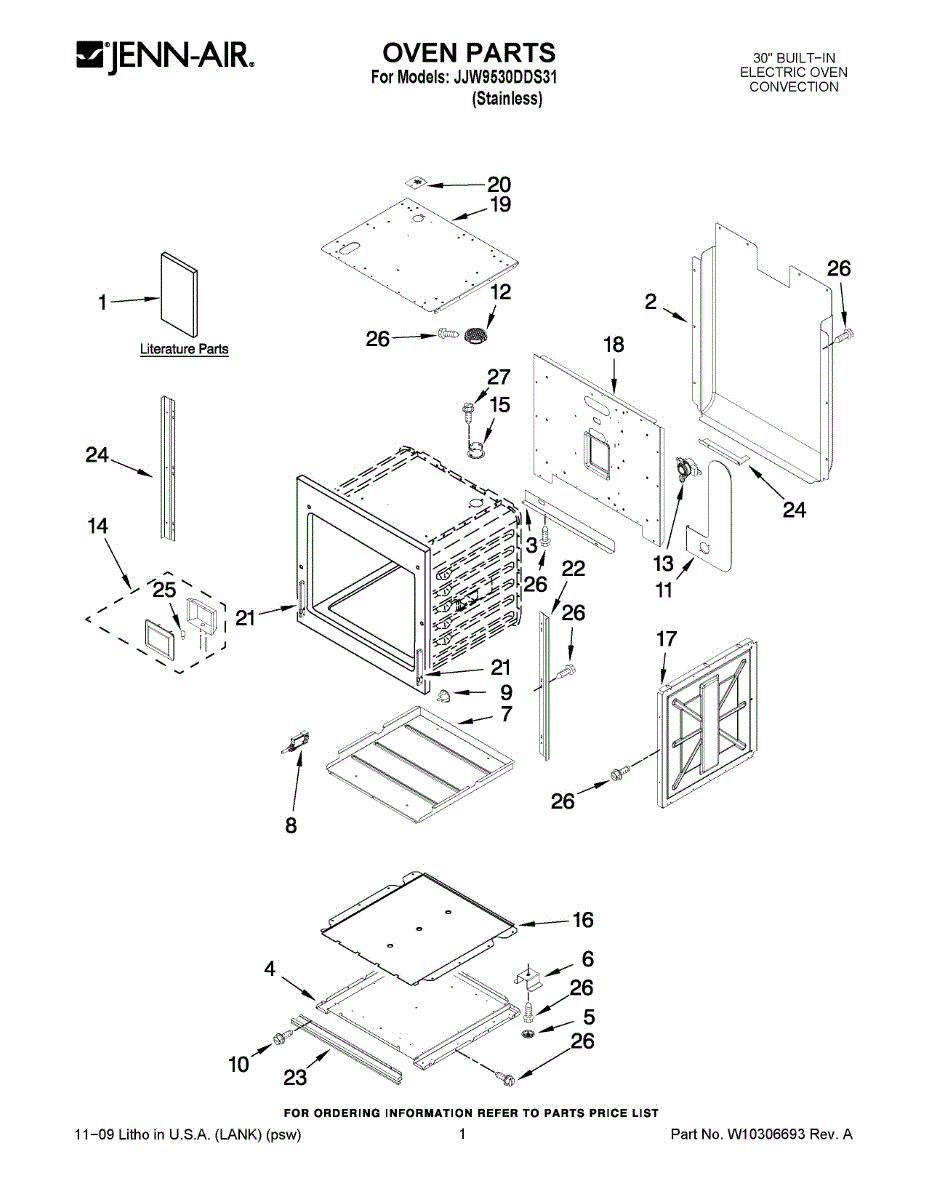

Parts for Maytag JJW9530DDS31: 01 - Oven Parts

Oven light won't turn on or off? Replace the light switch assembly to restore reliable control. Moderate DIY repair taking 15-30 minutes with basic tools.

Self-tapping screw used in range assembly. Features 8-18 thread size and 0.375 inch length. Also used in some washer models as cross-appliance hardware.

Oven won't heat or stops heating during cleaning cycle? The high-limit safety switch cuts power when temperatures exceed safe limits. Moderate DIY fix.

Note: For bulb only, order part# WP74009925.

Mounts in the oven cabinet to receive and secure the door hinge arm. Replace if cracked, worn, or has grooves preventing proper door engagement.

Halogen light bulb for oven interior illumination. Replace when burned out or dimming to monitor cooking without opening the door. Verify fit by model.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.
