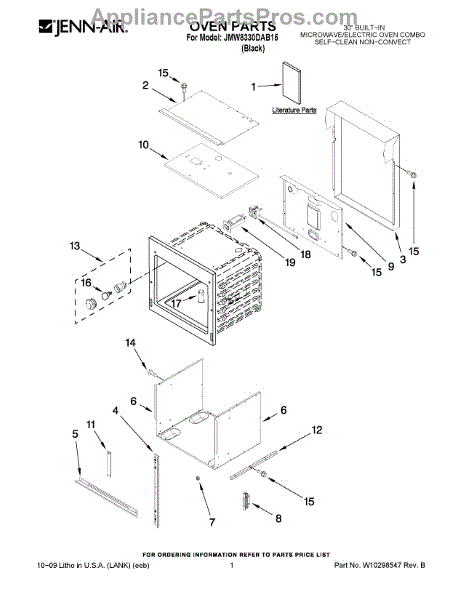

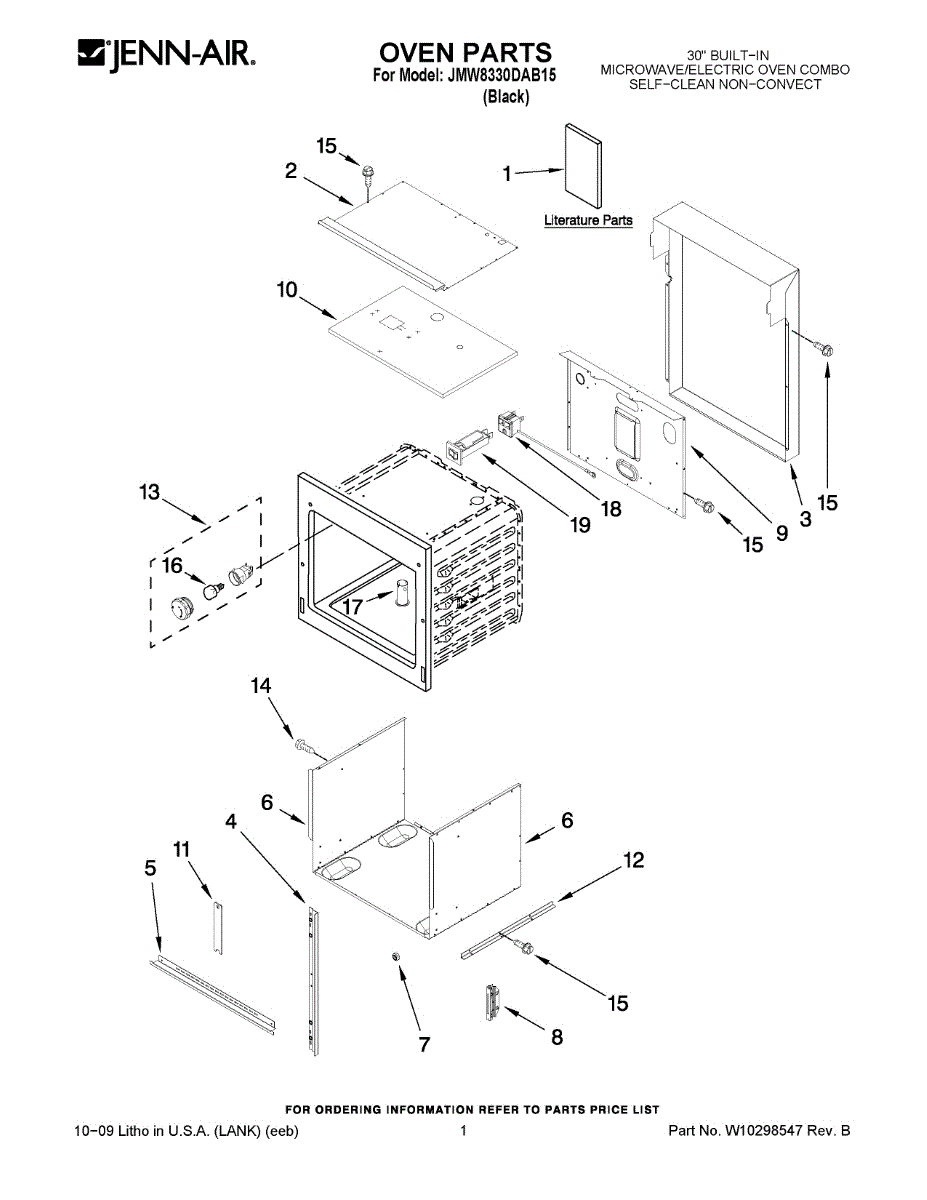

Parts for Maytag JMW8330DAB15: 01 - Oven Parts

Lower

This oven door hinge receptacle mounts in the cabinet frame and receives the door hinge arm. Replacing a worn receptacle restores proper door support and closure for a consistent seal and safe, reliable oven operation.

• Secures the door hinge arm to the oven/range frame
• Maintains door alignment to help the gasket seal properly
• Supports smooth opening/closing and prevents the door from disengaging
• Common symptoms: door won't close fully, door sags or feels loose, hinge won't engage or the door detaches easily

• Disconnect power (and gas, if applicable) and allow the appliance to cool completely
• Remove the oven door and support it to prevent damage
• Access the receptacle at the frame; remove mounting screws, install the new receptacle using existing hardware, and tighten securely
• Check door alignment and operation before returning the unit to service

Top to back

Mounting brace for your oven. Secures internal components in place. Replace if bent, broken, or missing to restore proper structural support.

Illuminates oven interior for monitoring cooking without opening the door. Replace if light fails, socket cracks, or bulbs blow frequently. Verify fit.

Mounting screw secures panels, brackets, and components inside your oven. Replace missing, stripped, or damaged screws to restore proper fit.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

This 20-amp circuit breaker restores overcurrent protection to the appliance's electrical circuit, helping prevent damage from short circuits or overloads. It replaces a worn or tripped breaker so the appliance can receive proper power. What it does:

• Acts as an overcurrent safety device that trips when current exceeds safe limits
• Protects wiring and components from damage caused by overloads or short circuits
• Common symptom: appliance won't power on or stops powering intermittently
• Common symptom: breaker repeatedly trips during normal operation

• Disconnect power at the house breaker before inspecting or replacing the part
• Handle terminals carefully; ensure connectors are fully seated and tight
• Replace with the exact part number for fit and proper electrical rating
