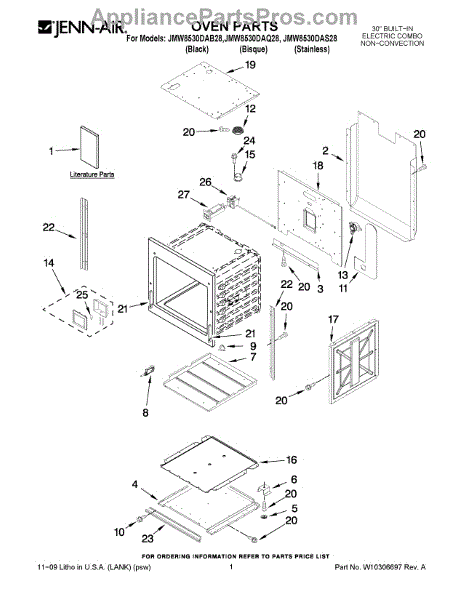

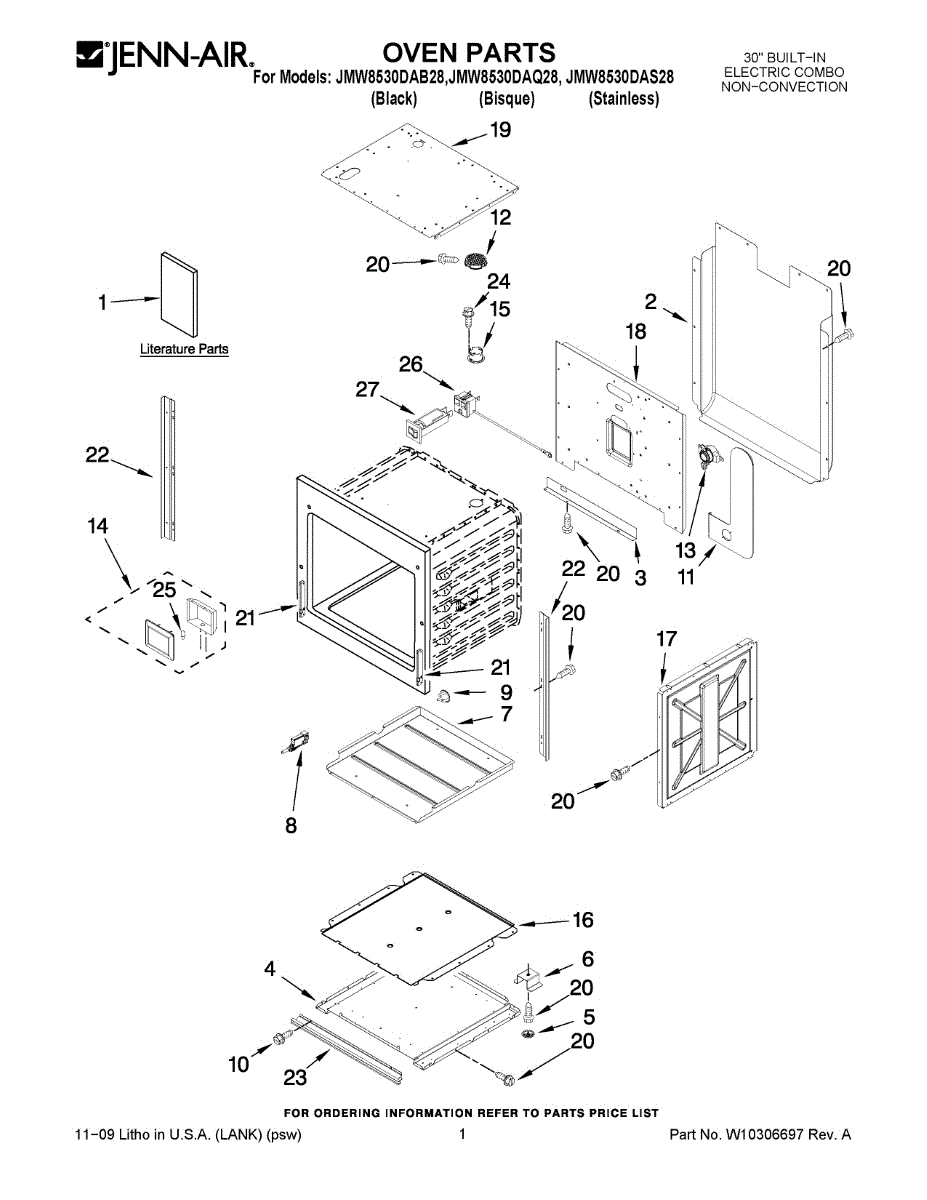

Parts for Maytag JMW8530DAQ28: 01 - Oven Parts

Oven light won't turn on or off? Replace the light switch assembly to restore reliable control. Moderate DIY repair taking 15-30 minutes with basic tools.

Self-tapping screw used in range assembly. Features 8-18 thread size and 0.375 inch length. Also used in some washer models as cross-appliance hardware.

Oven won't heat or stops heating during cleaning cycle? The high-limit safety switch cuts power when temperatures exceed safe limits. Moderate DIY fix.

Note: For bulb only, order part# WP74009925.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Mounts in the oven cabinet to receive and secure the door hinge arm. Replace if cracked, worn, or has grooves preventing proper door engagement.

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.

Halogen light bulb for oven interior illumination. Replace when burned out or dimming to monitor cooking without opening the door. Verify fit by model.

This 20-amp circuit breaker restores overcurrent protection to the appliance's electrical circuit, helping prevent damage from short circuits or overloads. It replaces a worn or tripped breaker so the appliance can receive proper power. What it does:

• Acts as an overcurrent safety device that trips when current exceeds safe limits
• Protects wiring and components from damage caused by overloads or short circuits
• Common symptom: appliance won't power on or stops powering intermittently
• Common symptom: breaker repeatedly trips during normal operation

• Disconnect power at the house breaker before inspecting or replacing the part
• Handle terminals carefully; ensure connectors are fully seated and tight
• Replace with the exact part number for fit and proper electrical rating
