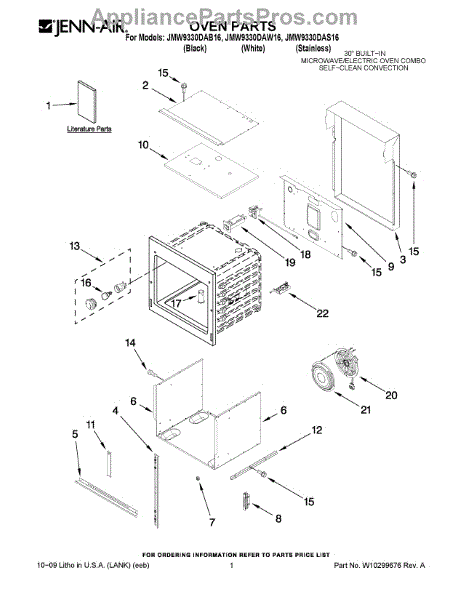

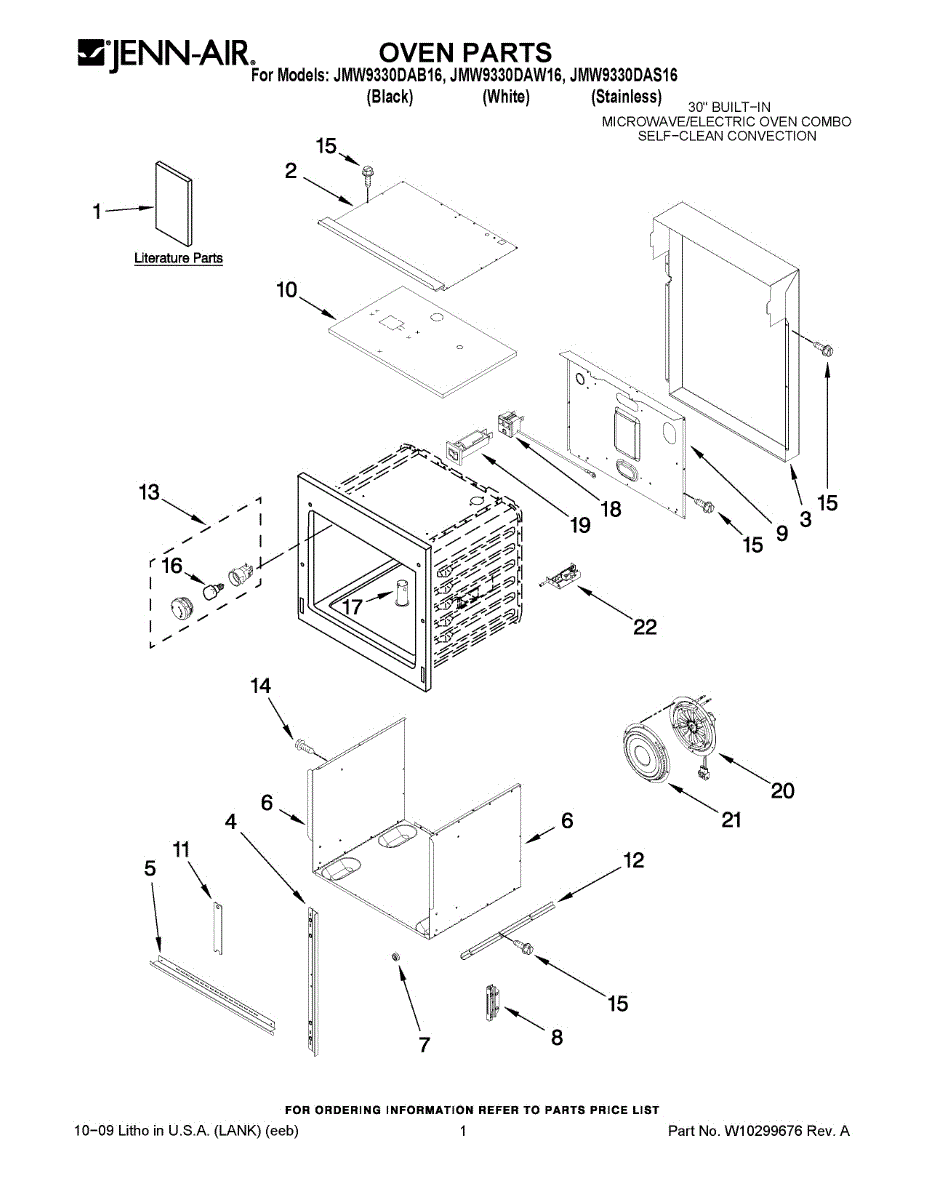

Parts for Maytag JMW9330DAB16: 01 - Oven Parts

Lower

This oven door hinge receptacle mounts in the cabinet frame and receives the door hinge arm. Replacing a worn receptacle restores proper door support and closure for a consistent seal and safe, reliable oven operation.

• Secures the door hinge arm to the oven/range frame
• Maintains door alignment to help the gasket seal properly
• Supports smooth opening/closing and prevents the door from disengaging
• Common symptoms: door won't close fully, door sags or feels loose, hinge won't engage or the door detaches easily

• Disconnect power (and gas, if applicable) and allow the appliance to cool completely
• Remove the oven door and support it to prevent damage
• Access the receptacle at the frame; remove mounting screws, install the new receptacle using existing hardware, and tighten securely
• Check door alignment and operation before returning the unit to service

Top to back

The Oven Light Assembly is an OEM part for Whirlpool ranges. This part lights up the interior of the oven, allowing you to monitor the cooking process without opening the oven door.

Over time, the oven light assembly can fail due to normal wear and tear, exposure to extreme heat, or electrical issues.

Symptoms of a bad oven light assembly include:

• The light not turning on when the oven door is opened or when the light switch is activated
• Flickering or dim lighting inside the oven
• A broken or missing protective cover

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

A genuine replacement mounting screw that secures appliance panels and components to restore proper fit and reduce vibration. Use this screw to replace missing or damaged fasteners for a secure, rattle-free repair. What it does:

• Fastens panels, brackets, or components to the appliance frame
• Restores proper alignment and reduces rattling or vibration
• Prevents parts from coming loose during operation
• Works wherever the OEM screw W10828565 is specified

• Disconnect power to the appliance before servicing
• Use the correct screwdriver or bit to avoid stripping the head
• Install only where the OEM screw is specified; do not overtighten
• Replace any stripped or damaged screws with this exact part

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

This 20-amp circuit breaker restores overcurrent protection to the appliance's electrical circuit, helping prevent damage from short circuits or overloads. It replaces a worn or tripped breaker so the appliance can receive proper power. What it does:

• Acts as an overcurrent safety device that trips when current exceeds safe limits
• Protects wiring and components from damage caused by overloads or short circuits
• Common symptom: appliance won't power on or stops powering intermittently
• Common symptom: breaker repeatedly trips during normal operation

• Disconnect power at the house breaker before inspecting or replacing the part
• Handle terminals carefully; ensure connectors are fully seated and tight
• Replace with the exact part number for fit and proper electrical rating

The light switch assembly controls power to the appliance light circuit. Replace a worn or faulty switch to restore reliable on/off operation when your lamp won't turn on, won't turn off, or works intermittently. What it does:

• Opens and closes electrical contacts to supply or cut power to the light
• Controls cavity or task lights as designed for the specific model
• Typical symptoms: light won't turn on, won't turn off, or flickers/intermittently works
• Physical signs of failure: stuck/loose actuator or no continuity when tested

• 1 light switch assembly

• Disconnect power at the breaker or unplug the appliance before service
• Access location varies by model; remove necessary panels/trim to reach the switch
• Note wire positions and transfer them one at a time to the new switch; secure the mounting
• Restore power and test light operation before final reassembly
