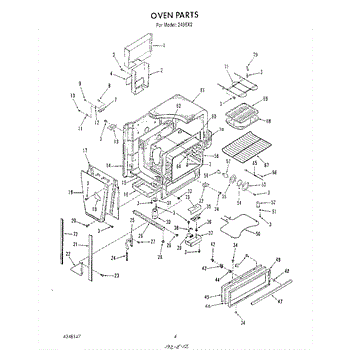

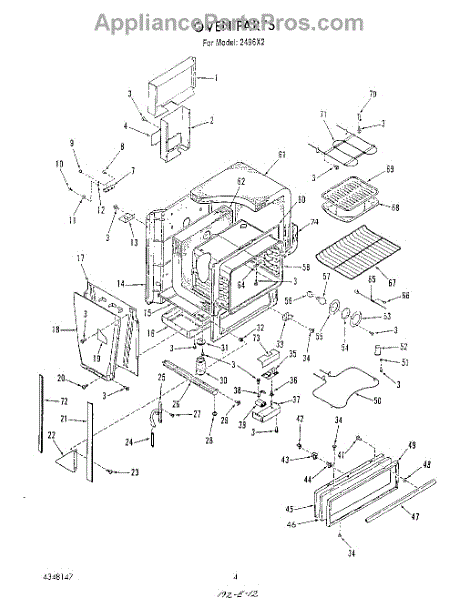

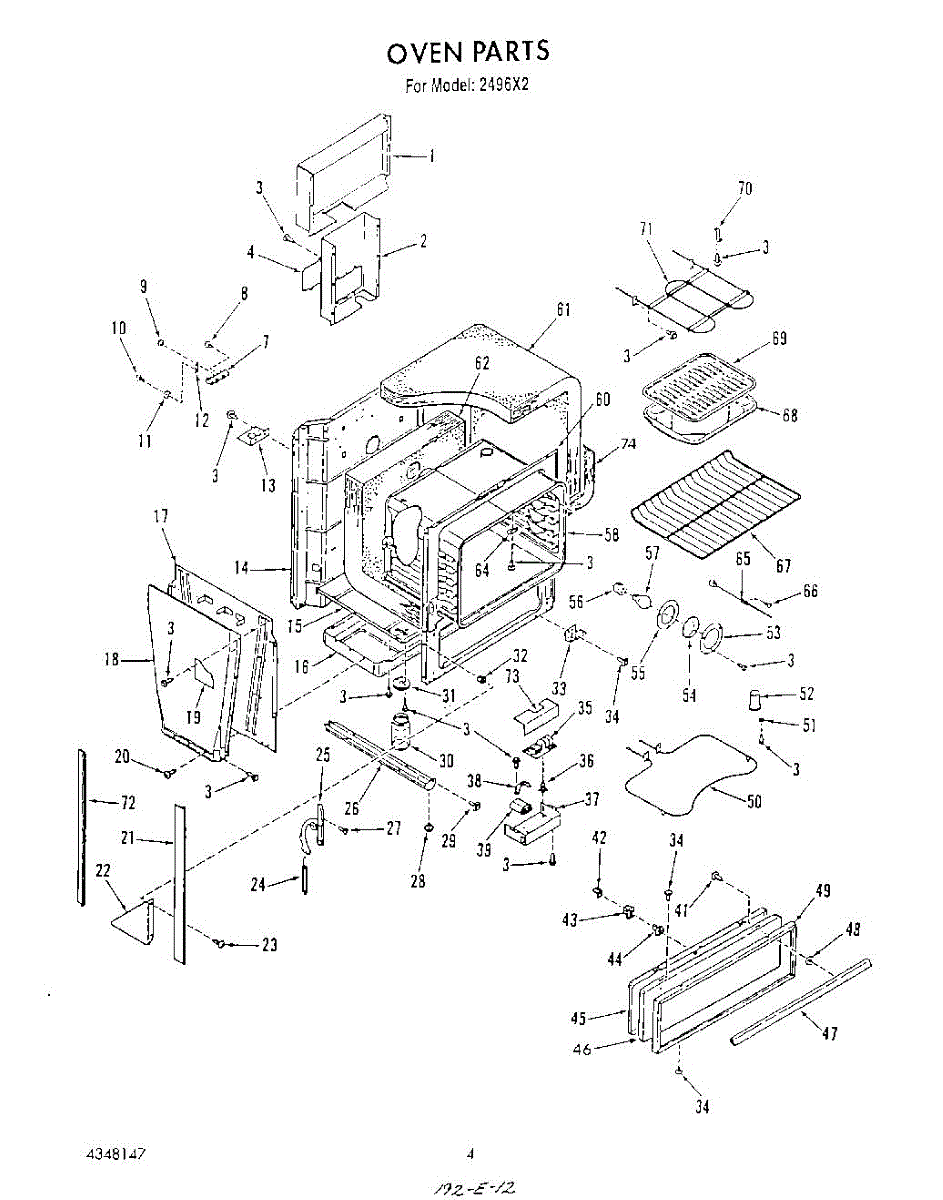

Parts for Whirlpool 2496^2A: 03 - Oven Parts

Specs: 10-16 x 1/2 inch.

If your range has a strong burning smell or won't power on, the terminal block may be heat-damaged. This insulated connector restores safe power flow.

Screw secures appliance panels and access covers. Replace missing, stripped, or corroded screws to restore tight fit and eliminate rattles or gaps.

This replacement screw fastens panels, brackets, or trim inside your appliance. Swapping in a new screw restores a tight, secure fit and helps stop rattles, looseness, or misalignment caused by missing or damaged hardware.

• Secures panels, brackets, or trim to the appliance chassis
• Helps maintain proper alignment and spacing of components
• Replaces missing, rusted, or stripped hardware
• Helps resolve loose panels/handles, vibration, or rattling noises

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location; start threads by hand to avoid cross-threading
• Use the appropriate driver and tighten snugly without overtightening
• Inspect the mounting hole or clip for damage and address as needed before reassembly

These adjustable legs support the refrigerator and allow for proper leveling on uneven floors, located at the bottom corners of the unit. Replace them if the refrigerator rocks or tilts, the doors don't close properly, or if the legs are bent or stripped.

This is a small glass jar that attaches to the underside of a range vent hood to collect grease and cooking residue filtered from the air during use. It threads or clips into a designated opening on the hood's grease collection system. Replace this jar if it is cracked, chipped, missing, or if the threading is damaged and it no longer seats securely, which can cause grease to drip onto the cooktop below.

Expansion nut spacer for electric ranges and ovens. Secures components and maintains proper spacing. Replace if cracked, stripped, or missing.

Specs: 10-16 x 1/2 inch.

Spacer component for oven doors. Maintains proper door alignment and spacing. Replace if cracked, broken, or missing to restore correct door fit.

Size: 10-32 x 1/2 inch.

Range door won't stay closed or latch properly? This door catch (receptacle side of latch assembly) secures your oven door. Simple DIY repair.

Replace a cracked, heat-damaged, or loose light socket to restore safe illumination. Secures the bulb and connects to appliance wiring. Confirm fit.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

This is a protective cover used inside a cooking appliance such as a range or oven. It shields internal components from heat, grease, and debris during normal operation. Replace this cover if it is warped, cracked, corroded, or damaged, which can expose sensitive parts and affect cooking performance.

Size: 6 inches long. Includes ceramic wire connectors.

Replacement screw that secures panels, covers, brackets, and trim to appliance frames. Needed when original screws are stripped, missing, or damaged.

Replacement broiler pan set for ovens. Includes pan and insert to catch drippings during broiling. Order if your original is missing, warped, or damaged.

Replacement broiler pan set for ovens. Includes pan and insert to catch drippings during broiling. Order if your original is missing, warped, or damaged.

This metal bracket provides structural support for range components like burner assemblies or control panels. It securely holds parts in their proper position during normal cooking operations. Replace when range components become loose, sag, or don't align properly.

No broil heat or uneven browning? Replace your failed upper broil element to restore intense radiant heat for proper broiling. DIY-friendly repair.
