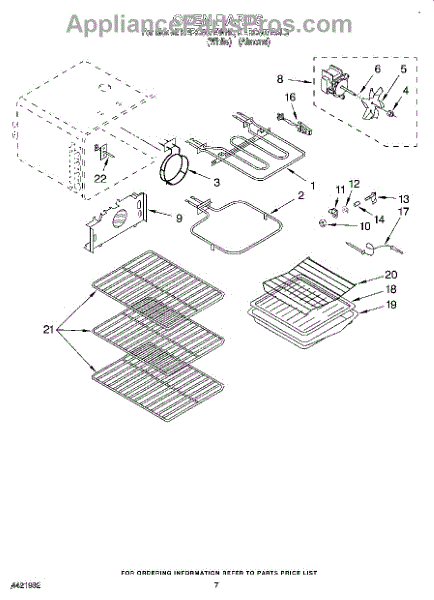

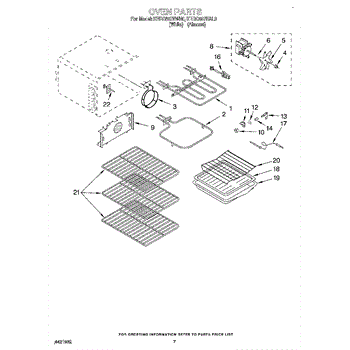

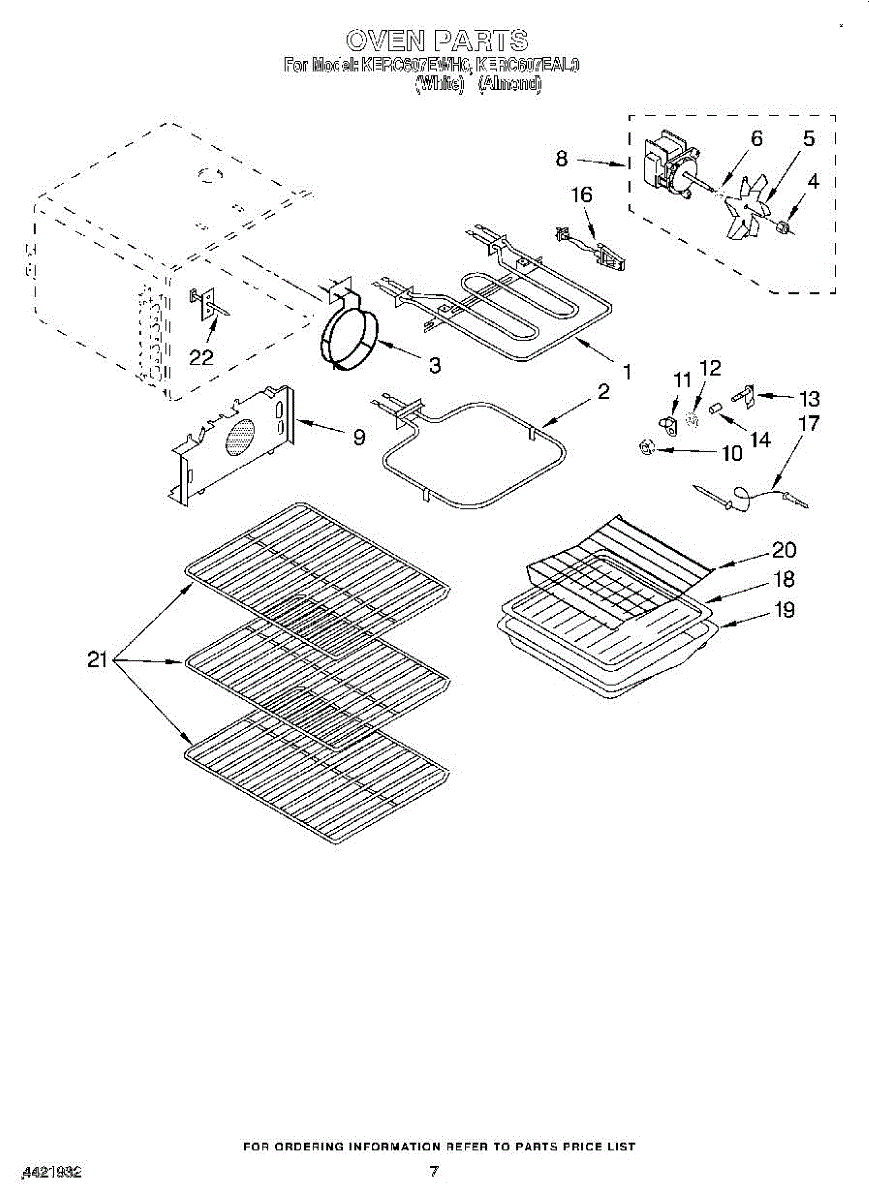

Parts for Kitchenaid KERC607EWH0: 05 - Oven Parts

The Bake Heating Element is an OEM Replacement Part for Whirlpool ovens, designed with push-on terminals. It measures 14-5/8" from the front to the mounting bracket, 19" in width, and 2-1/2" from the mounting bracket to the terminal end. The mounting holes on the bracket are spaced 1-7/8" apart, center to center. The terminals are designed as 1/4" male spades and the unit is rated for 2500 Watts at 240 Volts.

Causes of a bad bake element may include repeated heating and cooling cycles over time, electrical malfunctions, or physical damage from impact or exposure to spills.

Symptoms of a faulty bake element include:

• Oven not heating up properly or taking an excessive amount of time to preheat
• Hot or cold spots within the oven cavity, leading to uneven baking
• Visible damage or discoloration to the bake element itself
• Popping or sparking noises coming from the element area

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size: 8 x 3/8 inch.

Size: 10-16 x 1 1/2 inch.

This is a circular convection heating element located behind the rear panel of the oven cavity. It works in conjunction with the convection fan to heat and circulate air evenly throughout the oven for consistent baking and roasting results. Replace this element if your oven fails to heat properly in convection mode, heats unevenly, or if the element shows visible damage such as cracks or burn spots.

Size: 10-16 x 1/2 inch.

Convection fan motor.

Replacement mounting screw for ranges. Secures panels, trim pieces, control boards, and brackets. Order when original screws are missing, stripped, or damaged.

Light assembly illuminates your oven cavity during cooking. Replace if light stays off, lens cracks, or wire connection breaks. Verify fit by model number.

Meat temperature probe.

Replacement broiler pan set for ovens. Includes pan and insert to catch drippings during broiling. Order if your original is missing, warped, or damaged.

Replacement broiler pan set for ovens. Includes pan and insert to catch drippings during broiling. Order if your original is missing, warped, or damaged.

Replacement broiler pan for ranges and ovens. Holds food under high heat while collecting drippings. Order if your pan is missing, warped, or damaged.

Size: 8-32 x 3/8 inch.

Size: 6 inches long. Includes ceramic wire connectors.

Size: 25ft, 12 Ga. 150 c Black

Spray paint. Color: Coffee. Size: 13 oz. can.

Spray paint. Color: Avocado. Size: 13 oz. can.

Spray paint. Color: Harvest gold. Size: 12 oz. can.

Touch-up paint. Color: Harvest gold. Size: 1 qt. can.

Touch-up paint. Color: Toast. Size: 1 qt. can.

Touch-up paint. Color: Platinum. Size: 1qt. can.

Touch-up paint. Color: Almond. Size: 1 qt. can. (Uncut)

Color: White. Size: 1/2 oz. Porcelain or evaporator repair kit.

Bottle with brush. Color: Toast. Size: 0.6 fl.oz.

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

Bottle with brush. Color: Coffee. Size: 0.6 fl.oz.

Specs: 25ft, 14 Ga. 150 c Black

Specs: 25ft, 14 Ga. 150 c Blue

Specs: 25ft, 14 Ga. 150 c Brown

Specs: 25 ft, 14 Ga., 150 c Green

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Orange 14 Ga. 150~c)

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Red 14 Ga. 150~c)

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Yellow 14 Ga. 150~c)

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Red 14 Ga. 200~c)

Spray paint. Color: Toast. Size: 12 oz. can.

Spray paint. Color: Platinum. Size: 12 oz. can.

Anti-tip bracket kit that mounts to the floor behind your range to prevent tipping when weight is applied to the open door. Replace if bracket is missing, bent, or broken during appliance removal.

Touch up paint for appliances with chips, scratches, or worn spots. Includes brush applicator. Restores finish on damaged surfaces. 0.6 fl oz.

Touch-up paint for appliances in new avocado color. Covers chips, scratches, and worn spots on exterior surfaces. Includes brush applicator.

Made specifically for oven bottoms, this foil helps catch spills in your oven. Perfect for BBQ grills as well.

Color: White. Size: 1 qt. can. Acrylic appliance paint.

Specs: 25ft,14 Ga., 200 c Brown

0.6 oz. platinum touch-up paint with brush for appliances. Repairs scratches, chips, and gouges on doors, handles, and trim panels. Acrylic formula.

Color: White. Size: 13 oz. Spray paint primer. can.

White touch-up paint for covering minor scratches, chips, and blemishes on oven liners. Restores appearance of damaged oven interior surfaces.

White porcelain touch-up paint for repairing chipped, scratched, or worn surfaces on ranges, ovens, and refrigerators. Restores appearance on exterior panels and trim. 2 oz. can.

Touch-up paint for appliances in almond color. Repairs chips, scratches, and worn spots on ovens, refrigerators, microwaves, and dryers.

Color: Black. Size: 12 oz. Acrylic appliance aerosol can spray paint.

Almond. Size: 13 oz. can. Acrylic appliance paint.

Glass scraper tool for cleaning cooktop surfaces. Removes stuck-on food, spills, and residue from glass cooktops. Essential for maintaining appearance.

Size: 10 fl. oz. Used on glass, ceramic and porcelain cooktops.

Color: White. Size: 13 oz can. Acrylic appliance aerosol can spray paint.

The Appliance Spray Paint is an OEM part for Whirlpool appliances, designed to provide a quick and effective way to touch up or completely refinish the exterior of various appliances. This specialty spray paint is formulated to adhere to metal surfaces, offering a durable and resistant finish that can withstand the routine wear and tear of kitchen environments, including heat, moisture, and everyday use.

The primary reason for using such a specialized paint is to maintain or restore the aesthetic appeal of your appliances while protecting them from further damage.

Symptoms needing for Appliance Spray Paint include:

• Scratches, chips, or rust spots on the appliance's exterior that can lead to further damage or corrosion if left untreated
• A desire to refresh or update the appearance of the appliance without the need for complete replacement
• Discoloration or fading of the original finish due to age, exposure to sunlight, or cleaning agents

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Touch-up paint for covering scratches, chips, and minor blemishes on appliance exteriors. Restores appearance and protects surfaces when finish is damaged.
