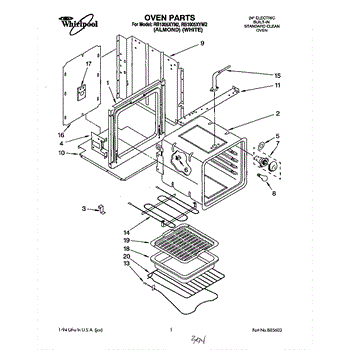

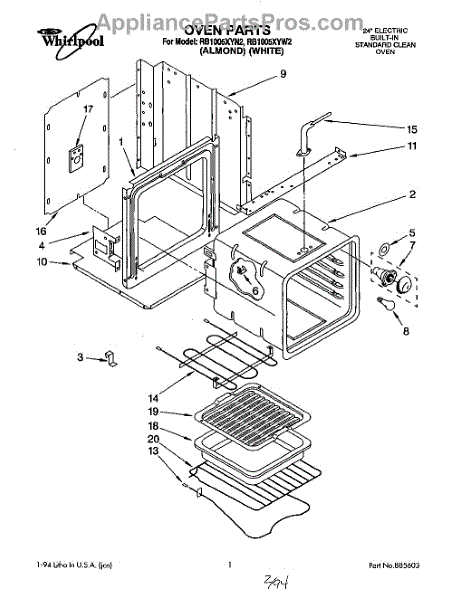

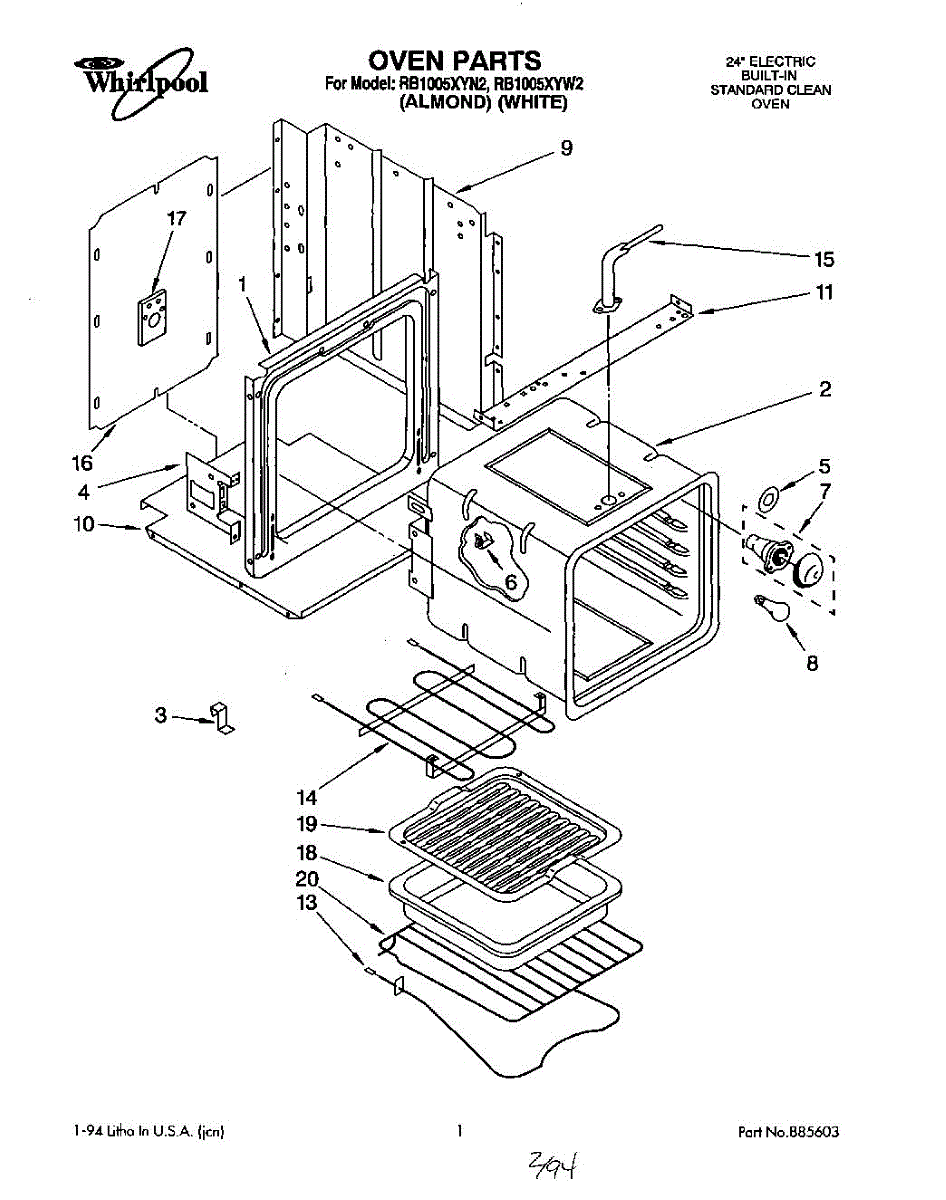

Parts for Whirlpool RB1005XYN2: 01 - Oven Parts

Size: 10-32 x 1/2 inch.

This oven light lens gasket seals the lens to the oven liner, helping keep heat, steam, and grease out of the light housing. It maintains a secure fit for the lens and protects the bulb and wiring.

• Creates a heat-resistant seal between the light lens and oven cavity
• Helps block heat, steam, and grease from entering the light assembly
• Stabilizes the lens/retainer so the lens sits flush and secure
• Common signs of failure: torn/brittle gasket, lens feels loose, condensation or grease inside the lens, or scorching around the light opening

• Disconnect power at the breaker and allow the oven to cool completely before servicing
• Remove the lens retainer and lens to access the gasket; note orientation before removal
• Seat the new gasket evenly around the opening, then reinstall the lens and retainer without overtightening
• The lens sits flush and the seal is even after reassembly

The thermostat bulb clip is an OEM component specifically designed for Whirlpool drop-in electric ranges, securely fastening the thermostat sensor bulb. This clip features corrosion-resistant spring coils and precision tips.

Symptoms of a bad thermostat bulb clip include:

• Dangling thermostat bulb
• Temperatures inside oven might be incorrect because sensor bulb is not mounted correctly.

Causes of failure involve metal fatigue weakening the thermostat bulb clip over years of expansion and contraction during heating, worn surfaces losing grip, or damaged barbs failing to anchor the thermostat bulb.

Replace yours today with this genuine OEM Whirlpool clip. Compatible with Jenn-Air, GE, and select Kenmore appliances, reinforced coils maintain constant tension assuring safety. Reliable glass retention enhances interior illumination for tasks.

The Light Socket Assembly is an OEM part for Whirlpool ranges and wall ovens. This part houses the oven light bulb, providing the necessary electrical connections to illuminate the oven's interior. It ensures that you can monitor the cooking process without opening the oven door, thereby maintaining a consistent temperature and energy efficiency.

Causes of damage to the light socket assembly often include excessive heat, electrical surges, or physical damage during cleaning or maintenance.

A malfunctioning light socket assembly can lead to several issues, including:

• The inability to turn the oven light on
• Flickering or inconsistent lighting caused by loose connections or damage to the socket
• Complete failure of the light feature, due to wear and tear or electrical faults

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

This cover screw secures appliance panels and covers, keeping components protected and aligned. Replace missing, stripped, or corroded screws to restore a tight fit and help eliminate rattles, gaps, or panels that won't stay in place.

• Attaches an access cover or panel to the appliance frame
• Helps maintain proper alignment to protect internal components
• Replaces missing, stripped, or rusted hardware
• Typical signs: loose or rattling panel, cover won't stay secure, damaged or rounded screw head

• Disconnect power before servicing
• Support the panel while removing and installing screws to prevent misalignment
• Start threads by hand to avoid cross-threading; do not overtighten
• Use a matching driver bit to avoid damaging the screw head

Size: 10-32 x 1/2 inch.

This cover screw secures appliance panels and covers, keeping components protected and aligned. Replace missing, stripped, or corroded screws to restore a tight fit and help eliminate rattles, gaps, or panels that won't stay in place.

• Attaches an access cover or panel to the appliance frame
• Helps maintain proper alignment to protect internal components
• Replaces missing, stripped, or rusted hardware
• Typical signs: loose or rattling panel, cover won't stay secure, damaged or rounded screw head

• Disconnect power before servicing
• Support the panel while removing and installing screws to prevent misalignment
• Start threads by hand to avoid cross-threading; do not overtighten
• Use a matching driver bit to avoid damaging the screw head

Size: 10-32 x 1/2 inch.

The Oven Bake Element is an OEM part for Whirlpool ovens. This crucial component is located at the bottom of the oven cavity and is responsible for providing the heat needed for baking. The bake element converts electrical energy into heat, which is then distributed throughout the oven to cook food evenly.

Common causes of a bad bake element include excessive use, accidental damage during cleaning, or a power surge that can burn out the element.

Symptoms of a bad Oven Bake Element include:

• The oven not heating up to the set temperature.
• Visible damage to the element, such as blistering, cracks, or breaks.
• Lack of heat when the oven is turned on
• An increase in cooking times

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Size: 10-32 x 1/2 inch.

The Broil Element is an OEM component for Whirlpool wall ovens and ranges. Located at the top of the oven cavity, the broil element is responsible for providing intense heat from above for searing and browning foods. The element measures approximately 12" wide x 19" long.

Symptoms of a bad broil element include:

• The broil function not working or heating very little
• Oven takes a long time to preheat

Over many uses, the coil filaments within the broil element can weaken and break from prolonged exposure to high heat. Cracks and breaks in the coil will diminish the element's ability to efficiently produce quality broiling results.

This genuine Whirlpool OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a genuine replacement screw used to secure panels, brackets, and components on compatible Whirlpool appliances. It restores proper fastening so loose parts stop rattling and panels stay aligned. What it does

• Fastens trim, panels, brackets, or mounting hardware to appliance chassis
• Helps stop vibration and rattling caused by missing or stripped fasteners
• Restores secure connections after repair or part replacement
• Matches OEM thread specification to fit intended mounting holes

• Disconnect power to the appliance before beginning any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Start threads by hand and tighten until snug; do not overtighten
• Inspect mating threads and replace if damaged

This cover screw secures appliance panels and covers, keeping components protected and aligned. Replace missing, stripped, or corroded screws to restore a tight fit and help eliminate rattles, gaps, or panels that won't stay in place.

• Attaches an access cover or panel to the appliance frame
• Helps maintain proper alignment to protect internal components
• Replaces missing, stripped, or rusted hardware
• Typical signs: loose or rattling panel, cover won't stay secure, damaged or rounded screw head

• Disconnect power before servicing
• Support the panel while removing and installing screws to prevent misalignment
• Start threads by hand to avoid cross-threading; do not overtighten
• Use a matching driver bit to avoid damaging the screw head

This cover screw secures appliance panels and covers, keeping components protected and aligned. Replace missing, stripped, or corroded screws to restore a tight fit and help eliminate rattles, gaps, or panels that won't stay in place.

• Attaches an access cover or panel to the appliance frame
• Helps maintain proper alignment to protect internal components
• Replaces missing, stripped, or rusted hardware
• Typical signs: loose or rattling panel, cover won't stay secure, damaged or rounded screw head

• Disconnect power before servicing
• Support the panel while removing and installing screws to prevent misalignment
• Start threads by hand to avoid cross-threading; do not overtighten
• Use a matching driver bit to avoid damaging the screw head

The Broil Pan Set is an OEM part for Whirlpool ovens. This set includes a broil pan and an insert, designed to catch drippings and ensure even heat distribution during broiling, allowing for perfectly cooked and crisp results.

Causes of a bad broil pan set can include prolonged exposure to high temperatures, which may lead to warping or distortion of the pan. Additionally, frequent use without proper cleaning can result in rusting, chipping, or buildup of residues that compromise the pan's functionality and safety.

Symptoms of a bad broil pan set include:

• Warping or bending of the pan
• Presence of rust or corrosion
• Surface chipping or flaking
• Difficulty in achieving even cooking results

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Broil Pan Set is an OEM part for Whirlpool ovens. This set includes a broil pan and an insert, designed to catch drippings and ensure even heat distribution during broiling, allowing for perfectly cooked and crisp results.

Causes of a bad broil pan set can include prolonged exposure to high temperatures, which may lead to warping or distortion of the pan. Additionally, frequent use without proper cleaning can result in rusting, chipping, or buildup of residues that compromise the pan's functionality and safety.

Symptoms of a bad broil pan set include:

• Warping or bending of the pan
• Presence of rust or corrosion
• Surface chipping or flaking
• Difficulty in achieving even cooking results

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This part has been discontinued by the manufacturer and is no longer available.
