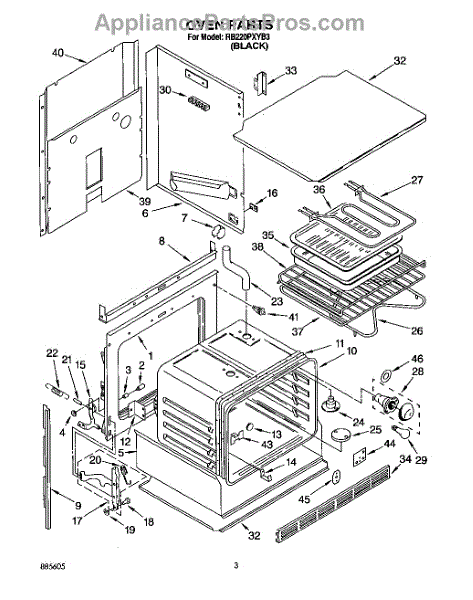

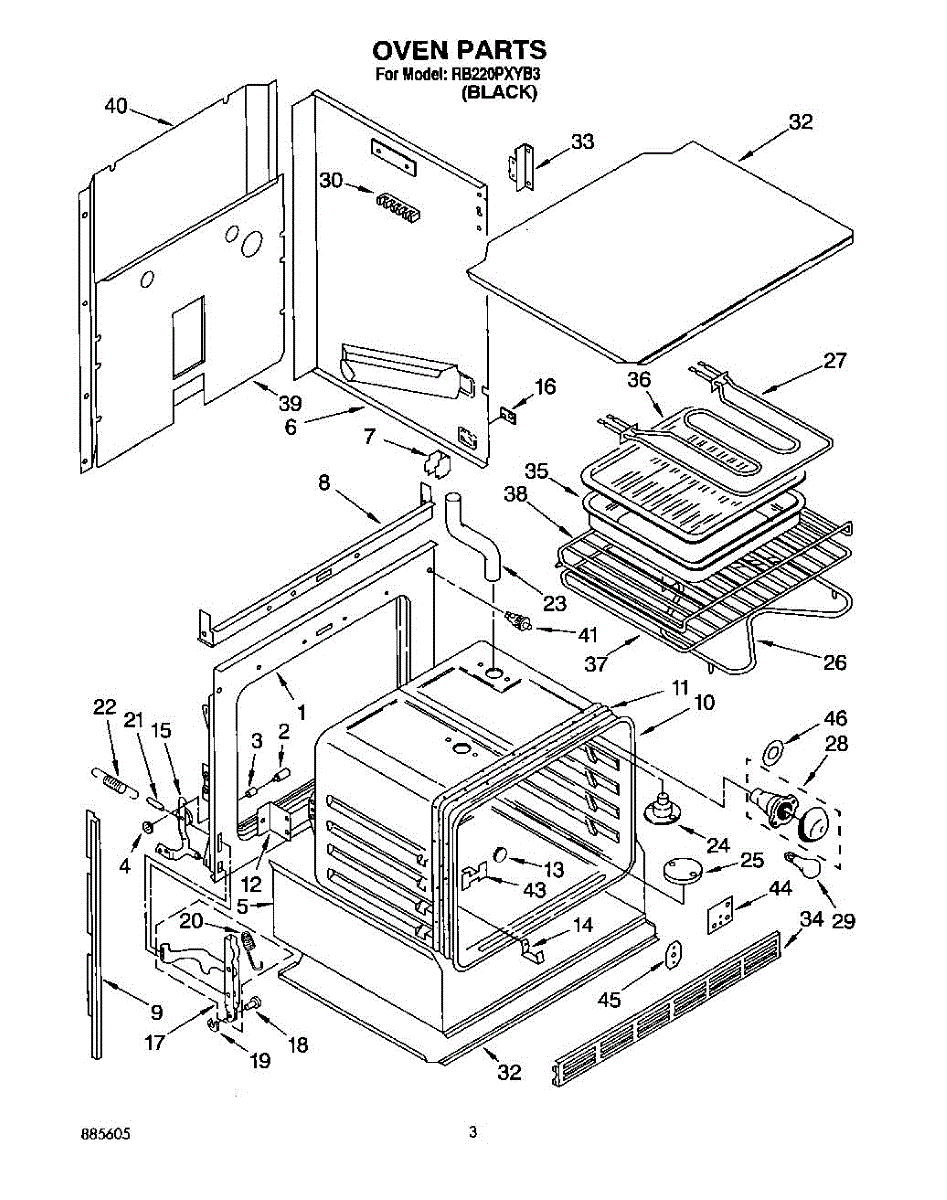

Parts for Whirlpool RB220PXYB3: 02 - Oven, Literature Parts

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Secures the thermostat sensor bulb in place on your range. Replace if broken or corroded to restore accurate temperature control. Verify fit by model.

10-24 x 1/2 inch mounting screw for securing appliance panels, handles, brackets, and internal components. Replace lost, stripped, or damaged screws.

Hinge pin that connects the door hinge to your range cabinet. Replace if worn, bent, or missing to restore smooth door movement and proper alignment.

This retaining ring secures a component in its groove on a shaft or housing, keeping parts aligned and in place during operation. Replace a bent, stretched, or missing ring to restore a tight hold and reduce movement or noise.

• Secures a component by seating in a groove on a shaft or inside a bore
• Maintains correct axial position so parts don't slide off during use
• Helps reduce wobble, vibration, or rattling caused by loose assemblies
• Typical symptoms: part won't stay seated, excess play or movement, scraping/rattling noises, or a visibly deformed ring

• Disconnect power; shut off water or gas if applicable. Wear eye protection and gloves
• Note ring orientation; use appropriate snap-ring/circlip pliers or picks—avoid overstretching
• Clean the groove and seat the ring fully; secure fit
• Replace any damaged spacers, washers, or seals found during service

Anchor spring for oven doors. Maintains tension on door hinges to keep the door stable and balanced. Replace if spring is broken, fatigued, or missing.

This part has been discontinued and is no longer available.

Replacement mounting screw for securing panels, brackets, and components to your appliance chassis. Needed when original screws are stripped or missing.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Size: 10-32 x 1/2 inch.

Oven not heating or slow to preheat? The bake element is likely burned out. This bottom heating coil replacement is a simple DIY fix in minutes.

Size: 10-32 x 1/2 inch.

Fix an oven that won't broil or brown food properly. This broil element restores top heat for searing. Easy DIY repair, typically done in 30 minutes.

Light socket assembly houses your oven bulb and provides electrical connections to illuminate the interior. Replace when bulb won't stay secure or light fails.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

Replacement hex nut for dryer terminal blocks and electrical connections. Secures terminal components. Needed when original is stripped, missing, or damaged.

If your range has a strong burning smell or won't power on, the terminal block may be heat-damaged. This insulated connector restores safe power flow.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Size: 10-32 x 1/2 inch.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Replacement broiler pan set for ovens. Includes pan and insert to catch drippings during broiling. Order if your original is missing, warped, or damaged.

Replacement broiler pan set for ovens. Includes pan and insert to catch drippings during broiling. Order if your original is missing, warped, or damaged.

Color: chrome. Measures about 22 inches wide by 16 inches deep.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Light switch for door.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Seals the light lens to the oven cavity, blocking heat, steam, and grease from the bulb housing. Replace if cracked, brittle, or missing. Confirm fit.

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

Specs: 25ft, 14 Ga. 150 c Black

Specs: 25ft, 14 Ga. 150 c Blue

Specs: 25ft, 14 Ga. 150 c Brown

Specs: 25 ft, 14 Ga., 150 c Green

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Orange 14 Ga. 150~c)

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Red 14 Ga. 150~c)

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Yellow 14 Ga. 150~c)

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Red 14 Ga. 200~c)

Size: 25ft, 12 Ga. 150 c Black

Specs: 25ft,14 Ga., 200 c Brown
