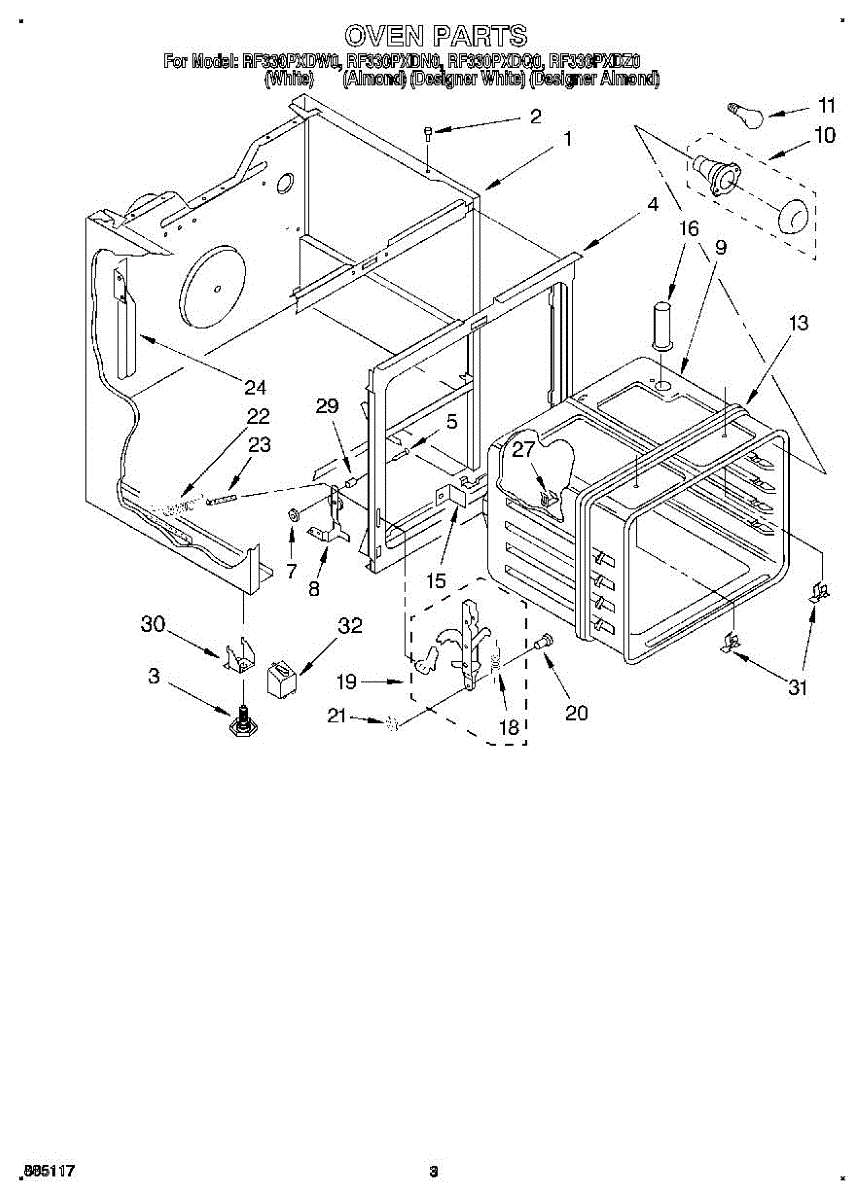

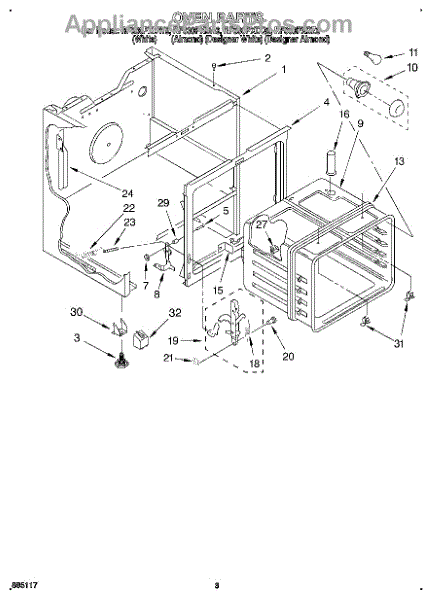

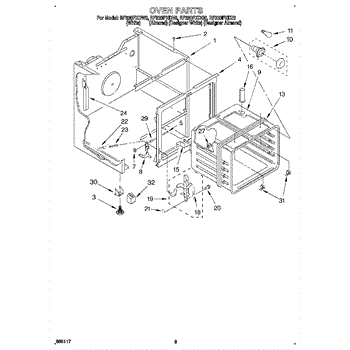

Parts for Whirlpool RF330PXDN0: 03 - Oven Parts

Specs: 10-16 x 1/2 inch.

Rubber bumper. Color: Grey.

Specs: 10-16 x 1/2 inch.

Specs: 10-16 x 1/2 inch.

Light socket assembly houses your oven bulb and provides electrical connections to illuminate the interior. Replace when bulb won't stay secure or light fails.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

Specs: 10-16 x 1/2 inch.

Hinge pin that connects the door hinge to your range cabinet. Replace if worn, bent, or missing to restore smooth door movement and proper alignment.

This retaining ring secures a component in its groove on a shaft or housing, keeping parts aligned and in place during operation. Replace a bent, stretched, or missing ring to restore a tight hold and reduce movement or noise.

• Secures a component by seating in a groove on a shaft or inside a bore
• Maintains correct axial position so parts don't slide off during use
• Helps reduce wobble, vibration, or rattling caused by loose assemblies
• Typical symptoms: part won't stay seated, excess play or movement, scraping/rattling noises, or a visibly deformed ring

• Disconnect power; shut off water or gas if applicable. Wear eye protection and gloves
• Note ring orientation; use appropriate snap-ring/circlip pliers or picks—avoid overstretching
• Clean the groove and seat the ring fully; secure fit
• Replace any damaged spacers, washers, or seals found during service

Anchor spring for oven doors. Maintains tension on door hinges to keep the door stable and balanced. Replace if spring is broken, fatigued, or missing.

Specs: 10-16 x 1/2 inch.

Secures the thermostat sensor bulb in place on your range. Replace if broken or corroded to restore accurate temperature control. Verify fit by model.

Specs: 10-16 x 1/2 inch.
