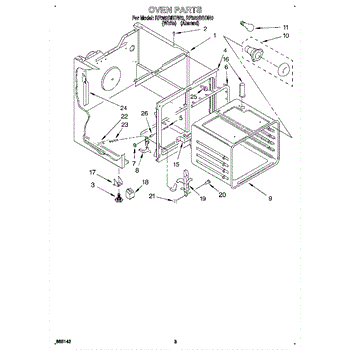

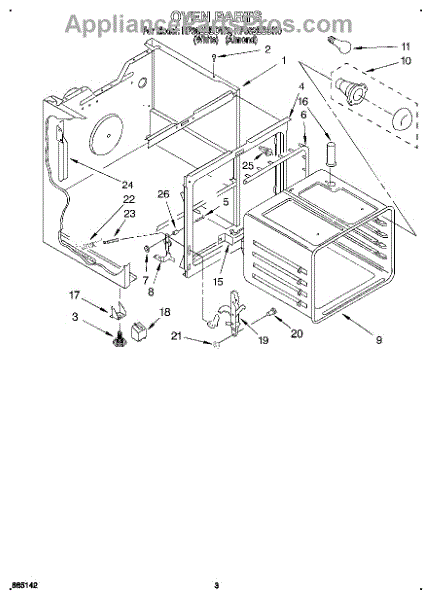

Parts for Whirlpool RF362BBDN0: 03 - Oven Parts

A replacement mounting screw to secure appliance panels and components so parts stay properly fastened during normal use. Small but essential hardware for stable, rattle-free operation and reliable repairs. What it does:

• Fastens panels, brackets or components to the appliance chassis
• Prevents loose panels, vibration noise, or parts shifting during operation
• Used when original screw is lost, damaged, or stripped
• Restores proper fit and alignment after disassembly for service

• Disconnect power and water before starting any repair
• Use the correct screw type and length; do not force or substitute oversized fasteners
• Tighten until snug—avoid overtightening to prevent stripped threads or cracked parts
• Keep small parts away from children and pets

Specs: 10-16 x 1/2 inch.

Rubber bumper. Color: Grey.

The Light Socket Assembly is an OEM part for Whirlpool ranges and wall ovens. This part houses the oven light bulb, providing the necessary electrical connections to illuminate the oven's interior. It ensures that you can monitor the cooking process without opening the oven door, thereby maintaining a consistent temperature and energy efficiency.

Causes of damage to the light socket assembly often include excessive heat, electrical surges, or physical damage during cleaning or maintenance.

A malfunctioning light socket assembly can lead to several issues, including:

• The inability to turn the oven light on
• Flickering or inconsistent lighting caused by loose connections or damage to the socket
• Complete failure of the light feature, due to wear and tear or electrical faults

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

This vent tube directs exhaust airflow from the appliance to the vent outlet, helping maintain proper ventilation and reduce leaks. Replace a damaged or crushed tube to restore safe exhaust routing and steady airflow. What it does:

• Channels exhaust air from the appliance to the vent outlet to prevent backflow into the cabinet
• Helps maintain consistent ventilation for efficient operation
• Prevents leaks and reduces the chance of moisture or lint buildup in the appliance cavity
• A worn or damaged vent tube can contribute to poor venting or unusual odors

• One replacement vent tube

• Disconnect power and unplug the appliance before beginning work
• Remove any access panels or obstructions to reach the existing tube; note routing before removal
• Secure the new tube with appropriate clamps or retainers; ensure there are no kinks or sharp bends
• If lint or debris is present, clean the vent path before installing the new tube

This hinge pin is the pivot that connects a door hinge to the appliance cabinet or door. Replacing a worn pin restores smooth, aligned door movement and reliable closing.

• Provides the hinge's pivot point the door swings on
• Helps maintain door alignment for smooth opening and closing
• Common symptoms: loose or sagging door, binding, difficulty latching, excessive play at the hinge
• Visual clues: worn/flattened pin surfaces or a missing pin at the hinge location

• Disconnect power (and gas if applicable) and allow the appliance to cool completely before service
• Support the door to prevent strain on the remaining hinge while you work
• Note hinge orientation, remove any retaining clip/screw, slide out the old pin, and seat the new pin fully
• Inspect related hinge bushings or washers while open and replace if worn

This retaining ring secures a component in its groove on a shaft or housing, keeping parts aligned and in place during operation. Replace a bent, stretched, or missing ring to restore a tight hold and reduce movement or noise.

• Secures a component by seating in a groove on a shaft or inside a bore
• Maintains correct axial position so parts don't slide off during use
• Helps reduce wobble, vibration, or rattling caused by loose assemblies
• Typical symptoms: part won't stay seated, excess play or movement, scraping/rattling noises, or a visibly deformed ring

• Disconnect power; shut off water or gas if applicable. Wear eye protection and gloves
• Note ring orientation; use appropriate snap-ring/circlip pliers or picks—avoid overstretching
• Clean the groove and seat the ring fully; secure fit
• Replace any damaged spacers, washers, or seals found during service

This anchor spring maintains tension on the parts it secures, keeping the associated component aligned and stable during use. Replacing a fatigued or broken spring restores a snug fit and reliable, rattle-free operation.

• Provides spring tension to anchor a bracket, lever, or panel in place
• Helps prevent looseness, vibration, and rattling from lost spring force
• Failure signs can include a loose/shifting component, misalignment, difficulty holding position, or abnormal noise
• Replace if the spring is broken, stretched, corroded, or missing

• Disconnect appliance power; if gas is present, also shut off the gas supply
• Access the spring per your model and note its routing/attachment points before removal (a quick photo helps)
• Use needle-nose pliers or a spring hook; wear gloves and eye protection—springs are under tension
• Ensure both ends are fully seated and the connected mechanism moves/tensions correctly before reassembly

Light switch for door.

This part has been discontinued by the manufacturer and is no longer available.

This anti-tip bracket kit is an OEM replacement part for Whirlpool ranges. This bracket is typically installed at the back of the range and is secured to the wall or floor to prevent the range from tipping forward when heavy items, such as pots or pans, are placed on the open oven door.

The anti-tip bracket should be installed during the initial installation of the range and checked regularly to ensure that it is securely attached. If the bracket becomes loose or damaged in any way, it should be replaced immediately to ensure the safety of the range and anyone using it.

This kit includes:

• Anti-tip bracket
• Mounting screws (2)
• Anchors (2)
• Washer (1)

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
