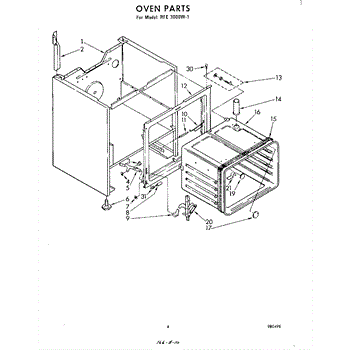

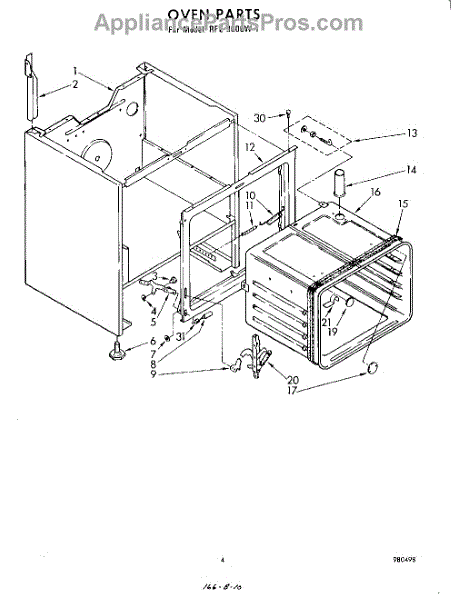

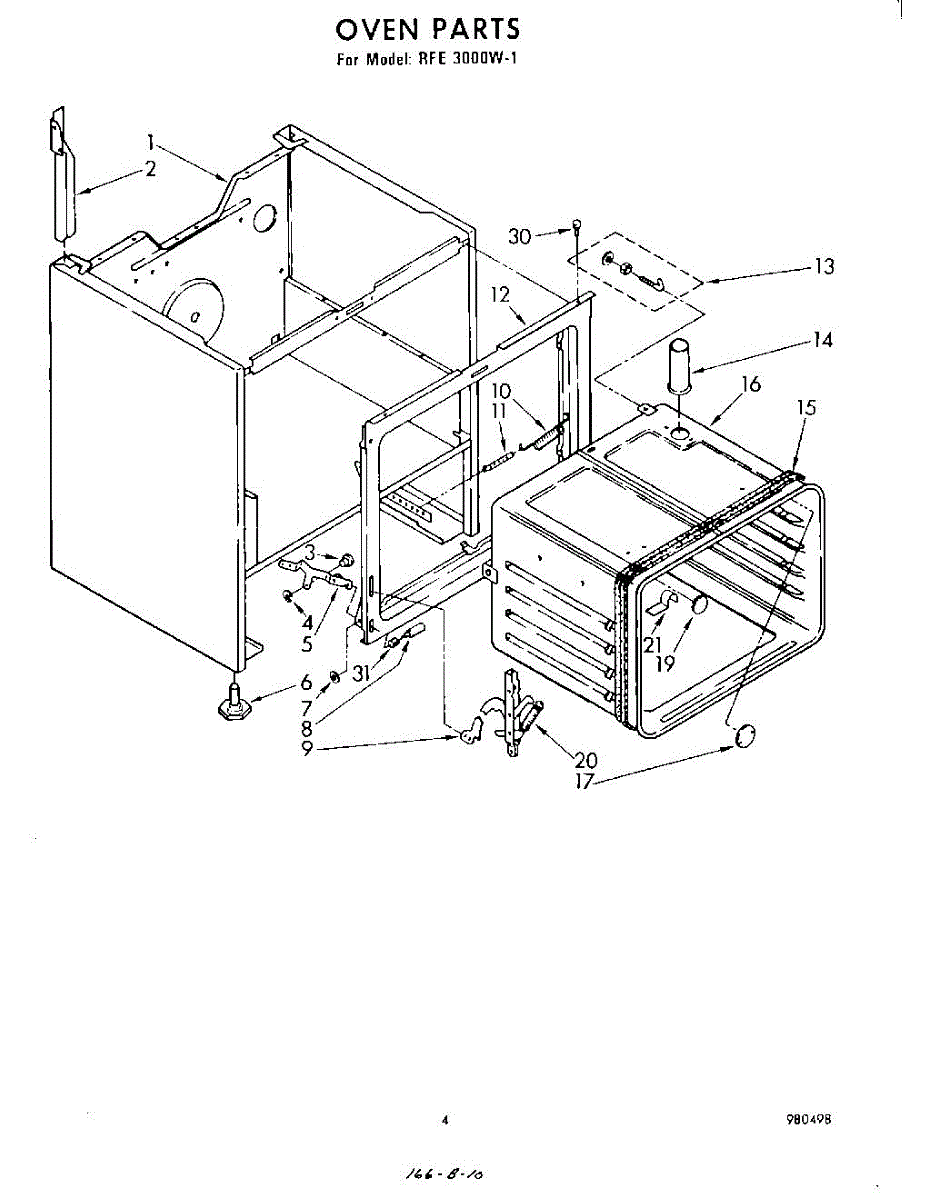

Parts for Whirlpool RFE3000W1: 04 - Oven Parts

This is a fastener screw used to secure appliance panels and components where a 10-24 thread is required. It provides a reliable hold for reattaching parts during repairs and maintenance. What it does:

• Fastens panels, brackets, or components with a 10-24 threaded hole
• Restores original attachment points that have missing or damaged screws
• Helps reduce vibration and rattling when properly tightened
• Works with metal or reinforced plastic mating components designed for 10-24 hardware

• One screw (quantity: 1)

• Use the matching 10-24 driver/socket and turn until snug; avoid over-tightening
• Verify mating threads and alignment before driving to prevent cross-threading
• Disconnect power and follow appliance safety procedures before servicing
• Check for proper washer or spacer if originally present

This hinge pin is the pivot that connects a door hinge to the appliance cabinet or door. Replacing a worn pin restores smooth, aligned door movement and reliable closing.

• Provides the hinge's pivot point the door swings on
• Helps maintain door alignment for smooth opening and closing
• Common symptoms: loose or sagging door, binding, difficulty latching, excessive play at the hinge
• Visual clues: worn/flattened pin surfaces or a missing pin at the hinge location

• Disconnect power (and gas if applicable) and allow the appliance to cool completely before service
• Support the door to prevent strain on the remaining hinge while you work
• Note hinge orientation, remove any retaining clip/screw, slide out the old pin, and seat the new pin fully
• Inspect related hinge bushings or washers while open and replace if worn

This retaining ring secures a component in its groove on a shaft or housing, keeping parts aligned and in place during operation. Replace a bent, stretched, or missing ring to restore a tight hold and reduce movement or noise.

• Secures a component by seating in a groove on a shaft or inside a bore
• Maintains correct axial position so parts don't slide off during use
• Helps reduce wobble, vibration, or rattling caused by loose assemblies
• Typical symptoms: part won't stay seated, excess play or movement, scraping/rattling noises, or a visibly deformed ring

• Disconnect power; shut off water or gas if applicable. Wear eye protection and gloves
• Note ring orientation; use appropriate snap-ring/circlip pliers or picks—avoid overstretching
• Clean the groove and seat the ring fully; secure fit
• Replace any damaged spacers, washers, or seals found during service

Replacement adjustable leveling feet that stabilize your dryer and help keep it sitting level on uneven floors. Restores proper clearance and reduces rocking, vibration and movement for safer, quieter operation. What it does

• Replaces worn or damaged leveling feet to stabilize the appliance
• Allows height adjustment so the dryer sits level on uneven surfaces
• Helps reduce rocking, rattling or excessive vibration during cycles
• Can improve door alignment and reduce friction-related noise

• One set of replacement leveling feet

• Unplug the dryer and move it away from the wall before installing
• Adjust feet by turning them to raise or lower each corner; use a level for best results
• Use two people when tipping or sliding the dryer to prevent injury or damage
• Do not operate the dryer without all leveling feet installed and secured

This anchor spring maintains tension on the parts it secures, keeping the associated component aligned and stable during use. Replacing a fatigued or broken spring restores a snug fit and reliable, rattle-free operation.

• Provides spring tension to anchor a bracket, lever, or panel in place
• Helps prevent looseness, vibration, and rattling from lost spring force
• Failure signs can include a loose/shifting component, misalignment, difficulty holding position, or abnormal noise
• Replace if the spring is broken, stretched, corroded, or missing

• Disconnect appliance power; if gas is present, also shut off the gas supply
• Access the spring per your model and note its routing/attachment points before removal (a quick photo helps)
• Use needle-nose pliers or a spring hook; wear gloves and eye protection—springs are under tension
• Ensure both ends are fully seated and the connected mechanism moves/tensions correctly before reassembly

A replacement mounting screw to secure appliance panels and components so parts stay properly fastened during normal use. Small but essential hardware for stable, rattle-free operation and reliable repairs. What it does:

• Fastens panels, brackets or components to the appliance chassis
• Prevents loose panels, vibration noise, or parts shifting during operation
• Used when original screw is lost, damaged, or stripped
• Restores proper fit and alignment after disassembly for service

• Disconnect power and water before starting any repair
• Use the correct screw type and length; do not force or substitute oversized fasteners
• Tighten until snug—avoid overtightening to prevent stripped threads or cracked parts
• Keep small parts away from children and pets

This part has been discontinued and is no longer available.

This cover screw secures appliance panels and covers, keeping components protected and aligned. Replace missing, stripped, or corroded screws to restore a tight fit and help eliminate rattles, gaps, or panels that won't stay in place.

• Attaches an access cover or panel to the appliance frame
• Helps maintain proper alignment to protect internal components
• Replaces missing, stripped, or rusted hardware
• Typical signs: loose or rattling panel, cover won't stay secure, damaged or rounded screw head

• Disconnect power before servicing
• Support the panel while removing and installing screws to prevent misalignment
• Start threads by hand to avoid cross-threading; do not overtighten
• Use a matching driver bit to avoid damaging the screw head

This part has been discontinued by the manufacturer and is no longer available.

The thermostat bulb clip is an OEM component specifically designed for Whirlpool drop-in electric ranges, securely fastening the thermostat sensor bulb. This clip features corrosion-resistant spring coils and precision tips.

Symptoms of a bad thermostat bulb clip include:

• Dangling thermostat bulb
• Temperatures inside oven might be incorrect because sensor bulb is not mounted correctly.

Causes of failure involve metal fatigue weakening the thermostat bulb clip over years of expansion and contraction during heating, worn surfaces losing grip, or damaged barbs failing to anchor the thermostat bulb.

Replace yours today with this genuine OEM Whirlpool clip. Compatible with Jenn-Air, GE, and select Kenmore appliances, reinforced coils maintain constant tension assuring safety. Reliable glass retention enhances interior illumination for tasks.

Rubber bumper. Color: Grey.
