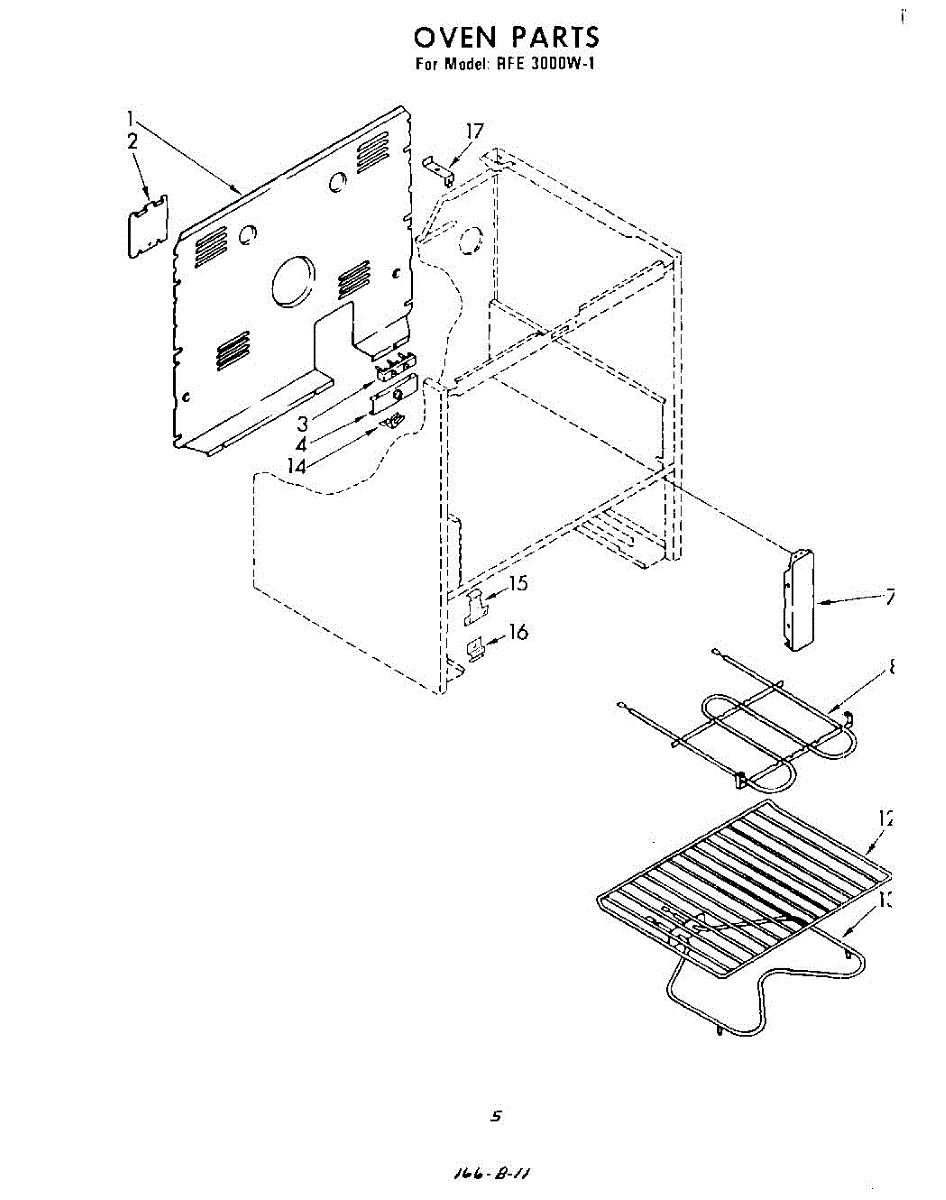

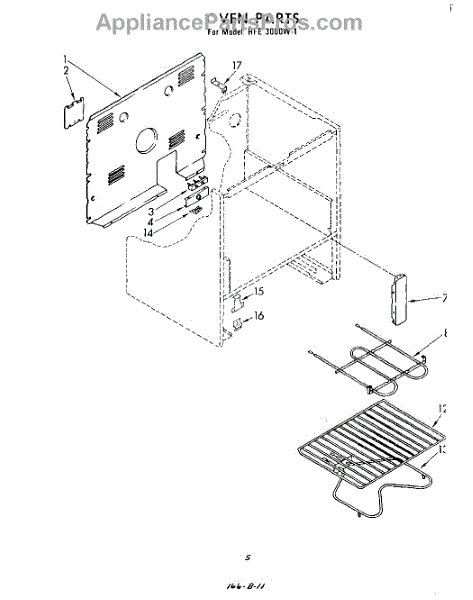

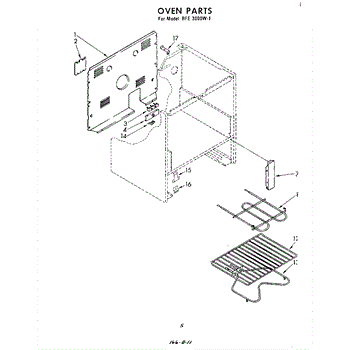

Parts for Whirlpool RFE3000W1: 05 - Lit / Optional Parts

Specs: 10-16 x 1/2 inch.

This is a fastener screw used to secure appliance panels and components where a 10-24 thread is required. It provides a reliable hold for reattaching parts during repairs and maintenance. What it does:

• Fastens panels, brackets, or components with a 10-24 threaded hole
• Restores original attachment points that have missing or damaged screws
• Helps reduce vibration and rattling when properly tightened
• Works with metal or reinforced plastic mating components designed for 10-24 hardware

• One screw (quantity: 1)

• Use the matching 10-24 driver/socket and turn until snug; avoid over-tightening
• Verify mating threads and alignment before driving to prevent cross-threading
• Disconnect power and follow appliance safety procedures before servicing
• Check for proper washer or spacer if originally present

This terminal block access cover protects the appliance's electrical connection area, helping keep wires shielded and reducing the risk of accidental contact. It restores the factory appearance and helps maintain safe operation. What it does:

• Shields the terminal block and wiring from dust, debris, and accidental contact
• Helps prevent shorting or arcing at the power connection area
• Restores a finished look after service or replacement of wiring components
• Supports safe access control by covering live terminals when installed

• Disconnect power at the breaker or unplug the appliance before servicing.
• Remove or loosen the mounting fasteners for the old cover, then position and secure the replacement cover.
• Verify the cover fits flush and does not pinch wiring; ensure all connections are tight before restoring power.

Size: 10-32 inch.

This terminal block is the insulated connection point where the appliance's incoming power ties into the internal wiring. Replacing a heat-damaged or loose block restores a safe, reliable electrical path and helps prevent arcing and intermittent power loss.

• Connects the supply conductors to the unit's internal wiring
• Provides insulated posts to securely fasten and distribute power
• Helps maintain tight, low-resistance connections
• Common failure signs: melted/discolored plastic, burned or loose terminals, arcing, scorching, or intermittent/no power after confirming the cord and breaker

• Disconnect power at the breaker or unplug the appliance; verify no voltage before servicing
• Photograph or label wire positions to ensure correct reassembly
• Inspect and replace any heat-damaged wire ends or lugs; use appropriate terminals
• Tighten connections securely and ensure wires are fully seated and strain-relieved as originally installed

Made by Whirlpool. 5-Loop oven broil element. Size: Width 11-3/4"; Length 18-5/8". Hanger style mounting.

Color: chrome. Measures about 22 inches wide by 16 inches deep.

The Oven Bake Element is an OEM part for Whirlpool ovens. This part heats the oven's interior during the baking process. Located at the bottom of the oven, the bake element heats up when electricity passes through it, allowing for consistent and even cooking.

Causes of damage to the Oven Bake Element can include normal wear and tear from regular use, a buildup of food debris causing hot spots and potential burns out, or electrical issues leading to shorts or surges that damage the element.

Symptoms of a bad Oven Bake Element include:

• Visible signs of damage to the element, such as blistering, holes, or breaks in the element itself.
• The oven failing to heat up at all
• A lack of visible glowing from the element during operation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Specs: 10-16 x 1/2 inch.

Specs: 25ft, 14 Ga. 150 c Blue

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Orange 14 Ga. 150~c)

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Red 14 Ga. 150~c)

Touch-up paint. Color: Almond. Size: 1 qt. can. (Uncut)

Touch-up paint. Color: Black. Size: 0.6 fl.oz. can.

Specs: 25ft, 14 Ga. 150 c Black

Color: White. Size: 1/2 oz. Porcelain or evaporator repair kit.

Spray paint. Color: Avocado. Size: 13 oz. can.

Spray paint. Color: Harvest gold. Size: 12 oz. can.

Touch-up paint. Color: Harvest gold. Size: 1 qt. can.

Made specifically for oven bottoms, this foil helps catch spills in your oven. Perfect for BBQ grills as well.

Color: White. Size: 1 qt. can. Acrylic appliance paint.

Bottle with brush. Color: New avocado. Size: 0.6 fl.oz.

Bottle with brush. Color: Harvest Gold. It's 0.6 fluid ounces.

Color: White. Size: 13 oz. Spray paint primer. can.

Color: Black. Size: 12 oz. Acrylic appliance aerosol can spray paint.

Color: White. Size: 2 oz. can. Porcelain touch-up paint.

Color: Almond

Almond. Size: 13 oz. can. Acrylic appliance paint.

Bottle with brush. Color: Black. Size: 0.6 fl.oz.

The Appliance Touchup Paint is an OEM product for Whirlpool appliances. This touchup paint is used to cover scratches, chips, and minor blemishes on the surface of various appliances, helping to maintain their appearance and protect them from rust and other damage. It is specifically formulated to match the original color and finish of Whirlpool appliances, ensuring a seamless repair.

Causes of needing touchup paint include everyday wear and tear, accidental impacts that cause chipping or scratching, and exposure to harsh cleaning chemicals that can damage the finish. Regular use of touchup paint can help keep appliances looking new and extend their lifespan.

Symptoms indicating the need for Appliance Touchup Paint include:

• Visible scratches or chips on the appliance surface
• Areas of exposed metal prone to rust
• Blemishes that affect the overall aesthetic of the appliance

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: White. Size: 13 oz can. Acrylic appliance aerosol can spray paint.

The Appliance Spray Paint is an OEM part for Whirlpool appliances, designed to provide a quick and effective way to touch up or completely refinish the exterior of various appliances. This specialty spray paint is formulated to adhere to metal surfaces, offering a durable and resistant finish that can withstand the routine wear and tear of kitchen environments, including heat, moisture, and everyday use.

The primary reason for using such a specialized paint is to maintain or restore the aesthetic appeal of your appliances while protecting them from further damage.

Symptoms needing for Appliance Spray Paint include:

• Scratches, chips, or rust spots on the appliance's exterior that can lead to further damage or corrosion if left untreated
• A desire to refresh or update the appearance of the appliance without the need for complete replacement
• Discoloration or fading of the original finish due to age, exposure to sunlight, or cleaning agents

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Oven Insulation is an OEM replacement part for Whirlpool ranges. Properly insulated walls are necessary to prevent heat loss through the oven exterior, ensuring consistent and even cooking from the inside out.

Causes of bad insulation include the breakdown of insulating materials over time due to repeated high heat exposure during cooking. Crumbling, compressed, or discolored insulation has lost its ability to hold in heat.

Symptoms of needing new insulation include:

• Inefficient and uneven cooking/baking performance
• Interiors not reaching/maintaining set temperatures
• Overheating or longer than normal cook times
• Hot or warm oven exteriors that were previously cool to the touch

This genuine Whirlpool OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Oven Insulation is an OEM replacement part for Whirlpool ranges. Properly insulated walls are necessary to prevent heat loss through the oven exterior, ensuring consistent and even cooking from the inside out.

Causes of bad insulation include the breakdown of insulating materials over time due to repeated high heat exposure during cooking. Crumbling, compressed, or discolored insulation has lost its ability to hold in heat.

Symptoms of needing new insulation include:

• Inefficient and uneven cooking/baking performance
• Interiors not reaching/maintaining set temperatures
• Overheating or longer than normal cook times
• Hot or warm oven exteriors that were previously cool to the touch

This genuine Whirlpool OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
