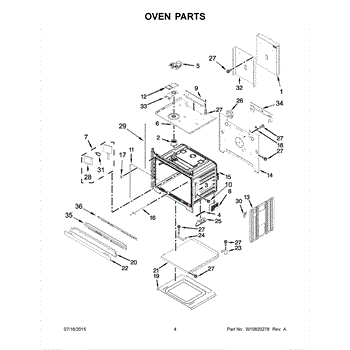

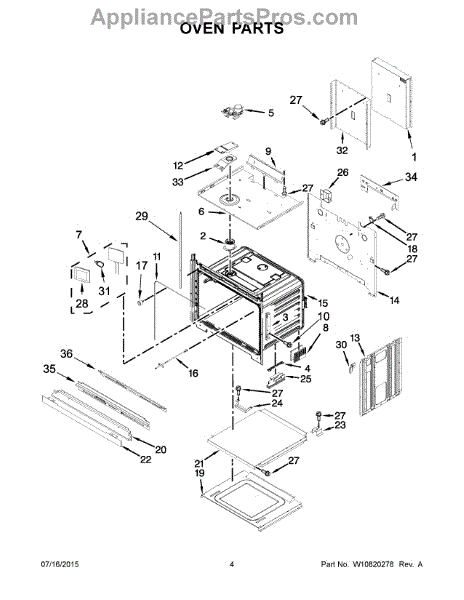

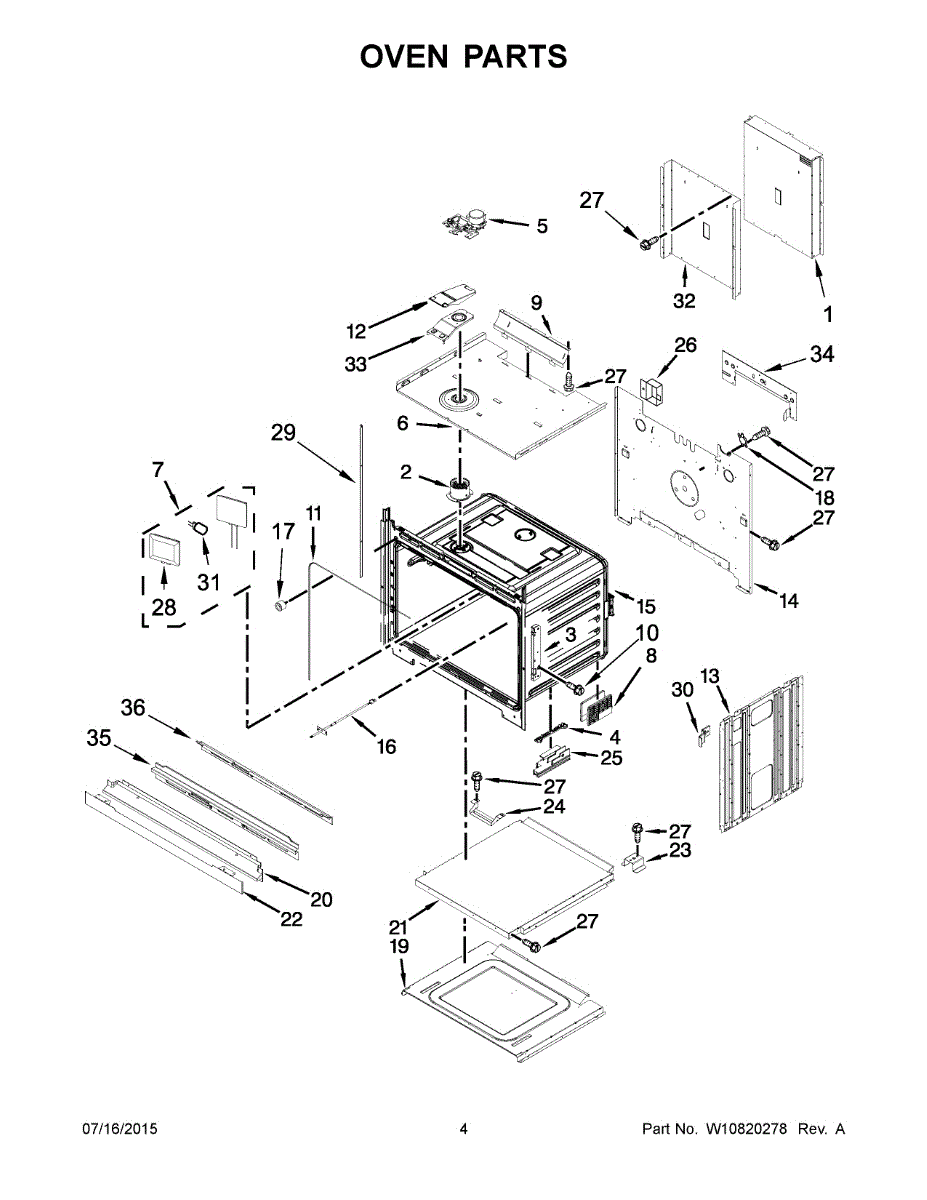

Parts for Kitchenaid KODE300ESS01: 03 - Oven Parts

Routes hot, moist air from your dryer drum to the external vent outlet. Replace if cracked, disconnected, or damaged to restore proper airflow.

Receiver bracket that mounts and holds oven door hinges in place. Replace if cracked, broken, or worn from repeated use causing door misalignment or instability.

Maintains proper clearance between wall oven components to prevent rubbing or binding. Replace if cracked, broken, or missing to restore correct alignment.

Oven door won't close or displays F5/E1 error? This door latch assembly secures the door and engages the safety interlock for proper operation.

Restores bright oven interior lighting so you can monitor food without opening the door. Replace when bulb burns out or dims. Verify fit by model number.

Vent deflector for wall ovens and ranges. Directs air flow from the internal cooling vent. Replace if cracked, broken, or missing for proper ventilation.

This factory fastener secures components inside your appliance, keeping panels, brackets, and assemblies properly attached. Replacing a worn, stripped, or missing screw restores a tight fit and helps prevent vibration, rattling, and misalignment.

• Fastens parts to frames, panels, or brackets as specified in your model's parts diagram
• Helps maintain alignment and reduce vibration/rattling during operation
• Replace when the original screw is missing, corroded, stripped, or no longer holds
• Direct OEM hardware for the designated locations on applicable models

• Disconnect power; shut off gas/water if applicable. Allow hot surfaces to cool.
• Use the correct driver size; start threads by hand to avoid cross-threading.
• Tighten until snug—do not overtighten, especially into plastic or thin sheet metal.
• If a mating clip, insert, or nut is damaged, replace that hardware per your model diagram.

Replace your wall oven door cavity gasket when heat escapes or condensation appears. Creates an airtight seal for optimal cooking temperatures. Confirm fit with your model number.

This is a temperature sensor probe that mounts inside the oven cavity and monitors the internal temperature. It sends resistance-based readings to the control board so the oven can maintain the correct cooking temperature. Replace this sensor if the oven is not heating to the set temperature, overheating, displaying error codes, or if food is consistently undercooked or burned.

6-32 machine screw secures panels, brackets, and components in appliances. Replace worn, missing, or stripped screws to restore proper fit and assembly.

This is a fixed high-limit thermostat used in ranges and ovens to monitor internal temperature and cut power to the heating element if the oven exceeds a safe operating temperature. It acts as a safety device to prevent overheating and potential fire hazards. Replace this thermostat if your oven is not heating at all, shuts off prematurely, or if you have confirmed a lack of continuity through the component with a multimeter.

Lower front vent for electric wall ovens. Channels hot air and moisture out of the oven cavity. Replace if cracked, damaged, or missing for proper airflow.

This is a metal bottom panel that covers the lower section of the oven cavity. It serves as an access cover to protect internal components beneath the oven floor, such as the bake element or wiring. Replace this panel if it is warped, corroded, rusted through, or missing, which can lead to uneven heating or exposed components.

This bottom vent trim covers the lower front opening and directs airflow while giving the appliance a finished, clean look. It replaces a damaged or missing kickplate to restore proper ventilation and appearance.

• Shields the lower cabinet opening and helps guide airflow through the base
• Improves finished look by concealing internal components at the bottom front
• Common symptoms of failure include a loose, cracked, or missing trim and rattling at the base
• Can affect airflow if the trim is broken, warped, or not secured

• Unplug power and shut off utilities as applicable before servicing
• Remove existing fasteners, note their locations, and retain for reuse if still serviceable
• Align the trim with mounting points; secure with the correct hardware per your model
• Do not overtighten fasteners to avoid cracking the trim

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Restores bright oven interior lighting so you can monitor food without opening the door. Replace when bulb burns out or dims. Verify fit by model number.

Interior light bulb illuminates your oven cavity for monitoring cooking progress. Replace when dim or burnt out. Verify fit with your model number.
