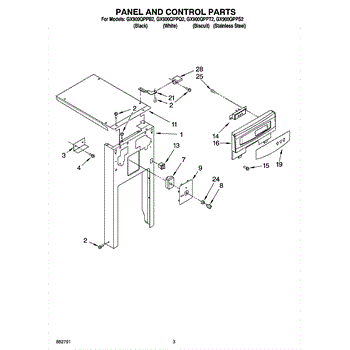

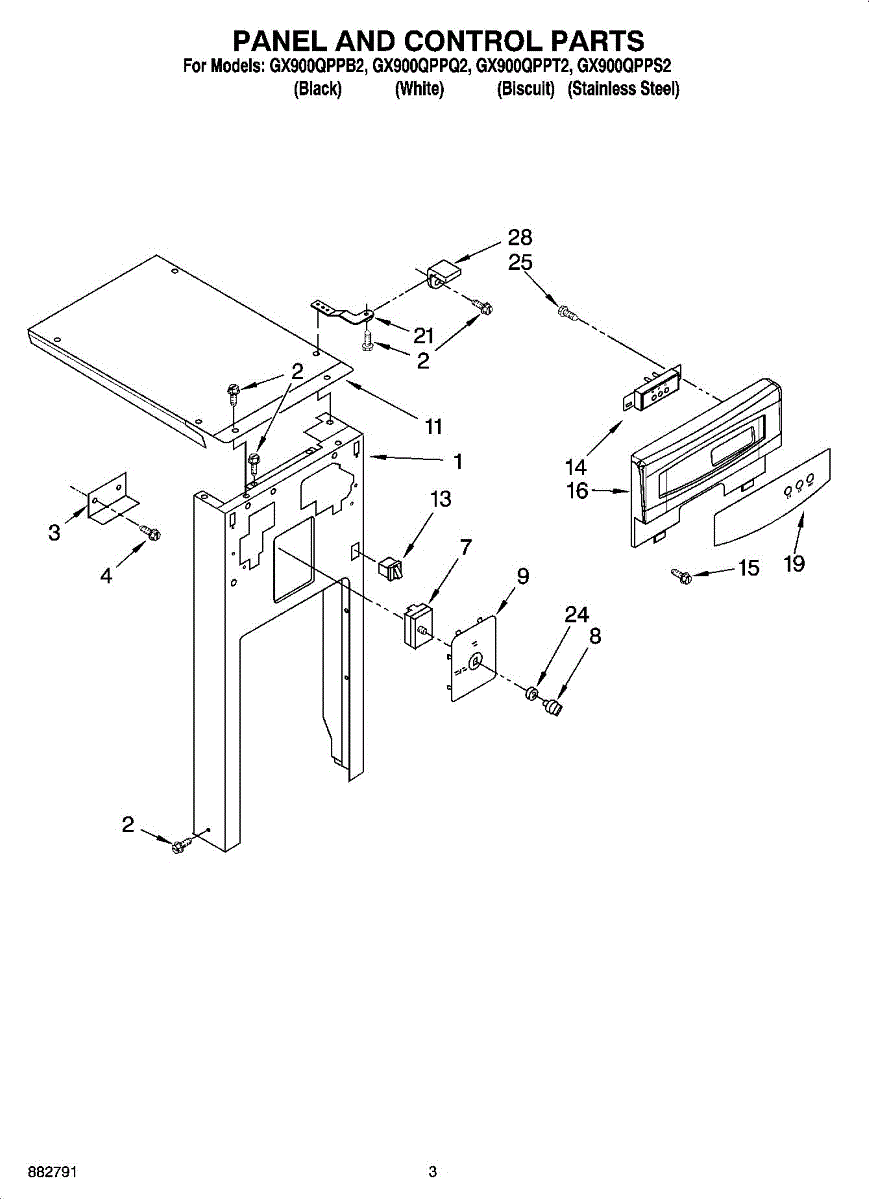

Parts for Whirlpool GX900QPPB2: 03 - Panel And Control Parts

Color: Black. This panel is without cut out for lower switch. For panel with cut out use W10342596.

Size: 8 x 1/2 ab.

Size: 8-32 x 1/4 inch.

To order knob for this switch use WP4155141.

May also be called a key. Color: Red.

Color: White.

Color: Black

Color: Black

This push-button door switch senses when your refrigerator door opens and closes to control the interior light. Replace a worn or stuck switch to restore reliable lighting and proper on/off operation when the door moves. What it does:

• Turns the interior light on when the door opens and off when it closes
• Common fix for a light that won't turn on with the door open
• Resolves lights that stay on continuously with the door closed
• Addresses intermittent lighting from a sticking or damaged plunger

• One door switch

• Disconnect power to the refrigerator before servicing
• Carefully pry the old switch from the liner; protect the surface to avoid damage
• Transfer wires to the new switch one at a time to maintain correct connections
• Press the new switch fully into place and restore power to test operation

This off switch is a small electrical switch that opens the circuit to stop a function or cycle when triggered by the appliance's mechanism or control. Replacing a worn switch restores reliable shutoff and consistent operation. What it does:

• Interrupts power to stop operation when actuated by a lever, cam, or latch
• Sends an "off" signal to the control for proper shutdown
• Helps correct issues like a function that won't shut off or stops intermittently
• Can resolve situations where jiggling a door/lever is needed to make a function stop

• 1 off switch

• Disconnect power (unplug or switch off the circuit breaker) before servicing
• Access the switch, note wire positions, and transfer wires terminal-for-terminal
• Mount the new switch securely; avoid bending the actuator more than necessary
• Restore power and test operation before full reassembly

This sheet-metal pan-head screw secures appliance panels, brackets, and components to the cabinet or frame. Replacing a missing or damaged screw restores a tight fit and helps stop rattles, misalignment, and loosening.

• Fastens sheet-metal panels, covers, ducts, and brackets to the appliance chassis
• Helps keep components aligned and secure during operation
• Replace if the original is missing, rusted, stripped, or damaged
• Common symptoms: loose or vibrating panels, gaps or misaligned parts, hardware that won't tighten

• Disconnect power; shut off gas or water supply before servicing
• Support the panel or part being attached; hand-start threads to avoid cross-threading
• Use the correct driver bit; tighten snugly but do not overtighten into sheet metal
• If multiple matching screws secure a part, consider replacing them as a set for consistent hold

Color: White

Escutcheon restores the finished look of your appliance while protecting control switches and openings from grease, spills and debris. Use it to replace cracked, damaged or missing trim. What it does:

• Covers and protects control components and switch openings from moisture, food and debris.
• Restores the appliance's cosmetic appearance and helps secure knobs and switches.
• Common repair for cracked, warped or missing trim that leaves controls exposed.
• Reduces rattling or loose-feeling control panels by providing a snug trim fit.

• Disconnect power (unplug or shut off breaker) before starting any repair.
• Handle the trim carefully to avoid scratching the finish; use proper screwdrivers and a trim tool as needed.

Escutcheon restores the finished look of your appliance while protecting control switches and openings from grease, spills and debris. Use it to replace cracked, damaged or missing trim. What it does:

• Covers and protects control components and switch openings from moisture, food and debris.
• Restores the appliance's cosmetic appearance and helps secure knobs and switches.
• Common repair for cracked, warped or missing trim that leaves controls exposed.
• Reduces rattling or loose-feeling control panels by providing a snug trim fit.

• Disconnect power (unplug or shut off breaker) before starting any repair.
• Handle the trim carefully to avoid scratching the finish; use proper screwdrivers and a trim tool as needed.

This replacement insert restores a finished appearance and secures a panel or trim opening on compatible appliances. It helps cover gaps and provides a clean, stable mounting surface so doors and panels sit correctly. What it does:

• Covers and finishes an opening in a control panel, door, or trim area
• Helps hold adjacent panels or components in proper alignment
• Prevents exposed edges and reduces dirt accumulation in the opening
• Common symptom: missing, cracked, or loose insert that leaves a visible gap or allows panel movement

• One replacement insert

• Disconnect power to the appliance before beginning any work
• Remove the affected panel or access trim per the appliance service instructions
• Insert typically snaps or slides into place; verify alignment before fastening
• Reinstall panels and restore power; test that adjacent components operate and align correctly

This white PC-900 panel insert replaces a worn, cracked or missing trim piece on compatible Whirlpool control panels. It restores a clean finished appearance and provides a stable surface for buttons and mounting clips. What it does:

• Covers and protects openings in the appliance control panel to help keep out dust and debris.
• Provides a flush mounting surface for buttons, switches and retaining clips.
• Restores cosmetic appearance when the original insert is cracked, chipped, discolored or loose.
• Helps maintain proper button alignment and prevents gaps around controls.

• Disconnect power to the appliance before beginning any service.
• Remove the control panel bezel or screws as required to access the insert; gently release retaining clips to avoid damage.
• Align the insert with mounting points and snap or fasten into place; verify buttons move freely.

This replacement insert fits into the designated recess on your appliance to secure and finish the related component. Replacing a worn or missing insert restores a tight, proper fit and a clean, factory look. What it does

• Seats within its mating part to support, align, or finish the assembly
• Restores a secure fit when the original insert is cracked, deformed, or missing
• Helps reduce looseness, rattles, and visible gaps
• Visual cues include cracking, distortion, or pieces breaking off

• 1 insert

• Disconnect power and shut off any applicable utilities before servicing
• Use your model's diagram to locate the insert and note its orientation
• Remove the damaged insert; clean the mating area; press or snap the new insert fully into place
• Reassemble and test the related component for proper fit and function

This retainer bracket secures internal components in place to restore proper alignment and support. It replaces a worn or broken bracket to help reduce rattling, misalignment, or loose parts during operation. What it does:

• Holds and supports internal assembly parts to maintain correct positioning
• Prevents movement that can cause noise, vibration, or rubbing
• Restores stability after bracket damage or wear
• Works as a direct-fit replacement when the original bracket is broken or bent

• High-level replacement — basic hand tools required;
• Disconnect power (and gas if applicable) before beginning any repair
• Inspect surrounding parts and hardware; replace any damaged fasteners for a secure fit

This switch nut secures a rotary control or switch to the appliance's front panel. Replacing a stripped or missing nut keeps the control stable so the knob turns smoothly and the shaft stays properly aligned.

• Clamps the switch/control to the panel to prevent movement or rotation
• Helps maintain correct knob alignment with dial markings
• Common symptoms: loose or wobbly knob, switch rotates in the panel, missing/damaged nut
• Often needed after service if the original nut is stripped or lost

• Disconnect electrical power before servicing
• Remove the knob and any decorative escutcheon; thread the new nut onto the switch bushing from the front of the panel
• Support the switch from behind while tightening; do not overtighten to avoid panel or switch damage
• Restore power and test control operation

This replacement screw secures panels, brackets, and internal components inside your appliance to keep them aligned and rattle-free. Replace stripped, rusty, or missing hardware to restore a tight fit and dependable operation.

• Holds metal panels, brackets, ducts, or trim in place
• Helps maintain alignment and reduces vibration and noise
• Replaces missing, corroded, or stripped screws
• Common symptoms: loose panel or component, rattling/buzzing during use, screw won't tighten

• Disconnect power and shut off gas/water before servicing
• Start threads by hand to avoid cross-threading; use the correct driver
• Replace one fastener at a time to maintain alignment
• Tighten snugly—do not overtighten to prevent stripping
