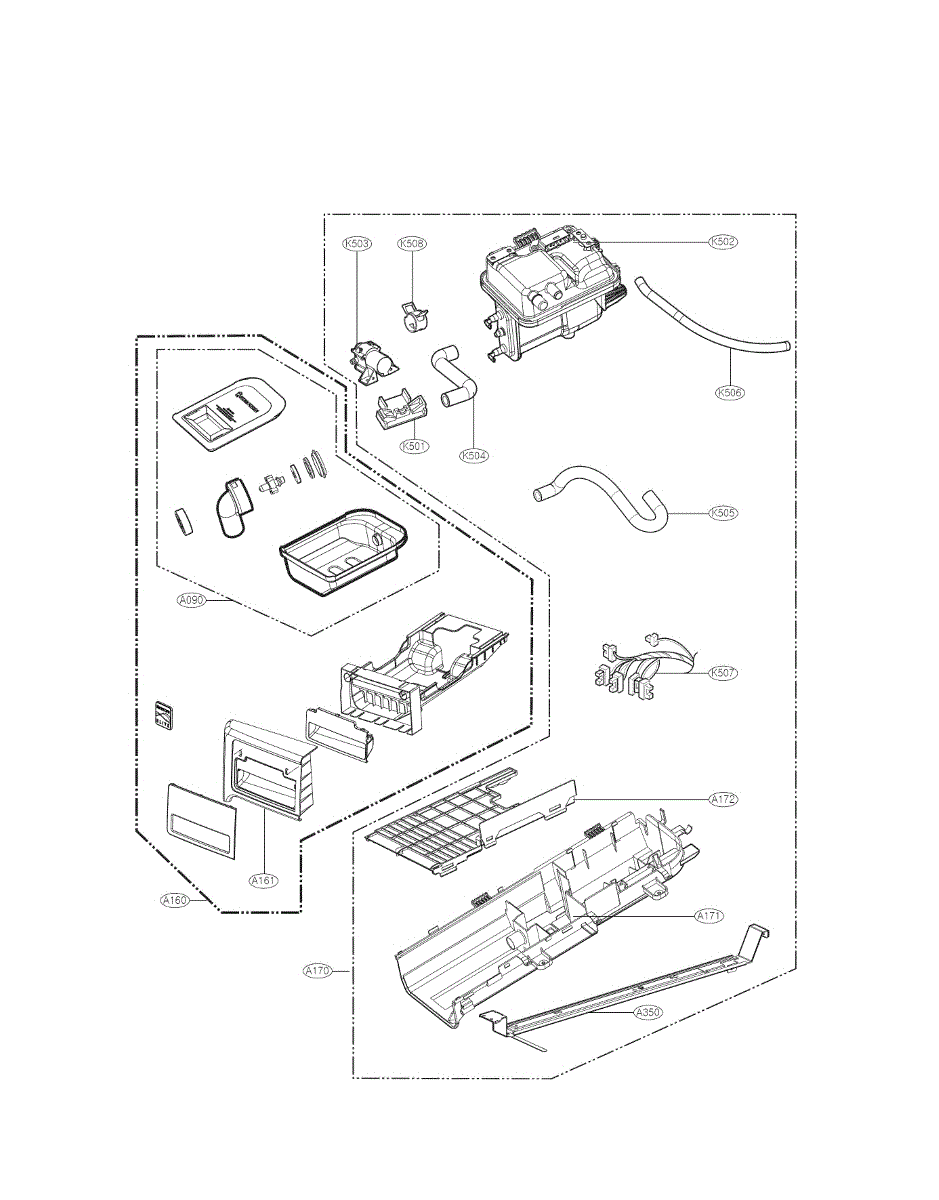

Parts for Kenmore 796.91582410 (79691582410, 796 91582410): Panel Drawer Assembly Parts

This water tank assembly collects condensation produced during the drying cycle in a ventless or condenser dryer. It is a removable reservoir that must be emptied periodically to allow the dryer to continue operating. Replace this tank if it is cracked, leaking, or if the dryer displays a full tank error even after emptying.

Dryer lint guide assembly directs airflow and lint to the trap. Replace if cracked, broken, or missing to restore proper lint collection.

This dryer guide cover cap installs on the drum or guide assembly. Replace if your original cover is cracked, broken, missing, or worn from regular use.

Sound dampening insulation that reduces dryer noise and vibration. Replace if worn, torn, or missing to restore quiet operation and cushioning.

This generator assembly senses motor rotation and provides the control board with speed/position feedback so the washer can time cycles and spin properly. It replaces a worn or damaged sensor assembly to restore reliable cycle control. What it does:

• Detects motor rotation and sends position/speed signals to the washer control board
• Helps the machine maintain correct spin speeds and cycle timing
• Can address symptoms like no spin, erratic spinning, or motor-related error codes when the generator fails
• Works with the motor/mounting components to ensure accurate feedback for drive operations

• One generator assembly

• Disconnect power before servicing to avoid shock or injury
• Requires basic tools and access to the washer's motor area; handle connectors and sensor surfaces carefully
• Reuse or replace any mounting hardware only if specified by the manufacturer

The DC pump motor assembly powers the pump that moves water through your appliance. Replacing a worn motor helps restore proper water flow so cycles can complete and reduces issues like standing water and excessive noise.

• Drives the pump impeller to move water for draining or circulation, as designed by the appliance
• Supports proper cycle completion by clearing water from the tub or sump
• Common symptoms of a failing motor include standing water, incomplete draining/circulation, loud humming or grinding near the pump, or cycle errors
• May run intermittently, stall, or overheat as internal components wear

• Disconnect power and turn off the water supply before servicing
• Expect residual water; protect the area with towels or a shallow pan
• Note wiring connectors and hose routing; transfer any brackets, grommets, or seals from the original as needed
• Secure hose clamps and test for leaks while running a brief test cycle

This is a flexible hose that connects the condensate drain pump to the water drainage system in a condensing dryer. It carries collected moisture from the pump to the drain outlet or reservoir. Replace this hose if you notice water leaking beneath or behind the dryer, or if the pump is running but water is not being properly drained.

This dryer vent hose connects your dryer to the exhaust vent. Replace if cracked, torn, kinked, or showing wear that restricts airflow and lint removal.

Wire harness for dryers. Connects electrical components inside the cabinet. Replace if wires are frayed, damaged, or connectors are broken or melted.

The Clamp is an OEM part for LG washing machines. It is used to secure the hose connections within the washer, ensuring that water flows correctly without leaks.

Over time, the clamp can become worn or damaged due to repeated exposure to water, vibration, or general wear and tear. If the clamp fails, it can lead to water leaks or hoses becoming detached.

Symptoms of a bad clamp include:

• Water leaking from hose connections
• Hoses coming loose or detaching during operation
• Visible rust or damage on the clamp
• Poor water flow or pressure issues

This OEM LG part is also compatible with Sears/Kenmore models.
