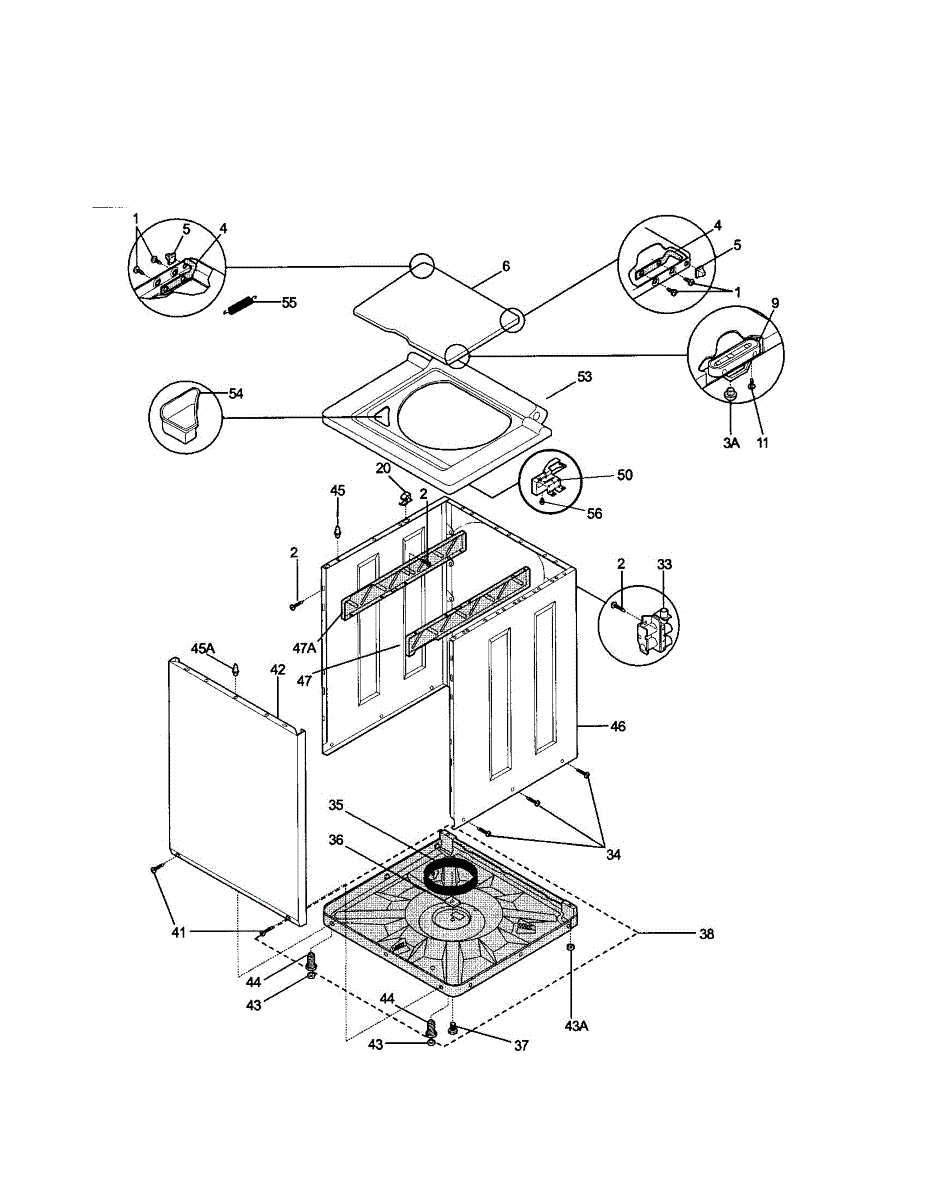

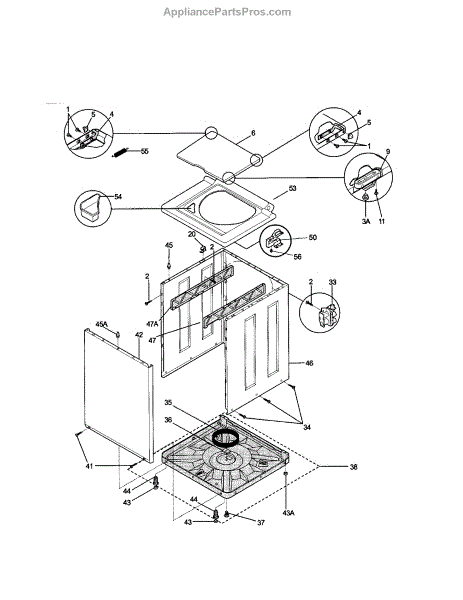

Parts for Kenmore 417.91702000 (41791702000, 417 91702000): Panels Parts

Mounting screw for laundry center panels and components. Replace missing, stripped, or damaged screws to secure parts properly during assembly or repair.

This factory 8-18 screw secures appliance panels, brackets, and components. Replace missing or stripped hardware to restore a tight, rattle-free assembly and dependable operation.

• Fastens components to frames, brackets, and covers
• Replaces missing, damaged, or rusted screws
• Helps reduce looseness, vibration, and rattling noises
• Restores proper alignment of panels and assemblies

• Disconnect power before servicing; shut off gas/water if applicable
• Start the screw by hand to avoid cross-threading; use the proper driver
• Tighten snugly—do not overtighten to prevent stripping metal or plastic

Rubber bumper cushions washer lid closure. Installs between lid and cabinet to absorb impact and reduce noise. Replace if worn, cracked, or missing.

Door hinge bar kit for washer dryer combo units. Replaces broken, worn, or damaged hinge bars that prevent proper door alignment and operation.

The hinge grommet provides cushioning and smooth operation where the washer lid connects to the main body. Replace if the lid doesn't close properly, makes grinding noises when opening/closing, or appears loose and wobbly.

Top-loading washer lid for laundry center units. Replace if cracked, bent, or no longer closes securely. Installs with hinge screws at the rear.

Washer won't start or advance to spin cycle? A broken lid strike prevents the lock from engaging. Simple 5-minute snap-in fix—just remove two screws.

Secures the door strike to your washer, keeping the latch aligned for firm closure. Replace if missing, stripped, or corroded to restore reliable latching.

Replacement pin for washer components. Secures and connects internal parts. Needed when original pin is broken, missing, or worn from use.

Washer won't fill with water or only fills with hot? The water inlet valve controls water flow into the tub. DIY repair takes about 30 minutes.

Shipping block for washers, installs inside cabinet to secure the tub during transport or moving. Replace if lost, broken, or missing from original packaging.

Shipping screw for washer drum transport stabilization. Remove before operation, save for future moves. Prevents drum damage during relocation.

This vane screw secures the internal drum baffle (vane) to the drum, keeping loads turning properly and preventing rattles or snags. Replace a missing or stripped screw to restore a tight, stable baffle during cycles.

• Fastens the drum baffle/lifter (vane) to the rotating drum
• Helps maintain proper tumble and load turnover
• Common symptoms: loose or wobbly baffle, rattling or clunking noises, items catching on a raised baffle edge, or a baffle that detaches
• Visual cues: missing screw or stripped/damaged threads at the baffle mounting holes

• Disconnect power before servicing; shut off gas
• Access the baffle from inside the drum; align holes and start the screw by hand to avoid cross-threading
• Tighten firmly but do not overtighten to prevent stripping the drum or cracking the baffle
• Start all screws before final tightening to seat the baffle evenly

White

Self-leveling leg pad for washers and laundry appliances. Replace worn, cracked, or missing pads to stabilize your unit and protect flooring.

Adjustable leveling leg that screws into the washer cabinet to stabilize and level your appliance. Replace if broken, damaged, or missing to prevent rocking.

This small pin helps align and position the washer's front or top panel during assembly and operation. It ensures proper alignment between panels and maintains structural integrity. Replace this part if panels are misaligned, the washer vibrates excessively, or there are gaps between panels.

Small alignment pin that positions and secures panels or components during assembly. Replace when worn, missing, or damaged to restore proper fit.

White

Left hand

Right hand

This washer switch is both the lid lock and lid switch. New mounting bracket replaces older design. Which means in some applications you may need to drill off old design mounting bracket prior to mounting the new lock. If your replacing the 4 wire switch you will need to tape off light switch leads. The light will no longer be used. Instructions included.

This is a small spring that attaches to the lid of a laundry center washer, providing tension to hold the lid in position. It helps the lid stay open during loading and close securely during operation. Replace this spring if your washer lid won't stay open, slams shut on its own, or the original spring is broken or stretched out.

Cushion bumper for washer dryer combo units. Installs to absorb vibration and reduce noise. Replace if cracked, worn, or missing for proper support.

Printed owner's manual for washer dryer combos. Includes operation instructions, care guidelines, and troubleshooting tips. Replace lost or damaged guides.

This replacement operator's instruction sheet explains dryer controls, basic operation, and safety guidance so you can use the appliance correctly and review key warnings. It's a simple replacement for a lost, torn, or unreadable instruction sheet. What it does:

• Lists control functions and recommended basic operation steps
• Summarizes important safety warnings and care tips
• Helps identify normal operating behavior versus issues that need service
• Useful when the original instruction sheet is missing or damaged

• No tools required; store the sheet near the dryer or place inside the owner's manual packet
• Keep away from children and moisture to preserve legibility
• Dispose of damaged sheets responsibly and replace when illegible

Snap-in bushing for washer assemblies. Replaces worn, cracked, or missing bushings that provide cushioning and support in internal components.

Secures the drain hose to prevent leaks and disconnection during spin cycles. Replace if cracked, loose, or causing water leakage. Verify fit with your model.

This component adjusts the tension of washer suspension springs in laundry center units and is located within the suspension system. Replace when experiencing excessive vibration, unbalanced loads, or unusual movement during spin cycles.

Secures the backsheet to the cabinet, preventing panel gaps and rattling. Replace if clip is broken or panels are loose. Confirm fit with your model number.

Harness cable tie secures and organizes wiring inside your appliance. Replace if damaged, cracked, or no longer holding wires firmly in place.

This terminal block screw secures the power cord leads to the appliance's terminal block, helping maintain a tight, reliable electrical connection. Replace missing, stripped, or heat-damaged screws to restore proper clamping of the wire lugs.

• Clamps incoming power wires to the terminal block for a secure electrical connection
• Replaces stripped, corroded, or missing terminal screw
• Designed to fit the original terminal block hardware locations

What's included: 1 terminal block screw Install notes:

• Disconnect power at the breaker or unplug the appliance before servicing
• Access the terminal block (location varies by model); note wire positions
• Inspect terminal block and wire lugs; replace any heat-damaged components
• Install and tighten the new screw securely without over-tightening; reinstall access cover and verify strain relief is in place before restoring power

Seals between the outer tub and splash guard to prevent leaks during wash and spin cycles. Replace if water leaks from the top of the cabinet. Confirm fit by model number.

Dryer won't start or smells like burning? A melted or loose terminal block where the power cord connects is often the cause. Easy 20-minute repair.
