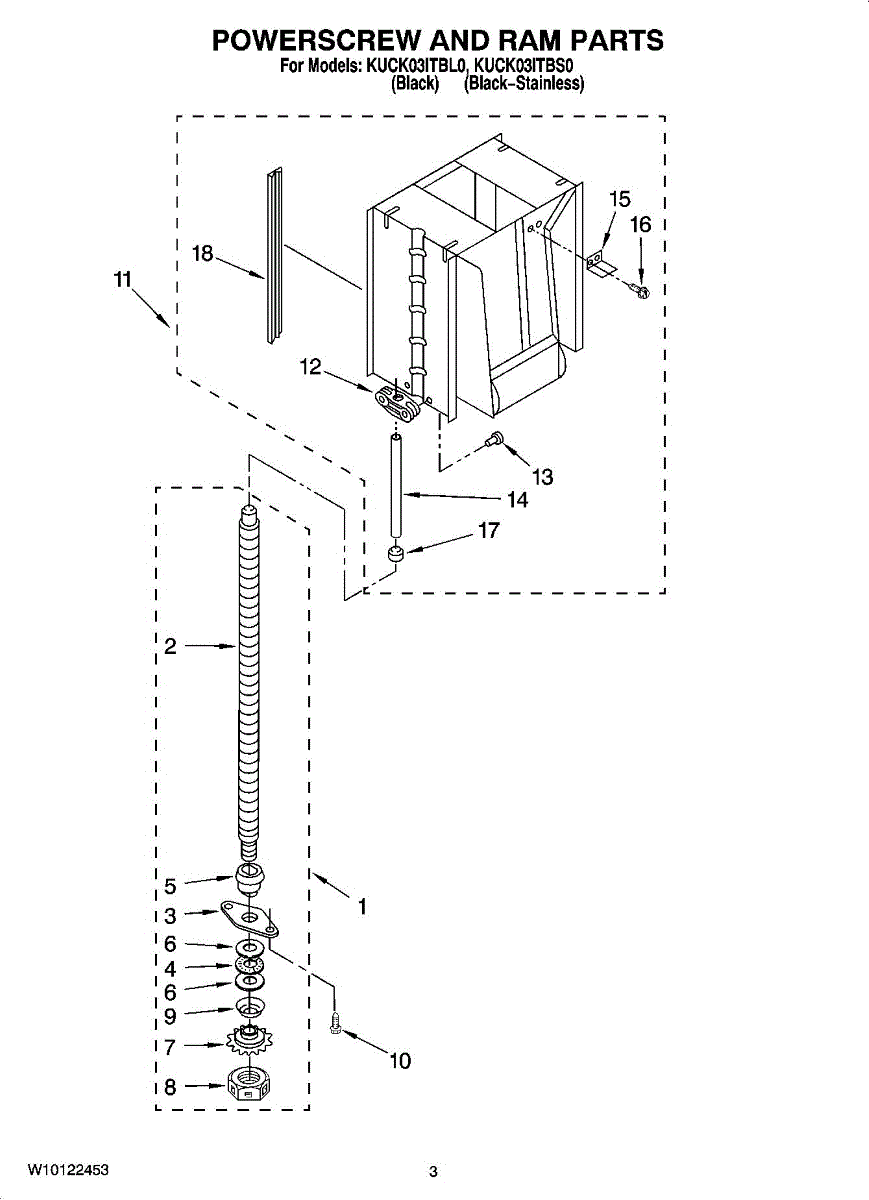

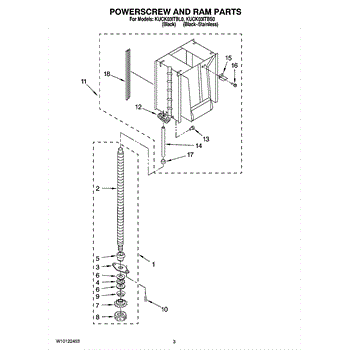

Parts for Kitchenaid KUCK03ITBL0: 03 - Powerscrew And Ram Parts

A replacement screw used to secure the appliance power connection for reliable electrical contact and safe operation. Restores a solid connection if the original screw is missing, loose, or damaged. What it does:

• Secures the power terminal/cord or related power assembly to maintain consistent electrical contact.
• Helps prevent intermittent power, arcing, or overheating caused by loose or damaged fasteners.
• Replaces a missing, stripped, or corroded screw so the appliance can operate safely and reliably.

• Always disconnect power to the appliance before starting any repair.
• Use the correct screwdriver and thread engagement; avoid overtightening to prevent stripped threads or damaged terminals.
• Inspect adjacent wiring, terminals, and the cord strain relief; replace any damaged components.

This bearing plate supports the dryer drum shaft and secures the bearing assembly so the drum spins smoothly and stays aligned. Replacing a worn plate restores stable drum rotation and helps reduce noise and rubbing. What it does:

• Provides a mounting surface and alignment for the drum bearing and shaft
• Keeps the drum centered to prevent wobbling, scraping, and uneven wear
• Reduces loud bearing or metal-on-metal noises caused by a damaged plate
• Helps maintain smooth drum rotation and proper belt alignment

• Turn power and gas off to the appliance before starting work
• Inspect surrounding components (bearing, shaft, seals, mounting screws) and replace if damaged
• Use correct fasteners and torque to secure the plate; improper mounting can cause noise or premature wear

This bearing supports a rotating shaft or assembly inside the appliance, reducing friction for smooth, quiet motion. Replacing a worn bearing helps eliminate noise, restore proper alignment, and prevent damage to mating parts.

• Supports and centers a rotating shaft or hub
• Reduces friction and wear for smoother, quieter operation
• Helps maintain alignment of connected components
• Common failure symptoms: grinding or squealing sounds, vibration or wobble, rough/stiff or seized rotation, excessive play

• Disconnect power before servicing; shut off water or gas if applicable
• Note orientation and retaining hardware before removal
• Use proper tools (puller/press) to remove and seat the bearing squarely—avoid hammering
• Inspect shaft/bore and related seals or spacers; replace worn components before reassembly

Power screw hub is a replacement drive hub that secures the washer's drive screw/agitator to the transmission, helping restore proper agitation and reduce slipping. Fits applications where a worn or broken hub causes drive loss. What it does:

• Transfers rotational force from the drive screw/agitator to the transmission so the washer can agitate or spin.
• Replaces stripped or worn splines that allow the agitator or drive screw to slip under load.
• Common symptoms it can help fix: agitator or drum won't engage, intermittent agitation, grinding or squeaking during cycles.
• Install replacement if splines are visibly damaged or if the hub no longer holds the drive assembly securely.

• Disconnect electrical power (and water supply if applicable) before beginning any repair.
• Remove agitator/drive components; use the correct tools to avoid further spline damage.
• Inspect mating splines and fasteners; replace any damaged hardware and clean the area before installation.
• After reassembly, run a short test cycle to confirm normal operation.

This precision thrust race serves as the hardened bearing surface for axial loads in a rotating mechanism. Replacing a worn race reduces friction and noise, helping restore smooth, consistent motion and protect companion thrust bearings and washers from accelerated wear.

• Provides the hardened bearing surface for a thrust bearing assembly
• Supports axial load and helps maintain proper end-play in the mechanism
• Reduces friction to allow smoother rotation under load
• Wear may present as grinding/scraping noises, rough or binding motion, excessive axial play, or visible scoring

• Disconnect power and shut off water/gas before servicing
• Access the thrust-bearing area; note the order and orientation of races, bearings, and washers for reassembly
• Clean mating surfaces; replace any worn companion parts and lubricate only if specified by the service documentation
• Seat the new race fully and verify free movement by hand before reassembly and testing

This sprocket is the replacement drive gear that helps transfer motor movement to the appliance's drive system, restoring reliable rotation and timing. It's a direct-fit component used in the unit's drivetrain to maintain proper mechanical engagement. What it does:

• Engages with the drive chain/belt or related components to transmit rotational force from the motor
• Maintains proper timing and alignment of moving parts for consistent operation
• Worn or broken sprockets can cause skipping, slipping, noisy operation, or loss of drive
• Replacing a damaged sprocket helps eliminate drivetrain play and irregular movement

• One sprocket

• Disconnect power (and water supply if applicable) before beginning any repair
• Inspect mating components (chain/belt, bearings, bushings) and replace if worn to prevent premature failure
• Installation may require basic hand tools and lifting or support of the assembly; follow the appliance service manual for disassembly/reassembly steps

This small conical washer is used in select washer assemblies to maintain clamp force under vibration. It helps keep fasteners tight and components properly aligned for reliable wash and spin performance. What it does:

• Provides spring-like tension under a screw or bolt to maintain clamp load
• Helps prevent fasteners from loosening due to vibration
• Supports proper alignment and secure fit of mating parts
• Worn or missing washers can lead to rattling, looseness, or intermittent operation

• 1 cone washer

• Disconnect power and, if applicable, turn off water supply before servicing
• Access the relevant assembly per your model's service information
• Note the washer's original orientation and match it during reassembly
• Tighten hardware securely without over-torquing; test and recheck for security

Replacement stringer bolt that secures the appliance's stringer or support rail to the cabinet frame, restoring panel alignment and preventing movement. Use when the original bolt is missing, loose, or damaged. What it does:

• Secures the stringer/support rail to the appliance frame so panels and assemblies stay aligned.
• Helps prevent cabinet or panel movement that can cause rattling or vibration during operation.
• Restores proper alignment when a loose or missing bolt causes misaligned panels or binding doors.
• Simple, direct replacement for a corroded, stripped, or lost fastener.

• Disconnect power before working on the appliance and remove any panels.
• Use the correct-size socket or wrench; hand-tighten, then snug—do not overtighten to avoid stripping threads.
• Inspect mating threads and replace the bolt if heads or threads are damaged; for the correct fastener location.

The Power Nut Kit is an OEM replacement part for Whirlpool trash compactors. It is designed to attach to the side of the ram and is threaded to interact with the power screw. As the power screw rotates, it feeds through the power nut, pulling the ram down to compact the trash.

Symptoms of a bad Power Nut Kit include:

• The ram not moving downward or failing to compact trash effectively
• Unusual noises during the compaction cycle
• Inefficient compaction due to the ram not being pulled down sufficiently

Causes for a malfunctioning Power Nut Kit can include wear and tear of the threads from regular use, mechanical issues affecting the rotation of the power screw, or damage to the power nut affecting its alignment and operation.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement stud is a factory-specified piece of hardware used to secure components in your appliance. Replacing a worn, stripped, or missing stud restores a solid fit to help reduce looseness and vibration. What it does:

• Provides a mounting point to fasten specified parts or panels
• Helps keep components aligned and secure during operation
• Replaces damaged, corroded, or missing original hardware
• Can resolve symptoms like loose parts, rattling, or misalignment where this fastener is used

• 1 stud

• Disconnect power; shut off water and/or gas supply if applicable
• Access the mounting location per your model's service information
• Start threads by hand to avoid cross-threading; tighten only until snug
• Reuse any original washers, clips, or nuts if required and in good condition

This ram stop is a small control component used in the ram assembly of trash compactors. It limits ram travel so the compactor stops at the correct position and the drawer opens smoothly after each cycle.

• Limits the upward travel of the ram to a fixed stop point
• Helps the ram return fully to the up position at the end of the cycle
• Reduces binding and prevents over-travel that can strain components
• Typical symptoms include a drawer that won't open or is hard to open, or a ram that doesn't return to the top

• Disconnect power to the compactor before servicing
• Remove the drawer/bin for access and support the ram
• Remove the damaged stop and install the replacement, ensuring it is fully seated and correctly oriented
• Run an empty test cycle to confirm the ram stops at the proper height

Size: 8-32 x .312 inch.

This slide-ram is a replacement drawer slide component that restores smooth opening and reliable support for a freezer or refrigerator drawer. It helps the drawer track properly and reduces binding or sticking during use. What it does:

• Guides and supports the drawer as it opens and closes
• Replaces worn, cracked, or damaged slide hardware that causes sticking or uneven movement
• Helps realign a sagging or mis-tracking drawer for smoother operation
• Works as a direct-fit replacement where specified by the OEM

• Basic hand tools required; disconnect power and empty the drawer before starting
• Handle sharp edges carefully and keep small fasteners secure during reassembly
• If clips or screws are corroded or damaged, replace them with OEM-recommended fasteners
