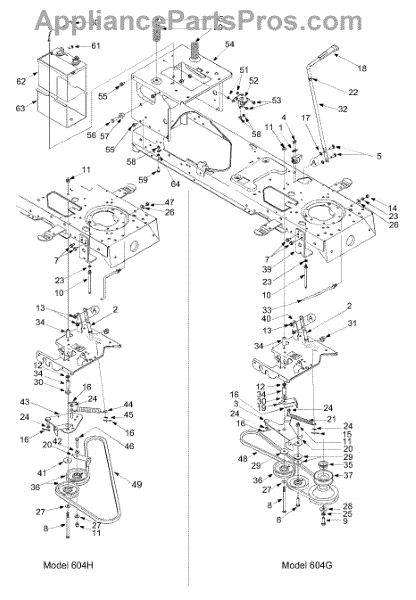

Parts for Yard-Man 13AT604G701 / 2004: Pto, Battery, Frame 1 Parts

This replacement part is a plate assembly. It is a genuine replacement part made by MTD. Plate assemblies are flat pieces of metal that are able to help connect other parts of the machine. This allows the separate items to work together and ensure that the entire engine is running and operating smoothly. A new plate assembly might be needed if the current one is damaged and is no longer able to be attached using screws or bolts. If the user notices that it is visibly broken, it is recommended that it be replaced right away. This should be a fairly easy repair and only take a few minutes depending on if the prior piece is damaged or not. This plate assembly is sold individually and is sourced directly from the manufacturer. This is also a genuine OEM replacement part to ensure proper fit.

This carriage bolt is a fastener with a flat tip and a round head with threading along the shank. Also known as coach bolts and plow bolts, the item can be used with many types of lawn and garden equipment. This is a 5/16 carriage bolt that resists turning after the bolt has been tightened. Wear and tear or impact can cause damage to a carriage bolt and lead to the need to replace them.Removing a carriage bolt requires twisting the nut loose from the end of the bolt and then hitting the nut with a hammer. This will begin to move the shoulder out of the lawn equipment. Continue the process until the bolt is loose enough to remove. Installing a new carriage bolt simply requires sliding the bolt into the hole, adding the nut, and tightening things up.This carriage bolt is designed for use with Craftsman, MasterCut, Toro, Yard-Man, Cub Cadet, Montgomery Wards, Ryobi, Huskee, Troy-Bilt, MTD, and Yard Machines lawn and garden equipment. It can be used with lawnmowers, chainsaws, snowblowers, edgers, and tillers. This is a genuine OEM product sourced directly from the manufacturer as an individual component.

This is a self-tapping screw that can be used on a wide variety of lawn and garden equipment in many applications. A self-tapping screw is used to secure metal, wood, plastic, and brick together. When using a self-tapping screw, there's no need to drill a pilot hole since the screw makes its own hole. The only exception is with metal, which will still need a drilled hole before installation. There are many situations when a screw may need to be replaced. Some screws are damaged or broken, while others can become loose and no longer hold materials together. Screw heads can become stripped, which will also mean they need to be replaced. A visual inspection can often give an indication of whether you should replace a self-tapping screw. This is a genuine OEM hex head screw that can be used on various lawn and garden equipment, including wood chippers, lawn mowers, snowblowers, log splitters, tillers, edgers, and leaf blowers. It's compatible with products by MasterCut, Craftsman, Turf King, Cub Cadet, Yard-Man, Ryobi, Bolens, Troy-Bilt, Montgomery Wards, Murray, Huskee, Yard Machines, MTD, and more. This screw is sold individually.

This hex screw is a genuine MTD part, sold individually. This hex screw can be used as a replacement part in a lawn mower or a log splitter. The purpose of a hex screw for one of these small engine outdoor appliances is to serve as a fastening component.The hex screw in a lawn mower or a log splitter might have to be replaced at some point within the typical lifespan of the appliance. This could occur if the hex screw has been lost, misplaced, or damaged. If this occurs, the hex screw should be removed and replaced by this genuine OEM replacement part in order to guarantee safe usage of the appliance.This component is a genuine OEM replacement part sourced directly from the manufacturer. It is sold individually. This hex screw is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, Troy-Bilt, Yard Machines, Montgomery Wards, Yard Man, and MasterCut.

This part is a replacement hex bolt. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. This part can be used to replace a broken, stripped or defective hex bolt in outdoor power equipment.Hex bolts are a standard piece of hardware that have many different functionalities. They are named for their hexagon shaped heads. Bolts are essential for securely holding together different equipment parts but can become corroded, stripped, or misplaced, requiring replacement. It's important when working on or near an engine to make sure the equipment is powered off and completely cooled down before starting any repairs. For more accurate information on how and where to install this hex bolt, the appropriate owner's manual and equipment diagrams should be utilized.As an authentic replacement part, this hex bolt is suitable for use on several outdoor power equipment manufactured by MTD, Craftsman, and other brands. Please This is a genuine part made of high-quality, durable metal and is sold individually.

This is a flange nut that can be used in a variety of lawn and garden equipment from different manufacturers. The nut is made of metal, measures 5/16x18, and is used to secure components in place. It also assists with preventing backing out caused by vibration. Over time, the flange nut can become damaged and will need to be replaced. If the flange nut in lawn and garden equipment has become damaged, is loose, or gets lost, then replacement is required. The level of difficulty of replacing a flange nut depends on which parts it's securing and what kind of equipment it is installed on. This flange nut is an OEM replacement part that can be used with lawn mowers, snowblowers, wood chippers, tillers, log splitters, leaf blowers, and edgers by MasterCut, Craftsman, Yard-Man, Toro, Bolens, Cub Cadet, Montgomery Wards, Ryobi, Huskee, Troy-Bilt, MTD, and Yard Machines. It is sold individually and will require a wrench or socket for installation.

This is a genuine 5/16 hex nut, a standard piece of hardware used to affix various components securely. This MTD nut is used in multiple applications and has several placement options depending on the model of the engine. Nuts can become stripped or worn over time. In some cases, the screws they are attached to may become stripped, which might require a replacement of both. A wrench is required to complete the replacement. This hex nut is designed to work with several brands that feature MTD engines, including RYOBI, Yard Machines, Yard-Man, MTD, Troy-Bilt, Husky, Bolens, and Cub Cadet. There are hundreds of machines that use this nut, including tractors, lawnmowers, blowers, cultivators, and snowblowers. This nut is sold individually; purchase additional parts as necessary.

The cotter pin is a fastener that is commonly used in lawn and garden equipment. The cotter pin helps provide a secure, locking fit that is adjustable and easy to remove. The cotter pin is commonly used on axles and rods, but it can have many applications depending on the machine and model. Cotter pins can become worn or break down over time because they are exposed to constant vibrations. It is important to replace damaged or broken cotter pins immediately as a broken part can render the equipment useless in many cases. This cotter pin is designed to exact OEM standards by MTD, and is designed for use in various equipment from MTD, Troy-Bilt, Craftsman, RYOBI, Yard Machines, Hard Man, Poulan, Husky, Bolens, and Cub Cadet. This is a 5/16 cotter pin that features a #34 diameter, and is made of a durable metal. This part is sold individually and those who require more than one will have to order multiple quantities. No other hardware is included. Always wear gloves when working on lawn and garden equipment.

Cotter pins are simple but very effective fasteners used primarily to hold wheels in place on mowers. This is particularly true of the front wheels on riding mowers. Cotter pins are very light and can become overly pliable after extensive use. In some cases, the front wheels of a mower, which are the guide wheels that steer the device, become difficult to manage. The cure for this situation is often simply the replacement of the cotter pins that are not holding the guide wheels adequately in place. Before attempting to remove the pins, it is essential that the spark plug boot is moved so that the mower cannot be started. This is an important safety step because the repairer will be getting under the mower near the blades. The back wheels should be blocked so the mower cannot move, then the front end placed up on blocks. Remove the mower's hubcaps to gain access to the axle spindles. Straighten the legs of the pin so that when the curved portion of the cotter pin is grasped with pliers and it can be pulled straight back and be removed. The spindle, washers, and wheels should be checked for wear before the new pin is placed and secured. This OEM cotter pin is compatible with Bolens, Yard-Man, Craftsman, Yard Machines, Cub Cadet, Turf King, Troy-Bilt, Huskee, Toro, Ryobi, MTD, MasterCut, Murray, and Montgomery Wards.

This is a replacement belt keeper for walk-behind lawn mowers and riding lawn tractors. The belt keeper protects the drive belt from possible damage, and keeps the belt in the pulley system in its loop form. The belt keeper also prevents against twists that can occur in the drive belt. Over time and with use, a belt keeper may need to be replaced. A damaged belt keeper could result in damage to other components, as well, so be sure to replace it soon after damage has been noticed. Replacing the belt keeper involves some disassembly of the machine. A screwdriver, pliers, and a pair of durable gloves are needed to replace a belt keeper.This is a genuine OEM replacement belt keeper. This part is compatible with over 150 products and outdoor equipment. This part is sold separately.

This lock washer is used frequently for a number of applications on power yard equipment. The size, 5/16, is the default for many small engine housing and manifold applications. Lock washers are used with machined bolts to fasten engine blocks to the housing of the equipment being used. The compressed washer is able to handle the constant vibration of the small gasoline engine without losing the seal between the screw or bolt and the housing. Typically these lock washers only need to be replaced when they are misplaced during repairs or when the screws that attach them have to be chiseled or cut away, meaning the washers are destroyed as well. These OEM certified replacement washers have been manufactured to the same specifications as the originals they are replacing. In addition to lawn mowers, lock washers of this type and size are frequently used on blowers, lawn tractors, cultivators, snowblowers, and trimmers. Brands compatible with this type of washer are Murray, Husky, Poulan, Bolens, Yard-Man, Cub Cadet, Troy-Bilt, Yard Machines, MTD, and Ryobi.

This flat washer is a genuine MTD part, sold individually. This flat washer can be used as a replacement part in a variety of small engine outdoor appliances including lawn mowers, snowblowers, tillers, string trimmers, chainsaws, edgers, log splitters, and wood chippers. The purpose of the flat washer for one of these small engine outdoor appliances is to serve as a fastening component within the internal mechanisms of the appliance so that friction is reduced and components are spaced apart from one another.The flat washer is a small component that can be easily misplaced or lost within the lifespan of a small engine outdoor appliance; additionally, the flat washer can be subject to stripping away and wearing out over time from general use. If this occurs, the flat washer should be replaced by this genuine OEM replacement part.This is a genuine OEM replacement part sourced directly from the manufacturer. It is sold individually. This flat washer is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, Troy-Bilt, Murray, Broan, Yard Machines, Huskee, Montgomery Wards, Yard-Man, Turf King, and MasterCut.

This bell washer is a genuine MTD part, sold individually. This bell washer can be used as a replacement part for a lawn tractor, chipper shredder, tiller, or lawnmower. This bell washer adds spacing on a shaft in the tool.If the user of the appliance notices that a washer is missing, it should be replaced. General wear and tear is very normal for outdoor appliances, and if it occurs, the washer should be removed and replaced with this genuine OEM replacement part.This is an OEM part sourced directly from the manufacturer. It is sold individually. This bell washer is compatible with the following outdoor appliance brands: MTD, Yard Man, Yard Machines, and Troy-Bilt.

This part is a replacement flat washer. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. This part can be used to replace a damaged, misplaced, or defective flat washer in a variety of power equipment. Flat washers are a standard piece of hardware with many different uses. Their primary purpose is to increase the bearing surface area of a screw. This can help to prevent screws from becoming loose over time due to pressure that leads to them sinking into the surface. It is always recommended that the appropriate safety precautions are adhered to when attempting to fix any power tools or machinery. For more accurate information on how and where to install this flat washer, the appropriate owner's manual and included diagrams should be referenced.As an authentic replacement part, this flat washer is suitable for use on several different models of small engine outdoor power equipment manufactured by MTD, Murray, Craftsman, and other brands. This is a genuine part made of high-quality, durable metal and is sold individually.

This replacement part is a washer. This is a genuine replacement part made by MTD. Washers are small but important to many different types of machinery and appliances. These parts work with screws and nuts to hold certain parts together and secure during use. A new washer might be needed if the current one is no longer up to working standard. It is common for washers to become damaged or stripped over time due to normal wear and tear. If this is the case they should be replaced. Replacing a washer should be simple and only require common household tools. It is recommended that the engine be shut down before attempting to repair or replace any part within an appliance. This is a genuine OEM replacement part which ensures proper fit. This part is sold individually and is sourced directly from the manufacturer.

This flange bearing is a genuine MTD part, sold individually. A flange bearing can be used as a replacement part in a lawn mower. This genuine OEM part is made out of high quality, durable metal material and is used to facilitate the rotation of one or more components within the mower while also stably maintaining the static placement of other components.If the flange bearing is no longer fulfilling its typical function due to damage, it should be immediately removed and replaced by this genuine OEM replacement part.This component is a genuine OEM replacement part sourced directly from the manufacturer. It is sold individually. This flange bearing is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, Troy-Bilt, Husky, Yard Machines, Huskee, Montgomery Wards, Yard Man, and MasterCut.

A flat idler pulley is a crucial piece of hardware designed for use with many different models of lawn mowers and snowblowers. It is compatible with products by brands such as Craftsman, Yard Machines, Yard Man, MTD, and Troy-Bilt.The flat idler pulley part is crucial for the proper functioning of the lawn mower because it connects to the idler bracket. The purpose of the flat idler pulley is to apply tension to the v-belt. The replacement process of the flat idler pulley will require a wrench.This flat idler pulley is made out of metal. It is sold individually. The flat idler pulley is an original OEM part sourced directly from the manufacturer, MTD.

This engine pulley is a genuine MTD part, sold individually. This engine pulley can be used as a replacement part in a lawn mower. The purpose of the engine pulley in a lawn mower is to mount to the engine and facilitate the rotation and movement of the drive belt such that the lawn mower can be propelled forward across a variety of surfaces when in operation.The engine pulley could be subject to damage from general wear and tear, as the result of a direct impact collision, or from exposure to the elements. If this occurs and the engine pulley can no longer operate as usual within the mechanisms of the lawn mower, the component should be removed and replaced by this genuine OEM replacement part before using the lawn mower again.This component is a genuine OEM replacement part sourced directly from the manufacturer. This engine pulley is compatible with the following outdoor appliance brands: MTD, Yard Machines, Huskee, and Yard Man.

This part is a replacement flat washer. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. The intended use for this part is to properly replace a defective or lost flat washer in outdoor power equipment.Flat washers are a standard piece of hardware that can be used on many types of equipment. They enable screws or bolts to tightly fix components together by providing a larger bearing surface. Lost or defective washers should be replaced. Always ensure that the equipment is completely powered off and is cooled down before attempting to start the repair process. For more accurate information on installation of this particular flat washer, reference the owner's manual or equipment diagrams for specific instructions and part location. This is an authentic OEM part and as such is sold individually and made from durable and high-quality metal. This flat washer can be used with outdoor power equipment manufactured by Craftsman, MTD, Troy-Bilt, and other brands.

This screw is used on a variety of lawn and garden equipment from many manufacturers. This hex screw is a large bolt that has a six-sided head that can be used to fasten metal to wood or wood to wood. This type of screw is unique from traditional screws because the bolt head needs to be held with a socket while a second wrench is used to tighten or loosen the part. The bolts have a smooth shank and small threads. These screws can break or become damaged and no longer do their job. When that happens, they will need to be replaced. A hex key wrench can be placed into the slot of the screw and turned counterclockwise to loosen up the bolt. The replacement hex screw can then be placed in the original hole to adhere parts together on lawn equipment. This is a genuine replacement OEM screw that is commonly used on Craftsman, Toro, Murray, MTD, Yard Machines, Troy-Bilt, Bolens, Yard-Man, MasterCut, Cub Cadet, and Huskee lawn mowers, log splitters, snowblowers, chainsaws, tillers, and string trimmers. The screw is sold individually and made of durable metal.

This is a genuine hex nut replacement designed for select MTD outdoor lawn and garden equipment. The hex nut is a piece of standard hardware that may have several applications on different units. It is generally used to secure other hardware, handles, or connections. It may be subject to vibrations and constant pressure, which can result in wear over time. These nuts may also get lost during other repairs or if they come loose. In most cases, the unit will be inoperable until the nut is replaced. This genuine OEM replacement hex nut is designed for use in MTD lawn equipment and engines, along with machines from RYOBI, Troy-Bilt, Husky, Yard-Man, Cub Cadet, Bolens, and Yard Machines. The metal nut will require a wrench to replace but should only take a matter of minutes. This is a left-hand threaded nut that is sold as an individual part. Be sure to allow equipment to cool and always wear gloves when performing repairs. The location and function of this nut will vary depending on the unit in question, but it can be used with chippers, lawn tractors, trimmers, edgers, snow throwers, and cultivators.

This is an authentic v-belt that is made for use on lawnmowers and lawn tractors. This is one of the several belts found in the equipment and helps to drive it. The belt is made of durable materials but can wear out, break, or become damaged during regular use. If this occurs, the lawnmower may experience issues with performance or could stop working entirely. At this point, the v-belt will need to be replaced.A pair of work gloves and a set of basic tools may be needed to replace a v-belt. Turn off the lawnmower and place it on a flat surface before disconnecting the spark plug wire. Make sure to clean the pulleys before installing the new belt to get the longest life and best performance from the new part. Remove the old belt if it is still attached and replace it with the new part.This v-belt is designed to be used with several lawnmowers and lawn tractors manufactured by Toro, Yard-Man, Troy-Bilt, and MTD. This is an authentic OEM replacement part that is sourced directly from the manufacturer. This product is sold individually.

A hex screw fastens and holds two components together. It has a hexagonal head and features threading starting underneath the shoulder down to the tip. Its all-metal construction offers rigidity and longer lifespan. It is also threaded, so you can conveniently loosen or tighten in position. It measures 1/4-20 x 0.5 inch and comes in brass or gold color. Take note that this replacement hex screw may beused in different locations of a machine. Double check the device’s model number for compatibility. To install this hex screw, you will need a hex wrench or a hex socket. This hex screw is a replacement made by MTD. This screw/bolt may be used on lawn mowers, snowblowers, tillers, string trimmers, leaf blowers, edgers, chainsaws, pole pruners, log splitters, or wood chippers made by Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Husky, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, or MasterCut. This OEM hex screw is sold individually.

This is a self-tapping screw that can be used on a wide variety of lawn and garden equipment in many applications. A self-tapping screw is used to secure metal, wood, plastic, and brick together. When using a self-tapping screw, there's no need to drill a pilot hole since the screw makes its own hole. The only exception is with metal, which will still need a drilled hole before installation. There are many situations when a screw may need to be replaced. Some screws are damaged or broken, while others can become loose and no longer hold materials together. Screw heads can become stripped, which will also mean they need to be replaced. A visual inspection can often give an indication of whether you should replace a self-tapping screw. This is a genuine OEM hex head screw that can be used on various lawn and garden equipment, including wood chippers, lawn mowers, snowblowers, log splitters, tillers, edgers, and leaf blowers. It's compatible with products by MasterCut, Craftsman, Turf King, Cub Cadet, Yard-Man, Ryobi, Bolens, Troy-Bilt, Montgomery Wards, Murray, Huskee, Yard Machines, MTD, and more. This screw is sold individually.

This hex screw is an authentic OEM replacement part sourced directly from the manufacturer. It is used in many different applications in lawn and garden equipment and can be used on many different machines. If the hex screw is missing or loose due to deterioration, a new hex screw should be installed. Hex head screws are removed and replaced using a hex wrench. Screws are used to secure one part of a machine to another part. This hex head screw is not self-tapping, it is designed for pre-drilled holes. Most applications will require a washer and bolt to secure the screw, but there are applications where the screw is inserted into parts that do not have an opening on the other side and so the screw does not need to bolt. Wear gloves when working with screws and outdoor equipment. This hex head screw is made of hardened metal and is sold as an individual unit. This hex head screw can be used on many different model machines manufactured by MTD, Ryobi, Murray, YardMan, Bolens, Cub Cadet, and Husky.

This replacement part is a nut, and it is intended for use in different types of lawn equipment. This is a genuine replacement part made by MTD. Nuts are a small part found in many different types of machinery and are used to connect different parts and secure things together.A new nut might be needed if the current ones are missing or damaged in any way. It is common that nuts become stripped overtime and might get stuck or fall out of place. In this case, it is recommended that the nut be replaced. Be sure to review the specific owner's manual for more information on how to replace the nuts. This part is sold as an individual piece. Be sure to purchase the correct amount as many different machines use more than one during operation. This is also a genuine OEM replacement part sourced directly from the manufacturer.

This self-tapping screw is used to attach various parts to the engine housing of medium sized gasoline powered engines, in particular yard tools such as tillers, snow blowers, yard tractors, riding mowers, power vacuums, shredders, and chippers. It is used in over 150 different gasoline powered engines. Screws such as these are used particularly when a device is going to receive a great amount of vibration and stress while the engine is running and rotating tools are engaged. Such devices sustain a great deal of wear over time and the parts subject to replacement will eventually fail and need to be replaced. In such cases, it is wisest to replace the attaching hardware such as housing screws as well, because it is a self-tapping screw. Screws of this type are designed to forge a tight bond between the metal pieces they are securing together, but once loosened, they should ideally be replaced with new hardware. Make sure when replacing these screws to use genuine OEM parts like these screws. These replacement parts are manufactured to be identical to the original pieces. This hex screw is compatible with the following brands: MasterCut, Yard-Man, Yard Machine, Montgomery Wards, MTC, Murray, Bolens, Craftsman, Turf King, Troy Bilt, Cub Cadet, Huskee, Toro, and Ryobi.

This part is a replacement rod. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. It is intended to replace a defective rod in lawn tractors.This rod is intended to help secure the lawn tractor's battery into position. If this rod is bent, dented, snapped, or rendered ineffective, the battery may become insecure, and the user may experience issues operating the equipment. Wear work gloves to protect the hands and check that equipment is powered off and cooled down before starting the repair process. For more accurate information on how and where to use this rod, the appropriate owner's manual and equipment diagrams should be referred to. This rod is a genuine OEM part made of durable metal and is sold individually. It is suitable for use with lawn tractor models that have been manufactured by MTD, Craftsman, Troy-Bilt, and other brands.

Carriage bolts are flat-tipped with round heads, and their function in small engine appliances is to fasten together components and to secure that connection with a nut. There are various reasons that a carriage bolt might have to be removed and replaced, among them misplacement of the small, easily lost part. Other reasons to replace a carriage bolt could include damage or erosion that prevents the bolt from attaching the materials to one another effectively. If a carriage bolt is subject to this kind of damage, it should be replaced before using the small engine appliance. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. This genuine MTD carriage bolt can be used as a replacement part for several different kinds of appliances that require small engines, including lawnmowers, snowblowers, wood-chippers, tillers, string trimmers, leaf blowers, and edgers. The OEM carriage bolt is compatible with the following brands: Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, and MasterCut. This part is sold individually.

Battery does NOT contain battery acid

This part is a replacement battery tray. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. It is intended to replace a defective battery tray in outdoor power equipment.This battery tray secures the battery in place to ensure it doesn't become detached or broken during equipment use. This part will need to be replaced when no longer effective, such as if dented, bent, or corroded. Wear work gloves to protect the hands and check that equipment is powered off and cooled down before starting the repair process. For more accurate information on how and where to use this battery tray, the appropriate owner's manual and equipment diagrams should be referred to. This battery tray is a genuine OEM part made of durable metal and is sold individually. It is suitable for use with outdoor power equipment that have been manufactured by MTD, Craftsman, Troy-Bilt, and other brands.

Shoulder screws are a type of fastener used in many types of lawn and garden equipment. Also called stripper bolts or shoulder bolts, they have a head, threads, and an unthreaded shoulder. These screws are used in areas where items need to be held together in a specific location. They can be used with bearings, bushings, and machinery support. Shoulder screws are made of durable metal but can still experience breakage or damage. When this occurs, the screws will need to be replaced. A wrench can be used to remove the damaged shoulder screw. First, visually inspect the shoulder screw to look for damage or corrosion. Sometimes, the screw will be entirely broken. If any of these things are present, a wrench can be used to remove the old shoulder screw. The same tool can be used to insert a new shoulder screw before reassembling the equipment.Designed for lawnmowers, lawn tractors, tillers, leaf blowers, chainsaws, log splitters, chipper shredders, and snowblowers, this part is compatible with items from Yard Machines, MTD, Cub Cadet, Craftsman, Toro, Huskee, Montgomery Wards, Yard-Man, MasterCut, and Troy-Bilt. The locknut is sold separately.
