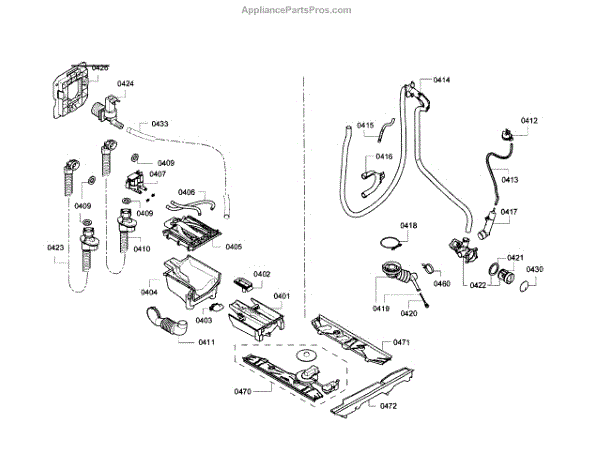

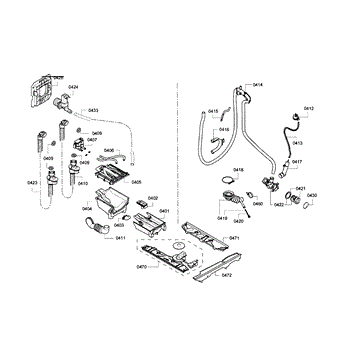

Parts for Bosch WAP24202UC/14: Pump Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

This dispenser tray is the dishwasher detergent cup assembly that holds and releases detergent during wash cycles, helping ensure detergent is delivered when the machine rinses and cleans dishes. What it does

• Holds detergent/soap and releases it at the correct point in the wash cycle
• Ensures proper detergent flow to improve cleaning performance
• Prevents loose detergent from scattering inside the tub
• Visible replacement sign: cracked, warped, or detergent residue that won't clear

• One dispenser tray (detergent cup) as shown

• Disconnect power and water supply before removing or installing the dispenser
• Remove the inner door panel per manufacturer instructions to access the tray
• Handle carefully to avoid damaging the door latch and wiring harness
• Run a short test cycle after install to confirm proper operation and detergent release

This lower dispenser tray fits inside the dishwasher detergent dispenser and provides a stable catch and guide for detergent and rinse aid, helping the dispenser operate cleanly and reliably. Replaces a cracked or warped tray to reduce leaks and residue buildup. What it does:

• Holds and positions the lower portion of the detergent/dispenser assembly for proper door sealing and release
• Directs detergent and rinse aid into the wash chamber when the dispenser opens
• Helps prevent leaks and pooling that can cause poor detergent release or residue
• Restores proper alignment if the original tray is cracked, broken, or deformed

• Disconnect power to the appliance before starting any repair
• Remove the dishwasher door inner panel or dispenser bezel as required to access the dispenser assembly
• Handle parts gently to avoid damaging clips and seals; replace any worn gaskets

This upper dispenser tray holds and positions detergent and rinse aid cups in the dishwasher door so detergents release correctly during the wash cycle. Fits upper-door dispenser assemblies to restore proper dispensing and cleaner wash results. What it does:

• Provides the correct mounting and alignment for detergent and rinse-aid cups during cycles
• Ensures detergent doors open and close reliably for measured release
• Helps prevent detergent residue from spilling into the tub when closed
• Commonly replaces cracked, warped, or damaged trays that cause poor dispensing

• One upper dispenser tray

• Designed for replacement inside the dishwasher door; access typically requires removing the inner door panel
• Disconnect power and water to the appliance before beginning any repair
• Inspect dispenser actuator and springs while replacing the tray and replace any worn components

This flexible inlet/fill hose routes water into the appliance, restoring proper water delivery for normal operation. Replace a damaged hose to stop leaks and ensure reliable water flow. What it does:

• Carries incoming water from the supply to the appliance fill assembly
• Prevents water leaks when intact; a cracked or split hose can cause pooling or drips
• Restores normal fill behavior when worn or collapsed hoses reduce flow
• Works with clamps or fittings at each end to create a watertight seal

• One flexible inlet/fill hose

• Turn off the water supply and disconnect power before removing the old hose
• Inspect and replace any worn clamps, gaskets, or fittings for a secure seal
• Hand-start fittings, then tighten with tools—avoid over-tightening to prevent damage
• After installation, restore water and power, then run a short cycle and check for leaks

The Valve is an OEM replacement part for Bosch clothes washers. It regulates water intake, determining volumes for specific cycles. Balanced flow conserves resources without sacrificing clean performance.

Causes of a bad valve can include mineral deposits clogging internal pathways over time. Constant opening/closing stresses rubber seals and disrupts precision.

Symptoms of a bad valve include:

• Inconsistent or insufficient water levels between loads
• Washer fills on small loads wasting water
• Extended cycle times as valve struggles to meter H2O
• Leaks that seep from the valve body into internal components

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This water inlet hose gasket seals the connection between the supply hose and the appliance's inlet fitting. Replace a flattened or damaged washer to stop drips at the coupling and restore a reliable, watertight connection.

• Creates a watertight seal at the inlet hose-to-appliance connection
• Helps prevent drips, puddles, and water damage around the machine
• Replace if the old gasket is cracked, hardened, flattened, or missing
• Common symptoms: leaking at the hose coupling or needing to retighten the fitting to stop drips

• Disconnect power and turn off the water supply before servicing
• Place a towel to catch residual water, then detach the inlet hose from the appliance fitting
• Remove the old gasket from the hose coupling and seat the new gasket evenly
• Reattach and hand-tighten the coupling; open water supply and check for leaks—do not overtighten

This hose inlet connects the household water line to the appliance's fill system, restoring proper water delivery for normal cycles. It's a direct replacement for damaged, cracked, or leaking inlet hose assemblies. What it does

• Channels incoming water from the supply into the appliance's fill system.
• Prevents leaks at the supply connection when intact and properly installed.
• Commonly replaces hoses that are cracked, split, or worn and causing visible leaks.
• Can resolve issues with poor or no water fill when the hose is blocked or damaged.

• Disconnect power and shut off the water supply before starting.
• Inspect and replace any worn O-rings, ferrules, or clamps as needed.
• Hand-tighten fittings, then secure with recommended clamps; avoid overtightening.

This analogue pressure sensor detects water pressure to help the appliance monitor and control water level during cycles, reducing overfill and poor wash performance. It replaces a failed or intermittent pressure-sensing assembly. What it does:

• Senses water/air pressure changes and sends an analogue signal to the control board
• Helps the appliance detect correct water level for fill and drain operations
• Commonly used when the appliance shows water level errors, won't fill properly, or cycles erratically
• Can resolve intermittent or no-signal conditions caused by a faulty sensor

• One analogue pressure sensor

• Disconnect power (and water, if applicable) before inspection or replacement
• Handle the sensor and its connector carefully to avoid damage to terminals or diaphragm
• Verify hose and fittings to the sensor are clean and free of kinks or blockages

This pressure chamber hose connects the dishwasher's water-level pressure chamber to the control/pressostat, allowing accurate water-level sensing for reliable cycle operation. Replaces damaged or clogged hoses that can cause incorrect water sensing. What it does:

• Transfers pressure from the water chamber to the pressure sensor so the appliance detects correct fill levels
• Commonly replaced when a cracked or blocked hose causes incorrect fill, overflowing, or cycle interruptions
• Helps restore proper water-level sensing and prevents false overfill/underfill indications
• Works as part of the pressure-sensing assembly—does not include sensors or clamps unless specified

• One pressure chamber hose

• Disconnect power and water supply before attempting replacement
• Inspect and remove any kinks, debris, or buildup that could restrict pressure flow
• Ensure secure, leak-free connections at both ends and use original-style clamps if required

This flexible water hose routes water between internal components in your appliance. Replacing a worn or cracked hose restores a sealed, reliable water path to help prevent leaks and water-flow issues.

• Directs water between assemblies to maintain proper flow
• Helps keep the water path watertight to avoid leaks
• Can resolve symptoms like slow/failed draining, pooling water, or visible drips
• Replaces hoses that are brittle, cracked, kinked, or clogged

• Disconnect power and shut off water supply before servicing
• Place towels or a pan to catch residual water; note original routing
• Move over and secure existing clamps/seals; avoid kinks during routing
• Run a test cycle and check all connections for leaks

This holder is a replacement mounting bracket that secures a small internal component in place to restore proper alignment and support. It helps keep parts stable so the appliance operates as intended. What it does

• Secures and supports an internal component to prevent movement or misalignment
• Replaces cracked, broken, or worn mounting points that allow rattling or improper part position
• Restores stable contact where a loose component causes intermittent operation or noise
• Fits a specific OEM location; use the part number to confirm exact application

• One replacement holder/mounting bracket

• Disconnect power and water before starting any repairs
• Inspect surrounding clips or fasteners and reuse or replace as needed—this part typically snaps or screws into place
• Handle plastic mounting parts gently to avoid cracking during installation

This pressure chamber is the molded air chamber that works with a dishwasher's water-level sensing system to help the appliance detect correct fill levels and maintain reliable wash performance. What it does:

• Forms the air pocket used by the water-level sensor/pressure switch to detect fill height
• Helps prevent overfilling or underfilling by transmitting pressure changes to the sensor assembly
• Can be replaced when cracked, collapsed, or blocked by debris or hard-water buildup
• Compatible with systems that use an external pressure tube and sensor/switch for water sensing

• Disconnect power and shut off the water supply before beginning service.
• Handle the chamber and any attached tubing gently to avoid kinks or damage; ensure a tight, leak-free connection to the sensor.
• Inspect and replace any brittle or clogged tubing and seals during installation.

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

A replacement drain hose that routes wastewater from the dishwasher tub to the household drain. Replacing a damaged or clogged drain hose restores proper draining, helps prevent standing water and reduces the risk of leaks. What it does:

• Channels wastewater from the dishwasher to the home drain so cycles can finish without leaving water in the tub.
• Provides a sealed path to prevent leaks under the appliance; cracks or splits can cause puddles or floor damage.
• Flexible routing helps avoid kinks and obstructions; a blocked or pinched hose can cause slow draining or drain-related error codes.

• Disconnect power and water supply before starting any work.
• Remove the lower access panel or toe kick to access the hose and note original routing before removal.
• Reconnect using the existing clamps or appropriate replacement clamps; ensure fittings are seated and secured to prevent leaks.
• Run a short drain cycle and inspect all connections and surrounding areas for leaks.

This door lock assembly secures the appliance door during operation so cycles can run safely and reliably. It replaces a worn or broken latch to restore proper door closure and locking action. What it does:

• Secures and latches the appliance door so the unit can start and run
• Prevents the door from opening mid-cycle, reducing leaks and interruptions
• Common fix for door-not-locking, door won't stay closed, or related error codes
• Works as the mechanical/electrical interface that detects a closed door

• Disconnect power before beginning any repair to avoid shock
• Handle carefully; avoid forcing the latch or twisting mounting tabs
• Verify correct orientation and engage mounting screws securely but not overtighten

The Washer Filter-Fluff is an OEM replacement part for Bosch washing machines. It is a critical component responsible for capturing lint, debris, and other particles that may accumulate during the wash cycle, preventing them from clogging the drainage system or causing damage to the machine.

Over time, the accumulation of lint and debris can impede the filter's effectiveness, leading to drainage issues and reduced washing performance. Physical damage to the filter can also compromise its ability to capture lint properly.

Symptoms of a bad washer filter-fluff include:

• Slow or incomplete draining of the washing machine
• Excessive lint on clothes after washing
• Unusual noises during the drain cycle
• Error codes related to drainage issues

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore washing machine models.

The Drain Pump is an OEM part for Bosch washing machines. It is responsible for removing water from the washer drum during the drain cycle, ensuring that the washing process completes efficiently. The pump forces the water out through the drain hose, preventing water from pooling in the drum.

Causes of a bad drain pump can include blockages from debris, wear and tear from regular use, or electrical issues.

Symptoms of a bad washer drain pump include:

• The washer not draining water
• Unusual noises during the drain cycle
• Error codes related to drainage issues on the washer’s display
• Water left in the drum after the wash cycle

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This hose inlet is the dishwasher water-connection fitting that routes incoming water into the appliance. It provides a secure connection to help prevent leaks and ensure consistent water supply for normal wash cycles. What it does:

• Connects the household water supply to the dishwasher's internal water system
• Seals the inlet to help prevent drips or leaks at the connection point
• Ensures the appliance receives steady water flow for proper filling and operation
• Be replaced when the inlet is cracked, corroded, or leaking

• Disconnect power and shut off the water supply before starting any work
• Inspect and replace any worn O-rings or gaskets when installing the new inlet
• Hand-tighten fittings and then check for leaks; retorque per OEM guidance if available

This valve magnet is the electromagnetic coil that actuates the appliance's valve, allowing the control to start and stop flow as needed. Replacing a weak or open coil restores dependable valve operation and proper cycle performance.

• Converts electrical signals into magnetic force to move the valve plunger
• Opens and closes the mated valve on command to regulate flow during cycles
• Failure symptoms include no flow, continuous flow, intermittent operation, or related error codes
• A weakened coil can cause the valve to hum without actuating

• Disconnect power and shut off any supply before servicing
• Access the valve and note wire positions for correct reassembly
• Slide the new coil fully onto the valve body; ensure proper orientation and seating
• Reconnect wiring, restore supply, and test for correct operation and leaks

This outer housing cover protects internal components and finishes the appliance exterior, helping keep dirt and moisture out while maintaining a clean, safe appearance. Fits original equipment to restore proper enclosure. What it does:

• Shields internal wiring, controls, and mechanisms from debris and accidental contact
• Helps prevent moisture and grime from reaching sensitive parts
• Restores the appliance's exterior appearance when the original cover is cracked or missing
• Can reduce drafts or minor vibration paths when installed correctly

• One outer housing cover

• Disconnect power (and water, if applicable) before beginning any repair
• Use appropriate hand tools; retain all fasteners for reassembly
• Inspect adjoining seals and mounting points; replace damaged hardware as needed

This replacement cover protects internal appliance components by sealing and shielding them from debris, moisture, and incidental contact. It restores the appliance's original enclosure function for safer, quieter operation. What it does

• Shields internal parts from dust and splashes
• Helps maintain proper airflow and component alignment where applicable
• Reduces risk of accidental contact with moving or live parts
• Can address rattling or exposure caused by a missing or damaged cover

• One replacement cover

• Install with the appliance unplugged or power turned off at the breaker
• Remove any panels or fasteners blocking access before fitting the cover
• Use original screws or clips; tighten securely but avoid over-torquing
• Document positions of any moved wiring or components and reconnect correctly

This OEM water hose routes and contains water within your appliance's plumbing path. Replacing a worn or damaged hose helps restore a watertight connection and prevents leaks, odors, and water-related faults. What it does:

• Carries water between internal components
• Maintains a sealed flow path to prevent drips and leaks
• Helps proper circulation and drainage by avoiding kinks or collapses
• Common failure signs include visible cracks, brittleness, leaks, or moisture under the unit

• 1 hose

• Disconnect power and turn off the water supply before servicing
• Protect flooring; pull the appliance forward for access
• Note hose routing and clamp positions; take photos for reference
• Inspect/replace clamps or O-rings if worn; verify no leaks on test cycle

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.
