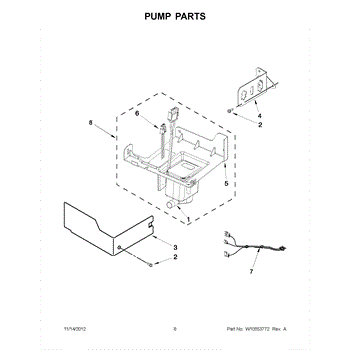

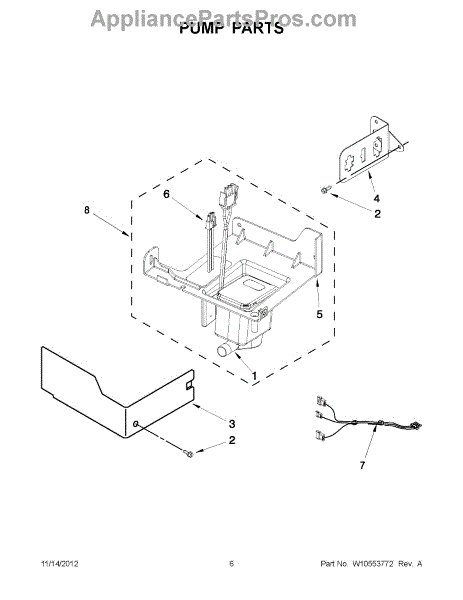

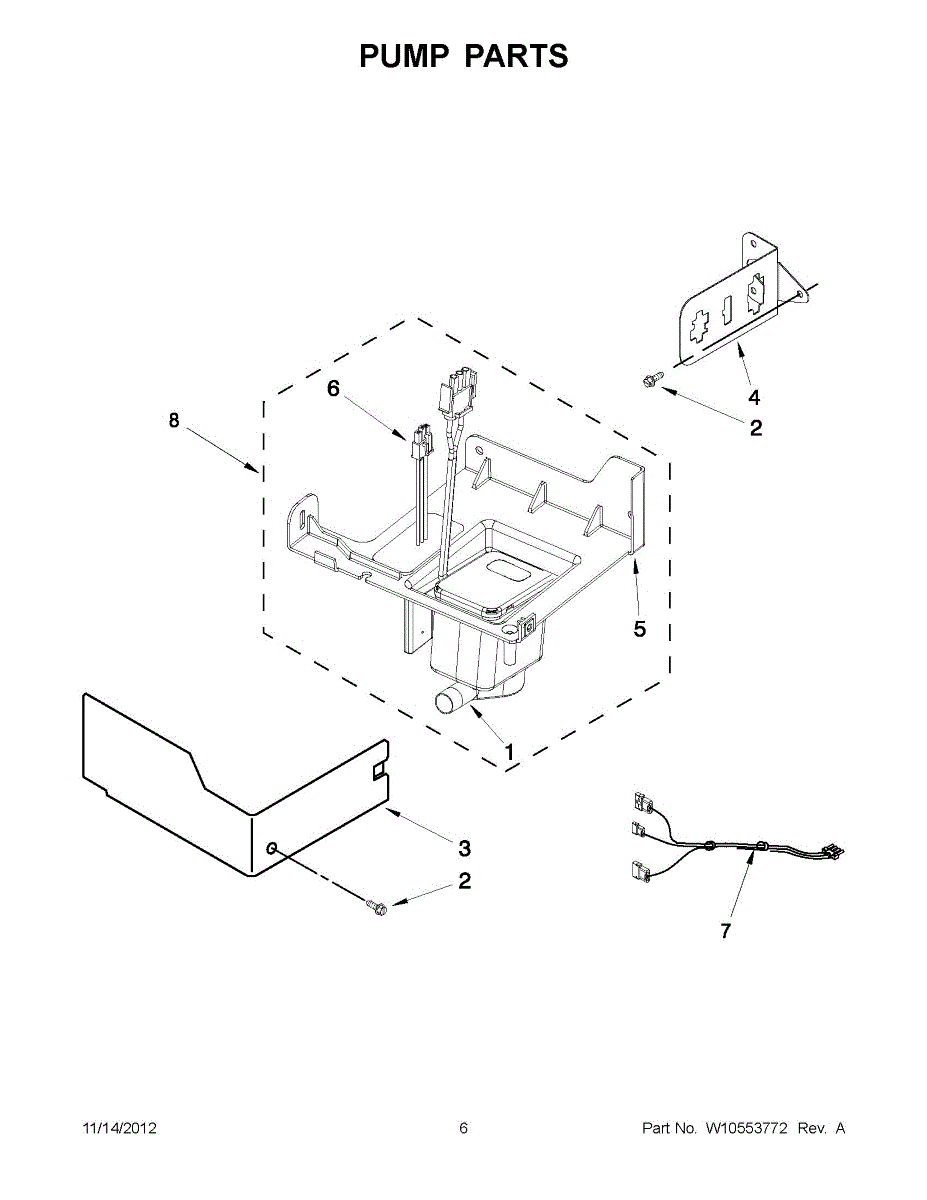

Parts for Whirlpool GI15NDXXB2: 03 - Pump Parts

The Pump-Recirculating is an OEM part for Whirlpool ice machines. This component is responsible for circulating water over the evaporator plate to form ice, ensuring efficient ice production and consistent quality.

Over time, factors such as mineral buildup, clogging, or mechanical failure can impair the pump’s performance, leading to reduced ice production or complete failure of the ice-making process.

Symptoms of a bad ice machine pump-recirculating include:

• Reduced or no ice production
• Unusual noises coming from the ice machine
• Water leaking or pooling inside the ice machine
• Ice cubes that are smaller or misshapen

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size: 8-18 x 5/8 inch.

This bracket is a direct-replacement mounting bracket used to secure components inside the appliance for proper alignment and stable operation. Restoring the bracket helps eliminate loose parts and rattling caused by a broken or missing support. What it does:

• Provides a secure mounting point for internal components to maintain alignment and reduce movement
• Prevents vibration and noise caused by loose or damaged supports
• Restores proper part positioning that can affect door, panel, or assembly fit
• Compatible with repairs where the original bracket is damaged, cracked, or missing

• One mounting bracket

• Recommended for technicians or experienced DIYers familiar with appliance disassembly
• Disconnect power (and water, if applicable) before starting any repair
• Keep track of screws and fasteners during removal; compare new bracket to the old part before installation

The Temperature Sensor is an OEM part for Whirlpool ice makers. This sensor plays a crucial role in monitoring and regulating the temperature within the ice maker, ensuring that ice is produced at the optimal temperature and maintaining the efficiency of the ice-making process.

Causes of a bad ice machine temperature sensor can include normal wear and tear, exposure to moisture or temperature fluctuations, or electrical issues. A malfunctioning sensor can result in improper ice production, affecting the quality and quantity of ice.

Symptoms of a bad ice machine temperature sensor include:

• Inconsistent or insufficient ice production
• Ice maker not functioning at all
• Ice cubes that are too small or misshapen
• Error codes or alerts related to the ice maker

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This pump wire harness connects the dishwasher's control wiring to the pump motors, providing a secure electrical path to the circulation and drain pumps. Replacing a damaged harness helps ensure consistent wash and drain operation. What it does:

• Supplies power via dedicated connectors to the wash (circulation) and drain pumps
• Maintains correct routing and strain relief under the tub
• Can help with symptoms like no wash action, standing water/no drain, or intermittent pump operation
• Visual clues include melted/burned terminals, brittle insulation, or corroded contacts at the pump connectors

• 1 pump wire harness assembly

• Disconnect power at the breaker and turn off water supply before servicing
• Remove the toe-kick/kick plate to access the underside; place a towel for residual water
• Match keyed connectors to each pump; route and secure wiring in original clips to avoid hot/moving parts
• Push connectors fully until latched; verify wires aren't pinched before reassembly and testing
