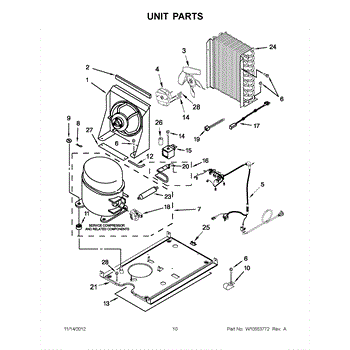

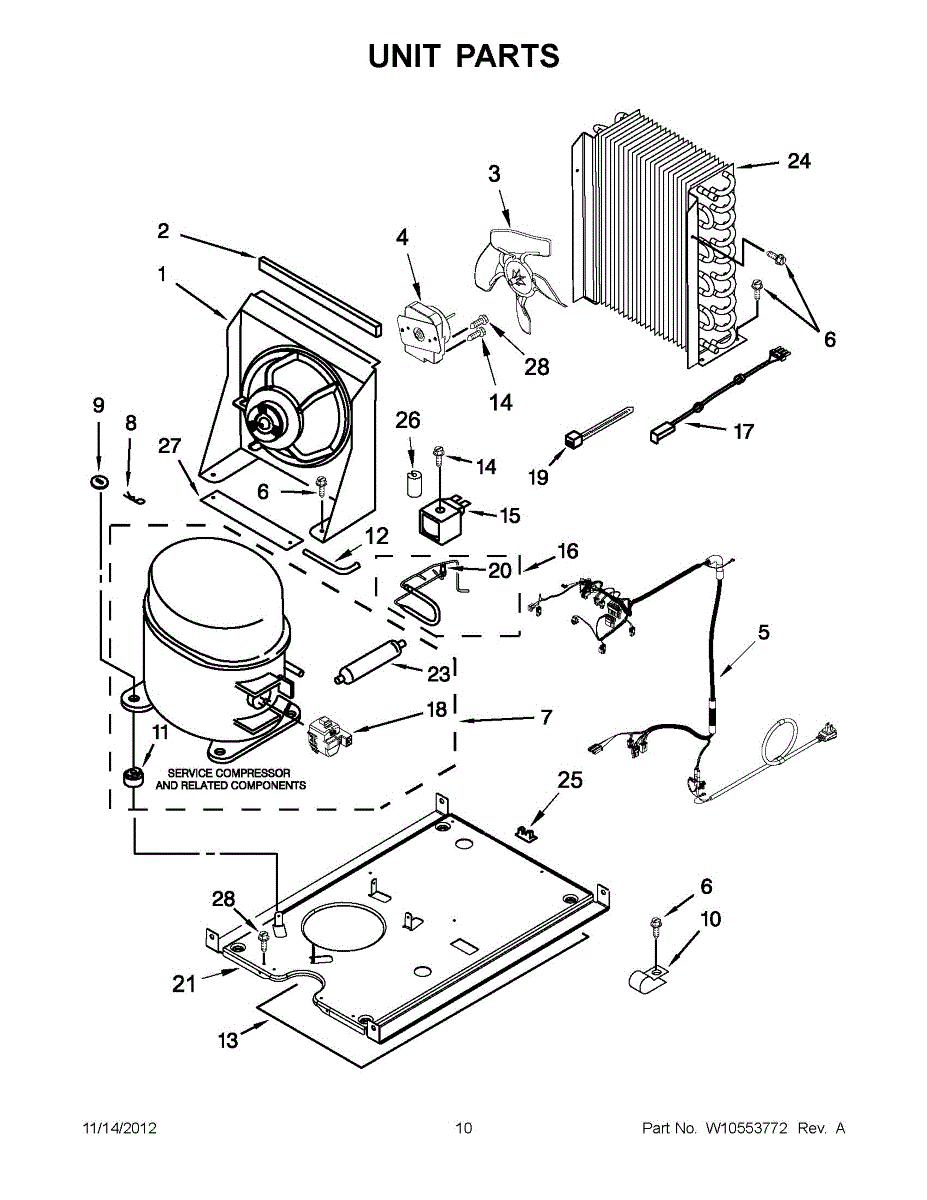

Parts for Whirlpool GI15NDXXB2: 05 - Unit Parts

This fan mounting bracket secures the evaporator/condenser fan assembly so the fan stays aligned and runs quietly. It's a direct-fit replacement that restores proper airflow and reduces vibration from a loose or damaged bracket. What it does:

• Holds the refrigerator/freezer fan motor or blade in the correct position to maintain consistent airflow
• Prevents fan wobble and contact with surrounding components that cause noise or damage
• Helps restore cooling performance impacted by a detached or broken fan mount
• Works with the existing fan motor and blade when the bracket is the only damaged part

• One fan mounting bracket

• Basic hand tools required; access may require removing interior panels or the evaporator/condenser cover
• Power off and unplug the appliance before starting any repair to avoid shock or injury
• Keep screws and mounting hardware from the old bracket; replace only if damaged or missing
• If the fan motor or blade shows damage, inspect and replace those components as needed

This condenser fan blade moves air across the refrigerator's condenser coil and compressor to remove heat, helping the unit cool efficiently. Replace a cracked, warped, or loose blade to restore proper airflow and reduce noise.

• Circulates air through the condenser section to dissipate heat from the refrigerant
• Supports stable fridge and freezer temperatures and efficient compressor operation
• Common symptoms: rattling/scraping noises, weak or no airflow at the rear/bottom, longer run times, or warming compartments
• Replace if the blade is cracked, warped, wobbling, or loose on the motor shaft

• Disconnect power and pull the refrigerator away from the wall; remove the rear access panel to reach the condenser fan
• Note the original blade orientation/rotation; remove the old blade from the motor shaft (release any retainer if present)
• Press the new blade onto the shaft until fully seated; ensure it spins freely with proper clearance and airflow direction
• Reinstall the panel, restore power, and verify normal airflow and sound

The Condenser Motor Kit is an OEM part for Whirlpool refrigerators. It includes a motor, fan blade, wire harness, and hardware, designed to replace the existing condenser motor in your refrigerator. This kit is crucial for maintaining the appliance's cooling efficiency by circulating air through the condenser coils and over the compressor, helping to dissipate heat and prevent overheating.

Over time, the condenser motor can fail due to mechanical wear, electrical issues, or blockages that restrict airflow and cause the motor to overheat.

Symptoms of a bad Condenser Motor Kit include:

• The refrigerator does not cool adequately
• Unusual noises from the back of the refrigerator where the motor is located
• The refrigerator compressor runs hotter than normal
• Increased electrical consumption as the refrigerator tries to maintain cooling efficiency

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

This small rubber grommet cushions and supports a fan motor, helping reduce vibration and noise while the appliance is running. It fits into the motor bracket to provide a snug, insulated mounting point.

• Isolates fan motor vibration to cut rattling or buzzing
• Helps keep the motor aligned in its bracket
• Can wear, crack, or compress over time, causing vibration or noise
• Replacing a deteriorated grommet restores smooth, quieter operation

• Disconnect power before servicing
• Access the fan assembly and support the motor to relieve strain
• Note grommet orientation; transfer any sleeves or hardware as found
• Seat the new grommet fully in the bracket before remounting the motor

This solenoid valve coil is the electromagnetic coil that actuates a valve in your appliance. Replacing a weak or open coil helps restore reliable opening and closing for consistent filling or dispensing performance.

• Energizes the valve armature to start or stop flow as directed by the control
• Common symptoms: no fill/dispense, intermittent or slow flow, or a coil that tests open/no continuity
• A targeted fix when the valve body is intact and not stuck or leaking
• Use to replace a burned, cracked, or shorted solenoid coil on the original valve assembly

• Disconnect power and shut off supply lines before service
• Access the valve, note wire positions, and remove any retaining clip or fastener
• Slide the old coil off the stem; install the new coil in the same orientation and reconnect wires securely
• Restore power/supply and test operation; check for leaks

This condenser fan jumper wire assembly connects the condenser fan motor to the fridge wiring harness, restoring electrical continuity so the condenser fan can run properly. Use when a damaged wire prevents normal cooling-system operation. What it does:

• Provides the electrical connection between the condenser fan motor and the appliance wiring harness
• Restores power to the condenser fan when original jumper or wiring is broken, burned, or corroded
• Helps resolve symptoms such as a non-spinning condenser fan, loud arcing/sparking noises at the fan area, or cooling performance issues related to a stopped fan
• Matches OEM routing and terminals to ensure reliable connection where specified

• One pre-assembled condenser fan jumper wire assembly

• Disconnect power to the appliance before inspecting or replacing wiring to avoid shock or damage
• Replace only damaged jumpers and inspect surrounding wiring/terminals for heat damage or corrosion

This start relay (EMB) energizes the compressor's start winding so the refrigerator can begin cooling reliably. Replacing a weak relay can resolve hard-start clicking and restore consistent operation when the compressor struggles to start.

• Delivers initial power to the compressor's start winding, then disengages once the motor is up to speed
• Supports reliable compressor starts and reduces repeated start attempts
• Common symptoms: clicking from the compressor area, rising refrigerator/freezer temperatures, compressor starts then stops after a few seconds, or heat damage on the old relay
• Works with EMB-style compressor connections used on select units

• Disconnect power to the appliance before servicing
• Remove the rear access cover; note wire positions; pull the old relay straight off the compressor terminals
• Seat the new relay fully on the compressor pins; reconnect the harness and any run capacitor lead exactly as removed
• Reinstall the cover and restore power; use caution—capacitors may retain a charge

This rubber grommet provides a tidy, protective seal where hoses, wires, or shafts pass through the appliance cabinet—helping prevent chafing, reduce vibration noise, and maintain proper sealing around openings. What it does:

• Cushions and protects wiring or hoses from rubbing against metal edges
• Helps maintain a seal to reduce water or air bypass where fitted
• Dampens vibration and reduces related noise at the penetration point
• Keeps openings finished and helps prevent further component wear

• Disconnect power (and water for washers) before starting any repair
• Inspect the mounting area for sharp edges or damage; replace if surrounding parts are compromised
• Push the grommet into the opening and seat evenly; do not stretch excessively

Screw: 8-16 x 3/8 inch.
