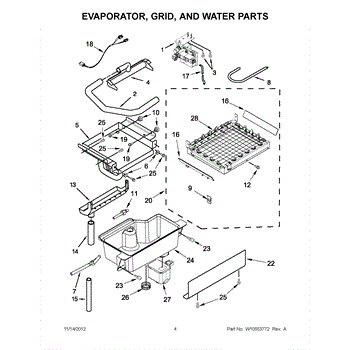

Parts for Whirlpool GI15NDXXB2: 02 - Evaporator, Grid, And Water Parts

The Water Valve is an OEM part for Whirlpool under-counter ice machines. This valve controls the flow of water into the ice machine, ensuring a consistent supply for ice production. It regulates water intake, allowing the ice machine to produce ice efficiently and effectively.

Causes of a bad water valve can include mineral buildup from hard water, wear and tear over time, or electrical issues that prevent the valve from opening or closing correctly.

Symptoms of a bad water valve include:

• The ice machine not producing ice
• Slow ice production
• Leaks or puddles around the ice machine
• Unusual noises during the filling process

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This replacement tube routes water safely between internal components. Use it to replace cracked, kinked, or brittle tubing so your appliance can restore proper water flow and reduce leaks during normal operation.

• Directs water between components to support normal operation
• Helps maintain consistent flow and leak-resistant connections
• Common failure signs: cracks, kinks, discoloration, or hardening
• Symptoms include water leaks, reduced flow, or intermittent filling

• Disconnect power and shut off the water supply before servicing
• Note original routing and fitting type; transfer any clips or ferrules if present
• Cut ends square and fully seat into push-to-connect or compression fittings
• Restore power and water; check all connections for leaks and proper flow

This replacement screw secures appliance panels, brackets, and components to the cabinet or chassis. The #8-15 x 1/2 in. size restores a snug, reliable hold when original hardware is missing, stripped, or corroded.

• Fastens panels, brackets, and trim to the appliance cabinet or chassis
• Helps reduce rattling, vibration, or looseness caused by missing/stripped hardware
• Restores proper alignment of parts that have shifted due to loose fasteners
• Size/spec: #8-15 thread, 1/2-inch length; use where this size is specified

• Disconnect power and shut off gas/water supplies before servicing
• Replace one screw at a time to maintain alignment of parts
• Start threads by hand to prevent cross-threading; do not overtighten
• Use a matching driver/bit type for the screw head used in your appliance

This replacement tube routes water safely between internal components. Use it to replace cracked, kinked, or brittle tubing so your appliance can restore proper water flow and reduce leaks during normal operation.

• Directs water between components to support normal operation
• Helps maintain consistent flow and leak-resistant connections
• Common failure signs: cracks, kinks, discoloration, or hardening
• Symptoms include water leaks, reduced flow, or intermittent filling

• Disconnect power and shut off the water supply before servicing
• Note original routing and fitting type; transfer any clips or ferrules if present
• Cut ends square and fully seat into push-to-connect or compression fittings
• Restore power and water; check all connections for leaks and proper flow

This fill tube routes incoming water from the inlet to the washer tub or dispenser so the machine can fill properly. It replaces a damaged, cracked, or clogged tube to restore correct water flow and prevent leaks. What it does

• Directs cold or hot inlet water from the valve to the tub/dispenser during fill cycles
• Prevents water from spraying into the cabinet when intact and properly positioned
• Common symptom: water pooling or leaking inside the washer cabinet or poor/uneven fill
• Common symptom: visible cracks, clogs, or missing tube that allow water to escape

• Turn off electricity and shut off the water supply before starting any repair
• Inspect and replace any worn hose clamps or grommets when installing the new tube
• Installation may require removing the washer top or front panel and disconnecting the fill valve

This replacement nut is a basic fastener used to secure components and assemblies on compatible Whirlpool appliances, restoring a tight connection and preventing parts from loosening during use. What it does

• Secures panels, brackets, or components to a stud or bolt to keep assemblies stable
• Prevents rattling, vibration, or movement caused by a loose or missing nut
• Replaces a stripped, corroded, or lost nut to restore proper mechanical connection
• Works with the corresponding bolt or stud as part of the appliance's fastening system

• Disconnect power and water to the appliance and ensure it is stable before starting work
• Thread the nut on by hand first to avoid cross-threading, then tighten with the appropriate sized wrench or socket
• Do not overtighten — torque to the appliance manufacturer's specification when available
• Replace damaged studs or mating hardware if threads are worn or damaged

This spacer maintains the correct distance between mating components in your appliance's assembly so parts align and operate smoothly. Replacing a worn or missing spacer can correct looseness, rubbing, or vibration-related noise.

• Holds a precise gap between parts for proper alignment and motion
• Prevents metal-to-metal contact and premature wear
• Helps reduce vibration, rattling, and scraping noises
• Common signs include misalignment, unusual gaps, looseness, or rubbing in the related assembly

• Disconnect power (and shut off gas/water, if applicable) before servicing
• Refer to your model's diagram to locate the spacer's exact location and orientation
• Inspect related fasteners and bushings; replace if worn
• Do not overtighten hardware to avoid deforming the spacer

A threaded screw used to secure appliance components where an 8-16 thread is specified. Provides a straightforward replacement fastener to restore original fit and keep panels, brackets, and internal parts held securely. What it does:

• Fastens panels, brackets, trim, and small assemblies that use an 8-16 threaded fastener.
• Replaces missing, corroded, stripped, or damaged screws to stop rattling, gaps, or loose parts.
• Restores reliable mechanical connection after service or part replacement.
• Compatible where the OEM specifies an 8-16 screw for mounting or securing components.

• Use the correct driver to avoid stripping the head; start threads by hand to prevent cross-threading.
• Tighten until secure but avoid over-tightening to prevent damage to mounting holes or plastic parts.
• If working near electrical components, disconnect power and follow all safety precautions.
• Inspect mating threads and replace if damaged before installing this screw.

This water slide reservoir replaces the cracked or damaged reservoir that channels water to the dispenser/ice system, restoring a secure pathway for water and preventing leaks or loss of dispenser function. What it does:

• Collects and directs water from the inlet to the dispenser/ice mechanism
• Seals the water pathway to prevent leaks or puddling inside the cabinet
• Helps maintain proper water flow to the dispenser and icemaking components
• Commonly replaced for visible cracks, leaks, or reduced dispenser performance

• One water slide reservoir

• High-level fit: installs in the dispenser/ice assembly per OEM diagram; verify placement before fastening
• Recommended safety: unplug or disconnect power and shut off water supply before service
• Use basic hand tools; avoid overtightening fasteners to prevent cracking the plastic

This water reservoir tube routes chilled water from the refrigerator's internal reservoir to the dispenser line. Replacing a brittle, kinked, or cracked tube restores steady flow and helps stop leaks inside the fresh food compartment.

• Carries water between the reservoir and the dispenser supply path
• Maintains a sealed route to reduce internal leaks and air intrusion
• Damage or kinks can cause slow/no dispensing, intermittent flow, or water pooling near the crisper area
• Fresh tubing helps protect shelves and liners from water damage

• Disconnect power and shut off the household water supply before servicing
• Dispense water to relieve line pressure; place a towel/container to catch residual water
• Note original routing; avoid sharp bends and contact with moving or warm components
• Fully seat the tube into quick-connect fittings; tug gently to confirm it's locked

This overflow tube channels excess water to the proper drain path, helping prevent leaks and ice buildup around the water-fill or collection area. Replace a cracked, missing, or misrouted tube to restore proper water management.

• Directs overflow water safely to the designated drain path/pan
• Helps prevent puddles, cabinet leaks, and ice formation from overfill
• Supports stable water levels around the fill/reservoir area
• Common failure signs: visible cracks/kinks, loose fit, water drips or pooling

• Disconnect power and shut off the water supply before servicing
• Note the original routing and orientation of the tube for proper reinstallation
• Seat each end fully and reuse existing clamps/seals if present; avoid kinks or sharp bends
• Restore water/power, then run a water cycle and check for leaks and correct flow

This guide helps align and support a single appliance drawer or sliding bin so it opens and closes smoothly. Replacing a worn guide restores proper drawer tracking and reduces sticking or uneven movement. What it does:

• Provides a smooth track surface for the drawer or bin to slide on
• Keeps the drawer aligned to prevent binding or sagging
• Reduces noise and friction during opening and closing
• Helps prevent the drawer from dislodging or catching

• Remove food and any loose items from the drawer before servicing
• Use basic hand tools; avoid forcing components into place
• Reinstall the drawer and test full travel before returning the appliance to normal use
• If the guide is fastened near electrical components, unplug the appliance or shut off power before starting work

The Tube is an OEM part for Whirlpool ice machines. It ensures a reliable water supply from the water valve to the ice machine.

Causes of a tube can include mineral deposits from hard water, kinks or cracks in the tube, and general wear and tear from prolonged use.

Symptoms of a bad tube include:

• Reduced or no ice production
• Water leaks around the ice machine
• Unusual noises during the ice-making process
• Smaller or irregularly shaped ice cubes

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Size: 8-18 x 1 1/4 inch.

This cutter grid assembly uses heated wires to slice the ice slab into uniform cubes during harvest in clear ice machines. Replacing a damaged grid restores proper cube separation and helps prevent jams caused by uncut ice sheets. What it does:

• Heats and cuts the ice slab into individual cubes as it passes through the grid
• A failed or broken grid can leave the ice sheet uncut or in large fused blocks
• Visible signs can include broken/burned wires or cubes sticking together

• One cutter grid assembly

• Disconnect power and shut off water before servicing; allow the grid to cool
• Handle by the frame—do not touch or bend the heating wires
• Install in the same orientation; transfer existing mounting hardware if required
• Reconnect the harness securely and route wires away from moving parts

A replacement cutting grid cover that protects the cutting grid assembly and helps maintain efficient ice crushing and dispensing. Restores proper alignment and keeps debris away from the cutting blades for smoother operation. What it does:

• Protects the ice cutting grid from damage and foreign debris
• Keeps ice pieces contained for consistent crushing and dispensing
• Helps reduce grinding noise and uneven ice formation when the original cover is cracked or missing
• Supports proper alignment of the cutting grid assembly during operation

• Disconnect power to the appliance before beginning any service.
• Access the ice maker/ice crusher per your model's service instructions; part typically snaps or slides into place.
• Handle plastic components gently to avoid cracking; ensure cover is fully seated and secured.

Size: 10-32 x 5/8 inch.

This refrigerator water reservoir stores and chills water for the dispenser, helping deliver a steady, cold flow. Replace a cracked or leaking tank to stop internal leaks and restore consistent dispenser performance.

• Holds water between uses so the dispenser delivers a steady, cold supply
• Cracks or brittleness can cause leaks under crisper drawers or inside the fresh food section
• Kinks or mineral buildup may restrict flow, causing slow or no dispensing
• Freezing damage can split the tank, leading to intermittent leaks after thawing

• Unplug the refrigerator and shut off the water supply
• Remove shelves/crispers and the interior access panel as needed; keep towels handy for residual water
• Disconnect tubing and reuse existing fittings/brackets as required
• Restore water, purge air through the dispenser for several minutes, and check all connections for leaks

Size: 8-18 x 5/8 inch.

This drain cap seals the appliance's drain port so water stays contained and the system drains as designed during operation and cleaning. Replace a cracked, stripped, or missing cap to stop leaks and help prevent debris from entering the drain path. What it does:

• Seals the drain opening to prevent leaks and air intrusion
• Helps maintain proper water flow during draining and cleaning
• Keeps debris from entering and clogging the drain
• Common symptoms: puddles under the unit, dripping at the drain area, cap won't tighten, or visible cracks/wear

• 1 drain cap

• Disconnect power and turn off the water supply before servicing
• Place a towel or shallow pan to catch residual water
• Remove the old cap and clean the drain port's sealing surface
• Hand-tighten the new cap until snug; do not overtighten. Restore water and power, then check for leaks.
