Justin Kunak June 06, 2021 for Model Number PLGF389CCB I am having issues with my frigidaire gas range.I wrote your not long ago and checked all you told me to check and replaced two items,now it is doing something different.The model number on my unit is PLGF389CCB.At first my oven was giving a F1 code and your wrote back to me telling me to check and possibly replace temperature probe in oven and EOC board.I checked the temperature sensor probe and it was borderline, so i ordered a new sensor probe and new EOC board and overlay for board and replaced them.Now when i plug in unit the board clock flashes and PF is displayed on board.I try to press buttons to reset it or set clock etc. and none of the push buttons on new board work.I tryed different outlet plugs with same results.So then i tryed to switch out and put old board back on my gas range and plug in range and same results,clock blinks and PF is displayed on the board and none of the buttons work on old board also. But before the old board would only flash the f1 code and you could clear it off the board but after alittle while it would come back,it never flashed PF code.Now it is doing the same thing as new board is doing flashing PF and none of buttons on board is working.I have tryed to do alittle research on your site but nothing comes up about the problem i am having.There is nothing instruction wise or diagnois wise paperwork wise on range to help me out.The range is old but until now i have never had any issues with it.I sure hope your can possibly be able to help me out somehow and kind point me in right direction of things i need to check or what can be my problem.Thanks so very much for your time.
2 Answers Justin, The PF Code is not really a code and is just telling you that the unit had a power failure, which was when it was unplugged. You should be able to hit the cancel button and the PF should go away and then you should be able to set the clock and operate the unit. The unit will not operate with the PF code up. If you are still having issues then it may be that the board that you received is faulty. Read More...
Justin Kunak June 06, 2021 for Model Number PLGF389CCB I am having issues with my frigidaire gas range.I wrote your not long ago and checked all you told me to check and replaced two items,now it is doing something different.The model number on my unit is PLGF389CCB.At first my oven was giving a F1 code and your wrote back to me telling me to check and possibly replace temperature probe in oven and EOC board.I checked the temperature sensor probe and it was borderline, so i ordered a new sensor probe and new EOC board and overlay for board and replaced them.Now when i plug in unit the board clock flashes and PF is displayed on board.I try to press buttons to reset it or set clock etc. and none of the push buttons on new board work.I tryed different outlet plugs with same results.So then i tryed to switch out and put old board back on my gas range and plug in range and same results,clock blinks and PF is displayed on the board and none of the buttons work on old board also. But before the old board would only flash the f1 code and you could clear it off the board but after alittle while it would come back,it never flashed PF code.Now it is doing the same thing as new board is doing flashing PF and none of buttons on board is working.I have tryed to do alittle research on your site but nothing comes up about the problem i am having.There is nothing instruction wise or diagnois wise paperwork wise on range to help me out.The range is old but until now i have never had any issues with it.I sure hope your can possibly be able to help me out somehow and kind point me in right direction of things i need to check or what can be my problem.Thanks so very much for your time.
2 Answers Justin K, Based on the description of your issue I would check the incoming power for the correct voltage and polarity to the outlet. Make sure the outlet is a three-prong grounded outlet. The PF stands for a power failure and it sounds as if you have a power issue. Once the outlet is confirmed to be 120VAC grounded and polarized, then check the incoming power to the EOC you should have 120vac at the P5-1 to P5-5 connections to the EOC board. If you have the correct 120VAC, grounded and polarized at the board and it is not working then the EOC would be the issue. Read More...
Justin Kunak May 11, 2021 for Model Number PLGF389CCB I have a frigidaire gas range model number PLGF389CCB.I am getting a F1 error code on unit.I looked on your page and read stories of questions other people asked your and found a few questions and your answers were that it is control board is problem.I am writing to see if i can confirm with your for my model number of my gas range if the F1 code does mean a bad control board.If it does what is part number for the board so i can order one.Thanks so much for your time

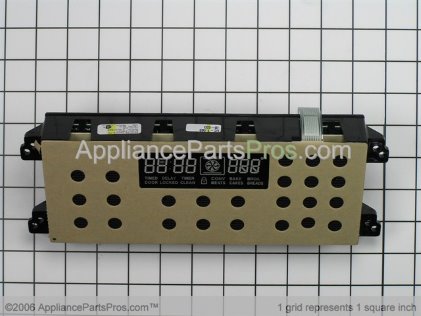

1 Answer Justin K, Based on the model provided the control part# 316207603 & its overlay part# 318214601 The Manufacturer says if the fault code is F1 Then: 1.Shorted keypad. 2.Control's internal checksum may have become corrupted. 3. Control has sensed a potential runaway oven condition. Control may have shorted relay, RTD sensor probe may have gone bad. The Solution: 1.Replace EOC. 2.Disconnect power, wait 30 seconds and reapply power. If fault returns upon power-up, replace EOC. 3.Check RTD sensor probe and replace if necessary. If the oven is overheating, disconnect power. If the oven continues to overheat when the power is reapplied, replace EOC. Severe overheating may require the entire oven to be replaced, should damage be extensive. Read More...
Mackie December 13, 2019 I ordered an oven control board #316207603 from Amazon but it did not come with the overlay. The seller says that the overlay has to be purchased separately. Can you tell me where I can buy this overlay.
1 Answer Hello Mackie, we will need the model number to locate the correct overlay. For further help with locating the overlay, please call us at our toll free number or chat in with us, thanks! Read More...
1 Answer Hello Donna. The F1 error code indicates control board failure 316207603 on the unit and you will need to replace the control board. Thanks. Read More...
Mk October 09, 2017 for Model Number PLGF389CCC EOC works but board that connects with ribbon cable is damaged. I have a new overlay. Is there a way of getting the board with ribbon cable only?
1 Answer Hello MK. No, you will need to order 316207603 for the part that is needed. Thank you. Read More...
1 Answer J, Here is a link to our return policy. http://www.appliancepartspros.com/customerservice/returns.aspx Read More...
Tate April 29, 2016 for Model Number PLGF389ACB My oven has stopped working the broiler the convention and bake all at the same time. Tested the door that's working and have the proper oms in the igniters. so my thought is its the mother board????
1 Answer Tate, You would be correct that the issue with the unit will end up being a faulty control board 316207603. Read More...
Joe September 03, 2015 for Model Number PLGF389CCB Oven control panel keeps flashing F3 error. Do I need to replace the clock/timer,eoc?
1 Answer Hello Joe. 1. Open RTD sensor probe. Note: The EOC will initially display an F1 for this condition. The EOC thinks a runaway oven condition exists. 2. Shorted RTD sensor probe. Note: The F3 for shorted probe should only occur when the oven is active or when an attempt is made to enter a mode. 1. Check resistance at room temperature and compare to RTD sensor resistance chart. If resistance does not match the chart, replace RTD sensor probe. 2. Check resistance at room temperature, if less than 500 ohms, replace RTD sensor probe. You can test this with a multi-meter TJMA-DMT3. Here is a link on how to use a multi-meter. http://forum.appliancepartspros.com/oven-repair-including-ranges-cooktops/4810-how-check-continuity-ohmmeter.html Read More...
N November 21, 2014 for Model Number PLGF389ACA Clock/timer sound is getting very faint anyway to make louder without replacing?
