Riad August 29, 2025 for Model Number C-101 Does the surface unit switch kit by Whirlpool work or replace the surface unit switch of Jenn-Air C-101 serial number 208947RR?
1 Answer Hi Riad, thanks for contacting AppliancePartsPros.com Surface unit switch 700855K is the correct infinite switch for this model. Read More...
1 Answer Hello Jason,as listed in the part description, for part 700855K,'This top burner switch has a push to turn D shaped shaft. Includes mounting nut, gasket and instructions. For the double flat shaped shaft switch order W11120795." Read More...
Terri W August 02, 2023 for Model Number C301 Serial #3411551RX Which receptacle (#9) and which wiring harness (#10) in the main top diagram do I need for this particular Jenn-Air model and serial number? It is needed for the right side.
1 Answer Terri W, Based on the information provided the receptacle would be WPY702434 but the harness for this has been discontinued by the manufacturer & is no longer available. No alternate or substitute part has been recommended by the manufacturer. Read More...
Dick October 23, 2021 for Model Number Jenn air C221 I have ordered and received part 700855k which is the right part. However, the wire configuration is different from the earlier part to be replaced. How do I determine which wire to which post?? .
1 Answer Dick, the double black wire will go to L1, double red wire to L2, orange wire to P, brown wire to H1, and violet wire to Hc. Read More...
Sally September 09, 2021 for Model Number Jenn Air Downdraft Cooktop model C301 Need to replace the infinity switch in two cartridges. (one burner heats to high no matter the setting and the other burner barely heats). My model number is C301 and the serial number is 345364PX. I have read other questions and one talks about a "run" number. Is this the same as a serial number? As I understand, if the run number is 1-2 (switch 700855K), number 3-5 (switch W11120795) or number 6+ (switch W11120791). Do I assume the run number and the serial number are the same and order switch W11120795. I have contacted other sites and they all state that I need switch 700855K. I have a history of this same repair over and over through the years and question if wrong switches were installed. Want to get it right. Thank you so much. Appreciate any help.
1 Answer Sally, According to the manufacturer, the part number for the switch would be 700855K. Read More...
Ed Campbell May 23, 2020 for Model Number C201 Does the Whirlpool 700855K really have a D-shaped, push-and-turn switch? I ordered one from another company and it did not have either of these actions.
1 Answer Ed, This switch does not appear to have the D-shaped shaft on it. This switch 700855K will also not work for your unit due to a design change from the manufacturer. Read More...

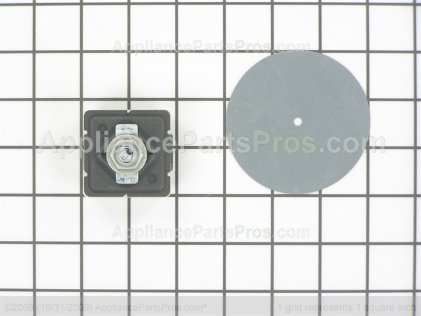

Garry May 15, 2020 for Model Number Jenn-Air cook top model C-301 Ordered part # AP4087111 to replace existing switch but can't figure out the purpose of the circular rubber with hole in the middle. Is there a video showing replacement of switch on a cook top stove?
1 Answer Hello Gary, unfortunately, there is no video for this part. The manufacturer supplies this switch as a kit, on some cooktops, there is a rubber seal that is used on the switch shaft to prevent liquids, debris from falling down onto the switch itself, if the original switch did not use one,then it is not needed. Read More...
Robert April 10, 2019 for Model Number jenn aire model 2475/90 surface switch kit The switch kit on this unit, the electrician says the one wire which goes to the back plate on the module is burned, and the relay which it is wired to is bad. It keeps kicking the breaker off. If I buy the switch plate kit, he said since it is old would be best. How much is this this one? Help me out, I bought 2 new modules, and I was surprised how soon they came. Can't wait to finally put them in Thanks
1 Answer Robert, according to the parts diagram for your model this part will work. For pricing, an accurate total can be given when completing the order online or by calling us at 1-877-477-7278. Read More...
Ike July 18, 2018 for Model Number Jennair Cooktop is there a difference in switch INF-240P-871 and INF-240P-977
1 Answer Ike, These are not part numbers but there would most likely be a difference in amperage and wattage the switch can withstand. Read More...
Robert April 03, 2018 for Model Number jean air cooktop with downdraft in the middle cartridge on each side The switches have gone bad the switch says it is an Inf 240 112 7036F 240v 15A. What is a comparable model replacement switch
1 Answer Hello Robert. We will need your model number to help you with this. Please call 1-877-477-7278 or post your model number with a new question on the parts page. http://www.appliancepartspros.com/modelnumber_locator.aspx Read More...
