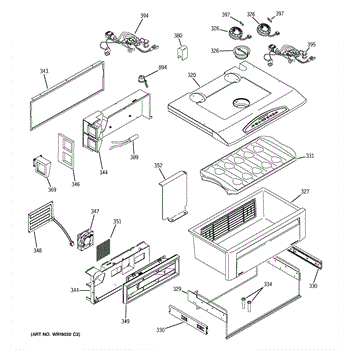

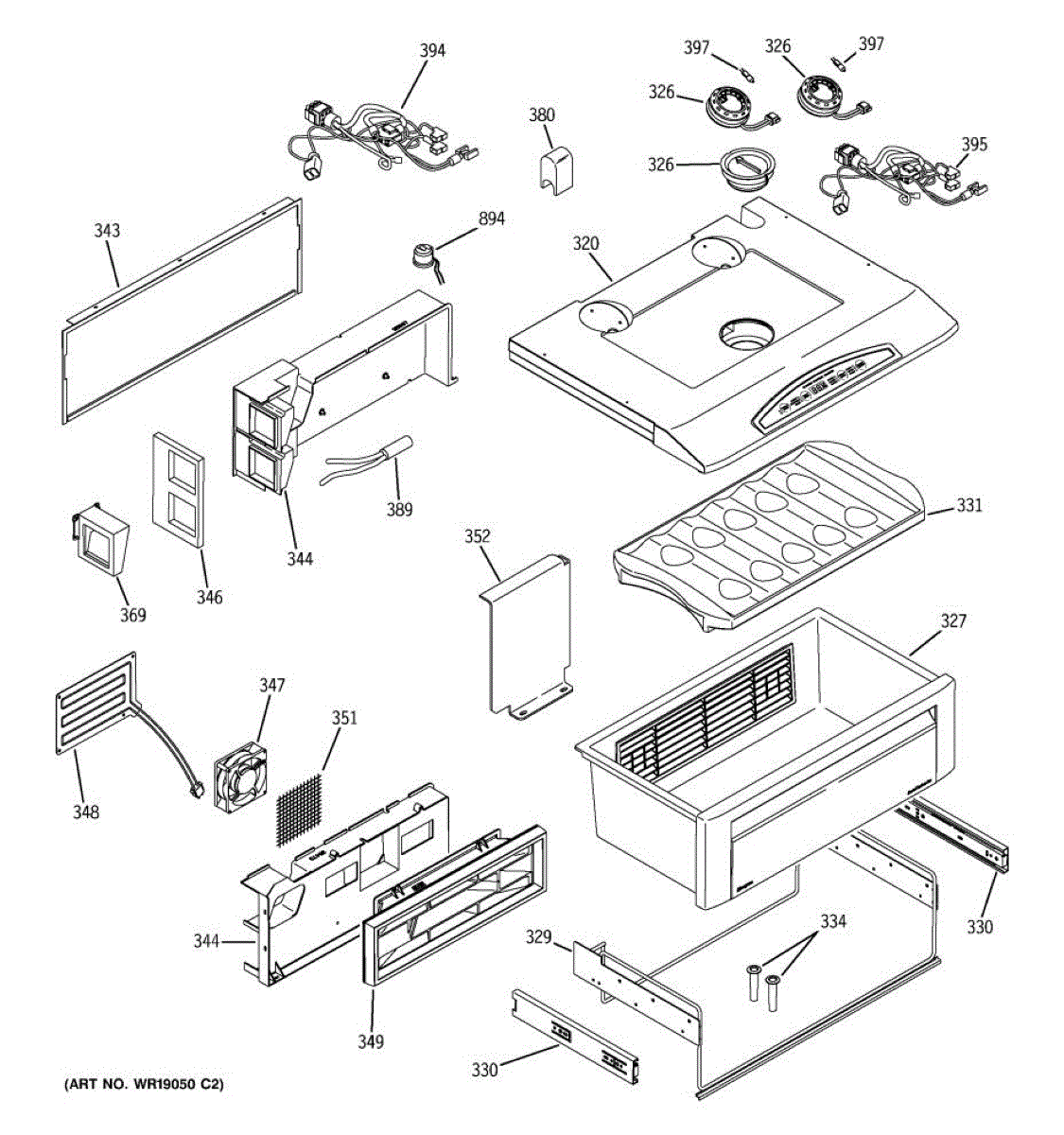

Parts for Ge ZISB420DMA: 09 - Quick Chill Parts

Replace your refrigerator water filter every 6 months to maintain clean water and ice. Removes contaminants for fresh taste. Easy DIY install in minutes.

This QC halogen lamp assembly provides the oven or range interior light so you can check cooking progress without opening the door. It replaces a worn or burnt-out halogen lamp to restore interior illumination. What it does:

• Replaces a failed halogen oven/range interior lamp to restore lighting
• Helps you see food clearly through the oven window for safer, easier monitoring
• Fits into the existing lamp housing and connects to the factory lamp socket
• Common symptom: no interior light or intermittent lighting when the oven light is turned on

• Disconnect power to the appliance before replacing the lamp to avoid electric shock
• Allow the old lamp and interior surfaces to cool completely before handling
• Handle the new bulb by the base; avoid touching the glass with bare hands to prevent oil contamination and premature failure

Quick chill pan assembly for 48-inch side-by-side refrigerators. Replace this pan if cracked, damaged, or missing to restore proper quick chill functionality.

This quick chill pan assembly circulates cold air across the refrigerator compartment to speed cooling of fresh food. It replaces a damaged or leaking pan to restore proper airflow and help maintain even temperatures. What it does:

• Collects and channels condensate while supporting the quick-chill airflow path
• Restores proper cold-air distribution when the original pan is cracked, warped, or blocked
• Can reduce frost or pooling symptoms caused by a damaged pan or misdirected drain flow
• Works with the refrigerator's evaporator/airflow system to help maintain consistent cooling

• Disconnect power before servicing; follow lockout/tagout procedures
• Installation may require removing interior panels, shelves, and trim for access
• Inspect adjoining seals, drain troughs, and clips; replace any damaged fasteners to ensure proper fit

Supports and guides your refrigerator drawer for smooth opening and closing. Replace this slide assembly if cracked, worn, corroded, or causing misalignment.

Replacement vent tube that routes air circulation inside your refrigerator. Install this duct if your original is cracked, clogged, or broken.

This assembly controls the flow of cold air between your refrigerator and freezer compartments to maintain proper temperatures. It includes a motorized damper that opens and closes based on temperature demands. If one compartment is too warm or too cold, or if you hear unusual clicking noises, this control assembly may need replacement.

This QC seal damper is the refrigerator air damper that helps control and seal airflow between compartments to keep temperatures stable and reduce energy loss. Replacing a worn damper restores proper airflow regulation. What it does:

• Regulates cold air flow from the freezer to the fresh-food section to help maintain set temperatures.
• Seals the transfer opening to prevent unwanted air exchange and reduce temperature swings.
• A faulty or stuck damper can cause uneven temperatures, excessive frost/ice, or poor cooling in the refrigerator compartment.
• Dampers can produce rattling or buzzing noises when damaged or obstructed.

• Always disconnect power to the appliance before servicing.
• Access may require removing interior shelves, drawers, or a panel; handle inner liners and gaskets carefully.
• Inspect surrounding seals and mounting points; ensure the damper is oriented correctly and moves freely before reassembling.
• After installation, restore power and verify proper operation and temperature stabilization.

Fix a warm Custom Cool drawer or knocking noise from the bottom compartment. This fan assembly restores proper airflow for faster chilling. DIY repair.

This thaw heater is the evaporator defrost heating element that melts frost during the refrigerator's defrost cycle. Replacing a failed heater helps restore normal defrosting and reduce frost buildup that can restrict cooling. What it does:

• Heats the evaporator coil during the defrost cycle to melt accumulated ice
• Prevents excessive frost buildup that can block airflow and reduce cooling efficiency
• Common symptoms of a failing heater: heavy frost or ice on the evaporator/back wall, reduced cooling, or long compressor run times
• Works as part of the appliance's defrost system alongside the defrost thermostat and control

• Disconnect power to the appliance before starting any repair
• Access typically requires removing interior panels and the evaporator cover; handle the evaporator and wiring carefully
• Inspect associated defrost components (thermostat, timer/control) if problems persist; replace only parts confirmed faulty

Fix uneven cooling or warm spots in your fridge with this diffuser case assembly. Restores proper airflow from evaporator to fresh food compartment.

Wire mesh guard for refrigerator housing. Protects internal components from debris. Replace if bent, damaged, or missing to maintain proper airflow.

Fix food freezing or warm spots in your fridge with a new air damper assembly. Controls airflow between compartments. Moderate DIY repair, 1-2 hours.

Fix uneven cooling or defrost issues with a new temperature sensor. Most DIYers complete this repair in under an hour with basic tools and our video.

This halogen light bulb restores bright, reliable illumination inside your appliance, making it easier to check food and read controls. Replace a burned-out or broken lamp to bring back safe, convenient visibility while cooking.

• Provides bright lighting for the appliance cavity or work area
• Direct replacement for a failed, flickering, or shattered bulb
• Helps you monitor cooking progress without opening the door
• Typical symptoms: light won't turn on, intermittent flicker, blackened or broken glass

• Disconnect power by unplugging the unit or switching off the circuit breaker before servicing
• Allow the light area and lens to cool completely
• Handle halogen bulbs with a clean cloth or gloves; avoid touching the glass
• Install per your appliance's instructions and ensure the bulb is fully seated and any cover is secured

This thermostat light is the small indicator lamp that illuminates the control area so you can see thermostat settings and status. It provides a clear visual signal when the control is powered. What it does:

• Lights the thermostat/control panel area for visibility
• Indicates when the control or circuit is energized
• Commonly replaces a burned-out or dim lamp
• Helps diagnose a non-illuminated control (lamp failure vs. power issue)

• Disconnect power to the appliance before inspecting or replacing the lamp
• Remove the control panel or housing per the appliance service instructions to access the lamp
• Handle the lamp and connector carefully to avoid damage; do not force wiring
• If the control remains unlit after replacement, test for power to the control
