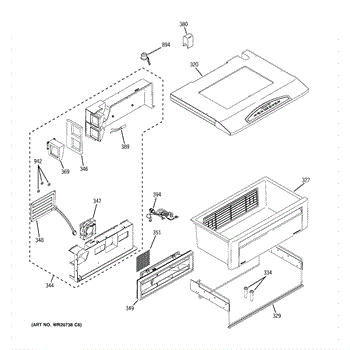

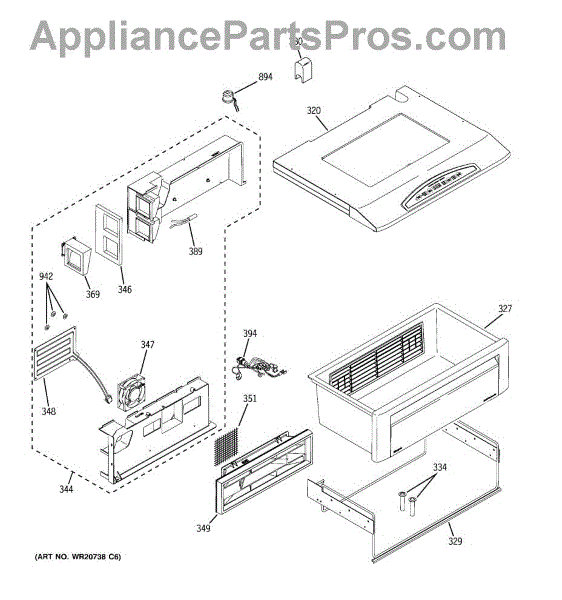

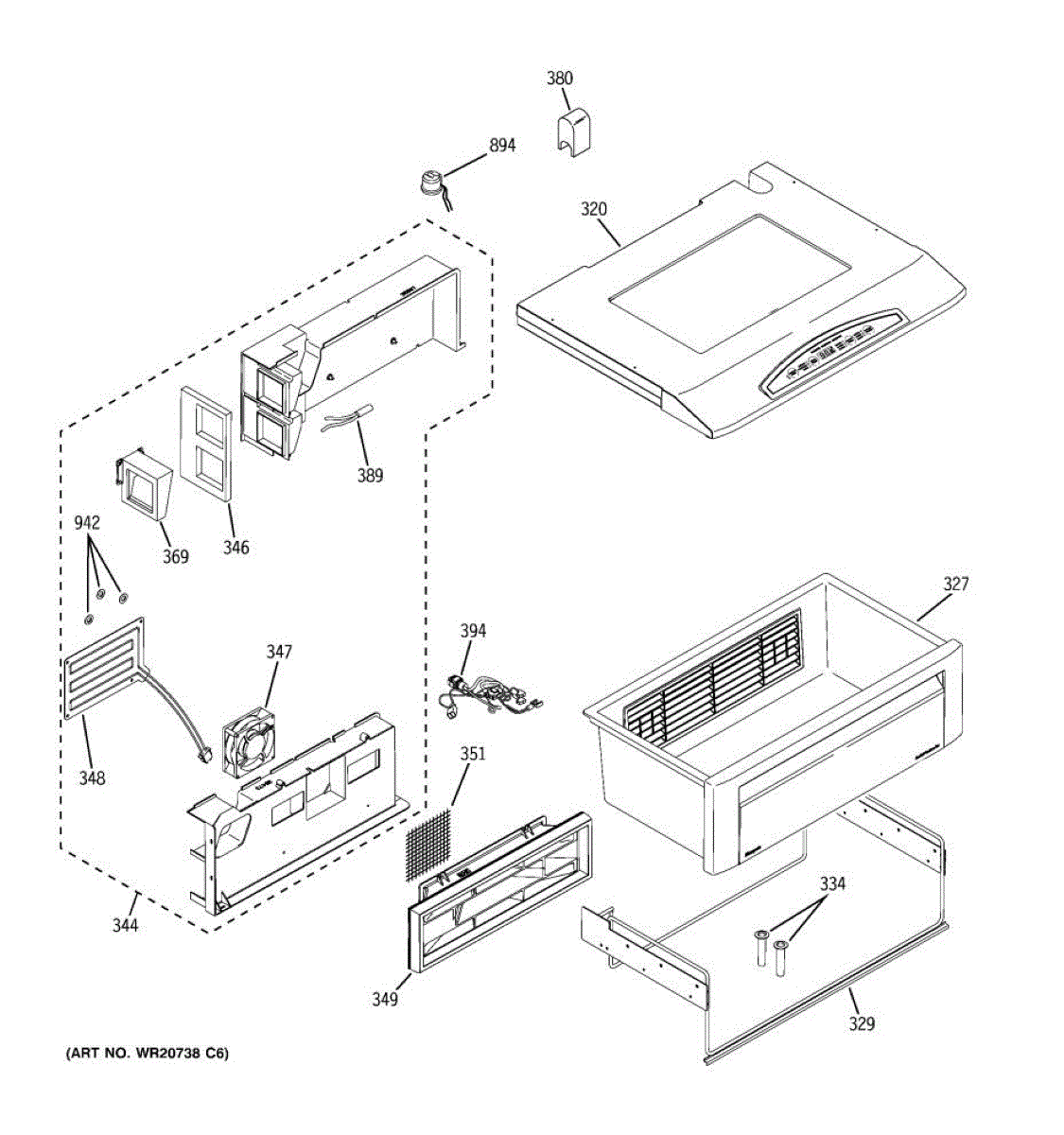

Parts for Ge ZISW480DXA: 09 - Quick Chill Parts

This vent tube routes air or drain flow inside the refrigerator, helping maintain proper circulation and drainage in affected compartments. It replaces a worn, cracked, or clogged vent tube to restore normal airflow or drainage. What it does:

• Directs airflow or condensation safely through internal channels to prevent pooling or reduced circulation
• Helps clear minor blockages that can cause uneven cooling or water buildup
• Restores the intended airflow path after damage, cracks, or deformation
• Compatible with the refrigerator's existing mounting points and hose connections when the correct OEM part is used

• Disconnect power (and water supply if applicable) before servicing the appliance
• Remove the appropriate access panels to reach the vent tube; keep track of clips and fasteners
• Inspect surrounding seals and channels; replace or clean as needed to ensure proper function

Replacement air handler assembly that circulates cooled air through the appliance to maintain consistent airflow and temperature distribution. Designed as a direct-replacement air distribution housing to restore proper cooling performance. What it does:

• Directs and circulates cooled air from the evaporator to the cabinet for even temperatures.
• Restores airflow when the original air handler is cracked, damaged, or obstructed.
• Helps reduce hot spots and inconsistent cooling caused by a failing air distribution housing.
• Stops or reduces abnormal air-path noise caused by damaged ducting or loose components.

• Disconnect power to the appliance before starting any work.
• Basic hand tools needed; remove interior panels to access the evaporator/air distribution area.
• Handle edges and evaporator components carefully to avoid damage or cuts.

This QC seal damper is the refrigerator air damper that helps control and seal airflow between compartments to keep temperatures stable and reduce energy loss. Replacing a worn damper restores proper airflow regulation. What it does:

• Regulates cold air flow from the freezer to the fresh-food section to help maintain set temperatures.
• Seals the transfer opening to prevent unwanted air exchange and reduce temperature swings.
• A faulty or stuck damper can cause uneven temperatures, excessive frost/ice, or poor cooling in the refrigerator compartment.
• Dampers can produce rattling or buzzing noises when damaged or obstructed.

• Always disconnect power to the appliance before servicing.
• Access may require removing interior shelves, drawers, or a panel; handle inner liners and gaskets carefully.
• Inspect surrounding seals and mounting points; ensure the damper is oriented correctly and moves freely before reassembling.
• After installation, restore power and verify proper operation and temperature stabilization.

This fan and pre-wired harness assembly drives airflow to the Quick Chill/CustomCool drawer so foods and beverages chill faster and hold the set temperature. Replace a noisy, non-running, or intermittent fan to restore proper drawer cooling.

• Circulates cold air into the Quick Chill/CustomCool/deli drawer for targeted cooling
• Helps correct no-chill or slow-chill performance in the drawer
• Addresses symptoms like no airflow, intermittent operation, or grinding/buzzing noises from the drawer area
• Replaces a failed fan motor or damaged wiring harness in this assembly

• Disconnect power before servicing; remove the drawer and covers to access the assembly
• Note wire routing and connector locations; transfer any original mounting hardware as needed
• Seat connectors fully and route harness away from moving parts to avoid pinching
• Restore power and verify the fan runs and airflow is present to the drawer

This diffuser case assembly directs cooled air from the evaporator into the refrigerator compartment to help maintain even temperature and airflow. It replaces a cracked, broken or missing diffuser housing to restore proper air distribution. What it does:

• Channels chilled air into the fresh-food compartment for more consistent cooling
• Protects internal ducting and supports the diffuser flap/door
• Helps reduce local hot spots or inconsistent temperatures caused by damaged housing
• Fits into the factory mounting location and works with the existing duct components

• Disconnect power to the appliance before starting any repair
• Accessible from inside the fresh-food compartment; remove shelves/controls as needed for access
• Align tabs and press into place until clips fully engage; do not force or bend plastic parts
• If other diffuser components (flap, seals) are damaged, inspect and replace as needed for full function

This cover protects and tidies the refrigerator water line area, keeping hoses routed and partially shielded for a cleaner look and reduced snag risk. It's a simple trim piece used where water lines exit or run along the cabinet. What it does

• Conceals and organizes exposed refrigerator water lines for a neater appearance
• Helps prevent hoses from catching or rubbing against other components
• Restores missing or damaged trim that leaves water lines exposed
• Works with factory routing to maintain intended hose positioning

• One water line cover/trim piece

• Disconnect power and shut off the water supply before starting work
• Access may require moving the refrigerator away from the wall or removing a rear/top trim panel
• Typically secures with clips or screws—retain hardware from the original part if possible

The Temperature Sensor is an OEM replacement part for GE refrigerators, designed to accurately monitor and relay the temperature inside the refrigerator and freezer compartments to the electronic control board. By detecting the slightest changes in internal temperature, the sensor allows the control board to make real-time adjustments to the cooling system, activating the compressor and fans as needed to maintain optimal conditions for food preservation.

Over time, the temperature sensor can fail due to electrical issues, exposure to moisture, or general wear and tear. A malfunctioning sensor can lead to improper temperature regulation, affecting the efficiency of the refrigerator and the freshness of stored food.

Symptoms of a bad Temperature Sensor include:

• The refrigerator or freezer not maintaining the set temperature
• The appliance running continuously or more frequently than normal
• Inaccurate temperature readings displayed

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.
