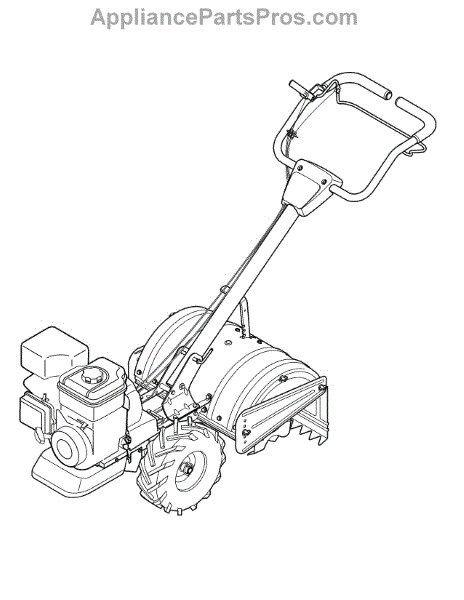

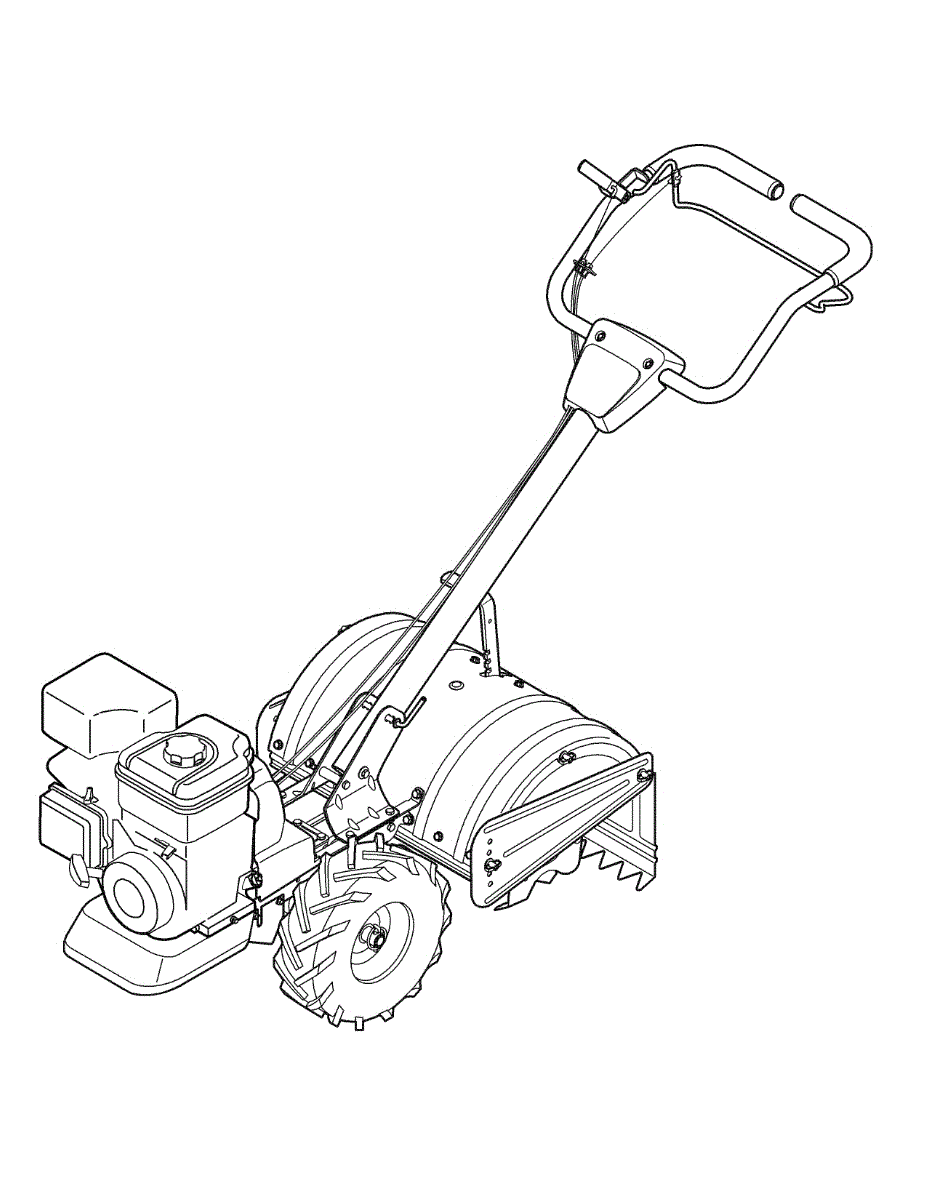

Parts for Craftsman 247.29931 / 2010: .Quick Reference Parts

Replacement foam handle grip for lawn mowers and tillers. Cushions metal handles for comfortable operation. Replace if worn, torn, cracked, or missing.

This is an idler pulley assembly for a snowblower or tiller. The idler pulley works together with other pulleys to drive the belt system in an engine. It regulates the belts connecting to the crankshaft to produce movement in various engine accessories. This is a genuine OEM part and is sold individually. This part is compatible with Craftsman, Cub Cadet, Huskee, Troy-Bilt, and Yard Machines. Over time, the pulley components wear down and begin to slip. Damaged bearing devices can also cause wear on the pulley, causing the engine to fail. To replace an idler pulley in a snowblower, remove the ignition key and disconnect the spark plug. Using a socket wrench, remove the mounting bolts securing the belt cover. If required, loosen the tension. Use a ?-inch socket to remove the lower bolts. Pull off the cover and use the wrench to remove the bolt from the pulley. Remove the old part and transfer the bushing into the new part. Position the new pulley, thread the bolt, and tighten. Per model, either realign the auger drive linkage on the bolt and slide on the push nut to secure, or realign and reset the tension spring. Then, recover and reattach.

Pre-cleaner filter wraps around your engine's air filter to trap large debris before it reaches the main filter. Replace when torn or clogged to maintain airflow and engine protection. Verify fit by model number.

Replacement reverse control cable for tillers. Engages and disengages the reverse drive function. Replace if frayed, broken, or no longer operating smoothly.

Forward control cable for rear-tine tillers. Connects the bail arm to the transmission for forward movement. Replace if cable is frayed, loose, or broken.

This is a spark plug that is installed on a variety of different outdoor power equipment. A spark plug is a component that delivers the electric current from the ignition system to the internal combustion engine. One spark plug is included in this package. Remember to wear gloves when operating or performing care and maintenance on any outdoor power equipment.The spark plugs can get dirty, and then they will require a replacement. Never perform care and maintenance on an appliance that is powered on.This spark plug is a genuine OEM MTD part. It is sold individually. This specific spark plug is compatible with snowblowers, lawnmowers, lawn tractors, log splitters, and blowers that are manufactured by MTD, Yard Machines, Troy-Bilt, Bolens, Yard-Man, and Cub Cadet.

This is a Briggs & Stratton Original Equipment 491588S Air Filter Cartridge. The purpose of this filter is to prevent dirt, dust, and debris from contaminating the carburetor and damaging the engine. This flat panel style, pleated paper air filter provides the first line of defense against the destructive effects of dirt ingestion. It is designed for 3.5 through 6.75 HP quantum engines and 625-1575 series engines. Over time, the air filter can get clogged or damaged, and this can lead to reduced engine performance. Locate the air filter cover, unscrew it, and remove the old filter. Make sure to clear out any debris that has found its way into the air filter assembly before inserting the new cartridge. Reattach the air filter cover and secure it with the screws. This replacement part works with generators, lawnmowers, pressure washers, wood chippers, and tillers. Aside from Briggs & Stratton, it is also compatible with specific products from Craftsman, Husqvarna, Lawn-Boy, Toro, Troy-Bilt, Simplicity, Snapper, and Wheel Horse. It is a genuine OEM replacement part and is sold individually.

Filters debris from fuel before it reaches the engine. Replace annually or when experiencing fuel flow issues. Confirm fit with your model number.
