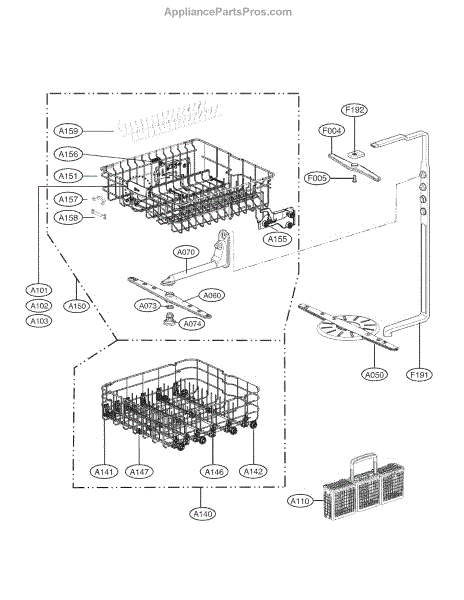

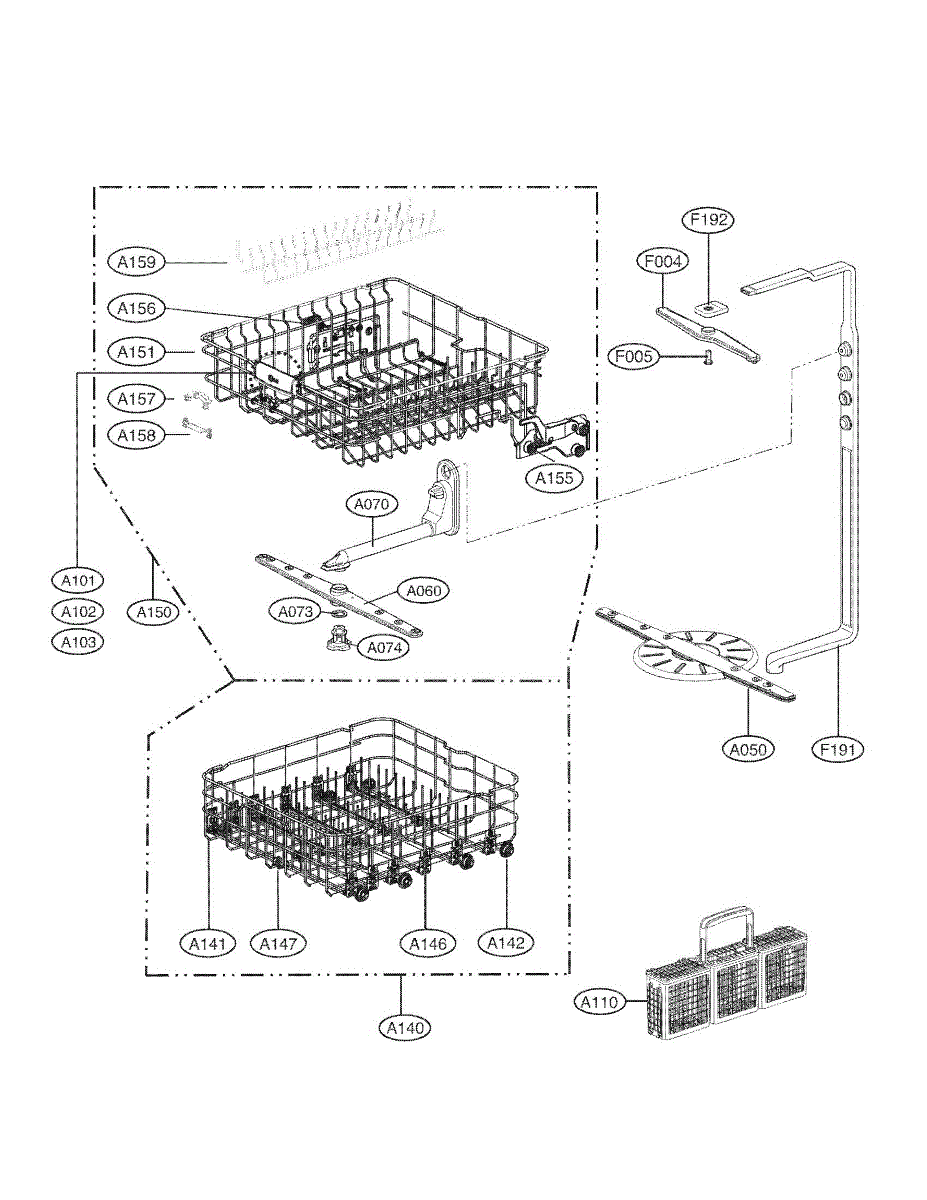

Parts for Lg LDS5040BB: Rack Assembly Parts

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Replace your dishwasher's upper spray arm if cracked, broken, or clogged beyond cleaning. Installs in the top of the tub to spray water on the upper rack.

Pivot shaft that supports and allows the upper spray arm to rotate in your dishwasher. Replace if broken, cracked, or worn to restore proper arm movement.

Lower spray arm assembly mounts at the bottom of the dishwasher tub and rotates to distribute wash water. Replace if cracked, clogged, or broken.

Fix uneven water flow or leaks from your dishwasher dispenser with this nozzle assembly. Directs water properly and restores clean dispensing function.

The Water Supply Tube is an OEM part for LG dishwashers, designed to channel water effectively to various parts of the dishwasher during operation. This component allows the unit to fill, rinse, and clean dishes efficiently. The water supply tube is strategically positioned to distribute water to the spray arms, ensuring a thorough and even cleaning cycle by reaching all dishes, regardless of their placement in the racks.

Causes of these issues can range from physical damage due to impact or mishandling, clogs from mineral deposits or debris in the water, to general wear and tear over time.

Symptoms of a malfunctioning Water Supply Tube include:

• Inadequate water flow to the spray arms
• Leakage or dripping water from the tube
• Unusual noises during the water filling phase

This OEM LG part is also compatible with some Kenmore models.

Hardware washer distributes clamping force under fasteners in your dishwasher. Replace if missing, bent, or corroded to restore secure assembly. Confirm fit.

This rotating spray arm shaft distributes water throughout your dishwasher during wash cycles. It connects to the pump motor and spins to spray water upward through multiple nozzles. Replace this shaft if your dishes aren't getting clean, water isn't spraying properly, or you hear grinding noises during operation.

Replacement handle for dishwasher dishrack. Installs on the upper or lower rack edge. Order when your existing handle is cracked, broken, or missing.

Replace your broken or loose dishwasher door handle to restore proper opening and closing. Direct fit replacement part for multiple LG dishwasher models.

Replacement handle for dishwasher dishrack. Installs on the front edge of the upper or lower rack. Needed when original handle is cracked or broken.

Replacement silverware basket for your dishwasher's lower rack. Holds cutlery during wash cycles. Replace if cracked, broken, or has holes in bottom.

This is the lower dish rack assembly for a dishwasher, providing the sliding framework that holds plates, bowls, and larger items during the wash cycle. It includes the rack structure and rollers that allow smooth sliding in and out of the dishwasher tub. Replace this assembly if the rack is warped, has broken tines, or if the rollers are damaged and the rack no longer slides properly.

This is the lower dish rack assembly for a dishwasher, providing the sliding framework that holds plates, bowls, and larger items during the wash cycle. It includes the rack structure and rollers that allow smooth sliding in and out of the dishwasher tub. Replace this assembly if the rack is warped, has broken tines, or if the rollers are damaged and the rack no longer slides properly.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Replacement roller for dishwasher lower rack. Installs on the dishrack axle to enable smooth gliding. Replace if cracked, broken, or missing.

This is a plastic bracket that holds the roller wheel on the dishwasher dish rack, allowing the rack to slide in and out smoothly on its track. It mounts to the side of the upper or lower rack and secures the roller in place. Replace this bracket if it is cracked or broken, causing the dish rack to tilt, jam, or not roll properly on its rails.

Small mounting bracket that secures internal dishwasher components in place. Replace if cracked, broken, or missing to stop rattling and maintain alignment.

The Upper Rack Assembly is an OEM part for LG dishwashers. This part provides a durable and efficient space for washing glasses, cups, and smaller dishes. This assembly maximizes the cleaning capacity of your dishwasher, allowing for the organized placement of items to ensure they are thoroughly cleaned and dried.

Causes for issues with the upper rack assembly often involve prolonged exposure to water and detergent, leading to rust or corrosion, physical damage from loading or unloading, or wear and tear from regular use.

Symptoms of a malfunctioning Upper Rack Assembly include:

• Difficulty sliding the rack in or out
• Rust or corrosion that can lead to stains on dishes
• Broken or missing tines affecting the rack's ability to hold dishes securely

This OEM LG part is also compatible with some Kenmore models.

The Upper Rack Assembly is an OEM part for LG dishwashers. This part provides a durable and efficient space for washing glasses, cups, and smaller dishes. This assembly maximizes the cleaning capacity of your dishwasher, allowing for the organized placement of items to ensure they are thoroughly cleaned and dried.

Causes for issues with the upper rack assembly often involve prolonged exposure to water and detergent, leading to rust or corrosion, physical damage from loading or unloading, or wear and tear from regular use.

Symptoms of a malfunctioning Upper Rack Assembly include:

• Difficulty sliding the rack in or out
• Rust or corrosion that can lead to stains on dishes
• Broken or missing tines affecting the rack's ability to hold dishes securely

This OEM LG part is also compatible with some Kenmore models.

Rack guide assembly for dishwashers. Mounts to the side of the tub to help guide dish racks smoothly along the rails. Replace if cracked, broken, or missing.

Supports and guides your dishwasher drawer for smooth opening and closing. Replace when drawer sticks, misaligns, or won't slide properly. Confirm fit.

This small clip attaches to the dishwasher rack and holds the tine rows in position. It allows you to fold or reposition tines to accommodate different dish sizes and shapes. Replace this clip if tine rows are loose, fall flat during wash cycles, or no longer stay in their adjusted positions.

Mounting bracket that secures dishrack components in place inside your dishwasher. Replace if cracked, broken, or missing to restore stability.

Replaces a damaged, broken, or missing row of prongs on your dishwasher rack. Restores secure spacing to hold plates and dishes upright during cycles.

This water guide directs water through the dispenser/ice path so water flows where it should, helping prevent leaks and misdirected dispensing. It's a small molded channel designed to route cold water inside the refrigerator. What it does:

• Guides and channels water from the supply toward the dispenser or ice-making area
• Helps prevent water from dripping into areas it shouldn't and causing puddles
• Supports consistent dispensing by keeping the water path aligned
• Commonly replaced when cracked, warped, or when water is leaking or pooling

• One water guide piece as shown

• Disconnect power and shut off the water supply before replacing
• Remove any interior shelves or panels as needed to access the guide
• Handle carefully to avoid damaging mounting tabs or adjacent seals
• Secure all clips; test dispenser and check for leaks after installation

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.
