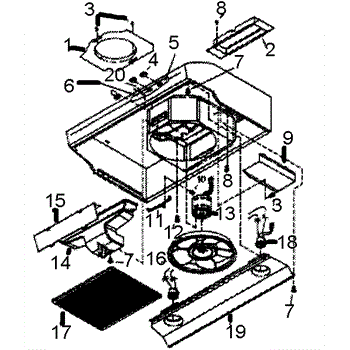

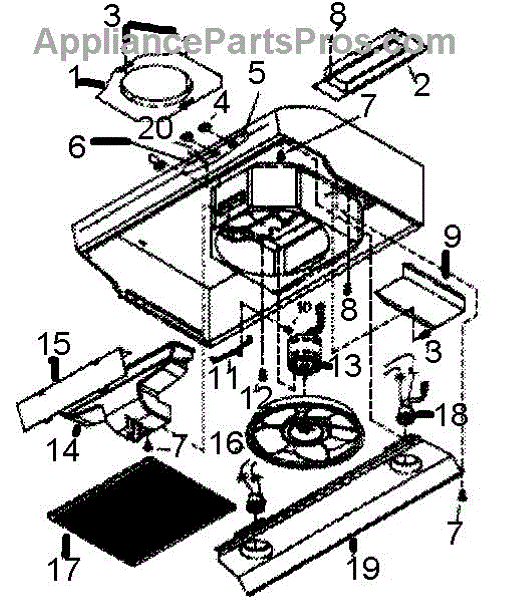

Parts for Broan WS130AA: Range Hood Parts

This is a metal duct connector plate designed to attach a 7-inch round duct to a range hood vent housing. It provides a secure transition between the hood exhaust outlet and the ductwork, often incorporating a damper function to prevent backdrafts. Replace this plate if you notice air leaking around the duct connection, a rattling noise during operation, or if the existing plate is damaged or corroded.

This is a vent damper that mounts at the duct connection point of a range hood. It opens to allow exhaust air to flow out during operation and closes when the hood is off to prevent outside air, drafts, and pests from entering through the ductwork. Replace this part if you feel cold air blowing back through the hood when it is off, notice increased odors or drafts in the kitchen, or the damper flap is stuck or visibly damaged.

Replacement mounting screw for range hood assemblies. Secures trim, grilles, and brackets that have become loose, stripped, or missing over time.

Replacement light lens cover for range hood. Installs over bulb housing to diffuse light. Replace if cracked, discolored, or missing. Clear plastic lens.

This is a genuine replacement mounting screw used to secure components on compatible Broan appliances, restoring proper fit and stopping loose or rattling parts. Simple fastener for reattaching panels, brackets, or covers. What it does

• Secures panels, brackets, or covers to prevent movement and vibration
• Helps stop rattling or buzzing caused by a loose fastener
• Restores a firm connection after a stripped or missing screw
• Used wherever the original mounting screw has corroded or been lost

• Use the matching screwdriver or driver bit to avoid stripping the head
• Tighten until snug; do not over-torque to prevent damage to threaded holes
• Disconnect power to the appliance and remove any panels if needed before servicing
• Inspect mating hardware and replace as necessary

Replacement cover for range hood exterior housing. Restores appearance when original is cracked, broken, or damaged. Direct fit for multiple models.

Secures grease filters in place on your range hood. Replace when springs are worn, broken, or missing to prevent filter rattling and dropping. Verify fit by model number.

Range hood fan not starting or running slowly? This motor replacement restores airflow when the original becomes noisy or stops running. Easy DIY fix.

If your range hood is noisy or has weak airflow, this blower fan blade restores ventilation. Moderately difficult repair—may need penetrating oil.

Grease filter for range hoods and over-the-range microwaves. Dimensions: 11-7/8" x 14-11/32" x 3/8" (11.875 x 14.34375 x 0.375). Rectangle shape. Captures grease from cooking air. Replace when clogged, discolored, or every 6-12 months.

Range hood light won't stay on or flickering? Loose or melted light socket is often the cause. This socket assembly plugs into the main harness. 5-minute fix.
