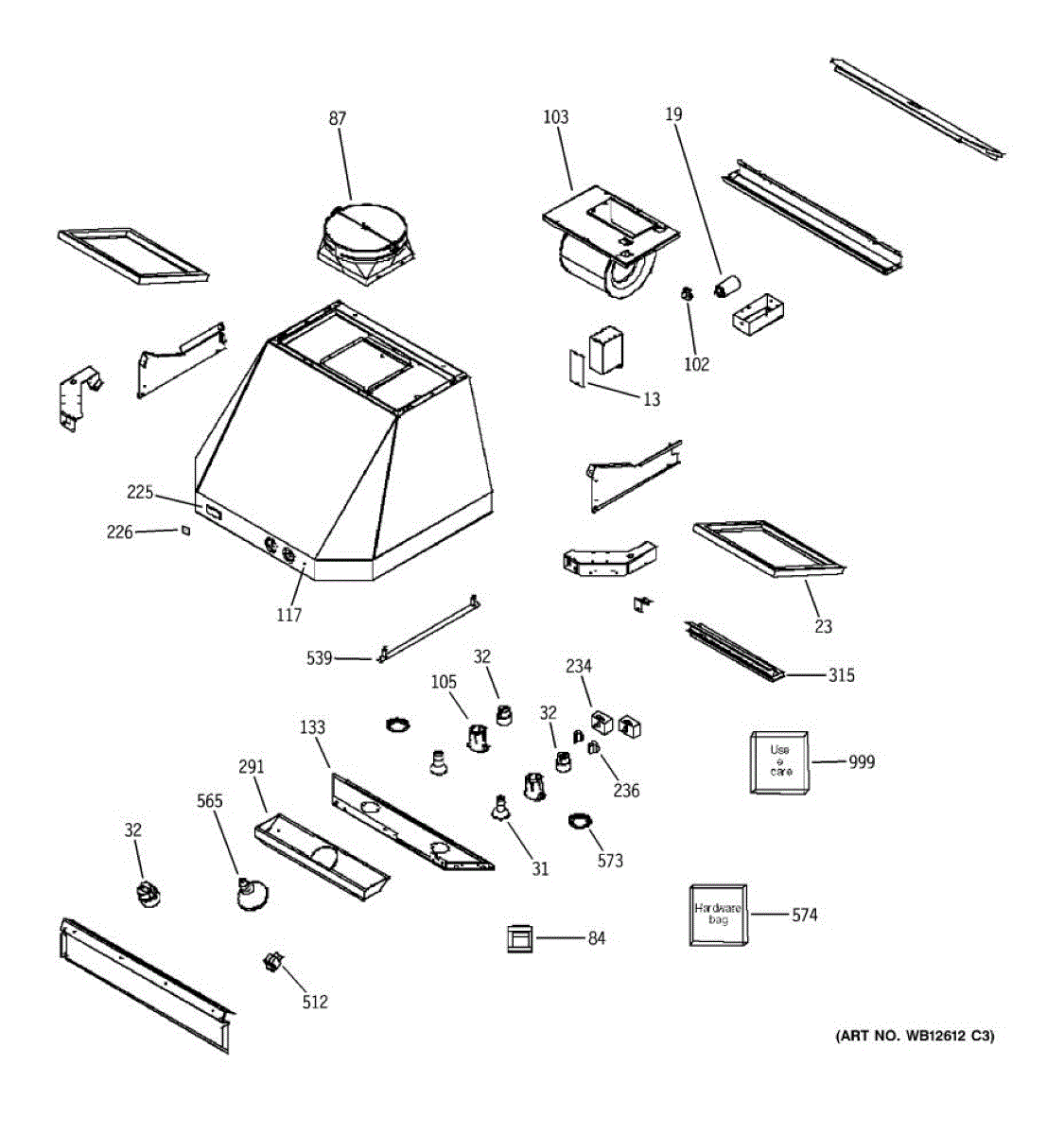

Parts for Ge ZV36TSF1SS: 01 - Range Hood Parts

This motor start/run capacitor helps the appliance motor start and run smoothly, restoring proper motor performance and reducing strain. Replace a failing capacitor to address motor start problems and intermittent operation. What it does:

• Provides the electrical boost motors need to start and maintain RPM
• Helps prevent motor hesitating, sluggish starts, or failure to start
• Can reduce motor overheating and tripping caused by poor starting torque
• Works with the motor's electrical circuit to stabilize operation during run cycles

• Always disconnect power to the appliance before servicing.
• Discharge the capacitor before touching terminals to avoid shock.
• Match wiring and terminal orientation to the original part; secure connections tightly.

This baffle filter is made for use with range vent hoods. It's one of the most efficient filters for a range. The part is made of stainless steel and helps maximize grease filtering and airflow when the hood is powered on. As air hits the baffles, it changes the direction to collect debris in the baffles of the filter.In many cases, cleaning the baffle filter will offer additional longevity. However, these components will sometimes need to be replaced. This is typically required if the baffle filter has experienced damage. Basic tools may be required to make the replacement. A pair of work gloves can also be useful for protecting the hands during the process. Make sure the range vent hood is powered off and cool to the touch before replacing this part. The original part will need to be removed from the vent hood before the new model is installed.This is an authentic OEM replacement part that is designed for use with General Electric range vent hoods. The baffle filter is directly sourced from the manufacturer and priced on an individual basis.

The Halogen Light Bulb is an OEM part for GE range hoods. It provides bright, focused illumination to enhance visibility while cooking, ensuring a well-lit stovetop area.

Causes of a bad halogen light bulb can include burnout from extended use, exposure to high temperatures, or damage from electrical surges. Additionally, oil and residue from frequent cooking can accumulate on the bulb, potentially leading to overheating and failure.

Symptoms of a bad halogen light bulb include:

• The light not turning on
• Flickering or intermittent lighting
• Dim or insufficient light output
• Blackened or visibly damaged bulb

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This lampholder is the light socket that secures the bulb and delivers power so your appliance lighting works reliably. Replace a worn or heat-damaged socket to restore steady illumination and dependable operation.

• Provides secure mounting and proper electrical contact for the light bulb
• Fixes issues such as no light, flickering, or bulbs that won't stay seated even after replacement
• Replaces sockets with visible cracks, discoloration, or burned contacts
• Uses the bulb type and wattage specified for your model

• Disconnect power at the breaker or unplug the appliance before servicing
• Use only the bulb type and wattage listed for your appliance; seat the bulb fully without overtightening
• Transfer any mounting screws, bracket, or connectors from the original part as required by your model

This transformer kit replaces a failed power transformer in your microwave, restoring the correct output to the high-voltage circuit so the magnetron can generate heat and the oven operates reliably. What it does:

• Steps up incoming line voltage to the high voltage required by the magnetron
• Supplies power to the microwave's high-voltage circuit during cooking
• A failing transformer may cause no heat, loud humming/buzzing, a blown internal fuse or tripped breaker, or a burning odor
• Used when the original transformer tests shorted/open or shows signs of overheating

• 1 transformer kit assembly

• Disconnect power before servicing; microwave high-voltage components can retain a dangerous charge—properly discharge the capacitor
• Transfer brackets/wiring exactly as originally routed and secure all terminals firmly
• Inspect the high-voltage diode and capacitor; replace if damaged or if no-heat persists after installation

This installation spring is a small replacement spring used to restore proper tension and operation in the appliance mechanism. It helps return or hold moving parts in place so doors, lids, or internal linkages operate smoothly. What it does:

• Provides tension for a specific door, latch, or linkage to help ensure consistent movement and positioning
• Replaces a worn or broken spring that can cause misalignment, sagging, or intermittent engagement
• Restores spring force so mechanisms return to their resting position reliably
• Useful when the appliance exhibits loose, sagging, or non-returning components related to the spring location

• One installation spring as shown

• Disconnect power (and water, if applicable) before attempting service to avoid shock or injury
• Compare the old spring to the replacement before installation
• Installation may require basic hand tools and careful removal/replacement of clips or retainers; avoid overstretching the spring

This blower assembly circulates air through the appliance to maintain proper airflow and ventilation. Replacing a worn or damaged assembly restores efficient exhausting and reduces unusual noises or poor airflow. What it does:

• Moves air through the appliance for proper ventilation and drying/performance
• Helps expel humidity, lint, and combustion byproducts
• Can resolve reduced airflow, weak performance, or excessive noise from the blower area
• Supports consistent temperature and cycle performance by maintaining airflow

• 1 blower assembly

• Disconnect power (and gas if applicable) before starting any repair
• Handle the blower carefully; edges and mounting tabs can be sharp
• Secure all mounting screws and duct connections
• Check lint traps and ducts for blockages when replacing the blower

This lamp holder support secures the appliance's light socket in the proper position so your lighting stays steady and reliable. Replace a cracked or heat-damaged support to keep the bulb and wiring stable and the work area/interior well lit.

• Holds the lamp socket/holder firmly in place to prevent movement and vibration
• Helps restore consistent lighting when the bulb and fuse test good
• Common symptoms: light flickers or cuts out when the door is used or when bumped
• Visible signs include broken tabs/clips, warping, or heat damage on the support

• Disconnect power and allow the appliance to cool before servicing
• Access the lamp area by removing the appropriate cover or panel as directed by your service manual
• Transfer the socket and wiring to the new support; avoid pinching or straining wires
• Handle bulbs with care and test operation before reassembly

This indicator light is a replacement panel lamp that shows oven or cooktop status so you can quickly see when a function is active. It restores visible status feedback on the control panel. What it does:

• Illuminates to indicate oven, bake, broil, or timer status so you can tell when a cycle is running
• Provides a clear visual signal from the control panel or console
• Replaces a cracked, burned-out, or non-lighting indicator to restore normal feedback
• Matches the OEM fit and function for compatible GE control panels

• Disconnect power to the appliance before starting any repair to avoid shock
• Remove the control panel or console trim to access the indicator—retain fasteners and orientation for reassembly
• Handle the lens and bulb with care; replace only with the exact part number shown

This motor/lamp switch is the user control for many GE range hoods. It turns the fan motor and hood light on and off, restoring reliable control when the original switch becomes worn, intermittent, or sticks.

• Provides on/off control for either the hood fan motor or the hood light, depending on model location
• Common symptoms: fan or light won't turn on, stays on, intermittent operation, or a loose/sticky rocker
• Restores reliable, positive switching of the selected circuit
• Direct-fit replacement designed for the original switch footprint

• Disconnect power at the breaker before servicing
• Remove filters and the control/trim panel to access the switch (procedure varies by model)
• Photograph or label wire positions; transfer one lead at a time to the new switch
• Seat the switch fully in its bracket, reassemble, restore power, and test operation

This knob assembly is a genuine OEM replacement part that is found on range hoods. The knob is used to turn the power off and on to the fan and light. This knob is made of durable plastic, but it may crack and break over time. If this happens, it isn't easy to turn the shaft to the off and position that powers the fan and light. When the knob is damaged, it should be removed and replaced with a new one. Tools are not required to remove and replace the knob. To start, disconnect the range hood from the outlet or turn off the breaker. Grasp it tightly and pull hard. The knob will pop off. Line the new knob up with the slot and push it in place. Restore the power to the range hood.This knob assembly is a black plastic molded part sold individually. It is designed for range hoods manufactured by General Electric.

The Control Knob is an OEM part for GE ranges. This part allows you to select and adjust the desired temperature or cooking function for the oven or cooktop burners.

Causes of a bad knob can include wear and tear over time, accidental impact or damage, or potential issues with the control stem or mechanism it connects to.

Symptoms of a faulty control knob include:

• Difficulty in turning or adjusting the knob
• Knob feeling loose or wobbly
• Markings or numbers worn off or illegible
• Knob not properly engaging with the control stem

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This 36" heat lamp panel replaces a worn or damaged oven/warming drawer lamp assembly to restore gentle radiant heat for keeping food warm. Designed to mount in the existing lamp housing and accept standard oven heat bulbs. What it does:

• Holds and protects the heat lamp bulbs that provide residual/warming heat
• Restores even, low-profile radiant heat for warm zones when bulbs are functional
• Addresses symptoms like bulbs falling out, visible panel damage, or reduced warming performance
• Fits the original lamp opening to maintain correct bulb position and airflow

• One 36" heat lamp panel

• Disconnect power to the appliance before attempting any service
• Handle glass/reflective surfaces carefully; use gloves to avoid fingerprints on bulb surfaces
• Verify correct part number and fit for your appliance before installation

The heat lamp rocker switch is an OEM component specifically designed for GE vent hoods. This switch controls power to the heat lamp located inside the range hood. It allows the user to turn the lamp on or off as needed.

Causes of a bad switch can include failure due to repeated use over time, damage from moisture or impact, or issues with the underlying electrical components.

Symptoms of a bad switch include:

• The heat lamp fails to turn on when the switch is engaged
• The lamp constantly stays on even when the switch is off
• Intermittent or unreliable operation of the lamp
• Loose, wobbly, or difficult movement of the switch

This genuine OEM GE replacement part is compatible with Hotpoint, RCA, and select Kenmore models.

This infrared lamp supplies radiant heat for the appliance's infrared heating feature, such as a warming lamp. Replacing a failed lamp restores intended heat output so the feature works as designed. What it does

• Provides infrared radiant heat for the unit's IR heating/warming function
• Common symptoms of failure: IR feature won't heat, lamp does not glow, or warming is weak/uneven
• Visual clues can include darkened glass, a broken filament, or cracked bulb envelope

• One infrared lamp

• Disconnect power at the breaker and allow all components to cool completely
• Access the lamp location per your model; remove any covers or shields as required
• Handle the glass with clean gloves or a tissue—oils from skin can shorten lamp life
• Install snugly without over-tightening; confirm proper seating and operation before reassembly

This bezel is a small trim piece that finishes an opening on the appliance's control area. It restores a clean, factory look and helps protect the underlying panel when the original is cracked, loose, or missing.

• Frames the control opening for a finished appearance
• Helps shield panel edges from wear and debris
• Typical symptoms: cracked plastic, broken tabs, discoloration, loose or missing trim

• Disconnect power and allow the appliance to cool before servicing
• Remove any adjacent knob or trim as needed for access
• Release the old bezel's tabs or screws and note its orientation
• Install the new bezel in the same position, then reinstall removed parts and test
