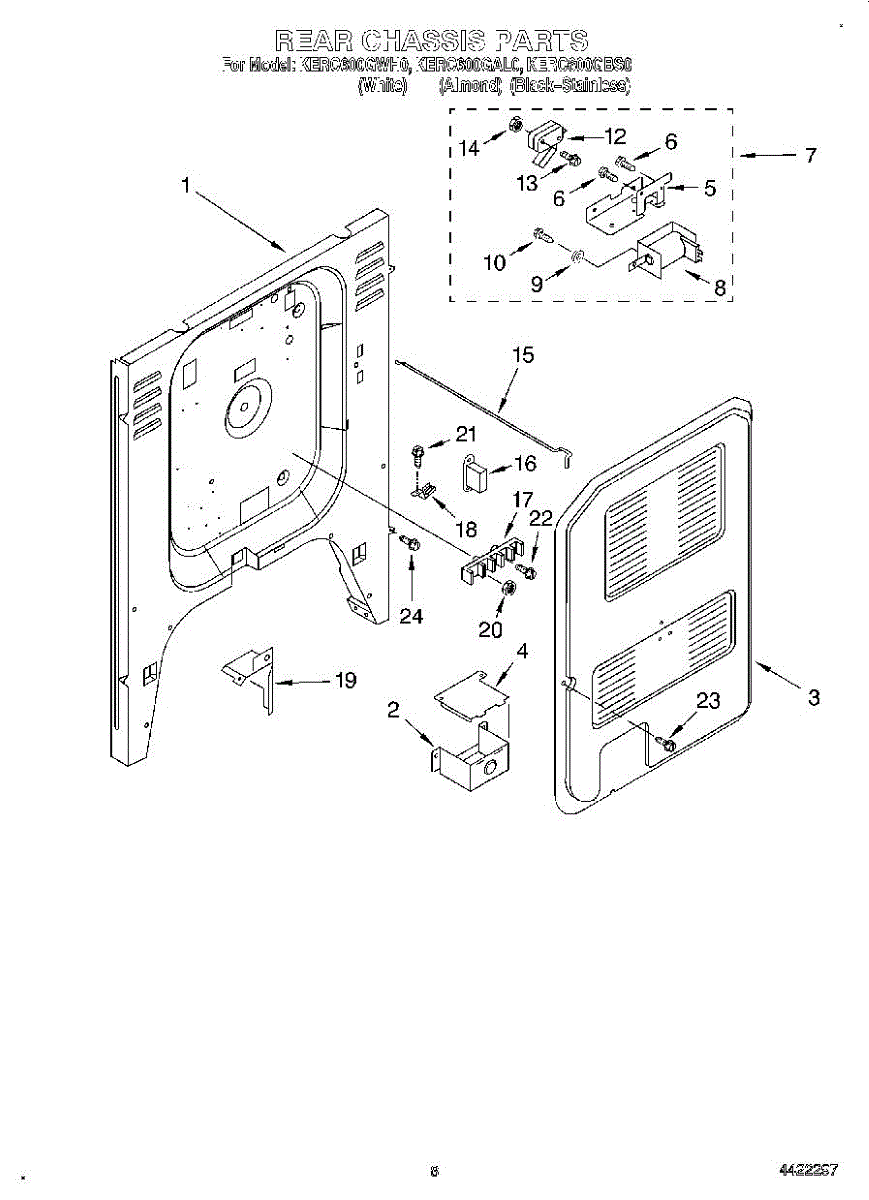

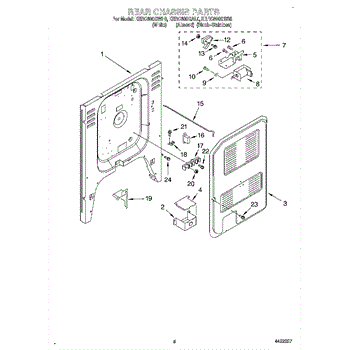

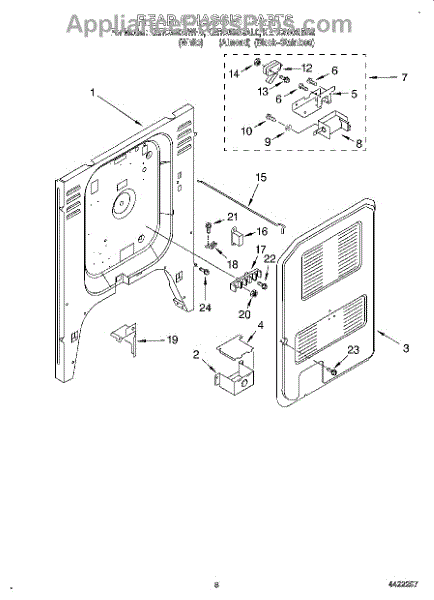

Parts for Kitchenaid KERC600GBS0: 05 - Rear Chassis Parts

Size: 10-16 x 3/8 inch.

Oven door lock assembly.

Solenoid and actuator assembly.

Size: 10-32 x 5/16 inch.

Size: 4-40 x 1 inch.

This terminal block is the insulated connection point where the appliance's incoming power ties into the internal wiring. Replacing a heat-damaged or loose block restores a safe, reliable electrical path and helps prevent arcing and intermittent power loss.

• Connects the supply conductors to the unit's internal wiring
• Provides insulated posts to securely fasten and distribute power
• Helps maintain tight, low-resistance connections
• Common failure signs: melted/discolored plastic, burned or loose terminals, arcing, scorching, or intermittent/no power after confirming the cord and breaker

• Disconnect power at the breaker or unplug the appliance; verify no voltage before servicing
• Photograph or label wire positions to ensure correct reassembly
• Inspect and replace any heat-damaged wire ends or lugs; use appropriate terminals
• Tighten connections securely and ensure wires are fully seated and strain-relieved as originally installed

Size: 10-32 inch.

Specs: 10-16 x 1/2 inch.

Size: #9-15 x 1 inch long. Hex head.

Size: 10 x 3/8 inch.

Size: 10-16 x 1 1/2 inch.
