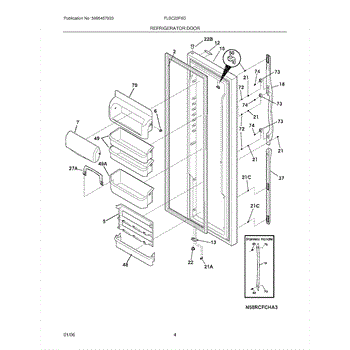

Parts for Frigidaire FLSC23F6DW2: 05 - Refrigerator Door Parts

This Frigidaire Refrigerator Water Filter is an OEM replacement part for select Frigidaire brand refrigerators with a slide-out cartridge in the front compartment. Your refrigerator water filter reduces the chorine taste and odor from your water. It also effectively helps filter out sediment, including dirt, sand, and rust,

The filter is easy to install without the need for special tools and should be changed every 6 months. With an operating temperature range of 33-100°F and a pressure range of 30-100 PSI, this OEM part offers reliable performance. The filter measures approximately 6-3/4" x 5-1/4" x 2-1/4" and features a high-grade coconut carbon filter media.

For filter bypass order 242227702.

This replacement door gasket fits the refrigerator compartment. It forms a tight seal between the door and cabinet to help keep cold air in, limit moisture at the door, and maintain consistent temperatures. What it does:

• Seals the fresh food door opening to prevent air leaks
• Helps maintain stable interior temperature and humidity
• Reduces condensation and frost around the door perimeter
• Common failure signs: torn, warped, or compressed gasket; door not sealing; persistent condensation; temperature fluctuations; longer run times

• 1 refrigerator fresh food door gasket

• Disconnect power before servicing
• Lay the gasket flat to relax; gently warm with hot water or low heat to remove kinks
• Remove the old gasket; on many models, lift the liner lip or loosen retainer screws to release it
• Press the new gasket fully into the channel; check corners for a uniform seal and adjust door alignment if needed

This dairy door is the flip-up cover for the refrigerator's dairy compartment on the fresh-food door. It keeps butter and cheese covered and contained, restoring a clean, finished look when the original cover is cracked or missing.

• Covers the dairy compartment and hinges open for easy access
• Helps keep small dairy items contained and organized on the door
• Replaces a cracked, warped, discolored, loose, or missing cover
• Closes properly when seated on the original hinge posts

• Disconnect power before servicing
• Remove the old cover by releasing its tabs from the hinge posts
• Align the new cover with the hinge posts and press to snap into place
• Avoid forcing brittle plastic; allow the part to reach room temperature before installation

This door stop is the replacement part that limits a refrigerator door's swing to prevent over-extension and protect the hinge and cabinet. It restores proper door alignment and helps the door close reliably. What it does:

• Stops the door at the correct open position to prevent damage to hinges and adjacent cabinetry
• Helps maintain door alignment so the seal engages fully for consistent cooling
• Reduces slamming and uneven wear that can cause noisy or misaligned doors
• Works at the hinge area to control movement rather than as a latch or gasket

• One door stop

• Designed for straightforward replacement at the hinge; remove power only if working near electrical components
• Keep hardware from the original part; replace only the components shown in the manufacturer diagram
• Inspect hinge and surrounding parts for wear while replacing the stop; tighten loose hinge screws as needed

This factory screw fastens refrigerator components and panels. It replaces missing or damaged hardware so parts stay aligned and secure, reducing looseness and rattles caused by vibration. What it does:

• Secures panels, brackets, and trim per your model's design
• Helps maintain alignment and reduce vibration-related loosening or noise
• Replaces missing, stripped, or corroded hardware
• Restores a snug fit when threads or heads are worn

• One screw

• Disconnect power; turn off the water supply if working near ice or dispenser systems
• Use the correct driver; start threading by hand to avoid cross-threading
• Tighten until snug—do not overtighten to prevent stripping or cracking adjacent plastic
• Refer to your model's diagram to confirm location and quantity used

This factory fastener secures appliance panels and components. Replace a missing, stripped, or corroded screw to restore a tight, rattle-free fit and keep brackets and covers properly aligned.

• Fastens panels, brackets, and internal parts as specified by the manufacturer
• Helps maintain alignment and reduces vibration/rattling
• Replace if the head is stripped, threads are damaged, or corrosion is present
• Symptoms include loose/missing hardware, gaps, or rattling during operation

• Disconnect power; shut off gas/water if applicable before servicing
• Use the correct driver/bit size to avoid stripping the head
• Start threads by hand to prevent cross-threading; do not overtighten
• Match screw length/thread to the location; replace in sets when required

The Door Hinge Bearing is an OEM part for Frigidaire refrigerators. It supports the refrigerator door, allowing it to open and close smoothly. This bearing ensures that the door remains properly aligned and operates without excessive friction, contributing to the overall longevity and functionality of the refrigerator.

Over time, door hinge bearings can wear out due to regular use, exposure to weight stress, or lack of lubrication. When the hinge bearing becomes faulty, the refrigerator door may become misaligned, difficult to open or close, or cause unusual noises.

Symptoms of a bad door hinge bearing include:

• The door sagging or becoming misaligned
• Difficulty opening or closing the door
• Unusual squeaking or grinding noises when the door moves
• The door not sealing properly, leading to temperature fluctuations inside the refrigerator

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This tall bottle retainer mounts to the refrigerator door shelf to keep taller containers upright as you open and close the door. Replacing a worn or missing retainer restores secure storage and helps prevent spills.

• Attaches to the door shelf/bin to create a front barrier for tall bottles and cartons
• Helps prevent items from tipping or sliding out during door movement
• Replace if cracked, bent, missing, or if it no longer stays secured
• Common symptoms: bottles fall forward, retainer is loose or broken, difficulty keeping tall items upright

• Disconnect power and remove items from the affected door shelf/bin
• Lift out the bin if needed; release the old retainer from side brackets/clips
• Align the new retainer's ends with the supports and press in until fully seated
• Reinstall the bin and ensure the retainer holds items securely and clears the door gasket

Color: White. Approx size: 30.13"

The Door Bin is an OEM part for Frigidaire refrigerators. This bin attaches to the inside of the refrigerator door, providing convenient storage for smaller items like condiments, beverages, and jars.

Common causes of a bad door bin include regular wear and tear from frequent use, cracking or breaking due to overloading, or impact damage from items being placed in or removed from the bin.

Symptoms of a bad door bin include:

• Cracks or breakage in the plastic
• The bin not staying securely in place
• Difficulty in holding items due to instability
• Discoloration or warping of the bin material

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Door Bin is an OEM part for Frigidaire refrigerators. This part attaches to the inside of the refrigerator door, offering additional storage space for condiments, bottles, and other small or medium-sized items.

Over time, door bins can become cracked, discolored, or broken due to overloading, accidental impacts, or the natural aging process. This can lead to a decreased ability to securely hold items, potentially causing spills or making efficient use of space more challenging.

Symptoms of a bad Door Bin include:

• Cracks or breaks in the plastic, compromising its structural integrity
• The bin sagging or not attaching securely to the refrigerator door, indicating wear or damage to the attachment points
• Difficulty in sliding the bin in or out, or it not fitting properly due to warping or damage
• Reduced effectiveness in holding items securely

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Door Bin is an OEM part for Frigidaire refrigerators. It is designed to provide additional storage space on the refrigerator door, allowing for easy organization and access to items such as bottles, jars, and condiments.

You should replace the door bin if it becomes damaged or worn out. Causes of a bad door bin can include regular wear and tear, overloading with heavy items, or accidental impacts that cause cracks or breaks. A compromised door bin can reduce storage capacity and may not securely hold items.

Symptoms of a bad door bin include:

• Cracks or breaks in the bin
• Difficulty fitting the bin into its designated slot
• The bin not staying in place or wobbling
• Items falling out of the bin or not being securely held

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Handle Mounting Block is an OEM part for Frigidaire refrigerators. This component anchors the refrigerator door handle assembly while also reinforcing the door structure.

Causes of a bad mounting block can include cracks developing from repeated opening/closing stresses, broken fasteners loosening its installation, or residual damage during door replacement or repair attempts.

Symptoms of a bad handle mounting block include:

• Loose, sagging or misaligned door handles
• Doors difficult to open or not staying securely closed/latched
• Noisy rattling coming from the door handle area
• Cracks or breaks visible in the mounting plastic

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Specs: 10-16 X 0.500
