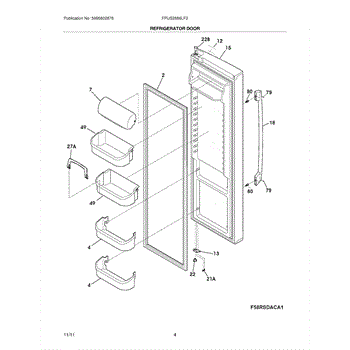

Parts for Frigidaire FPUS2686LF2: 05 - Refrigerator Door Parts

The Water Filter is an OEM replacement part for Frigidaire refrigerators. This PureSource Ultra Ultrawf Refrigerator Water Filter is designed to provide superior filtration, ensuring that your water and ice are clean and refreshing.

With the Frigidaire Refrigerator Water Filter, you can enjoy up to six months of crystal-clear water and ice. For the filter bypass, order part number 242294402. Get the most out of your Frigidaire appliance with a new OEM water filter, and enjoy clean, refreshing water and ice every time!

Causes of a bad part:

• Overused or expired
• Clogged by excessive impurities

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.


The Refrigerator Door Gasket is an OEM replacement part for Frigidaire refrigerators. This gasket forms a tight seal around the refrigerator door, keeping cold air inside and preventing warm air from entering. By maintaining an airtight seal, it helps ensure consistent cooling and energy efficiency, preserving food quality.

Over time, gaskets can wear out due to frequent use, temperature changes, or exposure to cleaning chemicals. A damaged or degraded gasket can lose its flexibility or develop cracks, leading to an improper seal that affects the refrigerator's performance.

Symptoms of a bad refrigerator door gasket include:

• Warm spots or uneven cooling inside the refrigerator
• Excess condensation or moisture around the door
• Difficulty in securely closing the refrigerator door
• Increased energy consumption as the appliance works harder to maintain temperatures

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

NOTE: GRAY DOOR GASKET

The Bottom Door Bin is an OEM replacement part for Frigidaire refrigerators. Measuring approximately 16 inches in length, 4 inches in height, and 5 inches in depth. This bottom door bin offers ample storage space for all your refrigerated items.

Symptoms of a bad bottom door bin can include:

• Scratches, cracks or deformities to the plastic material
• Difficulty sliding the bin in and out smoothly
• Failing retention clips or loose mounting hardware

Causes are usually normal wear from regular use over time. Improper handling may also cause damage.

This OEM replacement part is also compatible with models by Electrolux, Gibson, Kelvinator, and Kenmore.

The Dairy Door is an OEM part for Frigidaire side-by-side refrigerators. It provides a convenient sealed storage compartment at the refrigerator door to keep dairy and other perishables fresher longer. The dairy door protects items from temperature fluctuations due to frequent door openings. It measures about 14 inches wide by 6 inches high.

Causes of a bad dairy door can include cracks, punctures or other damage reducing insulation effectiveness. Warping or improper sealing due to age can also affect performance.

Symptoms of a bad dairy door include:

• Condensation or frost buildup inside the door
• Items inside spoiling more quickly than in the main refrigerator
• Difficulty closing or sealing the dairy door properly

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This replacement door stop limits a refrigerator door's travel to prevent over-rotation, protect hinges and cabinet edges, and help keep the door aligned for a proper seal. Durable plastic replacement for a worn or broken stop. What it does:

• Stops the door at the correct travel point to prevent hitting adjacent cabinetry or walls.
• Reduces stress on hinge components to prevent premature wear.
• Helps the door sit square for a tighter seal and more consistent cooling.
• Common symptom: door swings past the normal stop, won't stay open, or the plastic stop is cracked/broken.

• Support the door while removing/installing the stop — fridge doors can be heavy and may shift.
• Use basic hand tools; do not overtighten fasteners to avoid cracking the new stop.

This #10-32 x 3/4-inch machine screw secures appliance components such as panels, brackets, and handles. Using the correct length and thread helps restore a snug, rattle-free hold wherever this screw is specified by the manufacturer.

• Fastens components with a #10-32 machine thread and 3/4-inch length
• Helps keep panels, trim, brackets, or handles secured and aligned
• Replaces missing, stripped, or corroded hardware
• Common signs include loose or wobbly parts, rattling, missing screws, or damaged screw heads/threads

• Disconnect power before servicing; if working near a water connection, shut off the water supply
• Use the correct driver/bit and start threads by hand to avoid cross-threading
• Tighten snugly; do not overtighten to prevent stripping plastic or threads
• Reuse any model-specific washers or spacers if present

This refrigerator dispenser bearing supports the auger shaft so it spins smoothly during ice dispensing. Replacing a worn bearing restores quieter, more reliable ice delivery and helps prevent binding or uneven crushing of cubes. What it does

• Supports and centers the ice auger/crusher shaft inside the ice bucket
• Reduces friction to allow smooth, consistent rotation
• Wear can cause grinding or squealing during dispensing
• Symptoms include slow/no ice dispensing, jamming, or intermittent operation

• 1 bearing

• Disconnect power and turn off the water supply before service
• Remove the ice bucket and disassemble the crusher housing to access the bearing
• Note the bearing's orientation; transfer any spacers or clips as found
• Reassemble carefully and ensure the auger turns freely by hand before restoring power

The Lower Door Closer is an OEM replacement part for Frigidaire refrigerators. It is a vital part that assists in securely shutting the refrigerator door. The door closer contains a calibrated spring mechanism designed to gently guide the door into the closed position without using forceful movements.

Symptoms of a bad door closer include:

• The door not latching fully or popping back open easily
• Difficulty closing the door all the way
• Excessive noise and banging when closing
• Gaps appearing around the door seal

Causes can be regular wear and tear on the spring after prolonged use. Not allowing the door to fully close before reopening may also damage the door closer mechanism over time.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Frigidaire Door Shelf Bin is an OEM replacement part for Frigidaire refrigerator. This bin provides storage space for drinks and snacks, keeping them organized and easy to access.

Causes of a bad door shelf bin can include frequent use, overloading with heavy items, or accidental impacts that can lead to cracks, breaks, or warping. A damaged shelf bin can result in items not being securely held in place and can decrease the overall storage efficiency of the refrigerator.

Symptoms of a bad part may include-

• Items falling out of the bin
• Difficulty closing the door
• Bin not staying on the door

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This replacement part is a set screw, and it is intended for use in different types of appliances. This is a genuine replacement part made by Frigidaire. This screw set is compatible in many different areas of the appliance. Screws are typically used for keeping parts of the machinery secure and in place. It is possible that screws can become loose over time and need to be replaced. A new screw set might be needed if the user notices parts of the appliances are becoming loose or are falling off. This can be due to screws becoming stripped over time or if the appliance is bumped during transport. It is typically easy to replace screws. Simply remove the old screw and replace it with a new part. The only tools needed for this repair are a screwdriver and possibly pliers if the damaged screw is stuck in place.Note that this is a genuine OEM replacement part and is sourced from the manufacturer. This set screw is sold individually.

The Door Handle Screw is an OEM part for Frigidaire refrigerators. This screw secures the door handle to the refrigerator door, ensuring a firm and stable grip for opening and closing the door.

Causes of a bad door handle screw can include regular wear and tear from frequent use, corrosion due to exposure to moisture, or damage from over-tightening or stripping. A faulty screw can lead to a loose or wobbly door handle, making it difficult to operate the refrigerator.

Symptoms of a bad door handle screw include:

• The door handle feeling loose or coming off
• Difficulty in securely tightening the handle
• Visible rust or corrosion on the screw
• Stripped threads on the screw or handle

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This 3/32" screwdriver is the service tool used to access and adjust small screws on appliances, making routine panel and control adjustments easier and more precise. Handy for basic repairs and maintenance. What it does:

• Fits 3/32" slotted screws commonly found on control panels, trim, and small fasteners
• Allows removal and installation of small service screws for access to internal components
• Helps correct loose screws that can cause rattling or misaligned panels
• Provides better fit than oversized drivers to reduce screw head damage

• Always disconnect power to the appliance before performing service or repairs
• Use the correct 3/32" blade size to avoid stripping screw heads
• Apply steady pressure and avoid excessive torque; use hand force only unless otherwise specified

This is a service wrench used to loosen and tighten appliance fasteners for maintenance and repairs, making access and part replacement easier for technicians and DIYers. Durable tool designed for specific appliance fastener sizes. What it does:

• Provides the correct fit and leverage for removing or installing designated appliance nuts, bolts, and fittings
• Helps safely access internal components during service and part replacement
• Reduces risk of rounding fasteners compared with improvised tools
• Useful for routine maintenance tasks and repair procedures that require a dedicated wrench

• One wrench

• Use the wrench only for its intended appliance fasteners; avoid excessive force
• Disconnect power and water to the appliance before beginning service
• Wear safety gloves and eye protection when working on appliances
