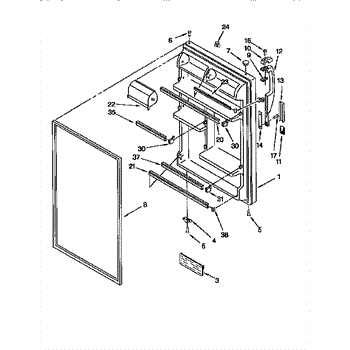

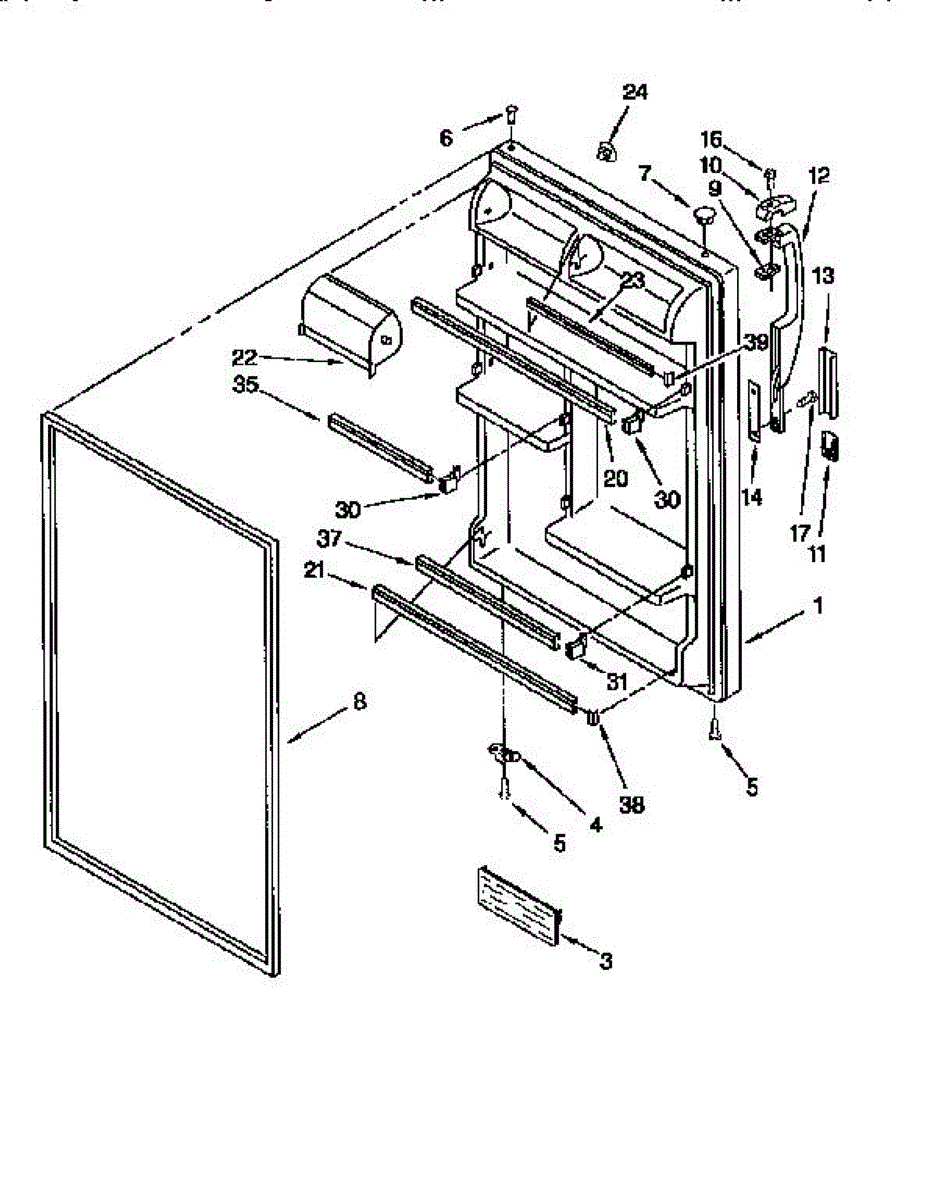

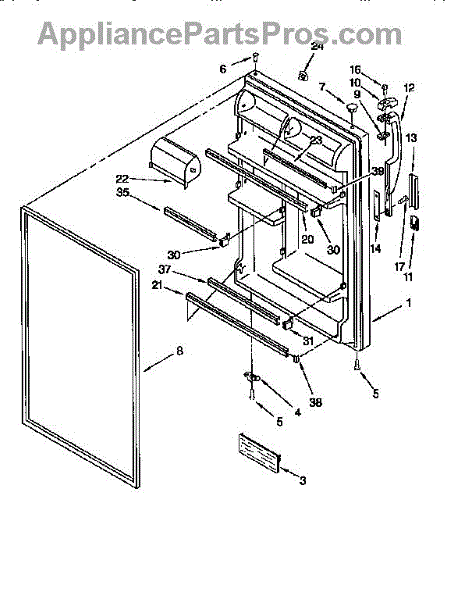

Parts for Kenmore 106.9658224 (1069658224, 106 9658224): Refrigerator Door Parts

Refrigerator door assembly with gasket-white.

The Flip-Up Shelf is an OEM part for Whirlpool refrigerators. This adjustable shelf provides flexible storage options within the refrigerator, allowing you to create additional space for taller items by flipping the shelf up when needed.  The shelf measures approximately 12 3/4" by about 4 1/2"

Causes of a bad flip-up shelf can include repeated heavy loading, which can cause stress and cracks, accidental impacts leading to breakage, or wear and tear over time that affects the locking mechanism.

Symptoms of a bad flip-up shelf include:

• The shelf not staying in the flipped-up position
• Cracks or breaks in the shelf material
• Difficulty in moving the shelf up or down
• The shelf not fitting securely in place

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Bracket-Door Stop is an OEM replacement part for Whirlpool appliances. This zinc-finished bracket is designed to prevent the appliance door from opening beyond its intended range, protecting both the door and surrounding components from potential damage. It ensures the door stays secure and functions smoothly during regular use.

Symptoms of a bad Bracket-Door Stop include:

• The door overextending when opened
• Difficulty in maintaining the door's position
• Visible bending, cracking, or damage to the bracket

Causes of a failing Bracket-Door Stop can include repeated stress from excessive force when opening the door, normal wear over time, or accidental impacts. A damaged bracket can compromise the door's alignment and overall functionality.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement screw secures panels, brackets, and other components in your appliance so they stay tight and properly aligned. Use it to replace missing, stripped, or rusted hardware and eliminate looseness, rattles, or gaps.

• Fastens parts to the cabinet/frame to maintain structural integrity
• Helps keep panels and assemblies aligned to reduce vibration and noise
• Replaces missing, damaged, or corroded screws during service
• Common fix for loose panels or components that no longer hold securely

• Disconnect power and shut off water or gas before servicing
• Match length and thread to the original screw for proper fit
• Hand-start threads to avoid cross-threading; tighten only until snug—do not overtighten
• Tighten them evenly to ensure proper alignment

This thimble is a small insert used in the freezer compartment. It reinforces a mounting hole, prevents liner wear, and helps keep attached hardware stable and properly aligned for smooth, quiet operation.

• Serves as a protective bushing for a hole in the freezer compartment liner
• Helps stabilize and align the component secured at that location
• Replaces cracked, worn, or missing inserts that can cause loose hardware, wobbling, or rattling
• Restores proper fit while helping prevent further wear to the liner

• Unplug the refrigerator and clear the work area in the freezer before service
• Remove the fastener/component to access the insert, then pull the old thimble straight out
• Press the new thimble fully into the hole; reinstall hardware without overtightening
• Use care—cold plastic and liner edges can be brittle or sharp

The Hinge-Sleeve Hole Plug is an OEM part for Whirlpool refrigerators. It is designed to cover the hinge sleeve holes on the refrigerator door, providing a finished look and protecting the internal components from dust and debris.

Common causes of a bad hinge-sleeve hole plug include physical damage during routine maintenance or accidental impacts. A missing or damaged plug can lead to exposure of internal hinge components, potentially causing further damage over time.

Symptoms of a bad hinge-sleeve hole plug include:

• Visible gaps or holes in the refrigerator door hinge area
• Accumulation of dust or debris in the hinge mechanism
• Loose or unstable refrigerator door hinges

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Fresh food door gasket is an OEM component for Whirlpool refrigerators. As the main door seal, this rubber gasket works to prevent air and moisture exchange between the refrigerator interior and exterior. It plays a crucial role in maintaining optimal freshness levels.

Causes of a bad fresh food door gasket include cracks, tears, or compressed sections that no longer form an airtight seal. Prolonged use of 10+ years can cause rubber to break down. Entering/closing the door carelessly could damage the gasket over time as well.

Symptoms of a bad fresh food door gasket include:

• Frozen items thawing in the fridge shelves
• Increased moisture inside causing ice/fog buildup
• Higher electricity bills from inefficient cooling
• Warm air entering when opening the door

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Screw is an OEM fastening component specifically designed for securing interior panels and assemblies of Whirlpool brand appliances.

Causes of a problematic screw include stripping, corrosion, or shearing from repeated installations and removals during service procedures.

Symptoms of faulty screws include:

• Loosened or detached interior panels rattling behind appliance exteriors
• Reduced structural integrity allowing unnecessary vibrations and noise

Compatible models include brands produced by KitchenAid, Maytag, and some Kenmore.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This part may be longer than needed and may have to be cut to fit.

This May Be Longer Than Original If So Cut To Fit

The Compartment Door is an OEM part for Whirlpool refrigerators. It is designed to cover and protect specific compartments within the refrigerator, such as the dairy or deli section, helping to maintain the ideal temperature and humidity levels for stored items. It measures approximately 9 inches by 6 inches.

You should replace the compartment door if it becomes damaged or worn out. Causes of a bad compartment door can include cracks or breaks from frequent use, hinge damage, or warping due to temperature fluctuations.

Symptoms of a bad compartment door include:

• The door not closing properly
• Visible cracks or breaks
• Difficulty in opening or closing the compartment
• Reduced freshness of stored items due to improper sealing

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Door Shelf Bar is an OEM part for Whirlpool refrigerators. This part goes on the door to hold condiments on the shelf. This does not include the endcaps.

Causes of malfunction involve cracks developing from weight stress on fasteners.

Symptoms of a problematic shelf bar include:

• Gaps noticeable between shelves and door
• Visible bowing or sagging on panels

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

Note: In some cases, you may have to cut to fit.

Color: White.

This part may be longer than needed and may have to be cut to fit.

The Door Shelf End Cap is an OEM part for Whirlpool refrigerators. This part secures the door shelf bar in place, ensuring that items stored in the door bins are properly supported and contained. The end cap attaches to the ends of the door shelf bar, providing stability and a finished look.

Causes of a bad end cap can include wear and tear from frequent use, heavy loads in the door bins causing stress and fractures, and accidental impacts or mishandling leading to cracks or breaks.

Symptoms of a bad door shelf end cap include:

• The door shelf bar becoming loose or falling off
• Cracks or breaks in the end cap
• Door bins not staying in place
• Difficulty in securing the door shelf bar

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
