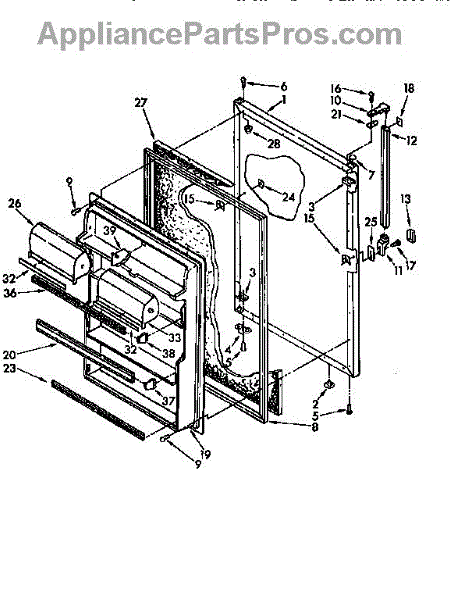

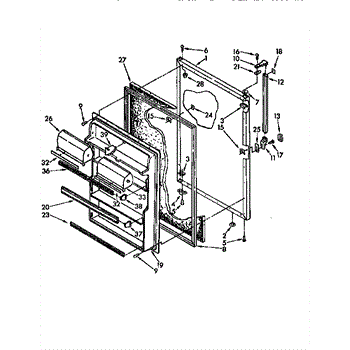

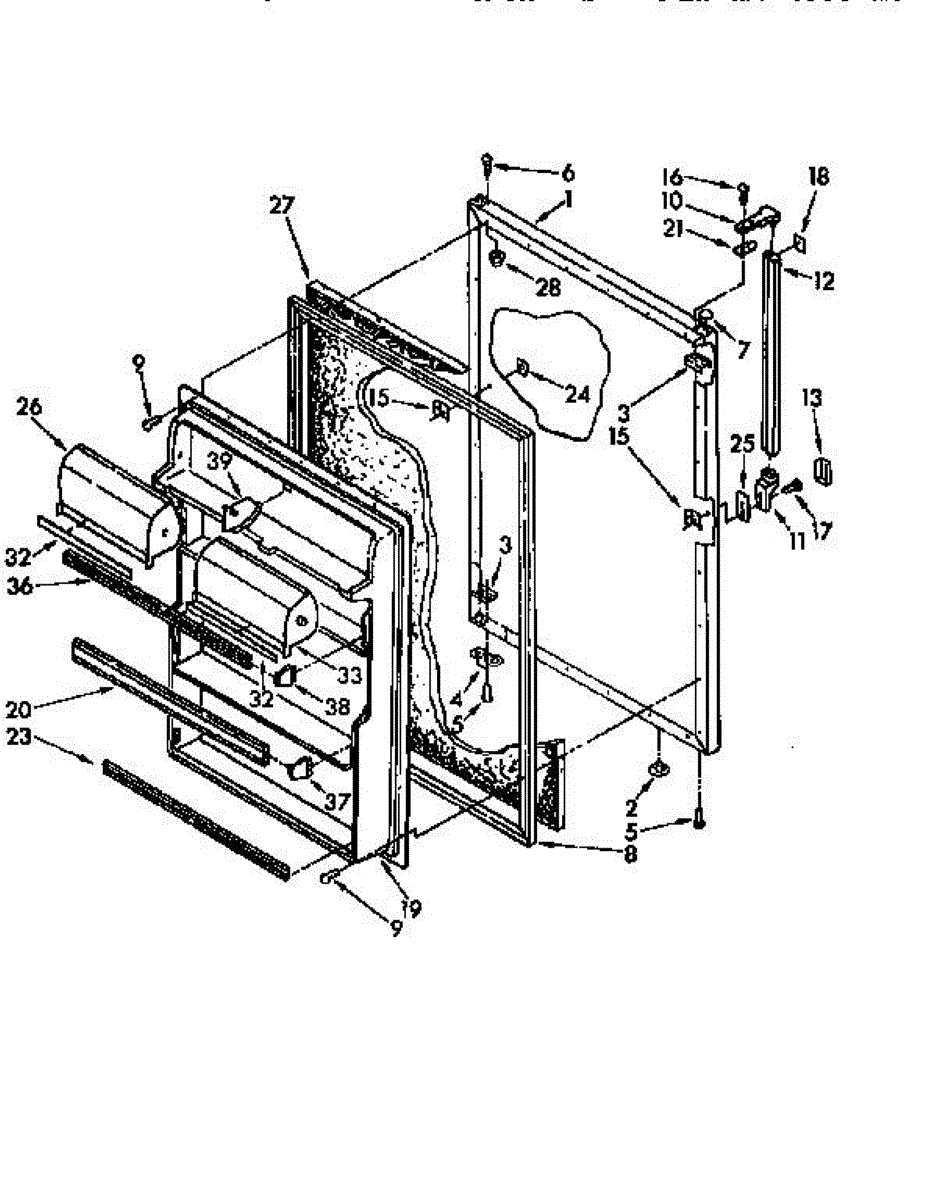

Parts for Kenmore 106.9700510 (1069700510, 106 9700510): Refrigerator Door Parts

This replacement screw secures panels, brackets, and other components in your appliance so they stay tight and properly aligned. Use it to replace missing, stripped, or rusted hardware and eliminate looseness, rattles, or gaps.

• Fastens parts to the cabinet/frame to maintain structural integrity
• Helps keep panels and assemblies aligned to reduce vibration and noise
• Replaces missing, damaged, or corroded screws during service
• Common fix for loose panels or components that no longer hold securely

• Disconnect power and shut off water or gas before servicing
• Match length and thread to the original screw for proper fit
• Hand-start threads to avoid cross-threading; tighten only until snug—do not overtighten
• Tighten them evenly to ensure proper alignment

This replacement screw secures panels, brackets, or trim within your appliance. Replacing a worn, stripped, or missing screw restores a tight, rattle-free fit so components stay aligned and operate as intended. What it does:

• Fastens components at the original factory locations specified for this part
• Replaces missing, damaged, or stripped screws to restore holding power
• Helps reduce vibration and rattling from loose parts
• Maintains proper alignment of panels, covers, brackets, and trim

• Disconnect power (and gas, if applicable) before servicing
• Match to the original screw and install in the same location and orientation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver or nut-driver; transfer any washers or spacers from the original hardware if present

The Hinge-Sleeve Hole Plug is an OEM part for Whirlpool refrigerators. It is designed to cover the hinge sleeve holes on the refrigerator door, providing a finished look and protecting the internal components from dust and debris.

Common causes of a bad hinge-sleeve hole plug include physical damage during routine maintenance or accidental impacts. A missing or damaged plug can lead to exposure of internal hinge components, potentially causing further damage over time.

Symptoms of a bad hinge-sleeve hole plug include:

• Visible gaps or holes in the refrigerator door hinge area
• Accumulation of dust or debris in the hinge mechanism
• Loose or unstable refrigerator door hinges

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This screw anchor is a small plastic fastener that secures panels and trim on appliances, preventing screws from stripping or pulling out. It provides a reliable anchor point for screws where threaded material is thin or absent. What it does:

• Creates a secure mounting point for screws in sheet metal, plastic or thin panels
• Helps prevent screw looseness, stripping, and parts that shift or rattle
• Commonly used to hold trim, panels, or interior components in place
• Works with compatible screws to distribute load and stabilize attachments

• Use the correct screw size and length; anchors are made for specific screw diameters—do not force oversize screws
• Align anchor in the prepared hole before driving the screw to avoid cracking the anchor or surrounding material
• Hand-start screws until seated, then tighten gradually—do not overtighten to prevent stripping or damage
• Disconnect power and follow appliance safety procedures before accessing internal panels

This sheet-metal screw secures appliance panels, brackets, and components to the cabinet. Replacing a missing or stripped fastener restores a tight, rattle-free fit and helps keep assemblies aligned for reliable operation.

• Fastens sheet-metal parts to the chassis or support brackets
• Replaces stripped, corroded, or lost screws to restore proper hold
• Helps reduce vibration and noise from loose panels
• Maintains alignment of covers, ducts, or trim

• Disconnect power to the appliance; shut off water or gas if applicable.
• Match this screw to the original location and length.
• Start threads by hand to avoid cross-threading; tighten until snug—do not overtighten.
• If the original hole is damaged, repair or replace the mounting point before installing.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This door handle spacer sits between the door panel and the handle to set the correct stand-off and support the mounting hardware. Replacing a cracked or missing spacer restores a solid feel, proper alignment, and protects the door finish.

• Maintains the designed gap and stand-off between the handle and door
• Supports and centers the handle over the mounting post(s)/screw(s)
• Helps prevent rubbing, scuffs, or creaks from a handle that sits too close
• Typical symptoms of failure: loose or wobbly handle, uneven gap, rattling, broken or missing spacer

• Disconnect power and, if applicable, shut off water before service
• Support the handle; remove the set screw(s)/bolt(s) and lift off the handle as designed
• Position the new spacer over the mounting point; reinstall the handle and hardware
• Tighten hardware snugly—do not overtighten; check alignment and handle security

Color: White.

The center hinge pin is the pivot for the refrigerator door at the middle hinge. Replacing a worn or broken pin restores smooth door swing and proper alignment so the door closes and seals as designed. What it does:

• Acts as the pivot point for the door on the center hinge
• Helps maintain correct door alignment for consistent gasket contact
• Common symptoms: door sags or drags, uneven gaps, popping open, or squeaking/grinding at the hinge

• 1 center hinge pin

• Disconnect power; remove items from the door and support the door before starting
• Remove the center hinge cover and fasteners, then lift the door off the hinge
• Transfer any spacers/washers in their original order and install the new pin on the hinge bracket
• Reinstall and align the door; tighten fasteners and verify gasket seal
