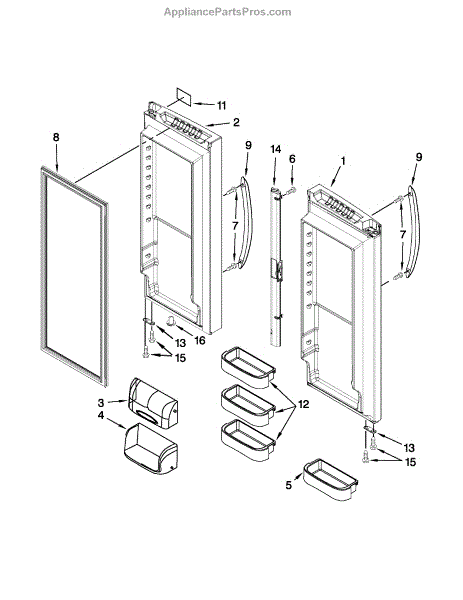

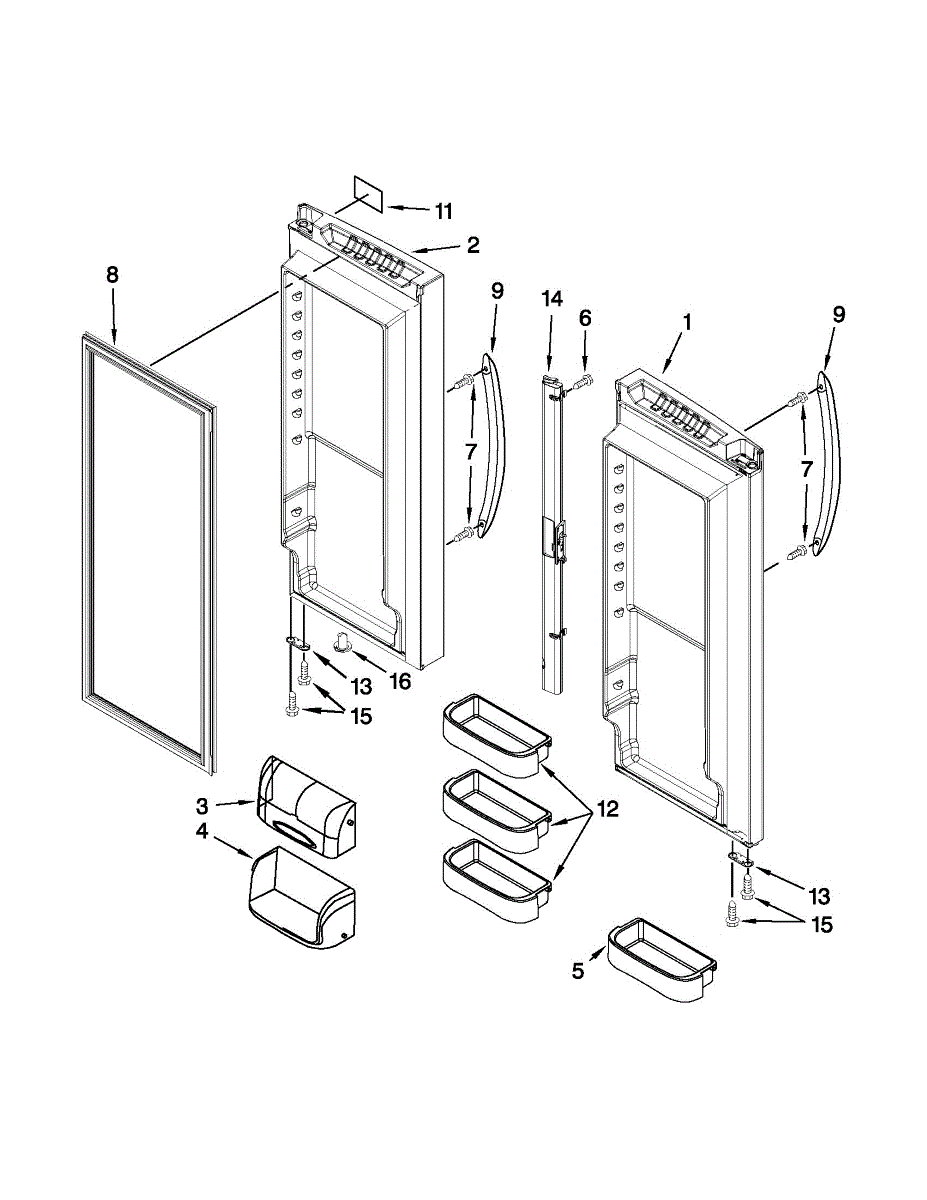

Parts for Kenmore 596.72013017 (59672013017, 596 72013017): Refrigerator Door Parts

Color: clear. Measures about 11 inches wide by 7 inches high.

Replace a cracked or missing dairy tray on your refrigerator door. This door bin restores a dedicated spot for butter and small items so they stay organized and easy to reach while maintaining a secure fit on the door.

• Mounts on the refrigerator door as the dairy compartment tray
• Holds butter, cheese, and other small items securely
• Restores proper fit when the original tray is cracked, warped, or missing
• Common symptoms: broken tabs, tray falls off, loose/wobbly fit, items spilling when the door opens

• Open the door, lift the old tray straight up and out; align the new tray with the door slots and lower until fully seated
• Handle plastic parts gently and avoid forcing; allow parts to warm to room temperature to reduce risk of cracking
• Confirm both sides are fully engaged before loading items

This is a genuine mounting screw used to secure appliance panels and components. It provides reliable fastening to keep parts aligned and reduce vibration-related noise for safer, quieter operation. What it does:

• Secures panels, brackets, or small components to the appliance frame
• Prevents parts from loosening and causing rattling or misalignment
• Maintains proper part positioning for reliable operation
• Helps reduce vibration and noise when panels are fastened correctly

• Use the correct driver and size to avoid stripping the head
• Tighten until snug; do not overtighten which can strip threads or crack plastic
• Disconnect power before servicing electrical appliances to avoid shock
• If a screw is corroded or damaged, replace all similar fasteners in that area for best results

The Door Handle Mounting Screw is an OEM part for Whirlpool refrigerators. It secures the door handle to the refrigerator door.

Causes of a bad door handle mounting screw can include wear and tear over time, improper installation, or excessive force applied to the handle. These factors can result in a loose or wobbly handle, compromising the functionality and aesthetics of your refrigerator.

Symptoms of a bad door handle mounting screw may include:

• A loose or unstable handle
• Difficulty in opening or closing the refrigerator door
• The handle becoming detached

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Grey for Right Hand Door

The Refrigerator Door Gasket is an OEM replacement part for Whirlpool refrigerators. It creates an seal between the refrigerator doors and the body, helping to maintain proper temperatures inside. The gasket is a soft, pliable material designed to tightlen without allowing air or warm moisture to infiltrate the refrigerator. Measures approximately 39 by 16 inches

Causes of a bad door gasket include cracking, splitting, or compression from repeated opening and closing of the door over time. Deterioration leads to diminished sealing and temperature control performance.

Symptoms of a bad door gasket are:

• Difficulty keeping items cool or frozen
• Frost or moisture buildup between the door and refrigerator body
• Higher energy costs from the refrigerator working overtime
• Food odors transferring between compartments

This OEM Whirlpool gasket is also compatible with Maytag, Jenn-Air, Amana, Norge, Gibson, Kelvinator, and some Kenmore models.

A replacement door handle that restores a secure grip and normal door operation. Fits like the original to help open and close the appliance door safely and comfortably. What it does:

• Replaces a cracked, broken, or worn handle to restore user grip and control
• Provides the same mounting points and function as the original handle design
• Helps prevent further damage to door trim and reduces the risk of sudden handle failure
• Works with factory latch and hinge alignment when installed correctly

• High-level install; basic hand tools usually required—support the door or panel before removing the old handle
• Keep all mounting screws and small parts organized; replace any stripped fasteners with OEM parts
• If the door contains electronic components (dispensers, lights, sensors), disconnect power before starting

The Door Bin is an OEM part for Whirlpool refrigerators. It is designed to provide additional storage space on the refrigerator door, allowing for organized and accessible storage of items like condiments, beverages, and smaller food packages. The door bin is easy to install and fits securely onto the door to enhance the overall storage capacity of the refrigerator. The bin is approximately 14 x 7 inches.

Over time, frequent use and accidental impacts can cause damage to the bin, compromising its ability to hold items securely. Damage can affect its ability to hold items securely, leading to potential spills or reduced storage efficiency.

Symptoms of a bad door bin include:

• Cracks or splits in the plastic
• Difficulty in securely attaching the bin to the door
• Items falling out or not being held properly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This door stop limits the door's travel to its intended range, helping prevent overextension that can stress hinges or damage adjacent cabinetry. Replacing a worn or broken stop restores smooth, controlled door operation.

• Limits door opening/closing travel to protect hinges and alignment
• Helps maintain proper seal and fit by preventing overextension
• Replaces cracked, worn, or missing stop that allows excess movement
• Typical symptoms include door opening too far, a hard "clunk" at full travel, or visible damage to the stop

• Disconnect power; also shut off the water supply
• Support the door while servicing the hinge/stop to avoid strain
• Note the original orientation and transfer/secure fasteners firmly
• Open/close the door slowly to ensure smooth movement and proper stop action

Color: Grey

The Flapper Door with Mullion Heater is an OEM part for Whirlpool refrigerators. This part helps seal the gap between the refrigerator and freezer doors, preventing warm air from entering and cold air from escaping.

Causes of a bad flapper door with mullion heater can include wear and tear over time, electrical issues affecting the heater, physical damage from repeated opening and closing of the doors, or warping due to temperature fluctuations.

Symptoms of a bad flapper door with mullion heater include:

• Condensation or frost buildup around the door seal
• Increased energy consumption due to temperature inefficiency
• The refrigerator door not closing properly
• Visible damage or wear to the flapper door or heater

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Door Closer is an OEM part for Whirlpool refrigerators. This component ensures that the refrigerator door closes smoothly and securely, maintaining the seal that keeps cold air inside and warm air out. The door closer helps to prevent the door from remaining ajar, which can lead to increased energy consumption and reduced cooling efficiency.

Causes of a bad door closer can include regular wear and tear, physical damage from repeated use, or misalignment. A malfunctioning door closer can result in the refrigerator door not closing properly, leading to cooling issues and higher energy bills.

Symptoms of a bad door closer include:

• The refrigerator door not closing or sealing properly
• The door not staying closed
• Warm air entering the refrigerator, causing the interior temperature to rise
• Increased energy consumption due to the door not sealing

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
