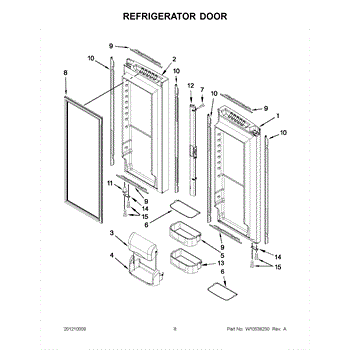

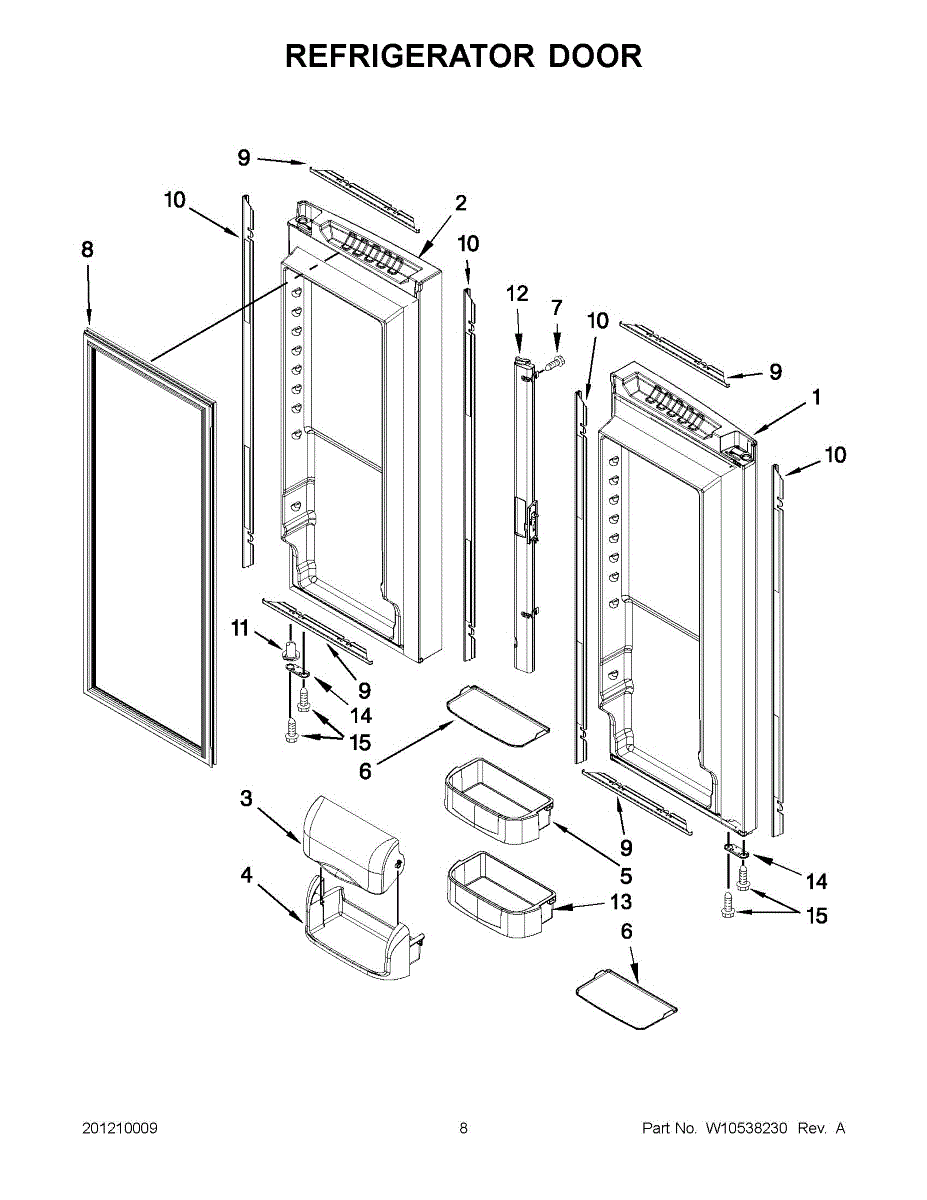

Parts for Kitchenaid KFCO22EVBL5: 04 - Refrigerator Door Parts

The Water Filter is an OEM part for Whirlpool refrigerators. It is designed to filter and purify the water for your refrigerator, ensuring clean and fresh drinking water and ice.

A bad refrigerator water filter can be caused by regular use and the buildup of contaminants over time. It may also become less effective if not replaced according to the manufacturer's recommended schedule.

Symptoms of a bad refrigerator water filter include:

• A decrease in water flow or water pressure.
• An unpleasant taste or odor in the water.
• The presence of particles or sediment in the water.
• Cloudy or discolored ice cubes.

If you notice any of these signs or if it has been more than six months since your last filter replacement, it's time to replace the refrigerator water filter with this genuine OEM part. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


Color: clear. Measures about 11 inches wide by 7 inches high.

Replace a cracked or missing dairy tray on your refrigerator door. This door bin restores a dedicated spot for butter and small items so they stay organized and easy to reach while maintaining a secure fit on the door.

• Mounts on the refrigerator door as the dairy compartment tray
• Holds butter, cheese, and other small items securely
• Restores proper fit when the original tray is cracked, warped, or missing
• Common symptoms: broken tabs, tray falls off, loose/wobbly fit, items spilling when the door opens

• Open the door, lift the old tray straight up and out; align the new tray with the door slots and lower until fully seated
• Handle plastic parts gently and avoid forcing; allow parts to warm to room temperature to reduce risk of cracking
• Confirm both sides are fully engaged before loading items

The Bin-Cntlvr (Cantilever Bin) is an OEM part for Whirlpool refrigerators. This bin attaches to the refrigerator door and provides additional storage space for items like bottles, condiments, and other small containers. The cantilever design allows for easy adjustment and customization of shelf space within the refrigerator door.

Causes of a bad cantilever bin can include overloading the bin with heavy items, accidental impacts, or wear and tear from regular use.

Symptoms of a bad cantilever bin include:

• The bin not staying in place on the door
• Cracks or visible damage to the bin
• Difficulty adjusting or removing the bin
• Items falling out of the bin due to instability

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This mat cushions and protects the appliance base to reduce vibration and help contain small drips or leaks during operation. It's a simple, durable replacement that restores the original fit and helps keep the floor and appliance stable. What it does:

• Dampens movement and vibration to reduce noise and shifting during cycles
• Helps catch minor drips or condensed water beneath the unit
• Restores original cushioning where a worn or missing mat allowed extra movement
• Simple passive part—no electrical or mechanical connections

• One replacement mat as shown

• Place mat under appliance base on a clean, level surface; verify orientation per base shape
• For safety, disconnect power (and water if applicable) before moving the appliance
• Use caution when sliding the appliance to avoid floor damage; get a second person for heavy units
• If ongoing vibration or leaks persist, inspect mounts, leveling legs, and seals for additional repair

This replacement mat is a simple protective liner that helps keep the appliance base area clean and cushions the surface beneath the unit. It preserves finishes and helps contain minor spills and debris for easier cleanup. What it does:

• Provides a washable surface that catches drips, crumbs, and loose debris
• Helps protect cabinet or floor finishes from spills and scuffs
• Reduces direct contact between appliance base and underlying surface
• Can make cleanup faster by containing messes in one removable piece

• Remove old mat and clean the area before installing the new mat
• Position the mat flat and centered under the appliance or in the designated compartment
• Do not place the mat over vents, heating elements, or controls
• Lift or slide gently to avoid shifting the mat; follow all appliance safety and disconnect procedures before servicing

This replacement screw fastens appliance components securely in place. Use it to replace missing, stripped, or corroded hardware so panels, brackets, and covers stay aligned and rattle-free.

• Secures parts such as panels, brackets, covers, or internal assemblies
• Restores alignment and helps eliminate vibration or rattling from loose hardware
• Replaces lost, rusted, or damaged screws during service
• Maintains safe, stable operation by keeping components tight

• Disconnect power before service; if applicable, also shut off water and/or gas
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing
• Use the correct driver bit to prevent stripping the head

Color: Black

The Trim is an OEM component specifically designed for Whirlpool refrigerators. Installed along the outer edge of the refrigerator and freezer doors, the trim seamlessly frames the opening. Its styled accents and durable material withstand frequent use while enhancing the appliance's appearance.

Symptoms of bad trim can include cracks or chips developing from years of opening and closing the doors. Adhesive degradation may cause a loose, uneven fit.

Causes involve normal wear over time exposing the trim to repeated stresses. Impact damage could also compromise its structure.

Symptoms of a bad trim include:

• Gaps allowing air exchange reducing efficiency
• Loose, flapping, or misaligned sections ruining aesthetics
• Cracks or splits compromising the weatherproof barrier

This OEM Whirlpool part is also compatible with KitchenAid, Maytag, Jenn-Air, Amana, and some Kenmore refrigerator models. Replace to restore an integral design element protecting the door seals.

Door trim restores the finished edge and appearance of your refrigerator door while helping protect the gasket area and reduce drafts. Replaces cracked, dented, or worn trim to keep the door looking and sealing properly. What it does:

• Provides a finished edge and restores cosmetic appearance to the refrigerator door.
• Helps protect the door seal area from damage and wear.
• Can reduce visible gaps or drafts that lead to frost buildup or temperature loss.
• Covers exposed fasteners and helps maintain a clean, finished look.

• Unplug the refrigerator or switch off power at the breaker before beginning any work.
• Remove any door-mounted items and handle parts as needed to access trim; follow the refrigerator's OEM service manual for step-by-step removal.
• Use care to avoid scratching the finish; gloves are recommended to protect hands and part edges.

Color: Black

The Door Closure is an OEM replacement part for Whirlpool refrigerators. It is a small component that the door rides on that allows it to open and close properly.

Causes of impaired operation involve age-related spring coil fatigue, dislodged or cracked plastic housing pieces, or confined door alignment stripping closure grooves.

Symptoms of a faulty closure include:

• Cool air escaping around door edges driving up energy costs
• The fridge unable to maintain set interior temperatures
• Inability to securely latch doors closed

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

Color: Black

The Door Bin is an OEM replacement part for Whirlpool refrigerators. Mounted on the refrigerator doors, bins conveniently organize stored items.

Causes of replacement consist of excess weight occasionally placed in bins can bow or warp tray structures over extended use as well.

Symptoms involve:

• Bins that no longer securely anchor or drift loose within doors
• Warped configurations insufficiently containing particular items
• Scratches or defects that harbor bacteria on surrounding surfaces

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing
