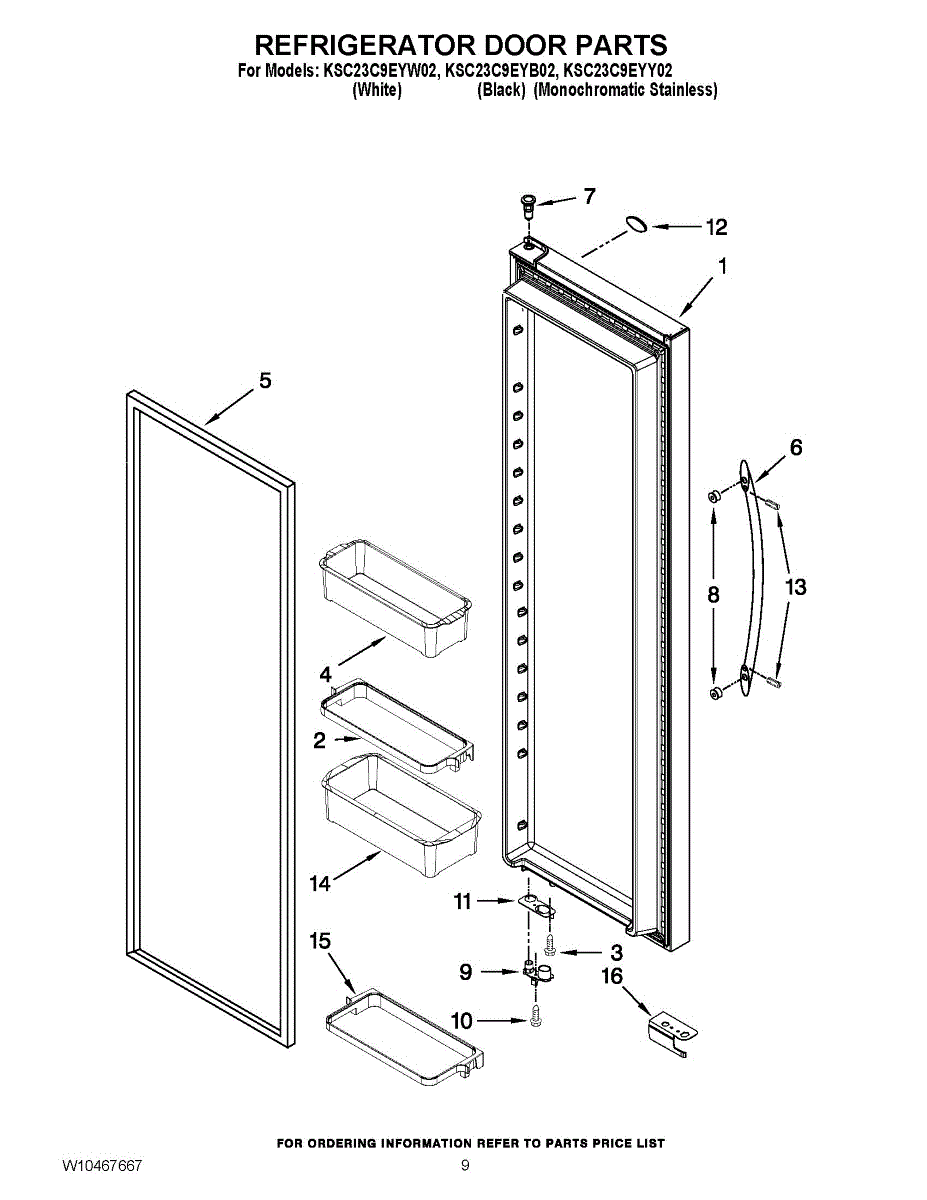

Parts for Kitchenaid KSC23C9EYB02: 06 - Refrigerator Door Parts

Removes contaminants for clean, great-tasting water and ice. Replace every 6 months or when indicator light activates. Verify fit with your model number.

Door bin frame that holds removable door bins in place. Replace if cracked, broken, or worn from impact or overloading. Installs on refrigerator door.

Factory fastener secures appliance panels, brackets, and internal components. Replace worn, stripped, or missing screws to restore tight fit and alignment.

Replacement door bin for side-by-side refrigerators. Installs on the refrigerator door for condiment and snack storage. Order if cracked or broken.

Replace your refrigerator's freezer door gasket to restore proper sealing and energy efficiency. Fixes air leaks and frost buildup. Verify fit with your model.

Refrigerator door gasket creates an airtight seal to maintain temperature. Replace if torn, cracked, or loose to prevent warm air leaks and energy waste.

Refrigerator door gasket seals your door to keep cold air in. Replace if the seal is loose, torn, or the door won't close properly. Confirm fit by model.

Replacement handle for refrigerator doors. Installs on refrigerator or freezer compartments. Replace if cracked, broken, or damaged during transport.

Black handle for refrigerator doors and drawers. Replace a cracked, loose, or missing handle to restore a secure grip and refresh your appliance's look.

Top door hinge thimble bearing supports the upper refrigerator hinge for smooth door operation. Replace if cracked, worn, or causing popping noises.

Shoulder bolt screw that secures refrigerator door handles. Replace if missing, stripped, or loose to restore proper handle attachment and alignment.

Replaces a worn or broken door closing cam thimble in your refrigerator hinge assembly. Restores the smooth ramp action needed for proper door movement.

Thimble bushing that fits inside the refrigerator door cam to create a smooth bearing surface on the hinge pin. Replace if worn, cracked, or missing.

The Door Closure Cam is an OEM replacement part for Whirlpool refrigerators. It is a small lever located inside refrigerator doors that engages the latch bolt when closing. The closure cam ensures doors are securely fastened shut to maintain optimal cooling temperatures.

Causes of a bad closure cam can include worn or loose mounting points preventing engagement, cracked or broken lever components, or door latch mechanisms that inhibit full closure.

Symptoms of a bad door closure cam include:

• The refrigerator door not closing fully or latching securely
• Cool air escaping around door edges
• Higher energy bills from excessive compressor run times
• Interior condensation or frost buildup from improper seals

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models

Replace missing or stripped 10-32 machine screws that secure refrigerator brackets, panels, and trim. Restores tight fit and proper alignment.

Mounts to the bottom hinge to limit door swing angle. Replace if your refrigerator door opens too far, hits the wall, or the bracket is bent or broken.

Color: White

This headless, cup-point set screw secures a component to a shaft or hub inside your appliance. The 1/4-28 x 3/8 in size bites into the mating surface to prevent slipping, helping keep collars, pulleys, or knobs aligned and stable.

• Locks a hub, collar, or pulley to a shaft to prevent movement
• Helps maintain alignment and reduce wobble or vibration
• Replaces missing, stripped, or damaged set screws
• Common signs include components slipping on a shaft, rattling noises, or recurring loosening

• Disconnect power before servicing
• Clean threads and align with any flat on the shaft before tightening
• Start threads by hand to avoid cross-threading; tighten securely without overtightening
• Recheck tightness after a brief test run

Replacement door bin for refrigerator fresh food compartment. Restores organized storage when original is cracked, broken, or missing. Secures bottles.

Supports the door bin on your refrigerator's inner door. Replace this frame if it's cracked, broken, or missing to restore secure storage for condiments.

Wire cover cap for refrigerator. Snaps over exposed wiring to protect and conceal connections. Replace if cracked, broken, or missing for a clean finish.

This black plastic cover fits over the door stop hinge area on the refrigerator, concealing the stop mechanism and providing a clean exterior finish. It snaps onto the cabinet near the door hinge location. Replace this cover if it is cracked, missing, or damaged, which can leave the door stop hardware exposed and detract from the appliance's appearance.

Protective cover that shields and organizes refrigerator wire harnesses. Replaces cracked, broken, or missing covers to prevent wire chafing and exposure.
