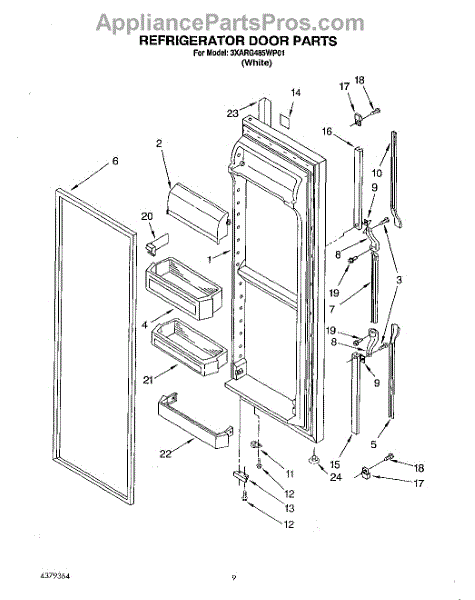

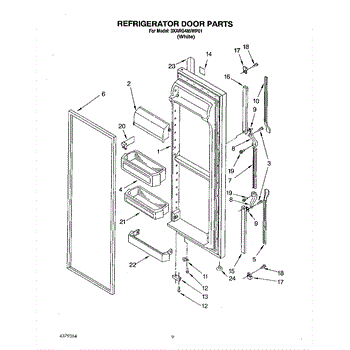

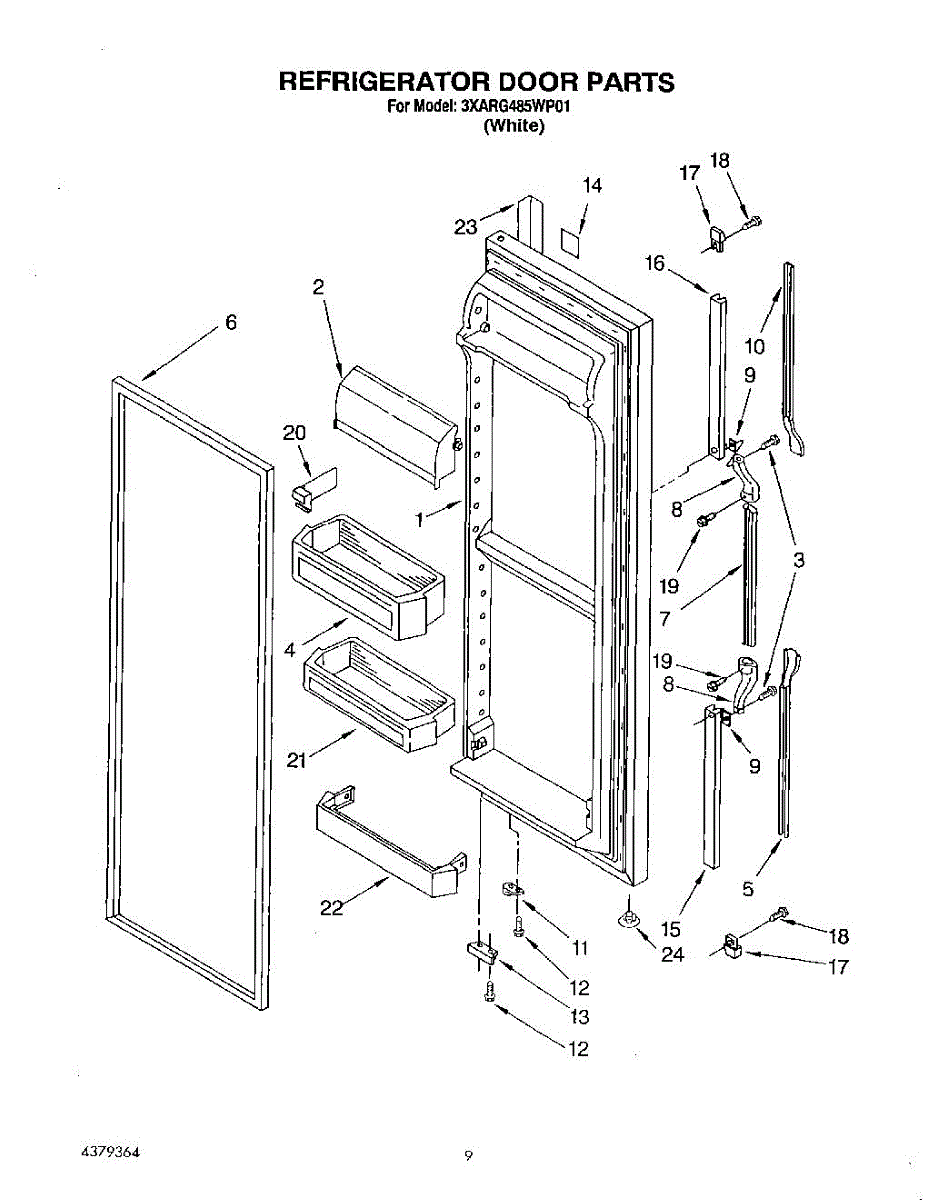

Parts for Whirlpool 3XARG485WP01: 06 - Refrigerator Door Parts

The Compartment Door is an OEM component for Whirlpool and Kenmore built-in refrigerator models. It provides access to organized storage in the fridge's fresh food compartment. The compartment door measures approximately 15” long by 6” wide.

As a high-use access point, the door endures constant opening/closing stresses. Over extended periods, normal wear gradually reduces the quality and integrity of its cushioned sealed closure.

Symptoms include:

• Difficulty fully closing/latching the compartment door
• Loud squeaking or sticking during operation

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

The Refrigerator Door Gasket (Beige) is an OEM replacement part specifically designed for Whirlpool-brand refrigerators. The gasket is responsible for preventing warm air and moisture from entering the refrigerator when doors close. The gasket measures approximately 19 ¼” wide x 62" tall.

Causes of a gasket issue can include cracking and degradation due to repeated compression over many years of use. Sections may lose elasticity and no longer seal tightly.

Symptoms of a bad gasket include:

• High energy costs as the system works to maintain proper cooling
• Warm, humid interior environment allowing food decay
• Visible air leaks around gasket edges when doors are shut

This part is also compatible with Maytag, KitchenAid, Jenn-Air, and other brands.

The Door Closer Kit is an OEM part for Whirlpool refrigerators. This kit contains essential components for smooth refrigerator door closing: door cams and screws ensure gentle closure, proper seal, and prevent cool air leakage.

Parts in a door closer kit can wear out over time from frequent use, causing issues like improper closing, the need for extra force to shut, or failed sealing, affecting the refrigerator's cooling.

Symptoms of a bad Door Closer Kit include:

• The refrigerator door feels loose or wobbles when opened or closed
• The door does not close fully on its own or requires extra force to close
• You notice an increase in the refrigerator’s energy consumption due to cool air leaking
• Condensation or frost buildup near the door seal area due to improper sealing

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This replacement screw secures appliance panels, brackets, and internal components so your unit stays assembled, aligned, and quiet. Use it to replace missing, stripped, or corroded hardware and restore a reliable factory-fastened connection.

• Fastens panels, brackets, or trim to the cabinet/frame
• Helps maintain proper alignment of doors, controls, or covers
• Replaces hardware that's missing, rusted, or with a stripped head
• Can help reduce vibration or rattling from loose fasteners

• Disconnect power and shut off gas/water supplies before service
• Match thread and length to the original; transfer any washers if present
• Start threads by hand to avoid cross-threading, then tighten with the correct driver
• Do not overtighten; snug until secure to prevent damage to plastic or sheet metal

Chrome. No longer made in black.

The Door Shelf is an OEM replacement part for Whirlpool refrigerators. Located on the interior fridge door, it provides a sturdy resting place for storing condiments, beverages, and other small items conveniently within reach. The shelf measures about 17 inches wide by 4 inches high by 5 inches deep.

Causes of a damaged door shelf can include sagging or deflection from long-term weight loads. Cracks may also develop in shelf material from repeated door openings/closings exerting stress over many years of use.

Symptoms include:

• Visible cracks and crevices presenting snagging hazards
• Inability to hold modest item weights without bowing
• Shelves becoming unmounted or falling loose inside doors
• Disorganization from lack of dedicated storage surfaces

Compatible models include Maytag, Jenn-Air, KitchenAid, and select GE refrigerators.
