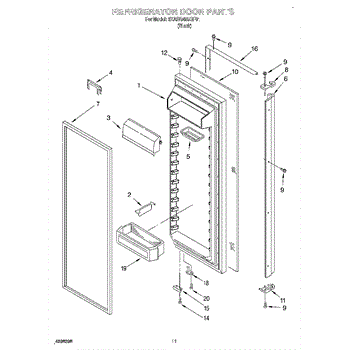

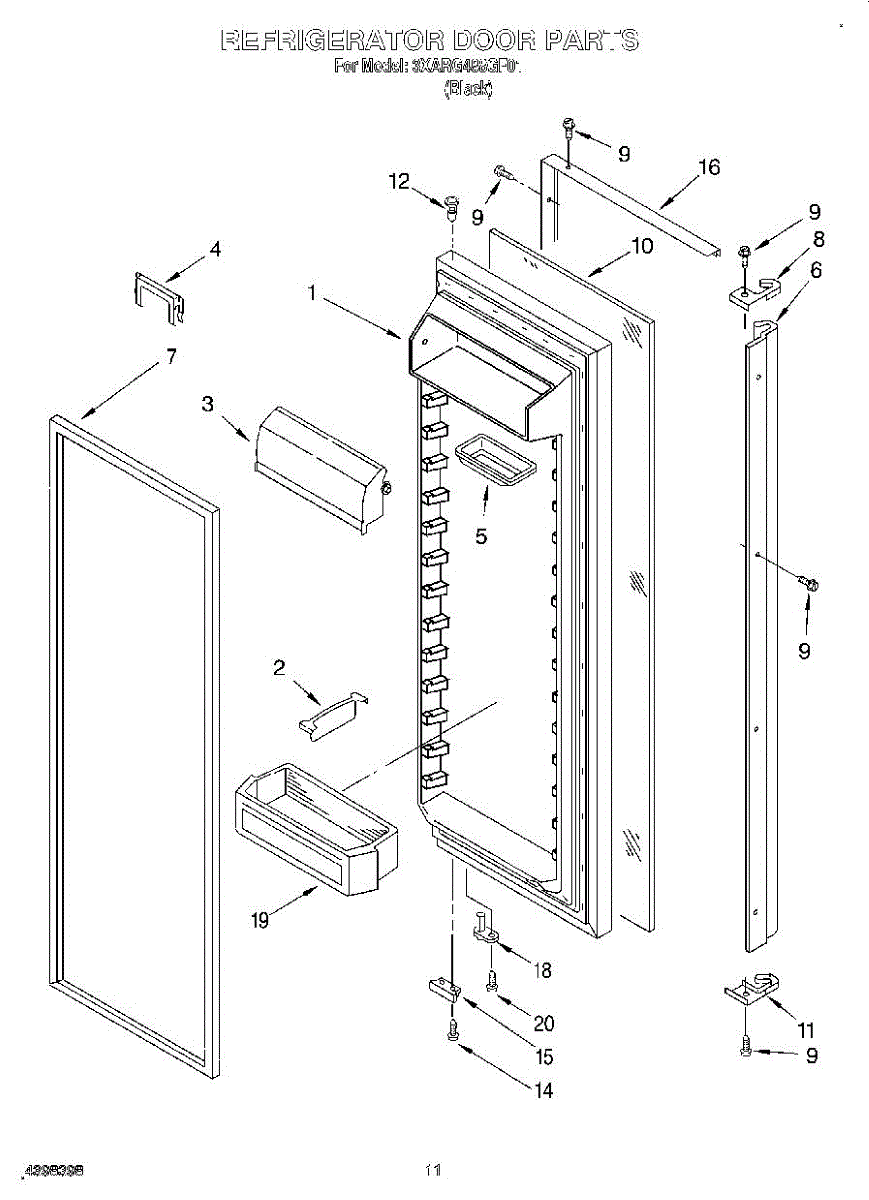

Parts for Whirlpool 3XARG488GF01: 07 - Refrigerator Door Parts

The Compartment Door is an OEM component for Whirlpool and Kenmore built-in refrigerator models. It provides access to organized storage in the fridge's fresh food compartment. The compartment door measures approximately 15” long by 6” wide.

As a high-use access point, the door endures constant opening/closing stresses. Over extended periods, normal wear gradually reduces the quality and integrity of its cushioned sealed closure.

Symptoms include:

• Difficulty fully closing/latching the compartment door
• Loud squeaking or sticking during operation

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Refrigerator Door Gasket (BLK) is an OEM part for Whirlpool refrigerators. This black gasket is designed to create a tight seal around the refrigerator door, preventing warm air from entering and cool air from escaping. The gasket is black in color and measures approximately 19 ¼” wide by 62" tall.

Causes of a bad door gasket can include wear and tear from regular use, damage from cleaning chemicals or sharp objects, or warping due to temperature fluctuations. Over time, the gasket may lose its flexibility and sealing ability.

Symptoms of a bad door gasket include:

• The refrigerator door not closing properly
• Visible cracks or tears in the gasket
• Condensation or frost buildup around the door seal
• Increased energy bills due to the refrigerator working harder to maintain temperature

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Door Thimble, Top is an OEM part for Whirlpool refrigerators. This component is used to support and secure the door hinge, ensuring smooth and stable opening and closing of the refrigerator door.

You should replace the door thimble if it becomes damaged or worn out. Causes of a bad door thimble include wear and tear from frequent use, stress from heavy door loads, or damage from accidental impacts. A faulty thimble can lead to misalignment of the door, causing it to sag or not seal properly.

Symptoms of a bad Door Thimble, Top include:

• Difficulty in opening or closing the door
• The door not aligning correctly with the refrigerator frame
• Noticeable sagging or wobbling of the door
• Unusual noises when the door is moved

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Screw is an OEM replacement part for Whirlpool appliances. The precise threads allow screws to join or assemble other parts securely.

Causes of a bad screw can include stripping, cracking, or loss of threads due to repeated installation/removal over time. Corrosion is also possible depending on environmental conditions.

Symptoms of a bad screw include:

• Loosened or detached components that were once fastened
• Reduced structural integrity of connections or assemblies
• Potential safety hazards if critical parts become dislodged

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Door Upper Closure Cam is an OEM part for Whirlpool refrigerators. It is designed to provide proper closure and alignment for the refrigerator door. The upper closure cam is located on the top hinge of the refrigerator door and works in conjunction with the lower closure cam to ensure a tight seal and prevent air leaks.

Causes of a bad upper closure cam can include regular use, accidental damage, or excessive force applied to the door.

Symptoms of a bad upper closure cam include:

• Difficulty in closing or opening the refrigerator door.
• The door not staying securely closed.
• Uneven gaps or misalignment between the door and the refrigerator cabinet.
• Excessive noise or squeaking when operating the door.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This bin door is the replacement cover for a refrigerator crisper/bin area, restoring a sealed, secure closure for fresh-food storage. It helps keep produce contained and reduces moisture loss by closing the crisper compartment. What it does:

• Replaces a cracked, broken or missing crisper/bin door to restore proper closure
• Helps keep fruits and vegetables contained and prevents items from falling out
• Promotes even humidity control in the crisper by allowing the drawer to seal
• Fits into the bin/drawer track and latches as intended when undamaged

• Disconnect power before working near electrical components or lighting to avoid shock
• Remove the crisper drawer to access mounting points; install by seating hinges/latches into tracks per the original orientation
• Inspect surrounding rails and clips; replace any damaged hardware for a secure fit
• Handle with care to avoid scratching or cracking the new plastic during installation

This replacement screw secures panels, brackets, and internal components in Whirlpool-built appliances. Use it to replace missing or stripped hardware to restore a snug fit, reduce rattling, and maintain proper alignment. What it does:

• Fastens components to the appliance cabinet or frame
• Helps maintain alignment and proper clearances
• Reduces vibration-related noises from loose or missing hardware
• Common replacement when a screw is lost, corroded, or threads are damaged

• 1 screw

• Disconnect power before service; for gas appliances, also shut off gas supply
• Start threading by hand to avoid cross-threading; use the correct driver bit
• Tighten snugly without overtightening to prevent stripping
• Inspect and replace any worn clip/nut or damaged threads
